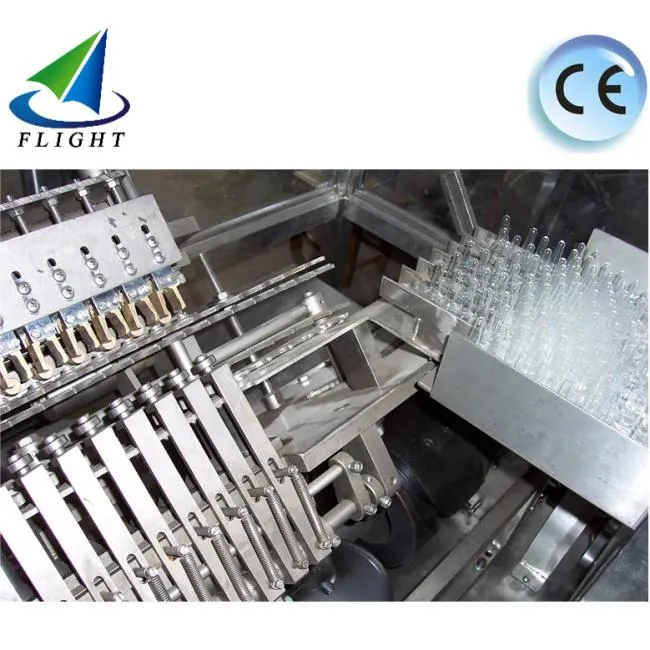

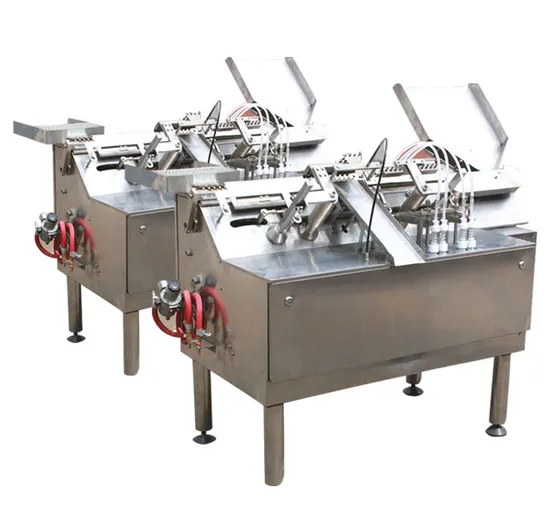

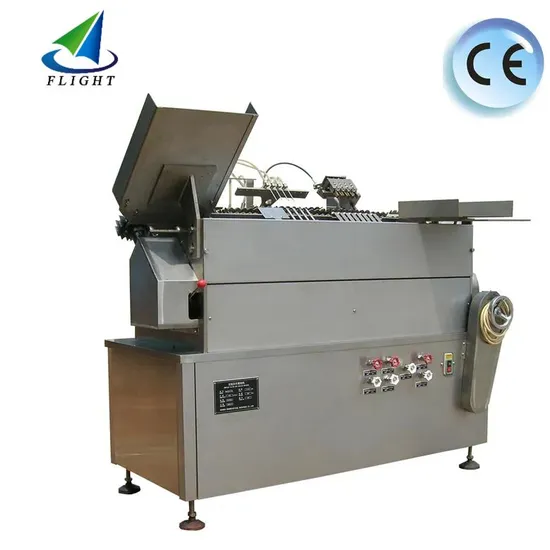

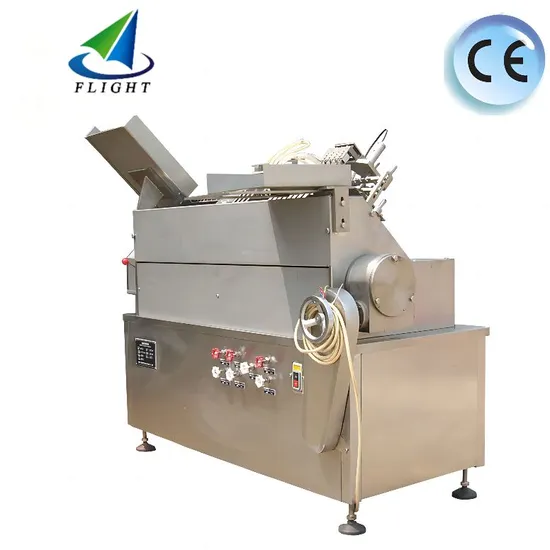

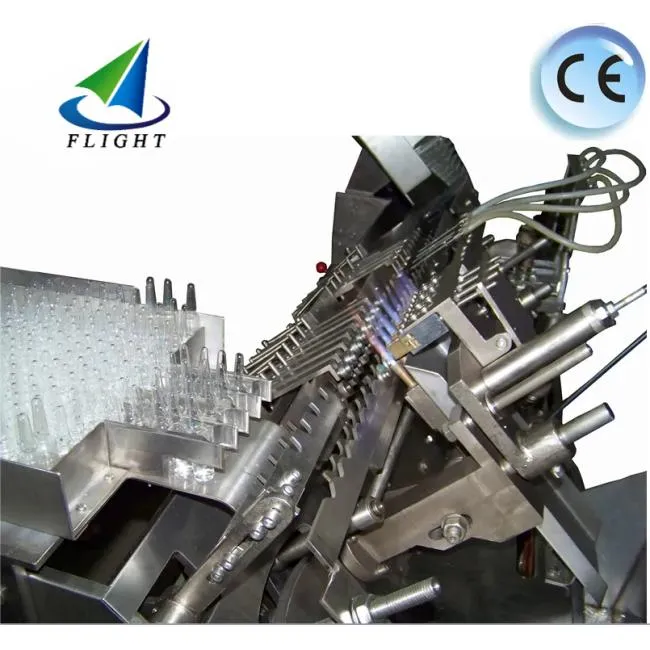

我司新研发的这一系列安瓿瓶机，是安瓿瓶拉丝、灌装、封罐一体化设备的更新换代产品。它采用矩形送料方式，替代了传统的安瓿瓶送料方式，使送料更加稳定，破碎率降低。安瓿瓶送料斗下方安装了新的离合器装置，这样即使在机器运转时，也可以随时停止安瓿瓶的送料，有效减少安瓿瓶的损耗。在停止填充的部分，将原来的电磁开关改为了机械开关，使机器更加可靠耐用。瓶身反转和瓶身排序结构被应用于瓶身出口装置，极大地降低了成品安瓿瓶的破损率。此机器适合医药厂家使用，每2、4或6支安瓿瓶为一组，一起移动到每个工作位置进行瓶身喂料、预先氮气填充、液体填充、后氮气填充、瓶身预热和瓶口封口。本机结构简洁，操作方便，质量稳定，深受欢迎。

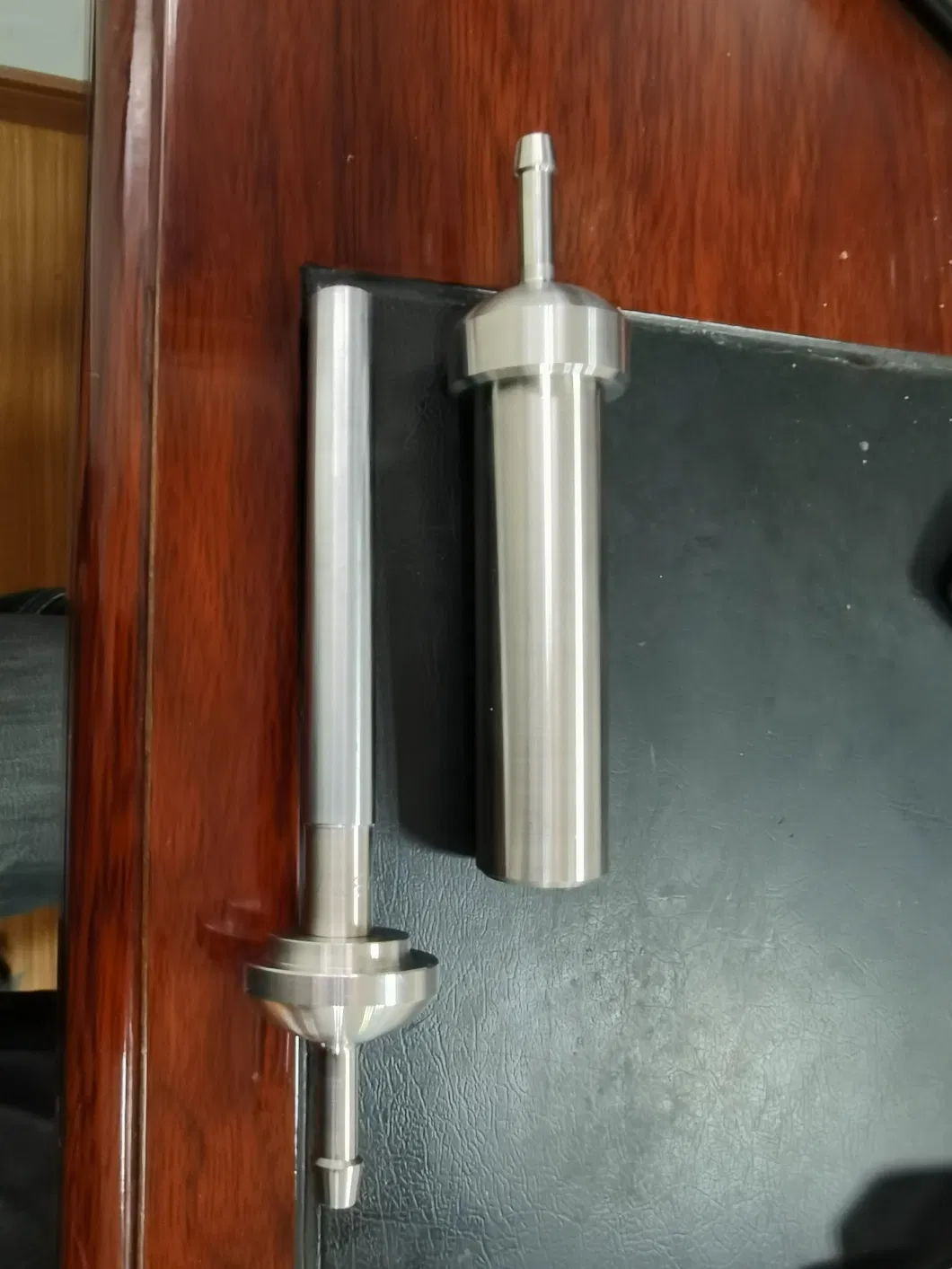

机器可配备不锈钢泵，对溶液有较高要求的可配备不锈钢泵，允许溶液无污染地流入安瓿瓶。
The machine can be equipped with stainless steel pump, and those with high requirements for solution can be equipped with stainless steel pump to allow the solution to enter the ampoule without pollution

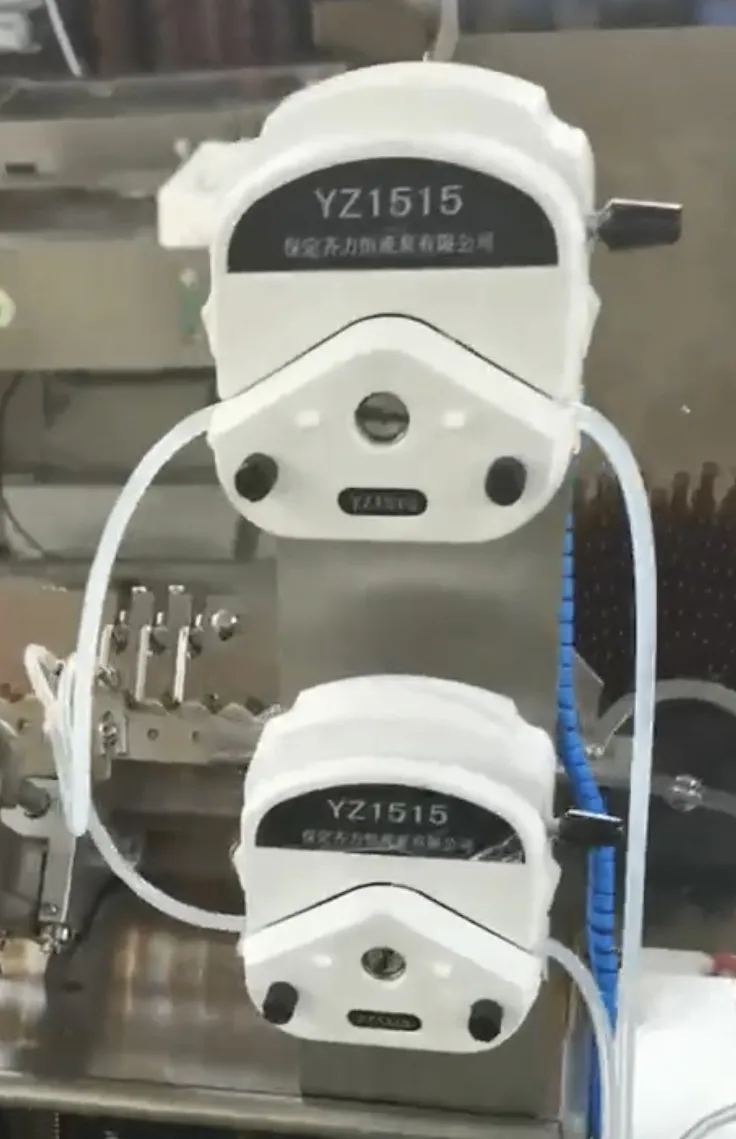

该机器可以与蠕动泵配对。对于流动性较差的液体，例如高粘度的油性液体或填充糊，可以使用蠕动泵进行填充，效果非常好。
The machine can be paired with a peristaltic pump. For liquids with poor fluidity, such as oily liquids with high viscosity or filling paste, peristaltic pumps can be used for filling, and the effect is very good
产品参数
Product Parameters

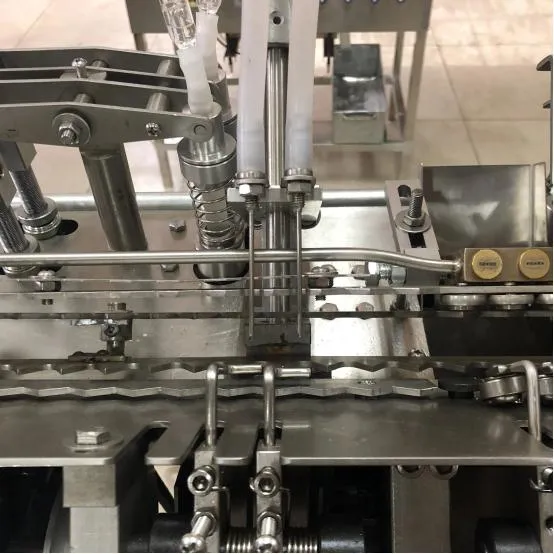

高精度灌装头用于确保与液体接触的部件完全采用304不锈钢制造，符合制药GMP标准
High precision filling head is used to ensure that the parts in contact with the liquid are completely made of 304 stainless steel, meeting the pharmaceutical GMP standard

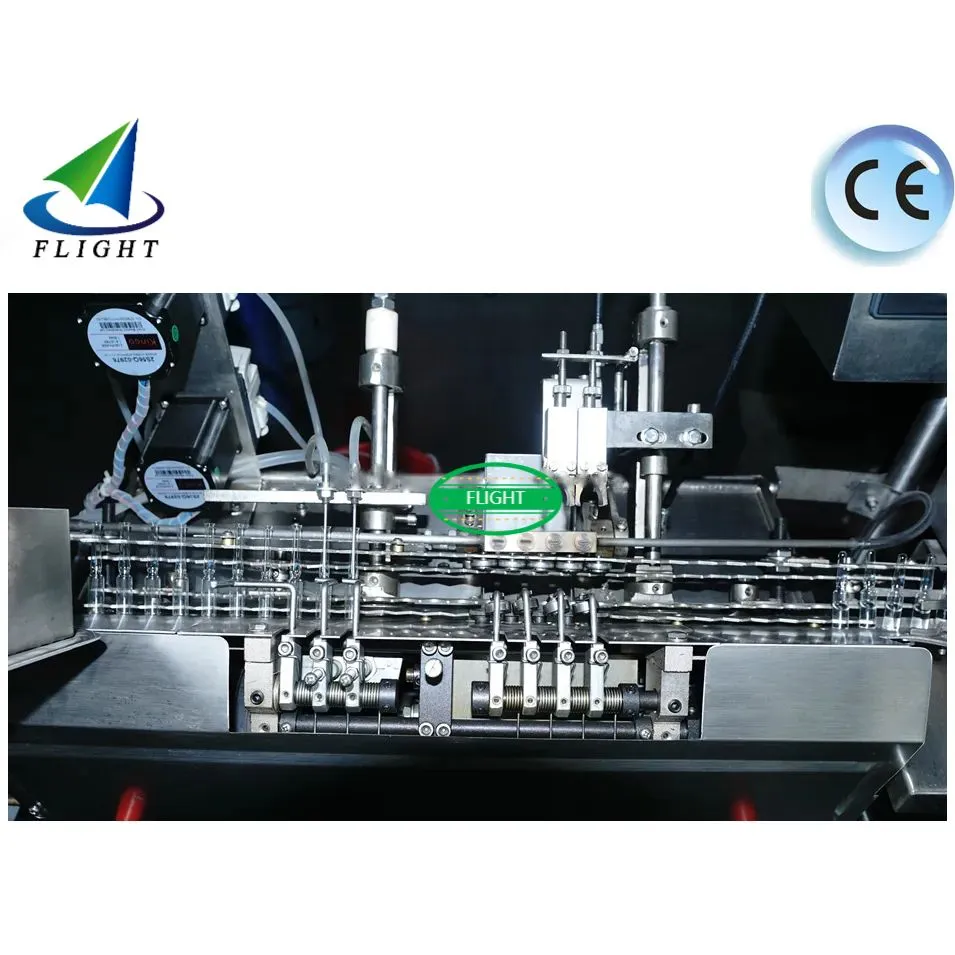

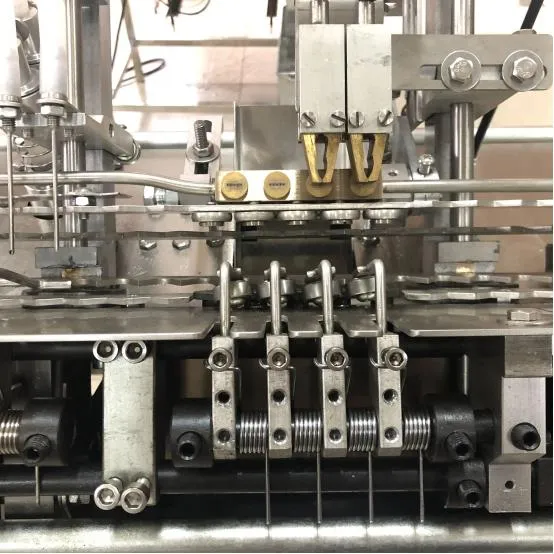

这台机器配备了两套火警提示装置，一套是预热火警提示装置，另一套是拉火警提示装置，还有密封装置
This machine is equipped with two sets of fire tips, one is the preheat fire tip, the other is the pull fire tip, and the sealing
效率为99.8%
efficiency is 99.8%.

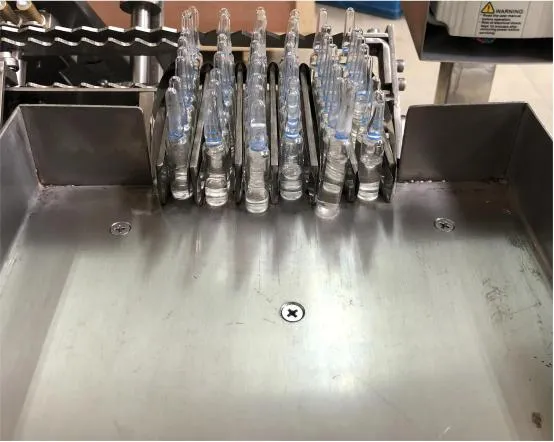

瓶身收集端口平稳且稳固，不会出现碰撞挤压导致瓶身损坏的情况。它采用宽口连接，便于清洁
The bottle collection port is smooth and stable, and there will be no collision and extrusion resulting in bottle damage. It adopts a wide mouth connection for convenient cleaning

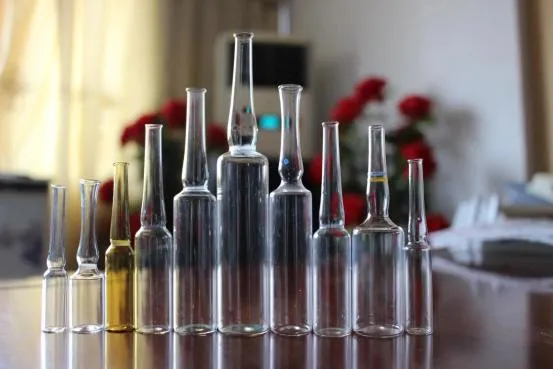

适用于各种标准安瓿瓶，我们也可以定制特殊安瓿瓶和生产模具
Suitable for various standard ampoule bottles, we can also customize special ampoule bottles and production molds
安瓿瓶国家标准规格与尺寸（mm） GB 2637-1995
National standard specification and size of ampoule (mm)
GB 2637-1995
安瓿瓶国际标准规格及尺寸（mm）
ISO 9187-1:1991
International standard specification and size of ampoule (mm)
ISO 9187-1:1991
如果必须减小颈部外径以减少颗粒，应由制造商和用户共同商讨确定。
漏斗和圆头的外径尺寸不得大于延伸线尺寸。
偏差仅适用于以下限制条件：d1 >（d4 + 1）的实际尺寸。
偏移偏差应在密封点进行测量。
If
it is necessary to reduce the outer diameter of neck , i . g. to reduce particles ,it should be consulted between the manufacturer and user.The outer diameter of funnel and round head must not be larger in size than the extension line.The tolerance is effective only with the following
limitation: d1 >
the actual size of (d4 +1)
The offset
tolerance should be measured at the sealing point.

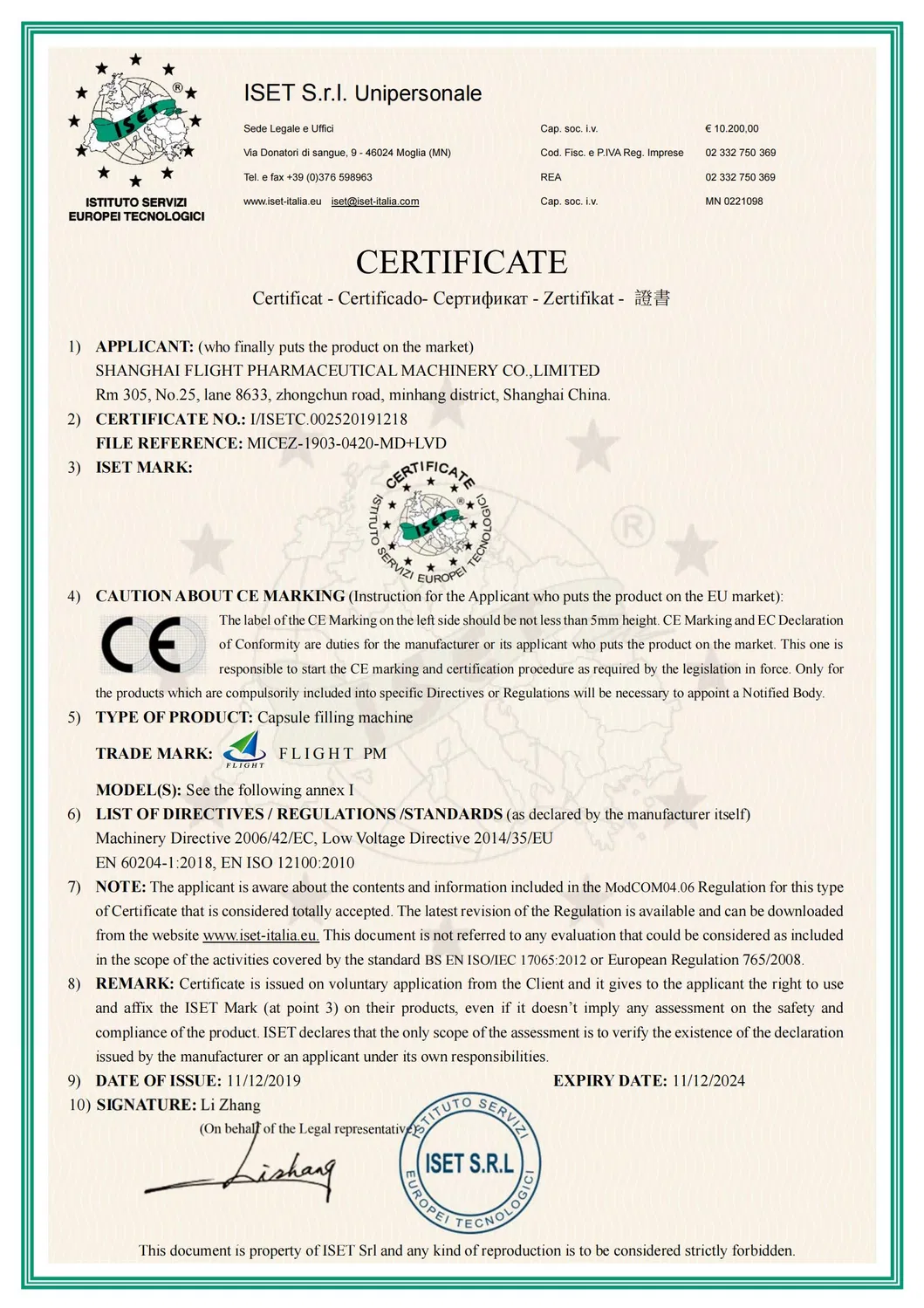

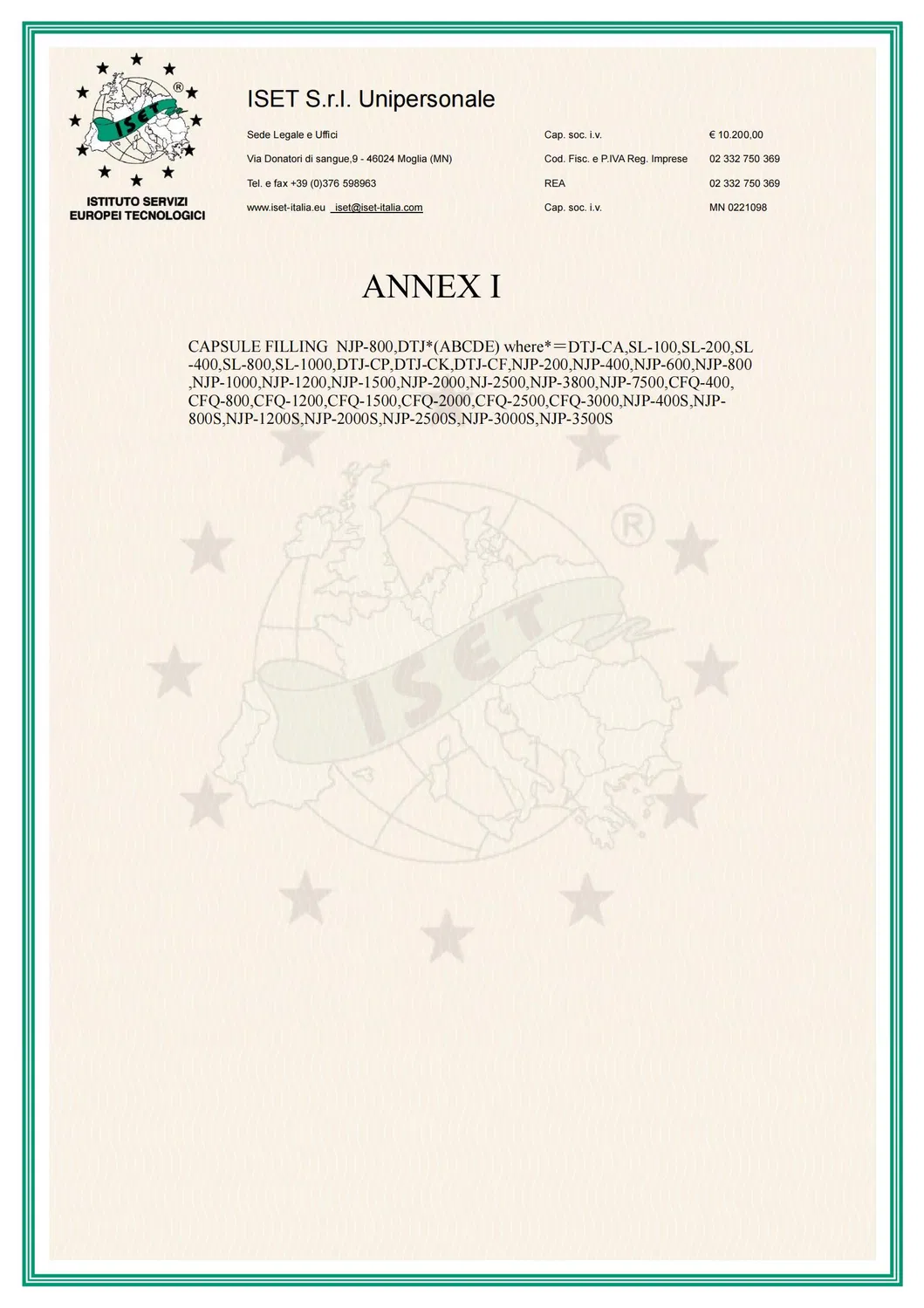

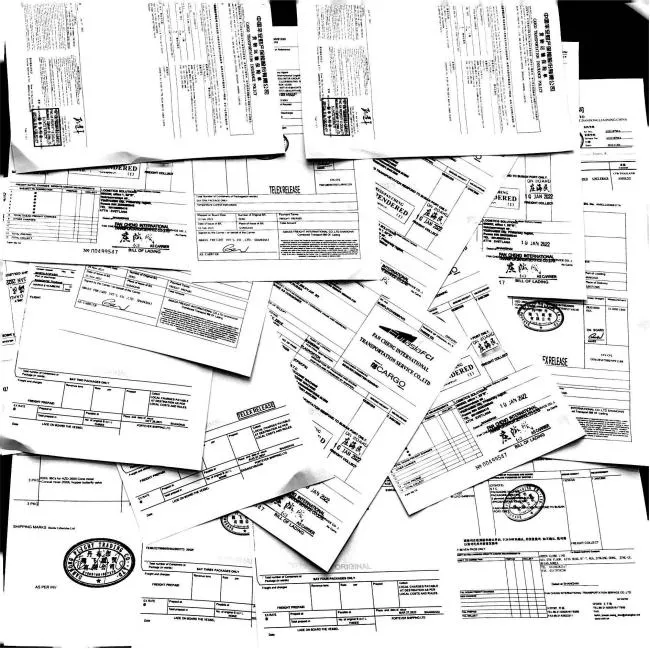

证书与交易记录
Our certificates and transaction
records

我们拥有丰富的出口经验，并享有全球客户
We have rich export experience and enjoy global customers

我们采用加厚的双层出口木箱包装，以确保机器安全。我们提供工厂包装视频，以确保机器完整性。在运输方面，我们的货运代理可以确保运输的安全和及时性。我们也可以接受客户指定的所有运输方式用于出口。过去15年里，我们的业务熟练度可以解决所有客户的问题，确保客户能够顺利快速地获得商品。
We use thickened double export wooden cases to ensure the safety of the machine We provide ex factory packing videos to ensure the integrity of the machine. In terms of transportation, our freight forwarder can ensure the safety and timeliness of transportation. We can also accept all transportation modes designated by customers for export. Over the past 15 years, our business proficiency can solve all customers' problems and ensure that our customers can get the goods smoothly and quickly.

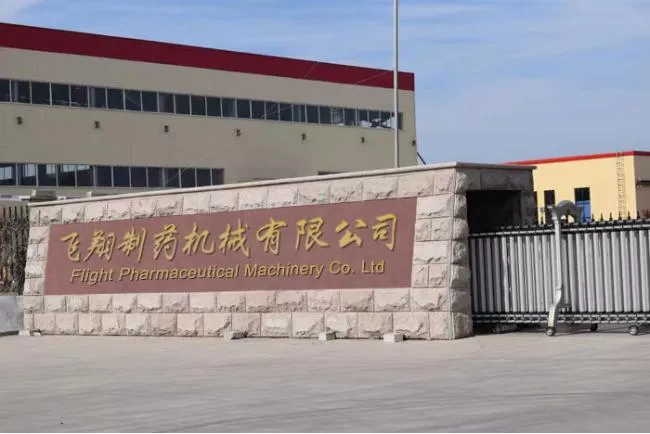

丹东飞行制药机械有限公司位于中国百强县之一的丹东东港市，是中国医药装备协会会员，已通过ISO9001:2000认证。其总部上海飞行制药机械有限公司创立于1999年，是中国较早的医药生产线制造商。公司秉持“诚信共赢”的企业理念，以诚信经营，以礼待天下。公司致力于提供更高质量、更好服务、更低价格的产品。凭借先进的技术，我们生产一流的药物设备，主要专注于制粒机、灌装线、包装线以及各种中小型设备的生产。多年来，我们持续改进和创新，与国内外近100家制造商和客户建立了合作关系，并欢迎国内外客户与我们进行技术交流。我们为他们提供免费的技术指导，以期与时俱进，共同进步！公司凭借一流的质量、一流的服务、一流的声誉和一流的产品，在中国创造高品质产品，搭建友谊之桥。公司衷心希望与业内朋友携手合作，共同提高国内医药技术的技术水平。
Dandong Flight Pharmaceutical Machinery Co., Ltd. is located in Dandong Donggang City, a top 100 County in China. It is a member of China Pharmaceutical Equipment Association and has passed ISO9001:2000 certification. The head office Shanghai Flight Pharmaceutical Machinery Co., Ltd., founded in 1999, is an earlier manufacturer of pharmaceutical production lines in China.The company is based on the enterprise concept of "integrity and friendship", establishes its business in good faith and wins the world with courtesy. Achieve higher quality, better service and lower price. We have advanced technology to produce first-class pharmaceutical equipment. It mainly focuses on the production of tablet press, filling line, packaging line and various small and medium-sized equipment. Over the years, we have continuously improved and innovated, reached cooperation with nearly 100 manufacturers and customers at home and abroad, and welcome customers at home and abroad to exchange technology with us.We provide free technical guidance to them, so as to make common progress with the times! With first-class quality, first-class service, first-class reputation and first-class products, the company creates high-quality products in China and builds a bridge of friendship. The company sincerely hopes to work with friends in the industry to improve the technical level of domestic pharmaceutical technology.

我们的公司技术
Our company's
technology

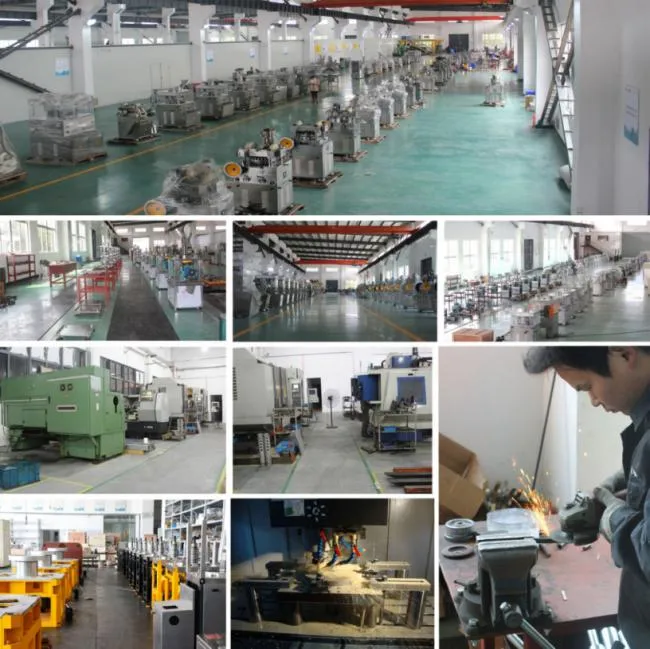

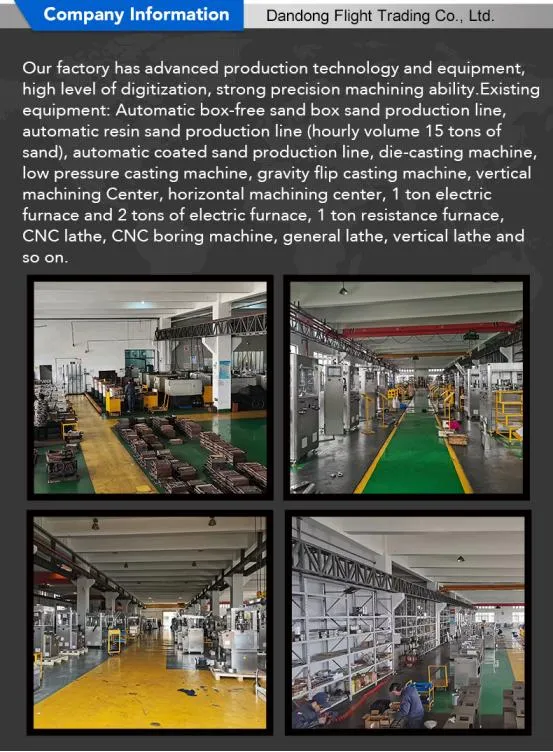

我们的车间进行了现代化改造，配备了高精度加工设备，如立式加工中心和卧式加工中心、数控龙门铣床和数控车床等。
Our workshops were modernized, and equipped with high precision processing facilities such as vertical and horizontal machining centers, digital CNC gantry milling machine and NC lathes, etc.
我们公司先进的技术为我们的车间配备了高精度的加工设施，如立式、卧式加工中心、数控龙门铣床和数控车床等。
Our company's
technologyOur workshops were modernized, and equipped with high precision processing facilities such as vertical and horizontal machining centers, digital CNC gantry milling machine and NC lathes, etc.
售后服务
After Sales Service

价格条款：
Price Term:
FCA上海T/T付款
1.FCA Shanghai T/T payment
付款条款：生产前付50%TT，交货前付50%TT
2.Payment Terms: 50%TT before production +50%TT before delivery
提前期：3-21
3.Lead Time: 3-21
预付和样品收到后的工作日
working days after receipt of prepayment and samples
包装：木箱包装，符合国际运输标准。
4. Package: in wooden box, confirm to international transportation standard.
技术标准：符合GMP和相关国际规定。
5.Technical Standard: Confirm to GMP and relative international regulation.
供应商提供自产品之日起12个月免费质保
6.Warranty: The supplier provides 12 months free warranty since the date that the product
经过调整并符合标准，在此期间没有进行人为破坏。供应商
was adjusted and qualified, and there is no artificial destruction in this period. Supplier
提供终身服务支持
provides lifetime service support.
安装、调试和培训
7.Installation, Adjustment and Training
卖家提供关于如何安装、调试和使用机器的工具和视频
The seller provides instrument and video about how to install, adjust and use the machine as
机器准备好后尽快。当用户使用过程中出现问题时，卖家提供准时服务。
soon as the machine is ready. The seller provides on-time service when user have use problem.
卖家可以派一名工程师到买方工厂进行安装和调试
The seller can dispatch one engineer to the buyer's factory for installation and commissioning
关于培训和差旅，买方应承担食宿、回程机票和签证费用。
and training, the buyer should be responsible for the room and board and the go-back air tickets and visa fee.

关于你们的制药机械质量如何？回答：我们的工厂拥有超过十年的机械加工经验；我们的所有机器都获得了ISO9001、SGS证书、CE证书；已出口到许多国家和区域；已获得客户的好评。关于你们的制药机械价格如何？回答：我们任何时候都会把质量作为工厂的生命，无论价格对我们来说是优是劣。质量第一，在高质量的基础上，您一定会得到合理且满意的价格。你们如何保证下单后机器的质量？回答：发货前，我们会发送机器的照片和视频给您，或者您可以亲自来我们这里进行质量检测，或通过您这边的第三方检测机构。关于你们的制药机械的安装服务和售后服务如何？回答：
1. 质保一年，如果需要，我们会提供备件或派工程师到您那边，我们会随时为您提供服务，24小时，7天。
2. 我们已经准备了技术手册和操作视频给我们的客户，那么安装和使用机器将很容易。
3. 在我们的工厂或您那边或通过视频免费培训您的工人。
Q: What about your pharmaceutical machine quality?A: Our factory has more than 10 years experience in mechanical processing; all our machines already get IS09001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer's good reputation.Q: What about your pharmaceutical machine price?A: Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied pricel.Q: How can you ensure the machine's quality after we put the order?A: Before the delivery, we will send you machine's pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.Q: What about your installation service and sales service for pharmaceutical machine?A: 1>Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.3>It is free to train your worker in our factory or in your side or by video.
