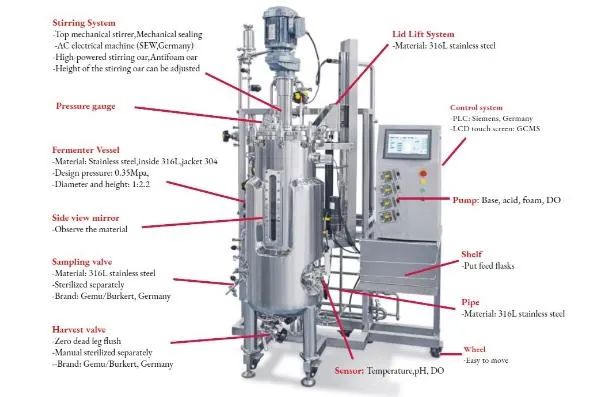

材质：内层316L不锈钢，外层304不锈钢
直径与高度比例：1:2-3
混合方法：可选磁力搅拌或机械搅拌其中一种
灭菌方法：现场灭菌 自动控制或手动控制
控制系统：西门子PLC，工业LCD触控电脑控制，参数可设置存储，可通过USB接口远程连接电脑，数据
搅拌系统
机械密封系统：高功率搅拌桨，消泡桨；交流电机：无级调速；发酵罐中的转速：50~1000 rpm±1%，搅拌桨的高度可调节
温度检测与控制
恒温水箱加热，并通过循环泵自动控制循环（冷却水+5ºC）至65ºC±0.1ºC，温度探针（PT100）
pH 检测与控制
2.00-12.00±0.05 pH，通过加酸碱自动调节，pH传感器和屏蔽线。发酵罐通过蠕动泵自动控制
DO 检测与控制
0-150±3% 显示精度 0.1%，传感器和屏蔽引线
给料控制
使用蠕动泵添加材料
消泡控制
通过传感器测试并通过蠕动泵加入消泡剂
进气控制（空气）手动控制转子流量计
压力检测与控制
压力控制： 压力计和数字显示以及数字远程控制，压力控制
我们提供符合研究、开发、试验和生产应用需求的发酵设备。

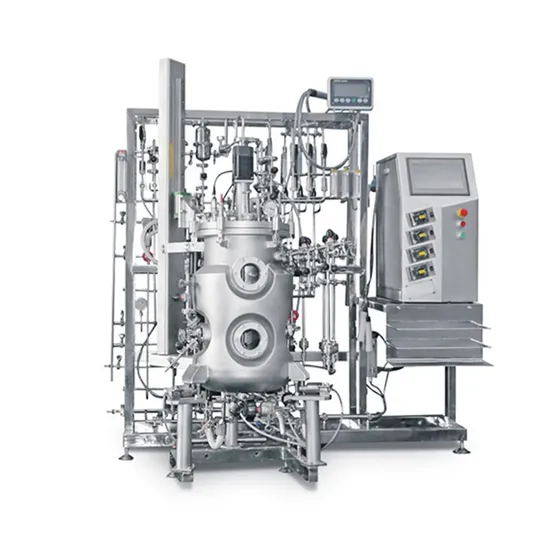

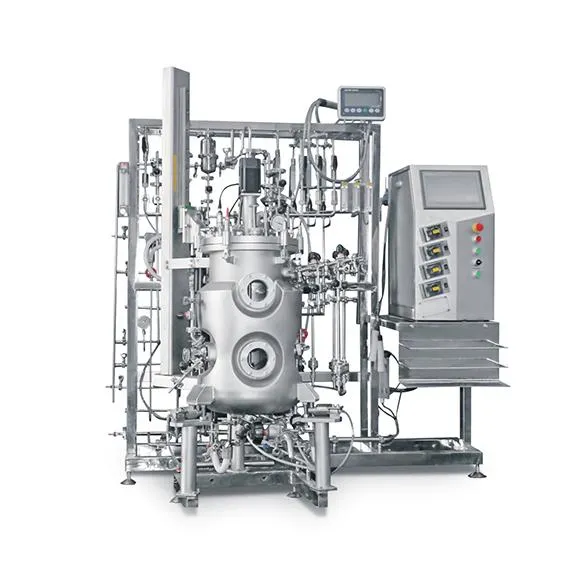

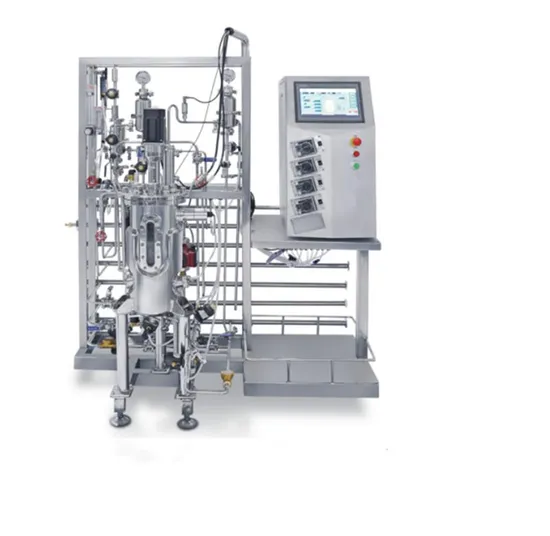

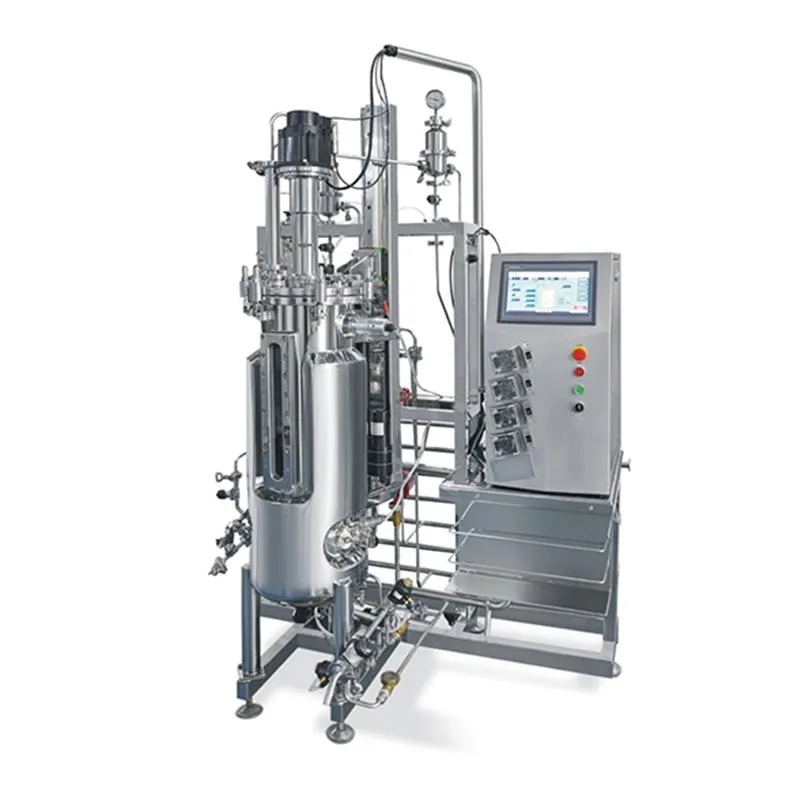

细胞反应器用于完成从种子扩增到生产培养的细胞培养过程，包括各种材料的转移和混合、温度、压力、pH值、溶解氧（DO）、泡沫、液位和体积的精确控制和显示，以及补碱量、补液量、补液速率、无菌过滤、进气量、氧气、二氧化碳和氮气（如有）的测量和显示，还包括对排气冷凝、加热和无菌过滤的良好控制，以及生产过程中必要的在线清洗和灭菌操作等。
The cell reactor is used to complete the cell culture process from seed expansion to production culture, including the transfer and mixing of various materials, the precise control and display of temperature, pressure, pH, DO (dissolved oxygen), foam, liquid level and volume as well as the amount of alkali replenishment, replenishment volume, replenishment rate, the aseptic filtration, measurement and display of incoming air, oxygen, carbon dioxide and nitrogen (if any), the good control of condensation, heating and aseptic filtration of exhaust, the necessary online cleaning and sterilization operations during the production process, etc.
能够在最大工作体积下满足现有生产工艺对温度、压力、pH 值、溶解氧（DO）、泡沫等的要求。控制液位，接种CHO细胞后48小时-72小时内细胞密度增加5-15倍，密度达到2.0×105个细胞/毫升-4.0×107个细胞/毫升。罐体的所有参数均可控制。
The ability to meet the temperature, pressure, pH, DO, foam and other requirements of existing production processes at the maximum working volume. The control of liquid level, cell density increased 5-15 times in 48h-72h after inoculation of CHO cells, with densities of 2.0×105Cells/mL-4.0×107Cells/mL. All parameters of the tank can be controlled.

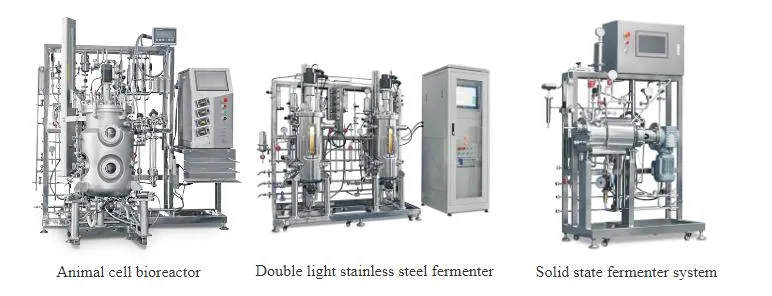

我们可以生产多条生产线，如：
We can produce many production lines, such as:
胰岛素生产线/发酵罐设备（包括所有技术服务与合作）
Insulin production line/fermentation tank equipment (including all technical services and cooperation)
疫苗生产线/发酵罐设备（包括所有技术服务与合作）
Vaccine production line/fermentation tank equipment (including all technical services and cooperation)
抗生素生产线/发酵罐设备（包括所有技术服务与合作）
Antibiotic production line/fermentation tank equipment, (including all technical services and cooperation)
赖氨酸生产线/发酵罐设备（包括所有技术服务与合作）
Lysine production line/fermentation tank equipment, (including all technical services and cooperation)
葡萄糖生产线/发酵罐设备（包括所有技术服务与合作）
Glucose production line/fermentation tank equipment (including all technical services and cooperation)
柠檬酸生产线/发酵设备（包括所有技术服务与合作）
Citric acid production line/fermentation equipment (including all technical services and cooperation)
阿莫西林生产线/发酵设备（包括所有技术服务与合作）
Amoxicillin production line/fermentation equipment (including all technical services and cooperation)
产品参数
Product Parameters

我们能提供的服务：-计算与设计-与工艺、土木、给排水、电气及仪表控制等相关的数据和图纸-设备制造-工厂内验收检验与测试（包括工厂验收测试FAT）-包装与运输-安装指导、安装、调试及试运行（需由卖方完成）-安装和调试所需的所有配件、装置和工具（均由本公司提供）-提供竣工信息（包括用于认证要求的验证或确认文件）-使用与维护培训-售后服务；
Services we can provide:-Calculation and design-Data and drawings related to process, civil engineering, water supply and drainage, electrical and instrumentation control, etc.-Equipment manufacturing-In-plant acceptance inspection and testing(Including FAT tests)-Packing & Transportation-Installation instructions, installation, commissioning, and trail run that need to be done by the seller.-All accessories, apparatus and tools required for installation and commissioning (All provided by our company).-Provision of as-built information (including validation or confirmation documents for certification requirements)-Training in use and maintenance-After-sale services;

福州福乐流体设备及制药有限公司是一家集医药生产设备研发、生产、建设，生物技术开发与转让，以及药品和疫苗合作生产和销售为一体的综合性企业。公司自主研发的FUL品牌医药生产设备已在国药集团、石药集团等多家知名制药企业投入运行，并在医药中间体、原料药及成品药制剂的生产和销售方面与众多知名制药企业展开合作。
Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd is a comprehensive enterprise which integrates R & D, production and construction of pharmaceutical production equipments, development and transfer of biotechnology, and cooperative production and sales of drugs and vaccines. The self-developed pharmaceutical production equipment branded FUL has been put into operation in many well-known pharmaceutical enterprises such as SINOPHARM, CSPC and also cooperates with many well-known pharmaceutical enterprises in production and sales, including pharmaceutical intermediates, APIs and finished drug preparations.
福州福联流体设备及医药有限公司的业务辐射到各个层面，包括与政府部门和行业代表的直接供应合作，以及与零售行业的供应合作关系。我们以合理的价格，向不同国家的政府、医院、诊所和持牌药店提供高质量、安全有效的药品和医疗设备，并提供及时有效的服务。
Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd business radiates to all levels, including direct supply cooperation with government departments and industry representatives, as well as establishing supply cooperation relationship with retail industry. We supply high quality, safe and effective medicines and medical equipment to governments, hospitals, clinics and licensed pharmacies in different countries with timely and effective services at reasonable prices.
目前，福州福瑞液体设备与制药有限公司拥有国药集团授权，销售其中间体和原料药，并委托国药集团中抗制药有限公司和华北制药销售其成品药制剂；因此，福瑞是中国唯一一家能提供从制药生产线、中间体、原料药到成品药制剂和疫苗等全方位服务的制造商。然后，我们正在寻求专业的制药企业进行进一步的合作。
At present Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd has the Sinopharm authorization to sell its intermediates and APIs,and has the Sinopharm of CSPC & HUABEI PHARM sell its finished drug preparations;then FUL is the only manufacture in China which can supply the complete service from pharmaceutical produciton lines,intermediates and APIs to finished drug preparations and vaccines.Then we are seeking the professional pharmaceutical enterprices to work together for further cooperations.
福州福乐流体设备及制药有限公司是一家集医药生产设备研发、生产、建设，生物技术开发与转让，以及药品和疫苗合作生产和销售为一体的综合性企业。公司自主研发的FUL品牌医药生产设备已在国药集团、石药集团等多家知名制药企业投入运行，并在医药中间体、原料药及成品药制剂的生产销售上与多家知名制药企业展开合作。福州福乐流体设备及制药有限公司业务范围广泛，包括与政府部门和行业代表进行直接供应合作，以及与零售行业建立供应合作关系。我们以合理价格向不同国家的政府、医院、诊所和持牌药店提供高质量、安全有效的药品和医疗设备，并提供及时有效的服务。目前，福州福乐流体设备及制药有限公司已获得国药集团的授权，销售其中间体和原料药，并通过国药集团的石药中奇及华北制药销售其成品药制剂；因此，FUL是中国唯一一家能提供从医药生产线、中间体、原料药到成品药制剂和疫苗完整服务的制造商。我们现正寻求专业的制药企业进行进一步合作。
Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd is a comprehensive enterprise which integrates R & D, production and construction of pharmaceutical production equipments, development and transfer of biotechnology, and cooperative production and sales of drugs and vaccines. The self-developed pharmaceutical production equipment branded FUL has been put into operation in many well-known pharmaceutical enterprises such as SINOPHARM, CSPC and also cooperates with many well-known pharmaceutical enterprises in production and sales, including pharmaceutical intermediates, APIs and finished drug preparations.Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd business radiates to all levels, including direct supply cooperation with government departments and industry representatives, as well as establishing supply cooperation relationship with retail industry. We supply high quality, safe and effective medicines and medical equipment to governments, hospitals, clinics and licensed pharmacies in different countries with timely and effective services at reasonable prices.At present Fuzhou FUL Fluid Equipment & Pharmaceutical Co., Ltd has the Sinopharm authorization to sell its intermediates and APIs,and has the Sinopharm of CSPC & HUABEI PHARM sell its finished drug preparations;then FUL is the only manufacture in China which can supply the complete service from pharmaceutical produciton lines,intermediates and APIs to finished drug preparations and vaccines.Then we are seeking the professional pharmaceutical enterprices to work together for further cooperations.
我们的优势
Our Advantages
1. 快速发货
2. 在线支付
3. 质量保证
4. 欢迎大订单
5. 24小时售后服务
6. 竞争优势产品
7. 我们的价值观信息是“质量是我们的文化”
8. 与我们合作，为您提供安全的资金，您的业务得到安全保护，我们的优势
1. Quick delivery
2. Online payment
3. Quality assurance
4. Welcome big order
5. After-sales service 24 hours
6. Competitive advantage products
7. Our value information is "Quality is our culture"
8. Work with us to provide you with secure funds, your business is securely protected, our advantages

1. 你们是工厂还是贸易公司？
回答：我们是工厂。
2. MQQ 是什么？
回答：1 个。
3. 你们提供海外服务吗？
回答：是的，我们可以派遣工程师到海外。
4. 我们可以参观你们的工厂吗？
回答：是的，非常欢迎。
5. 你们的交货时间是多少？
回答：2 周到 3 个月。这取决于尺寸和数量。
1. Are you a factory or a trading company?
Answer: We are a factory.2. What is MQQ?
Answer: 1 unit.3. Do you provide overseas services?
Answer: Yes, we can send engineers overseas.4. Can we visit your factory?
Answer: Yes, you are very welcome.5. What is your delivery time?
Answer: 2 weeks to 3 months. It depends on the size and quantity.
