1. INTRODUCTION
The industrial production of chemical, pharmaceutical and biotechnological products places high demands on the process technology used. Here, in particular, on mechanical separation technology which is gaining in importance in these markets. This is because the efficiency of the separation process is increasingly impacting the quality of the end product as well as the economy and environmental-compatibility.
Huading Separator has played an instrumental part for more than 60 years in the advancement of mechanical separation technology. The separators and decanters represent quality at its highest level and state-of-the-art mechanical engineering and process technology.Huading disc separators are widely used for the separation of microbes and their debris such as treatment of vaccine, amino acid , enzyme, starter culture and other fermented products, because they are designed and manufactured with the aim to separate and purify cell protein, to extract material during the production of antibiotics, alkaloids and hormones, and to separate animal plasma.
2. SPECIFICATIONS
4. APPLICATION
Pharmaceutical agents such as vitamins, plant and organ extracts, antibiotics, enzymes, hormones and other biological agents are extremely sensitive and precious. Huading Separator Industry offers separators and decanters in gas-tight and explosion-proof design that ensure their gentle extraction and thus forms an important basis for medical advance. Whether liquid-liquid, liquid-liquid-solid or liquid solid, whether single-stage or multi-stage method in co-current, counter-current or crossflow principle, Huading Separator Industry covers all methods and modes of operation.
Separators and decanters for plant extracts:
Alkaloids
- Morphine
- Codeine
- Caffeine
- Cocaine
- Ergot
- Quinine
- Rauwolfia
- Digitalis etc.Herbal medicines
Special pharmaceutical agents
Medicinal teas
Essential oils
Scents
Antibiotics
- Penicillin
- Erythromycin
- Tetracyclin
- Bacitracin
- Clavulanic acid
- Cyclosporine etc.Statins
- Lovastatin
- Pravastatin etc.Steroids / hormones
- Corticosteroid
- Growth hormone
Organ extracts
- Insulin
- Pancreatin
- Lab
- Placenta extract etc.Pectines
Vitamins
Aromatic materials

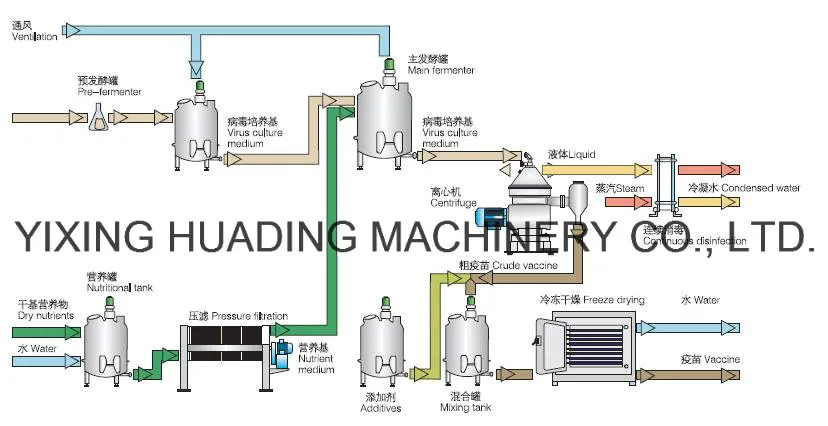

5. FLOWCHART

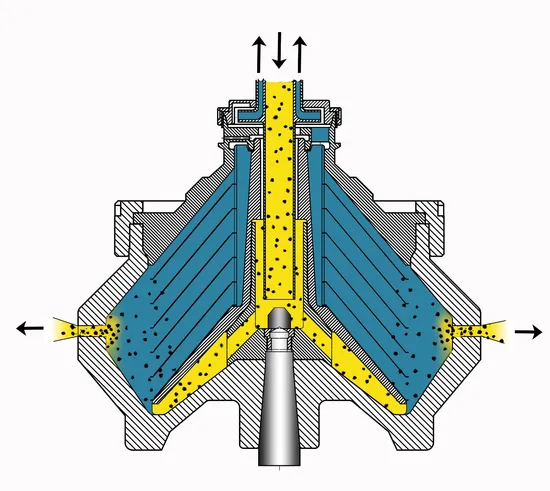

6.Working principle
The disc stack centrifuge separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers. The area where these two different liquid phases meet is called the interface position. This can be easily varied in order to ensure that the separation takes place with maximum efficiency.
The disc stack provides additional surface settling area, which contributes to speeding up the separation process dramatically. It is the particular configuration, shape and design of these plates that make it possible for a disc stack centrifuge to undertake the continuous separation of a wide range of different solids from either one or two liquids.
The concentrated solids phase formed by the particles can be removed continuously, intermittently or manually, depending on centrifuge type and the amount of solids involved in the specific application.
