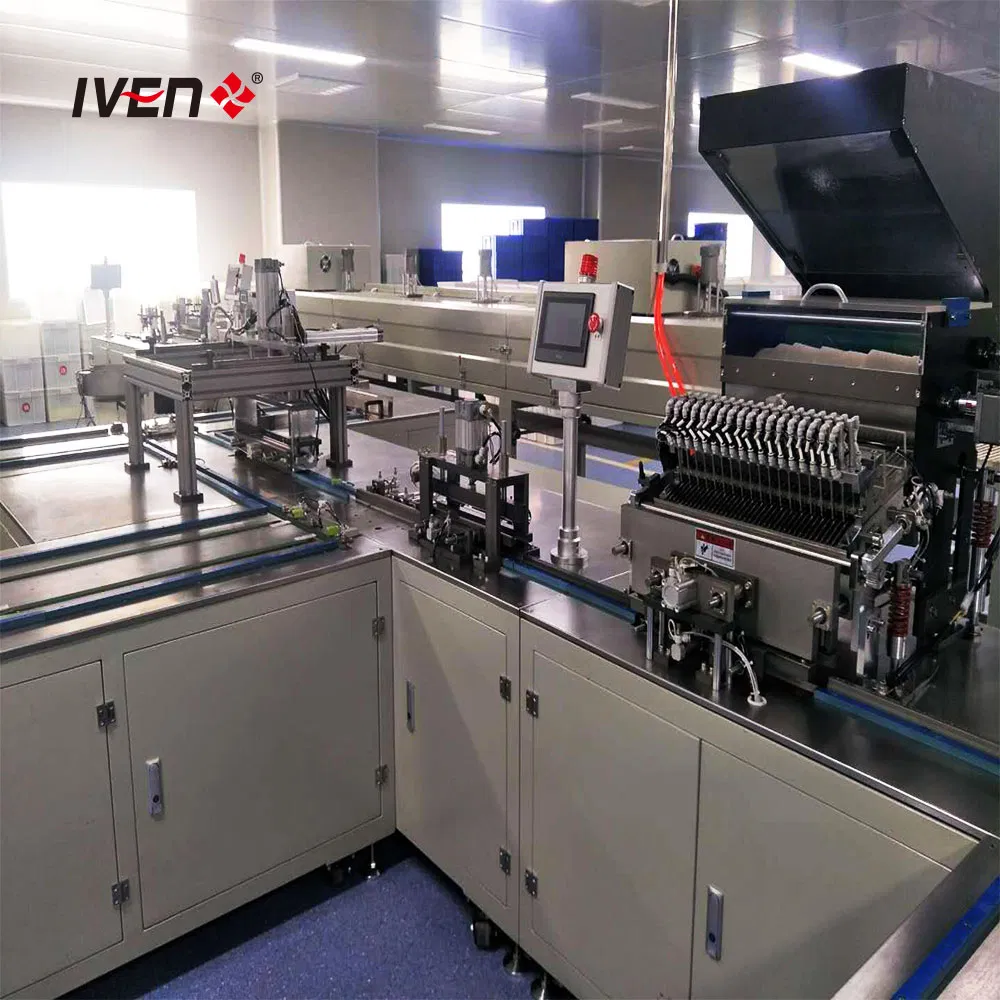

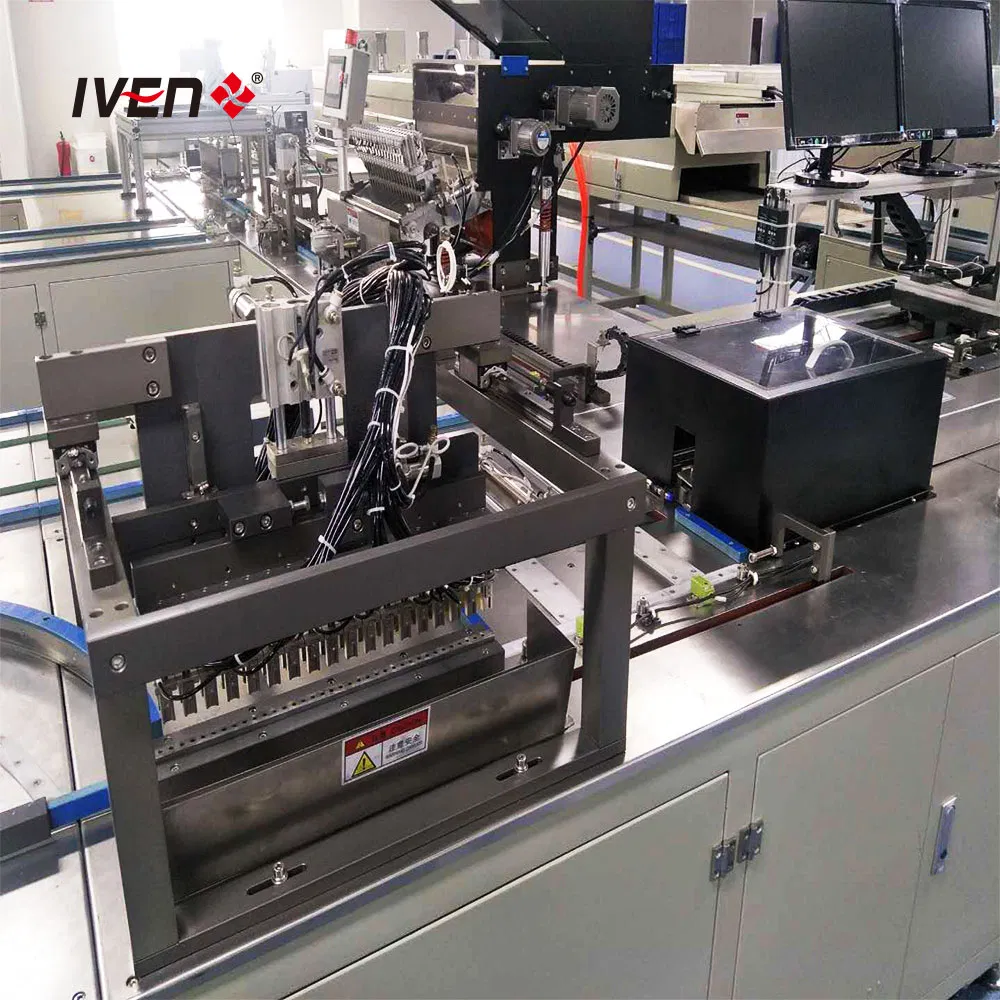

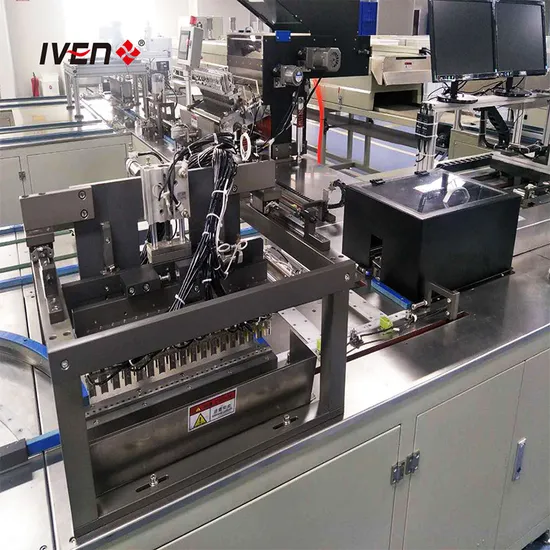

采血针装配机用于笔式采血针的组装。它全自动运行，操作简单安全，配有独立的PLC和HMI控制，只需3-4名工人就能管理好整条生产线。与其他制造商相比，我们的采血针装配机整体尺寸更小，运行更稳定智能，故障率更低，维护成本更低等。

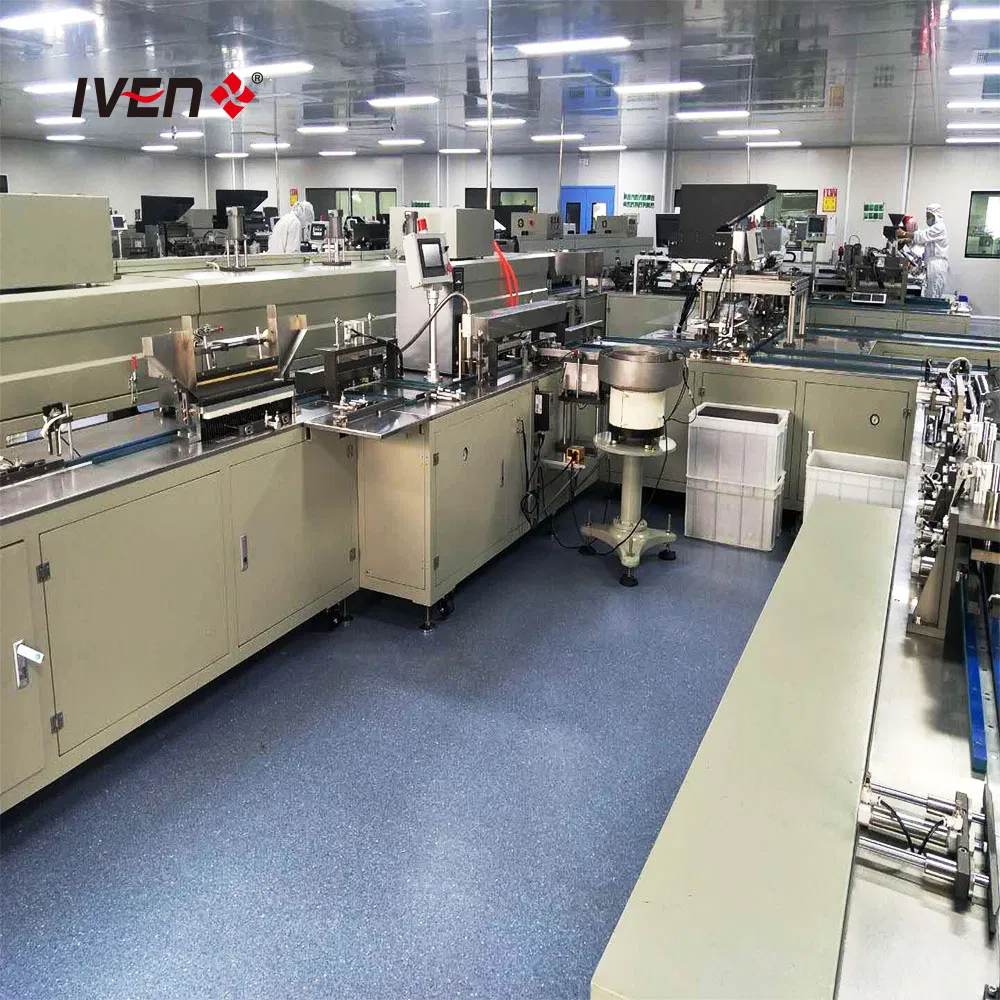

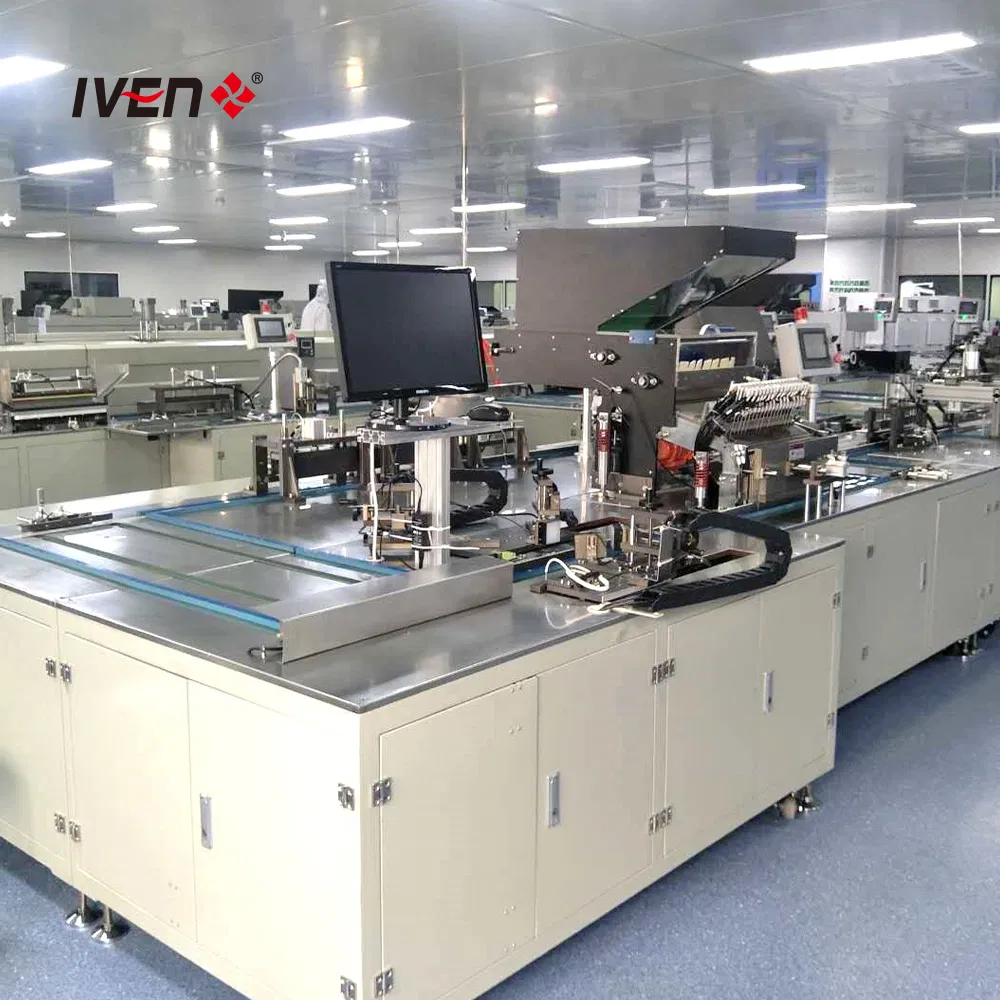

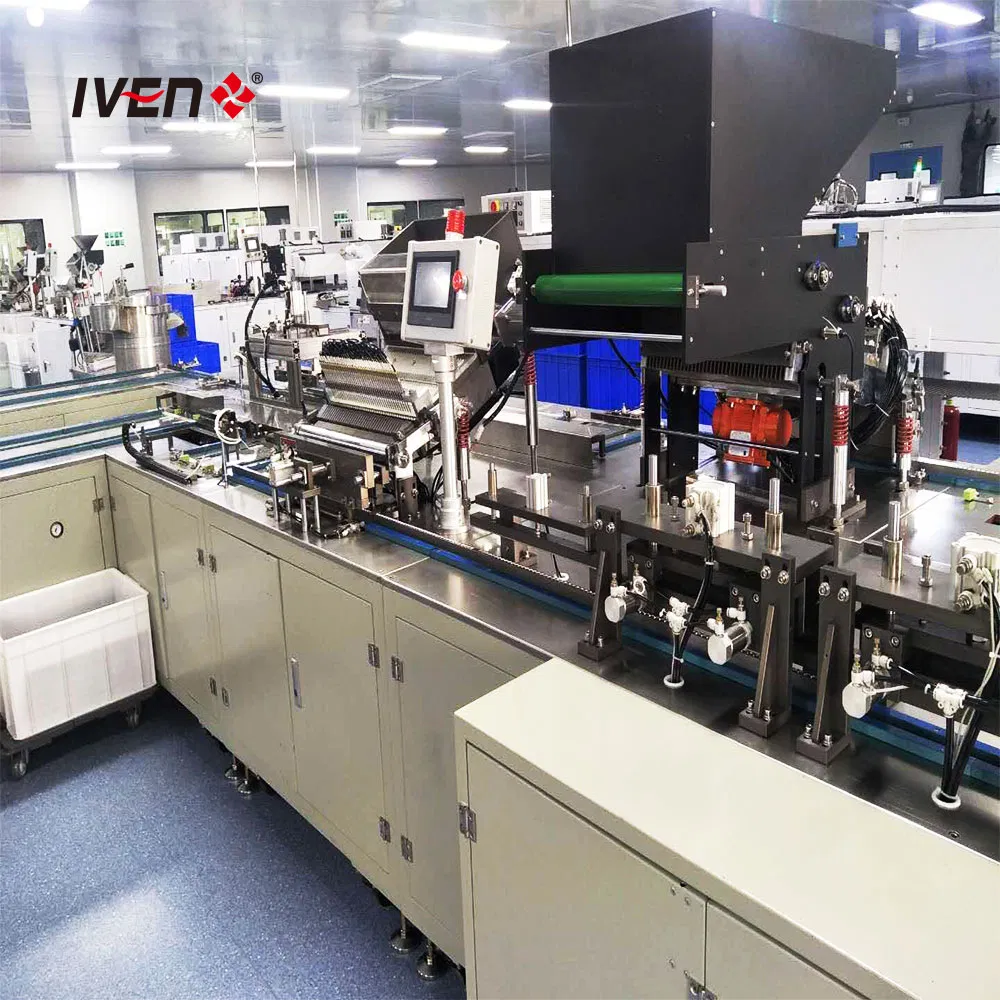

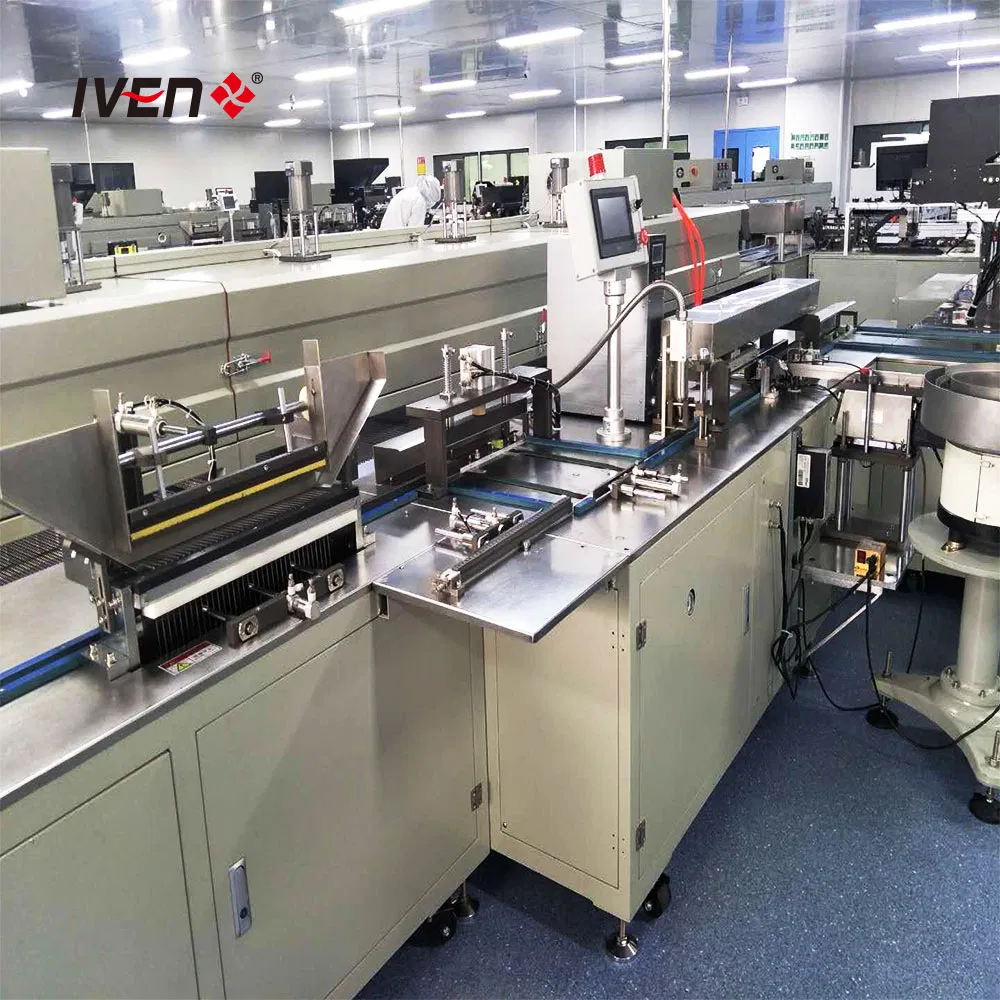

The blood collection needle assembly machine use for pen type blood collection needle product assembly. It is full automatic. Easy & safe operation with individual PLC &HMI control, only need 3-4 workers can run the whole line well. Compared with other manufacturers, our blood collection needle assembly machine has smaller overall dimension, more stable and intelligent running, lower fault rate and maintenance cost, and etc.

生产流程
Production Procedures
针座加载
Needle holder loading →
针板加载
Needle loading →
粘合→干燥→检测针孔堵塞
Gluing → Drying → Detection of pinhole clogging

→
检测
Detection of
针磨
needle burrs →
硅化
Siliconization →
废弃物处理
Waste removal →
长针保护罩 加载
Long-needle protecting cover Loading →
覆盖压制 →
Cover pressing →
针尖翻转
Needle reversal →
软保护罩加载
Soft protecting cover loading →
短针保护套加载
Short-needle protecting cover Loading →
成品。
Finished product.

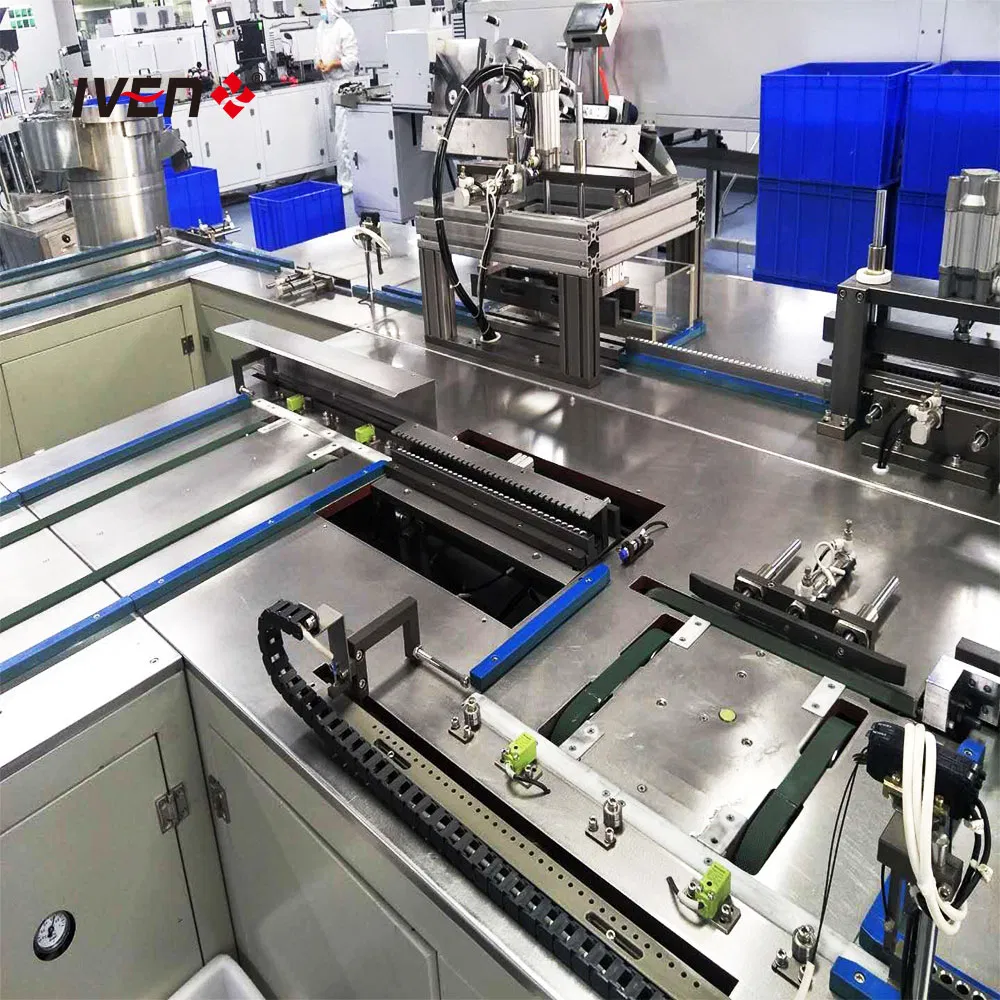

工作站描述
Working Station Description

针持供料

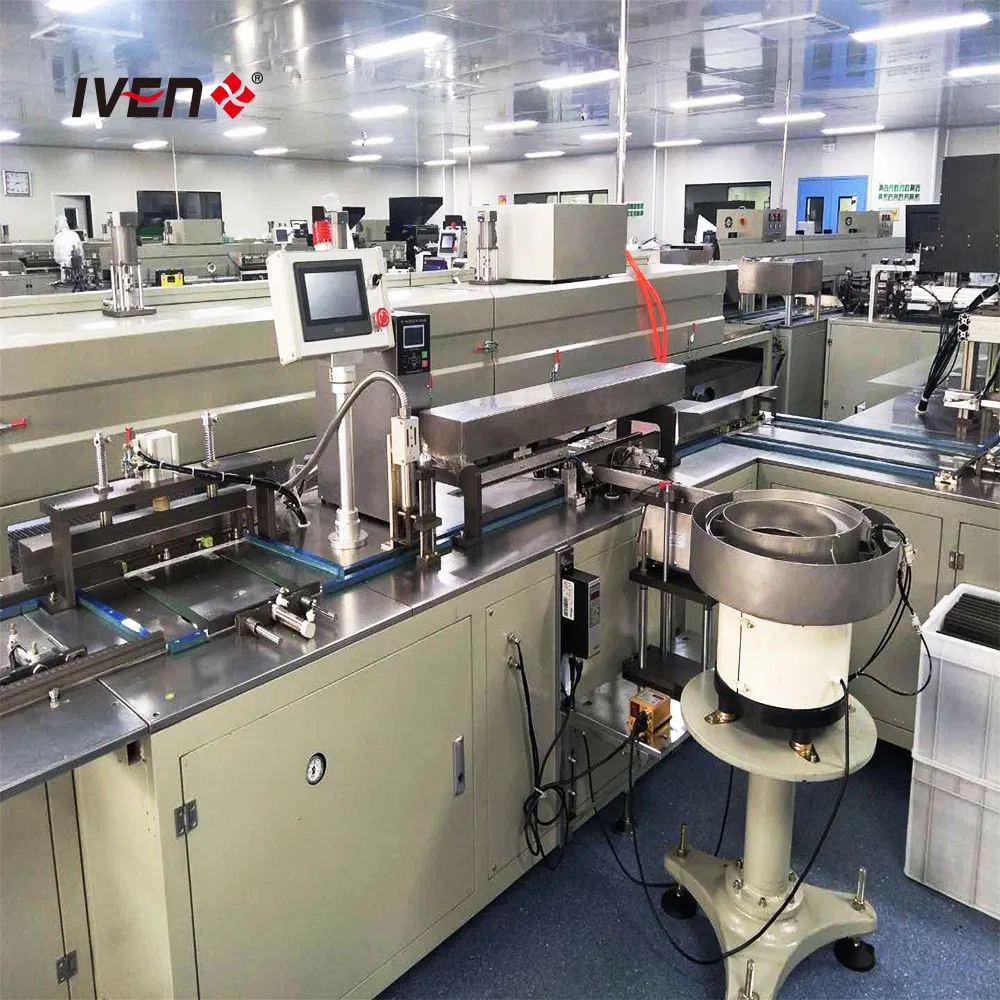

Needle holder feeding
通过振动器拿着针座，然后将其滑入导轨并放在工具条上。
Handle the needle holder by the vibrator, then enter the slide way and put it on the tooling strip.

针载量

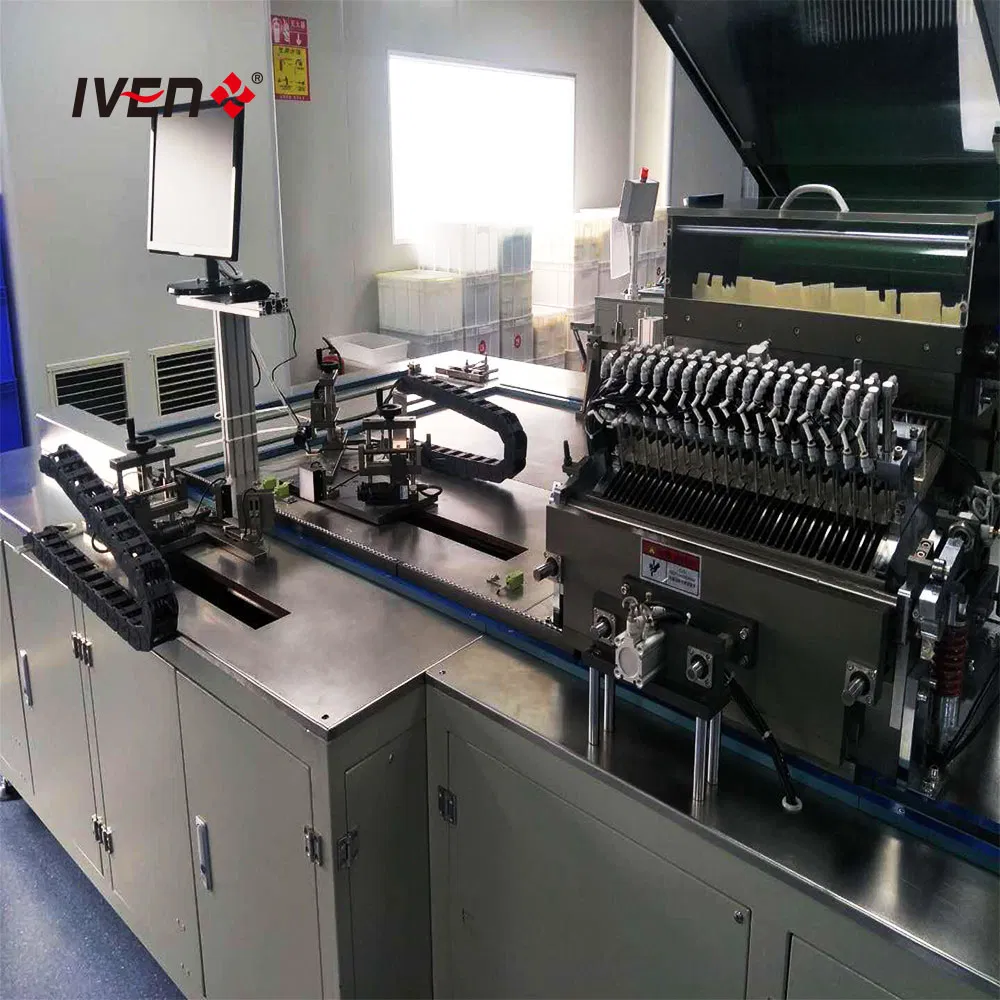

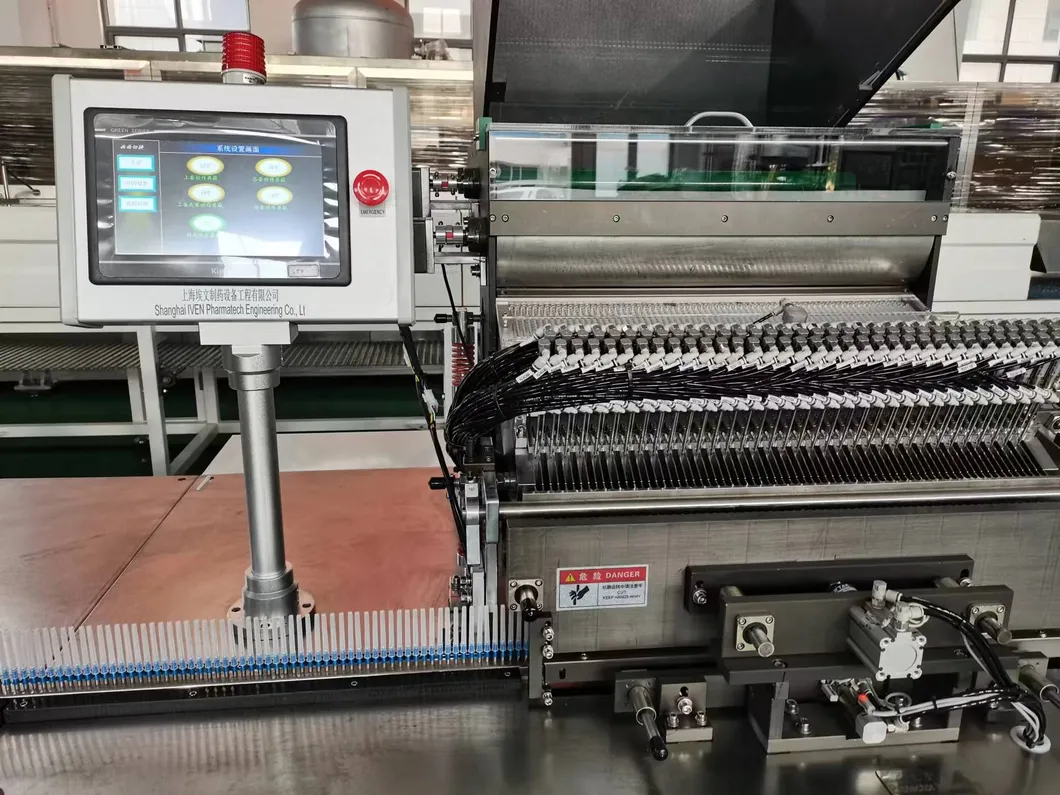

Needle loading
采用针帽法加载针，通过刮擦针座模具将针抬起并落在针座上，加载针后，改变方向并进入粘合站。
Loading the needle on the needle thimble method, the needle is lifted up to the needle seat by scraping the needle seat mold and then it is dropped to the needle seat, after loading the needle, turn the direction and enter the gluing station.
此处配备针检测装置
Here equip with detection for needle

粘合
Gluing
粘胶由日本松下伺服马达驱动，并添加两个线性导轨以驱动胶盒进行涂胶。胶盒采用德国Lenuz自动检测胶盒内是否有胶，若无胶则机器自动停止，并在触摸屏上显示报警。
Gluing is driven by a Japanese Panasonic servo motor, and two linear guides are added to drive the glue tray to dispense glue. The glue tray box adopts German Lenuz to automatically detect whether the glue tray box has glue or not, and if there is no glue machine stops automatically, and the alarm is displayed on the touch screen.

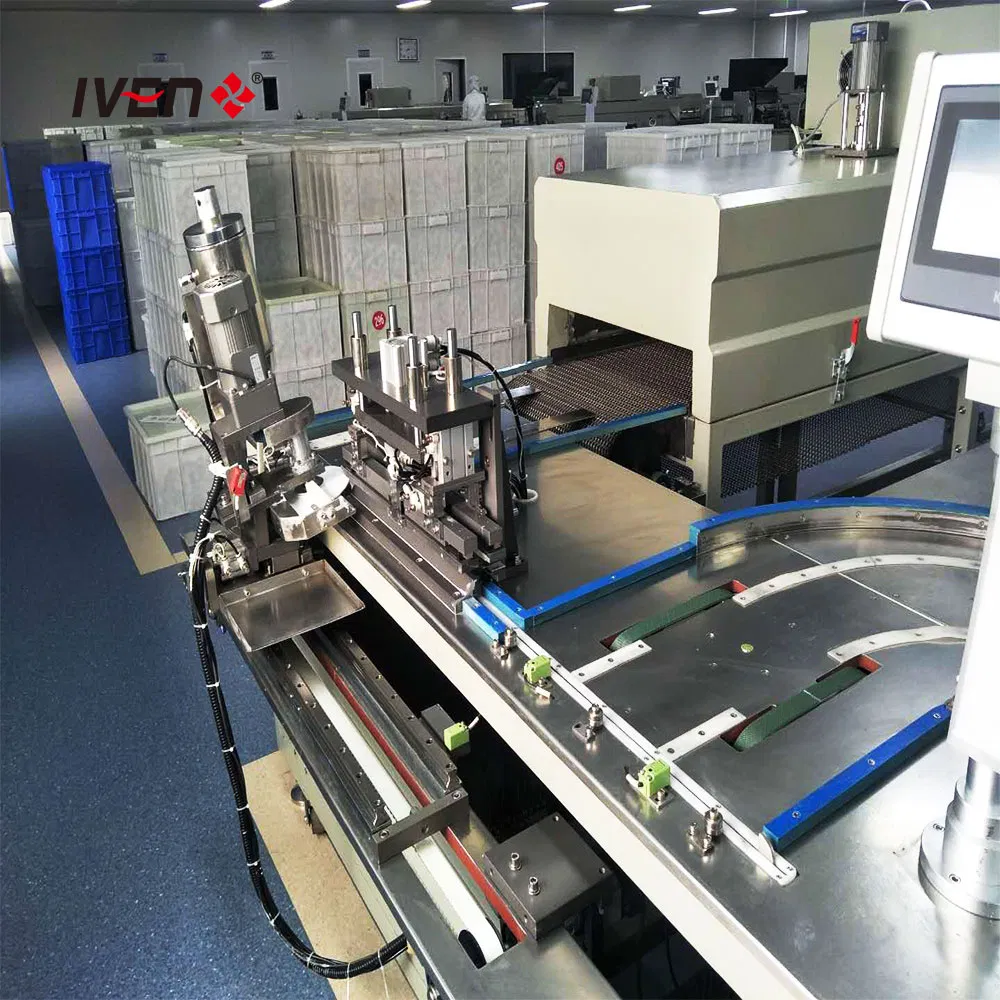

干燥

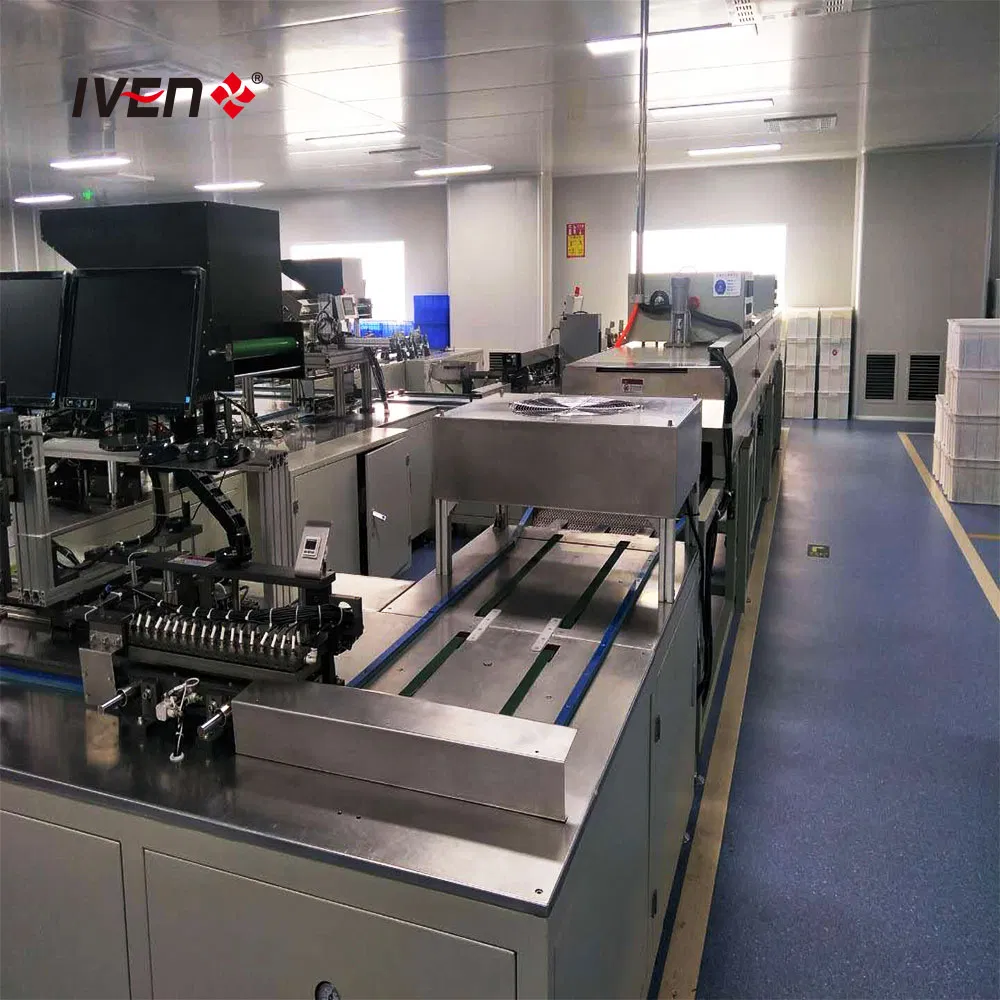

Drying
干燥隧道用于干燥胶水，干燥箱通过玻璃管不锈钢加热线进行加热，配有电流显示表，温度控制器控制温度达到度数。干燥后输入图像检测。
The drying tunnel is to dry the glue, the drying box is heated by glass tube stainless steel heating wire, with the current display gauge, the temperature controller controls the temperature to reach the degree. Enter the image detection after drying out.

检测针孔堵塞
Detection of pinhole clogging
为了检查针头是否被堵塞，有一个方法是通过吹气来判断。通过气压判断针头是否被空气堵塞。传感器一对一检测，配备有气压计。当气压不达标时，它会自动收缩并从主线中移除堵塞的针头。下一站调整方向。
To check whether the needle is blocked or not. It is a method of blowing air. It is judged whether the needle is blocked by air or not. The sensor detects one-to-one and is equipped with a barometer. When the air pressure is not up to standard, it will automatically Shrink and remove the plugged needle from the main line. Turn direction at the next station.

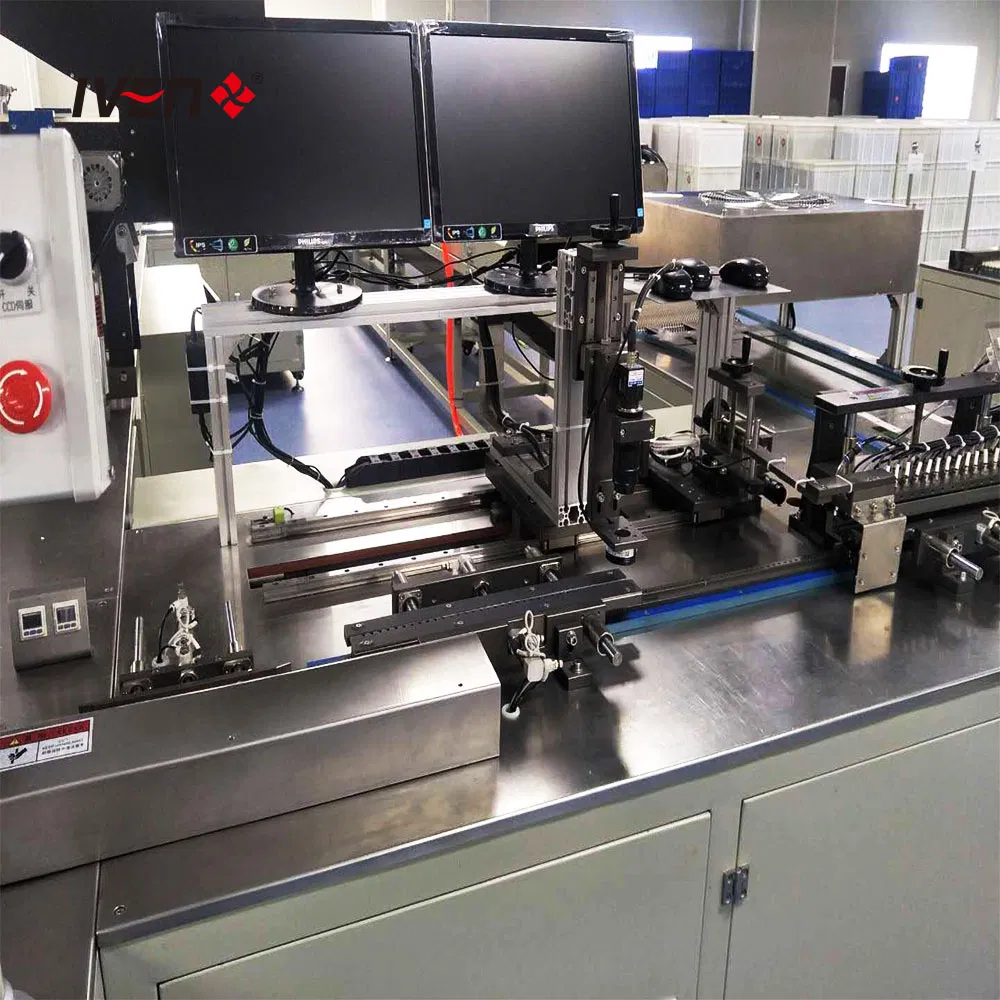

针尖毛刺检测
Detection of needle burrs
此站可以配备CCD检测针尖毛刺。当检测到不合格产品时，它们将从刮削区域被剔除，然后进入泄漏检测。（针尖高度公差在0.3以内，可检测到0.05x0.05的毛刺）
Here station can equip with CCD detection for needle burrs. When unqualified products are detected, they will be removed from the shaving area, and then enter the leak detection. (The needle tip height tolerance is within 0.3, and the burr of 0.05 * 0.05 can be detected)

硅化
Siliconization
使用硅油双螺旋结构，旋转180度，加油时针管内有空气吹扫装置，硅油从底部向顶部加油，配有气压计，当压力不达标时可以自动过滤和泵送。汽油采用气动泵送，以避免使用电源造成火灾。完成硅化后，将前往下一个废品回收站。
Double helix with silicone oil, rotating 180 degrees, there is a blowing device inside the needle tube when oiling, the silicone oil is oiled from the bottom to the top, with a barometer, it can automatically filter and pump when the pressure is not up to the standard. The gas oil is pneumatically pumped to avoid the power source and cause a fire. After finish siliconization, will go to next waste rejection station.
废弃物处理
Waste removal
废料拒绝站是综合通过CCD成像和泄漏检测来清除废品
Rejecting waste station is a comprehensive waste product removal by CCD imaging and leak detection.

长针保护罩 装载中
Long-needle protecting cover Loading
它采用滑动轨道加载针保护盖，材料为不锈钢304，采用奥托尼克斯检测设备，检测是否有护套，然后转移到滑动轨道进行搅拌，护套的前排只有一对一的气缸，电磁阀是单独控制的。在检测护套后，是否缺少针，如果缺少针则不卸下护套，以确保护套的浪费和加载的合格率。
It adopts the slide way to load needle protecting cover, the material is stainless steel 304, Autonics detection device, whether there is a sheath and then transfers to the slide way for stirring, the front row of the sheath only has cylinders one to one, electromagnetic The valve is individually controlled. After the sheath is tested, whether the needle is missing, the sheath is not removed if the needle is missing, so as to ensure the waste of the cover and the qualified rate of the loading.

加压覆盖
Cover pressing
在紧急保护盖下，有一个定位中心，用以确保保护盖的定位，保证针能够穿透盖子。定位完成后，将其送出至成品待加工区。
Under the pressing protection cover, there is a position to center the protection cover to ensure that the needle penetrates the cover. After being pressed, it will be sent out into the finished product blanking

针反转
Needle reversal
旋转针被操纵器均匀夹住并平移，经过硅化后旋转180度，然后添加至附件中
Rotary needle are uniformly clamped and translated by a manipulator, and then rotated 180 degrees after siliconization, and added to a fixture

软保护罩加载
Soft protecting cover loading
橡胶盖采用滑行方式。橡胶盖快速通过并滑入滑道。盖鞘通过加工部件落在针尖上。盖鞘的前排一一控制。如果产品短缺，则不安装盖鞘。确保盖鞘的浪费和上部盖鞘的通过率。
The rubber cover adopts a slide way. The rubber cover passes quickly and falls into the slideway. The sheath falls on the needle tip through the processed parts. The front row of the sheath is controlled one to one. If there is a shortage of products, the sheath will not be installed. Ensure the waste of the sheath and the pass rate of the upper sheath.

软封面压制
Soft Cover pressing
橡胶盖均匀地夹住橡胶套管并向下按压，将橡胶盖按下
The rubber cover clamps the rubber sleeve uniformly and presses it down, pressing the rubber cover down

短针保护罩装载中
Short-needle protecting cover Loading
它也采用滑道方式，材料为不锈钢304，并采用Autonics传感器进行检测。是否有外套，然后将其转移到滑道进行搅拌。外套的前排只有一对一的气缸。电磁阀是单独控制的。在测试盖子后，针是否缺失，如果针缺失，则不卸下盖子，以确保盖子的浪费和盖子装载的通过率。
It adopts the slide way also, the material is stainless steel 304, and Autonics sensor detection. Whether there is a jacket and then transfer it to the slideway for stirring. The front row of the jacket only has cylinders one to one. The solenoid valve is individually controlled. After the cover is tested, whether the needle is missing, the cover is not removed if the needle is missing, to ensure the waste of the cover and the pass rate of the cover loading.

短针覆盖压制
Short-needle cover pressing
盖子均匀夹紧短针盖并将其向下按压
The cover clamps the short needle cover uniformly and presses it down, pressing the cover down

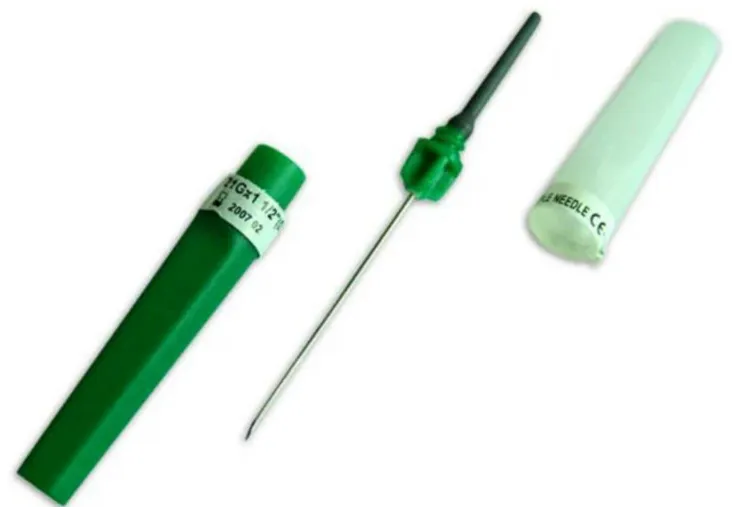

成品
Finished product
产品加工完成后，转向送料针座工位，整个周期完成。
After the finished product outputting, turn to the feeding needle seat station, and the whole cycle is completed.

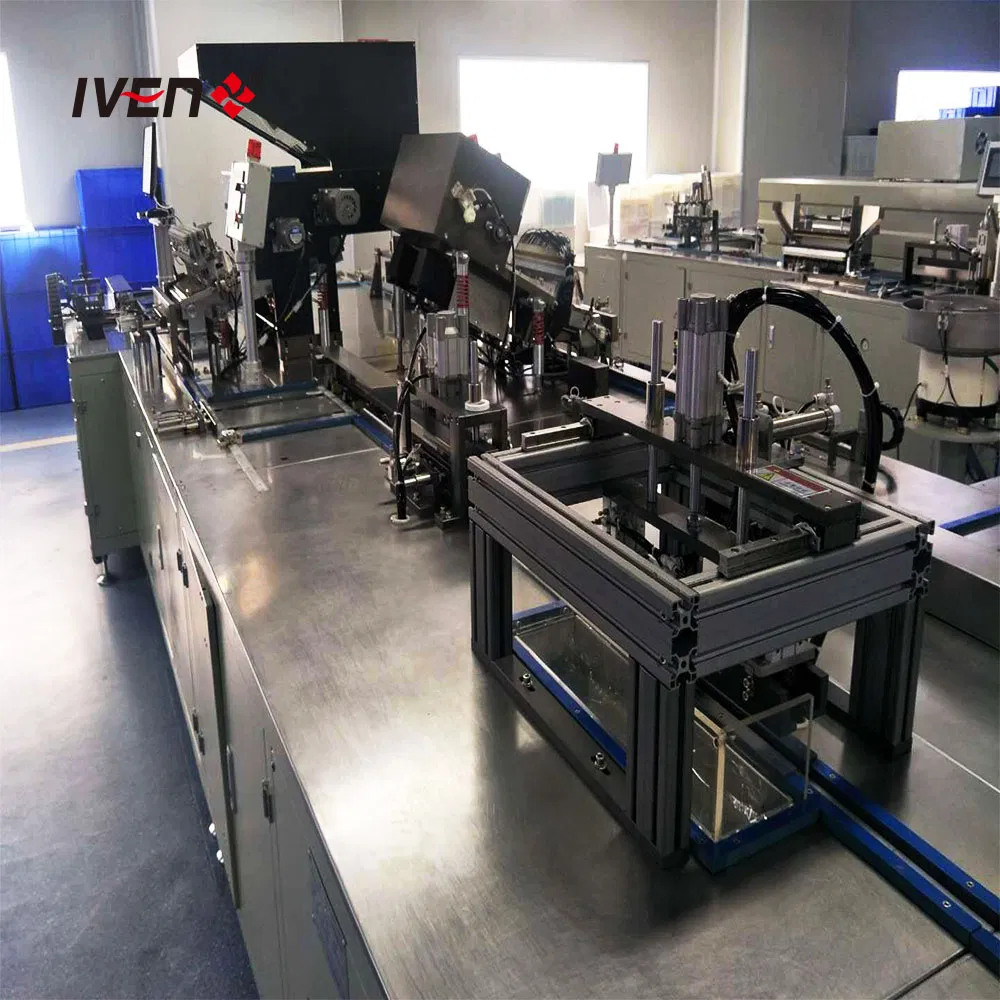

IVEN血液采集针装配机器优势
IVEN Blood Collection Needle Assembly Machine Advantages
高效率 12000件/小时
1.High capacity 12000pcs/hour.
高度自动化，合理的操作流程和集成优化，只需3-4名熟练的操作工就能从开始的装载到成品针的输出，对整个生产线进行顺利管理。
2.High automation, reasonable operation process and optimization of integration, 3-4 skilled operators can manage the whole production line smoothly from begining loading to finished needles outputting.
全线采用顶级品牌如德国Lenuze、OMRON等作为检测装置，控制给料及运行过程，以确保高质量生产合格率。
3.The whole line process detection device which all use top lever brand such as Germany Lenuze, OMRON, to control the feeding, running station, to make sure high qualify rate.
智能人性化操作系统。人性化设计各工作站，PLC+人机界面控制。
4.Intelligent & Humanized Operation System. Humanized design for each station , PLC +HMI control.
使用伺服马达控制关键部件的移动、控制精度和移动平稳性。
5.Use serve motor control for key parts moving, control precision and moving smoothy.
它配备了报警装置，当出现故障、材料堵塞、气压过低和缺少硅油时，会在HMI上报警和提醒。
6.It is equipped with alarm devices, such as failure, material jam, low air pressure, and lack of silicone oil, will alarm and give reminder at HMI.
关键部件和电气单元使用顶级品牌，以确保全线稳定并长久使用。
7.Key part and electrical unit use Top brand to make sure the while line stable and longtime usage.
高品质结构：主体采用优质钢材承重，表面和接触配件部分采用高品质不锈钢，易于清洁。符合GMP标准
8.High Quality Structure: Main body adopt high quality steel for weight bearing, surface and contact products part adopt the high quality stainless steel for easier cleaning. Meet GMP standard
接受CCD检测进行定制
9.Accept customization with CCD detection.
