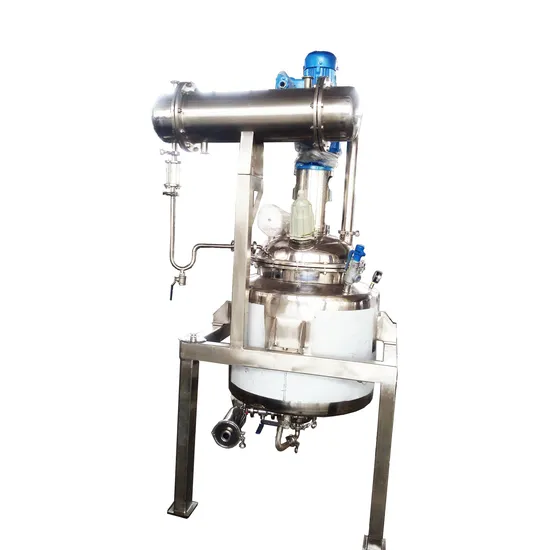

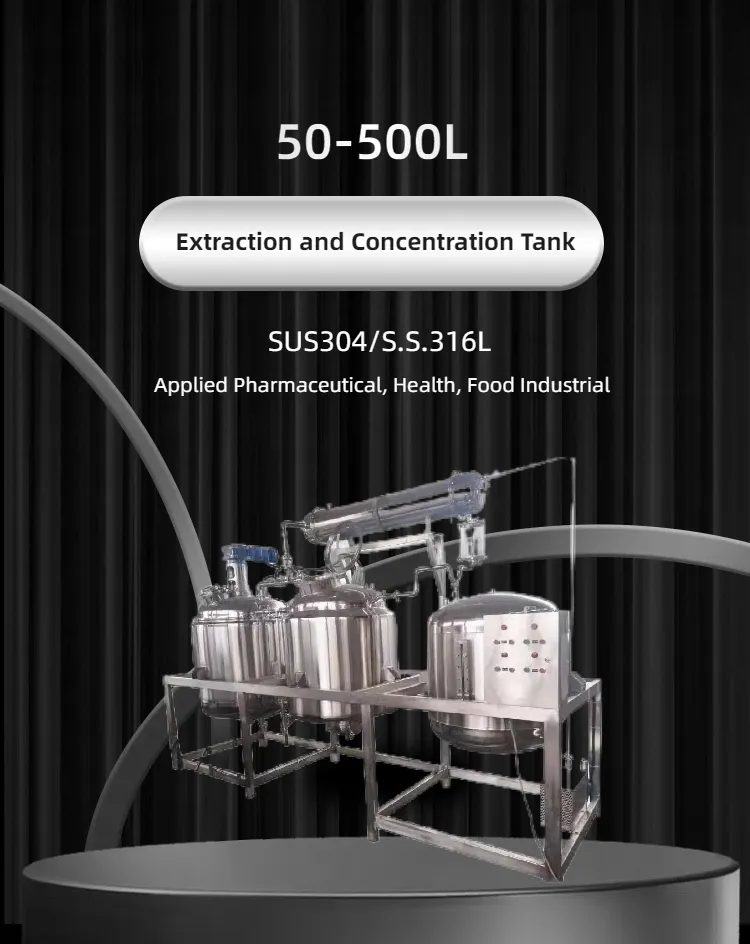

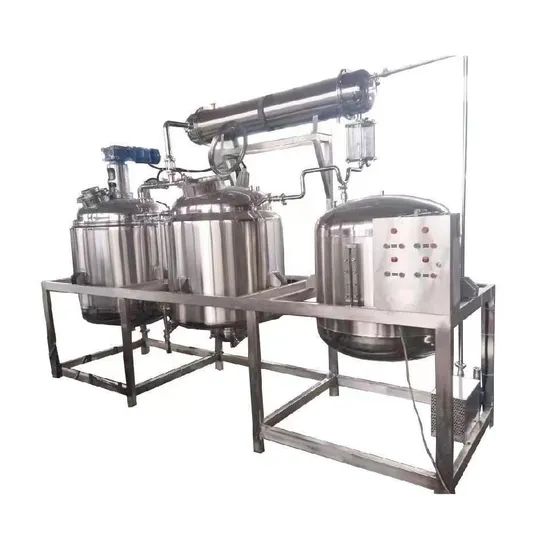

Low Temperature Soxhlet Extraction Apparatus; Extract and Concentrate Production Line
Specifications
1.Saving solvent
2.Saving time
3.Low-energy consumption
4.High automatic
5.Quality of distilled medicine is greatly improved
6.Contact part material: SUS304 or S.S.316L

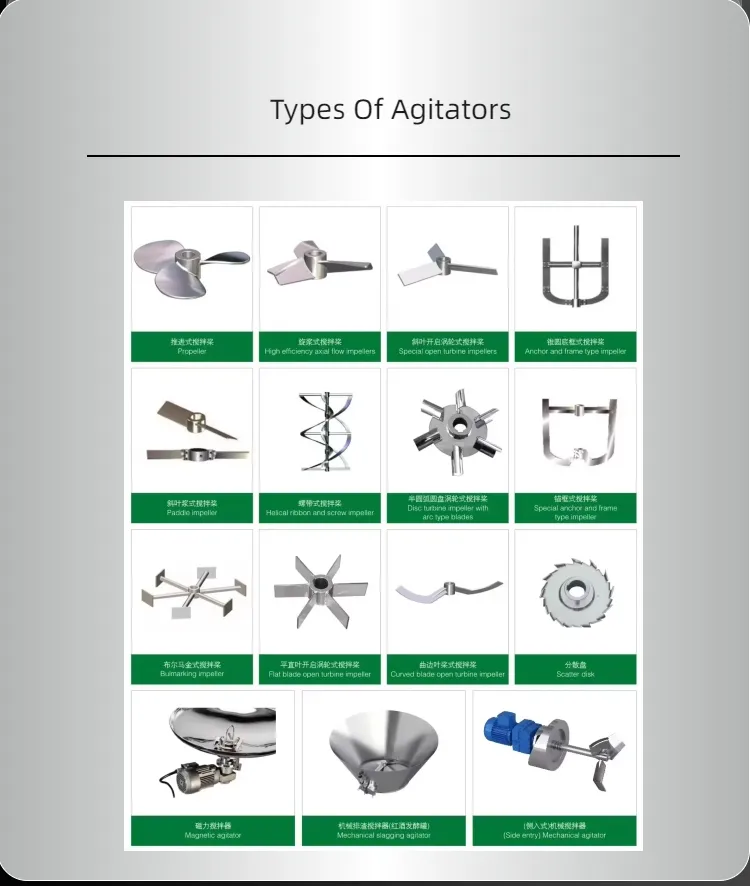

7.Optional device: agitator for the extraction tank, ultrasonic device for the extraction tank
Summary:
This
equipment
can
be
used
for
herbal.Plant,
food's
decoction,
warm
soaking,
heat
reflux,
forced
circulation,
permeability
percolation,
aromatic
oil
extraction
and
organic
solvent
recovery
process
under
atmospheric
pressure
or
pressure.It
has
advantage
of
high
efficiency
and
easy
operation.Therefore,it
is
widely
used
in
pharmaceutical,food,
chemical
and
other
industries.This
equipment's
extraction
technique
can
choose
straight
cylinder,
cone,
oblique
cone,
mushrooms
and
other
forms.
Component

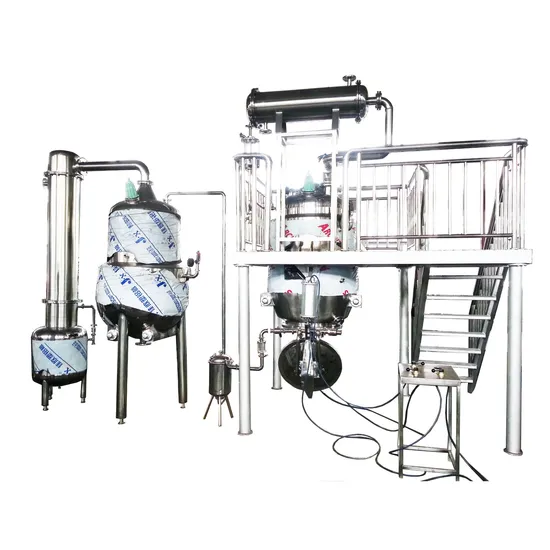

1) The equipment is compact conformed and integrated with extraction,
oil-water
separation
device, condenser, cooling tank,
concentration
tank, and solvent recovery
tank.
2) Synchronous
in
Extraction and concentration
process
shorten the technical process and production period, increasing the operation rate of the equipment.
Advantage
1)
Add the solvent once for all, with the consumption lowered by more than 40%. With hot reflux, forced circulation and sox let extraction integrated, the solute keeps high gradient in the solvent, increasing the receiving rate by 10 to15%.
2)
Connecting and reusing the condenser make the equipment compact-conformed and bring each part into full play. Without increasing investment of the device, Both the reflux and solvent recovery can be reached to good effect.
3)
New technology and new materials are utilized for excellent performance of unit. The areas of the unit contacting with medical liquids and solvents in instruments, equipments and pipes, are made of superior stainless steel.

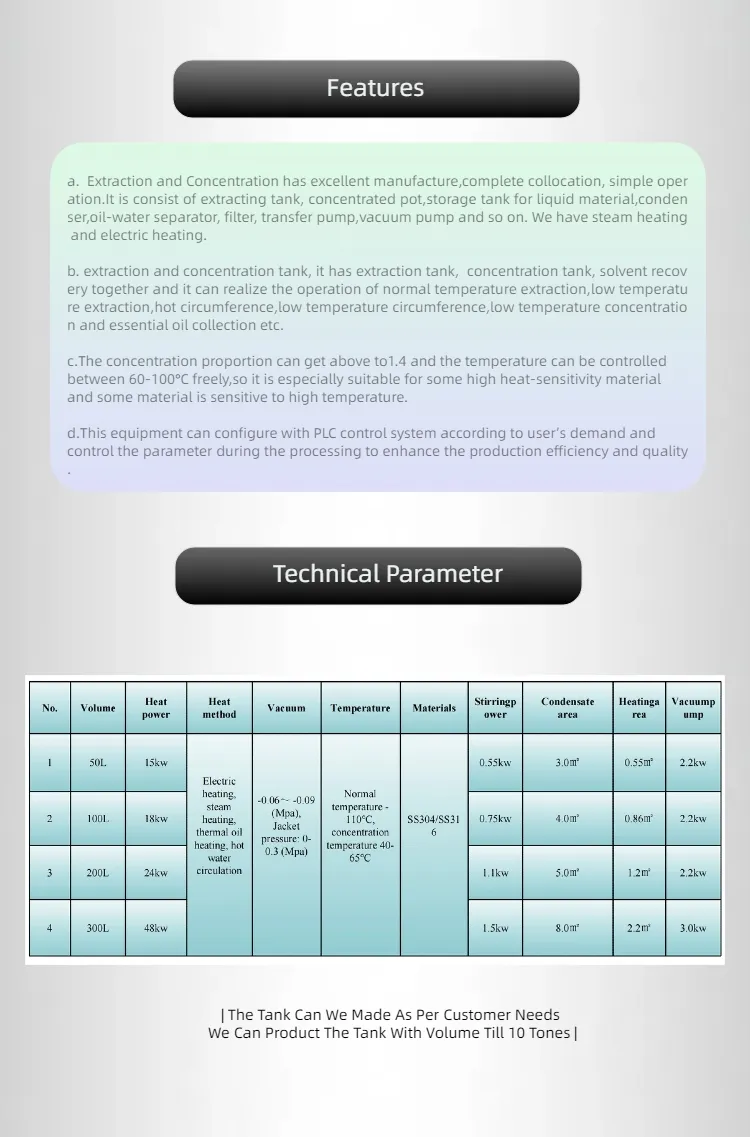

Technical
Parameter
