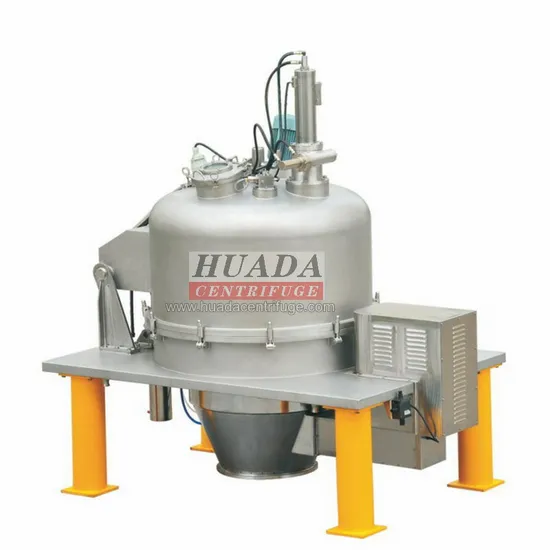

PRODUCT DESCRIPTIONPLD Vertical Bottom Discharge Scraper Centrifuges with Pulling Bag
PLD automatic bottom discharge scraper centrifuge is a new type of product that are developed independently by HUADA, with multiple patents and completely independent intellectual property rights. This series of products is batch-processing separation centrifuge, After discharge, the filter bag can be regenerated, with good filtration and high efficiency, and it can effectively reduce the influence of the residual cake layer on the filtration performance of materials, avoid the cross contamination during material separation, and meet the requirements of GMP and FDA, thus realizing remote intelligent control and automatic production and online fault diagnosis.
PLD Vertical Bottom Discharge Scraper Centrifuges with Pulling Bag
WORKING PRINCIPLE

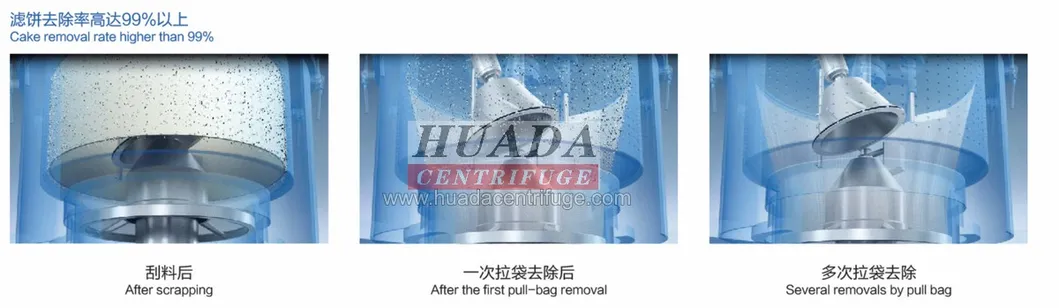

Materials to be separated are added into the high-speed rotating centrifuge basket through the feeding pipe. Under the action of the centrifugal field, the material will be filtered through the filter cloth, the liquid phase will be discharged through the liquid outlet, and the solid phase will be retained in the basket. When the basket is filled with materials and the feeding and dehydration stop, wash the cake and filter out the washing liquid. The centrifuge continues to spinning to dry the filter cake. After the cake meets the separation requirements, the centrifuge slows down and the scraper removes the cake from the bottom and out of the machine. Then, the centrifuge slows down again and the pneumatic bag puller moves up and down to shake off the residual cake, so as to completely remove the cake.PLD Insulation-type

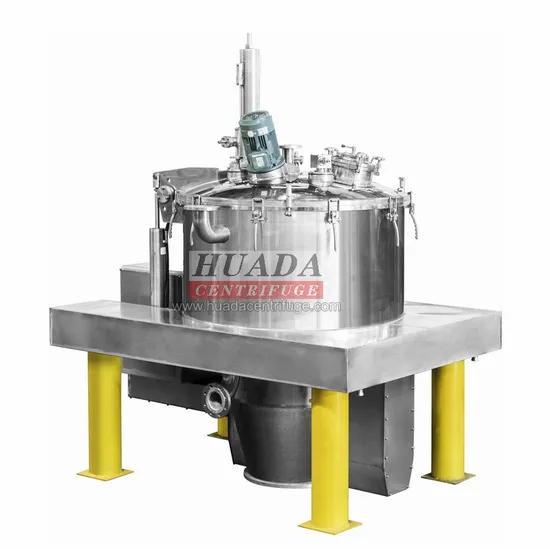

Adhering to the excellent characteristics of conventional PLD products, it is designed in an insulation layer structure with low or high temperature resistant bearings and seals, and it can achieve solid-liquid separation of materials in low or high-temperature environment.Insulation layer: single insulation layer (insulation agent filling layer) or double insulation layer (insulation agent filling layer + cold and hot media circulation chamber).PQLD Pharma Centrifuges

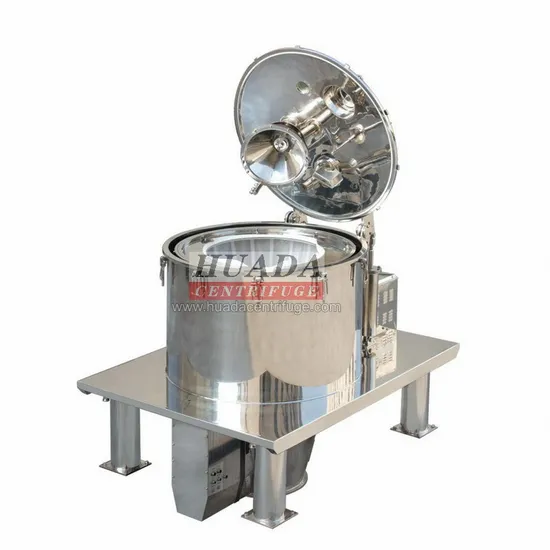

The product is designed with an overall turnover cover, and the transition of the whole structure is smooth and flat, which can give a thorough cleaning, effectively putting an end to the dead corners and can remove online residuals to avoid cross-contamination of materials. It is suitable for material separation requiring high purity and hygiene.MAIN FEATURES

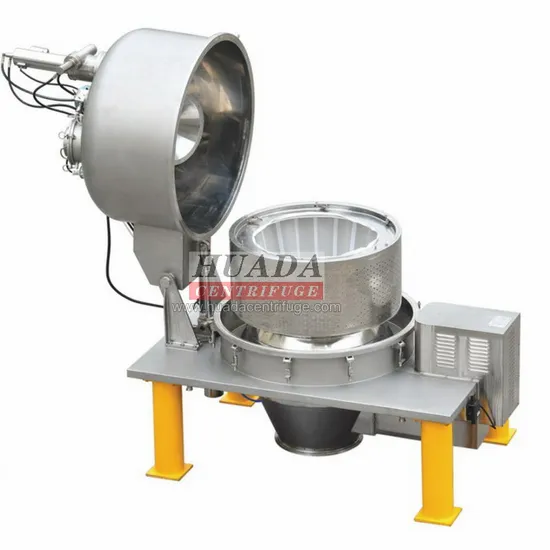

The filter bag is designed with a renewable structure and it can well remove the residual cake, avoiding cross contamination of materials. Moreover, it can improve the filtering efficiency and prolong the service life of the filter bag.Compliance with GMP specifications and anti-explosion requirements
The structure of a large turnover cover or overall turnover cover + CIP online cleaning system can achieve thorough cleaning in centrifuges.The high surface cleanliness and roughness up to Ra0.2-0.4μm are in line with cGMP requirements.Smooth discharge:
Automatic scraper device has the functions of speed regulation and pitch adjustment, and the scraper is designed with multi-structures, including double-blade (wear-resistant: carbide tip, wear-resistant coating, etc.). The cutting angle has been improved, with smaller scraping resistance, and the layered scraping technique shall be selected for hard materials.Small vibration, low noise and stable operation:
The liquid damping shock absorber technology is adopted, and it is installed without base, which effectively reduces the vibration of the centrifuge and facilitates the installation and maintenance of the machine.Frame square box design: The chassis weight is increased, the centrifuge center of gravity is lowered, and the vibration speed is reduced.The cake layer control device
and electromechanical material level detection device are provided to effectively control the feeding amount, prevent the centrifuge from overload work, prevent the material from escaping, and ensure the automatic operation of the feeding process.The basket is comprehensively machined
and undergoes 100% weld flaw detection, with high machining precision and large filtering area, conducive to ultrafine particle filtration.Quick filter bag replacement

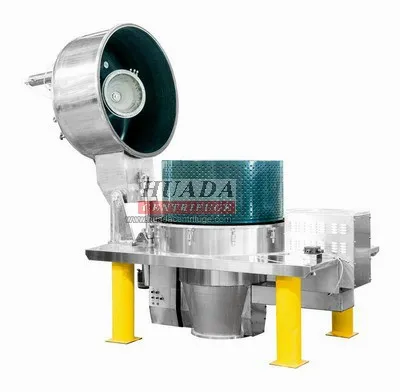

It is designed with a detachable basket lip, reliable self-locking, and scientific filter cloth fixed module (tensioning device + quick assembly structure), by which, the filter cloth can be replaced quickly.
