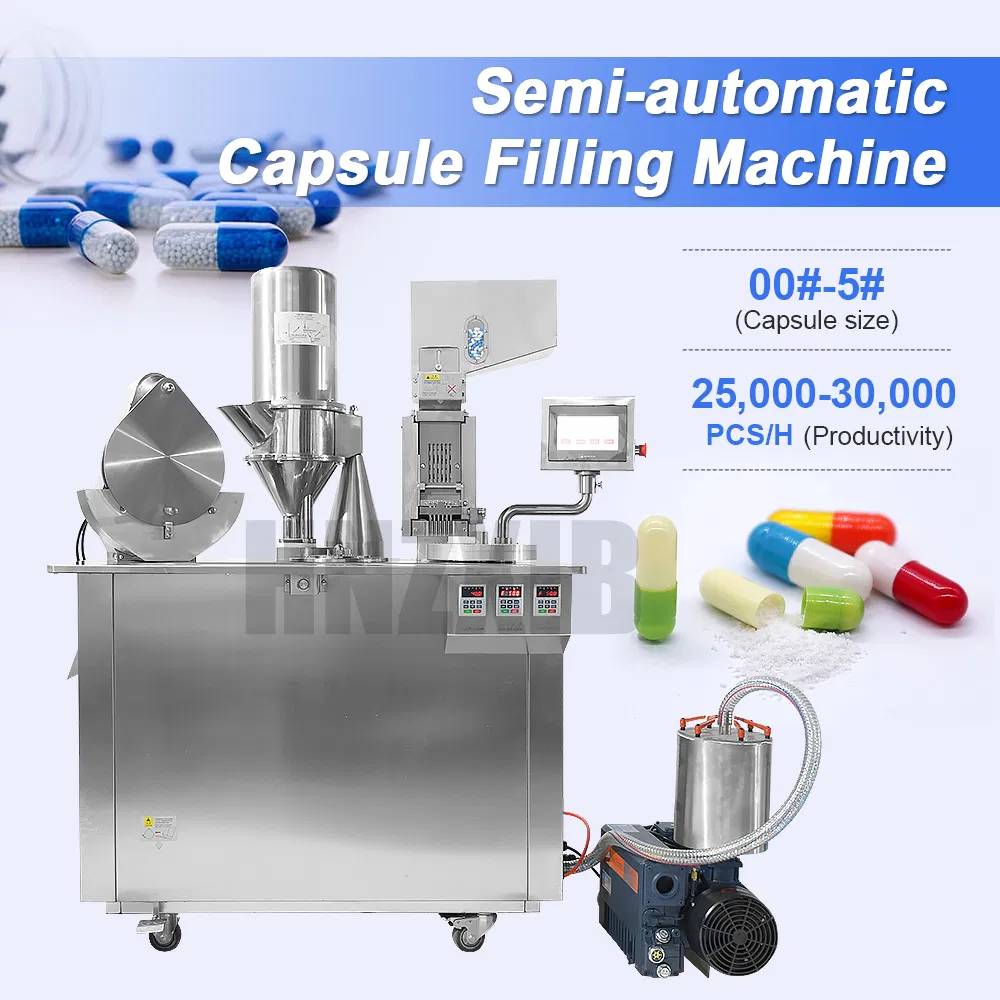

CGN208D Semi-Automatic Capsule Filling Machine

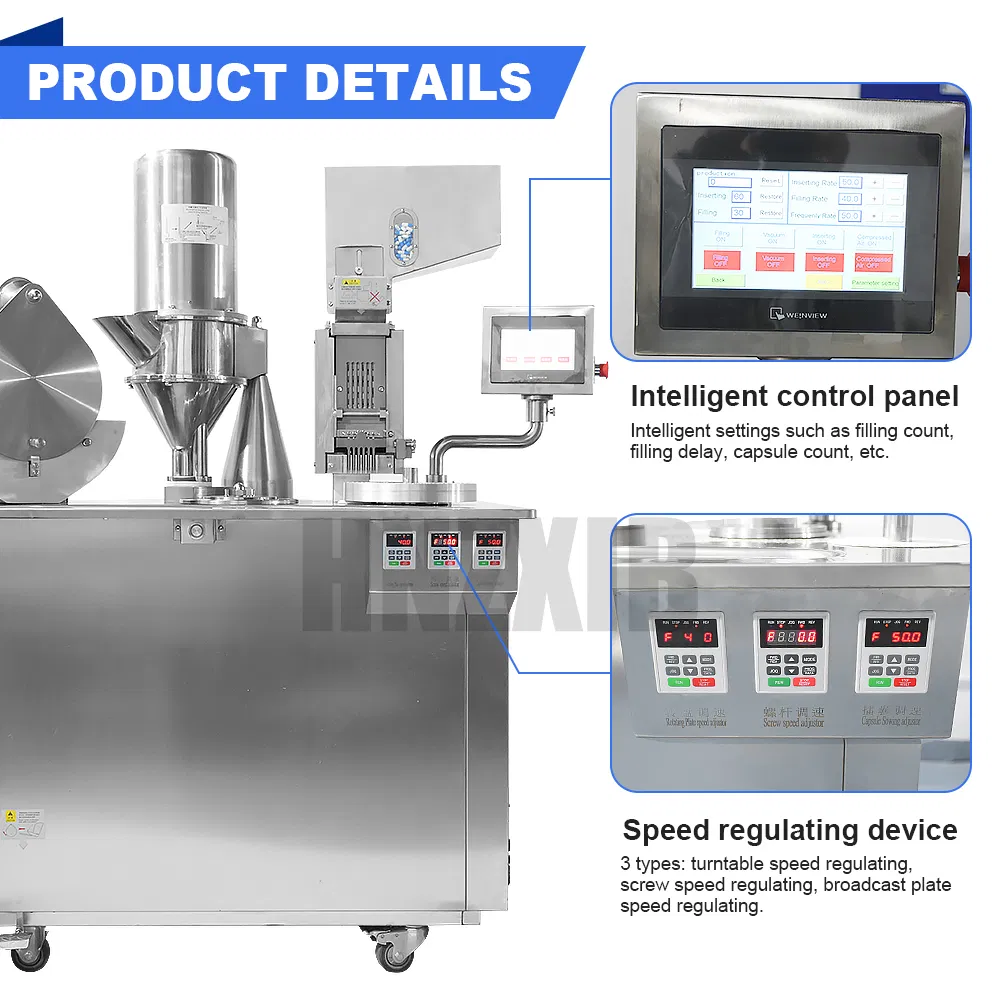

This machine is designed by integration of mechanics, electrics and pneumatics. It adopts micro-computer PLC, touch panel operation, frequency speed control. It is also equipped with electronic automatic counting device. The capsules can be automatically put in place, separation, filling and locking etc., which reduce intensity and improve production efficiency, meets the pharmaceutical health requirements.
This machine runs sensitive, filling accurately.
It has novel structure, beautiful shape, it is easy to operate and suitable for filling various domestic or imported capsules. It is the ideal device in capsule filling pharmaceutical industry

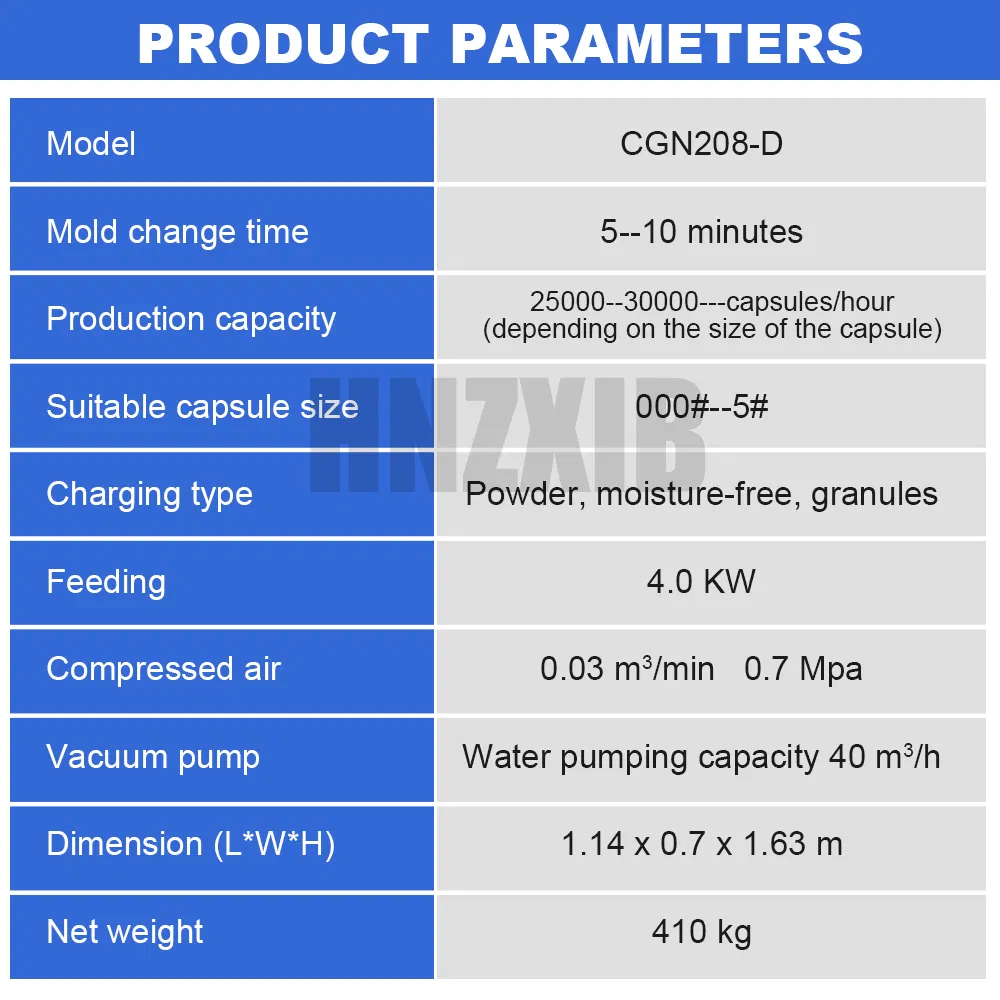

Product Parameters
Mould changing time
5--10mins
Production capacity
25000-----30000 pcs/hour(depend on capsule size)

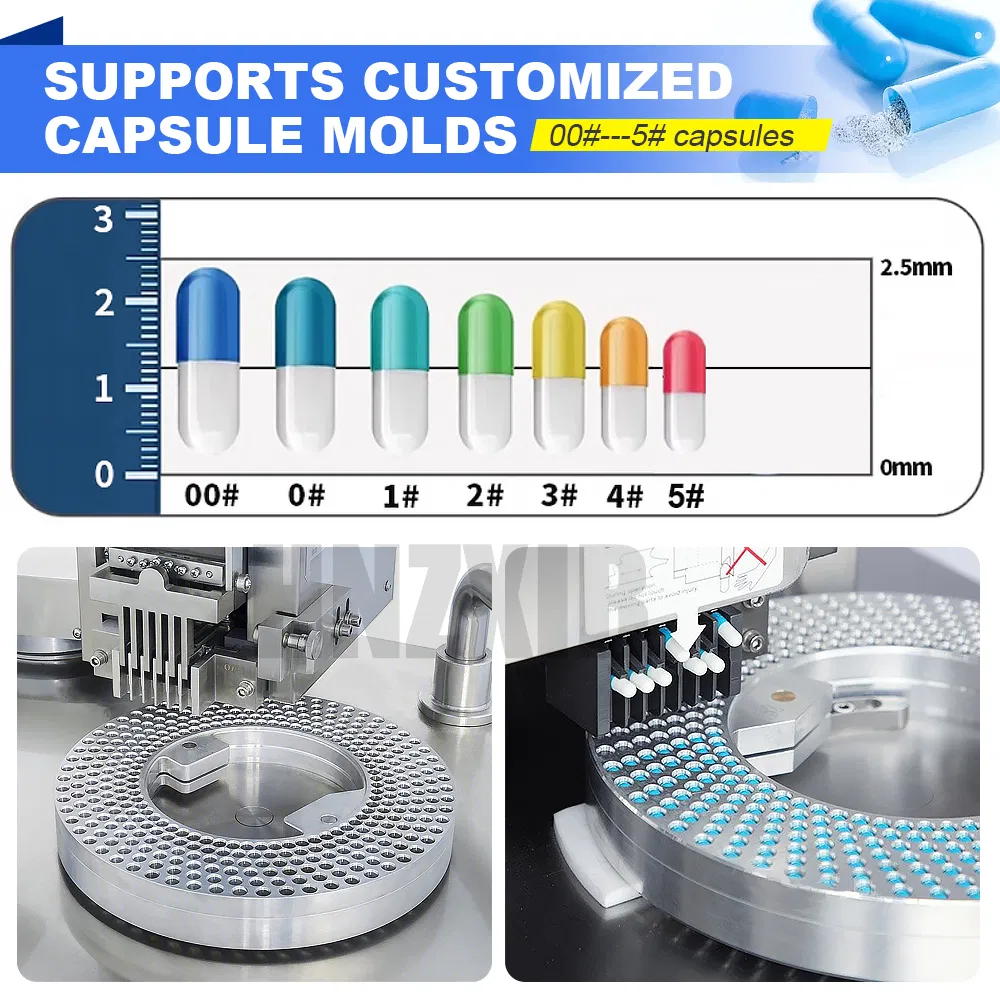

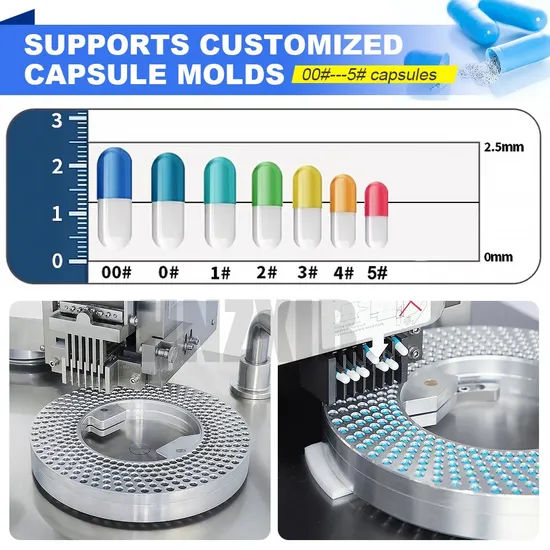

Suitable capsule size
000#--5#,
Filling type
Pellet, powder without moisture, granules
Power
4.0kw
Compressed air
0.03m3/min
0.7Mpa
Vacuum pump
Pumping rate 40m3/h
Overall dimension of machine (L*W*H)
1.2×0.7×1.62 m
Overall dimension of package (L*W*H)
1.7×0.88×1.83 m
Air cargo outsourcing size
1.65×0.8×1.45 m
Net weight
410kg
Gross weight
450kg
