基本信息
| 型号编号 | SLD-238 |
| 钻井程序 | 多阶段 |
| 适用介质 | 原油 |
| 连接表单 | 轮缘 |
| 井型 | 底盘井 |
| 安装位置 | 水上 |
| 结构 | 垂直的 |
| 类型 | 干。 |
| 运输包 | 出口木箱 |
| 规格 | 根据要求 |
| 商标 | 固体 |
| 起源 | 中国 |
| 生产能力 | 每月20套 |
| 包装尺寸 | 200.00厘米*60.00厘米*150.00厘米 |
| 包装总重量 | 900千克 |
| 包装大小 | 200.00厘米×60.00厘米×150.00厘米 |
| 包装总重量 | 900千克 |
产品详情
Product Description
Preview

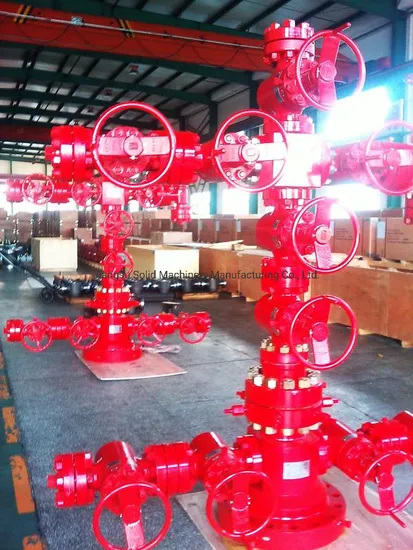

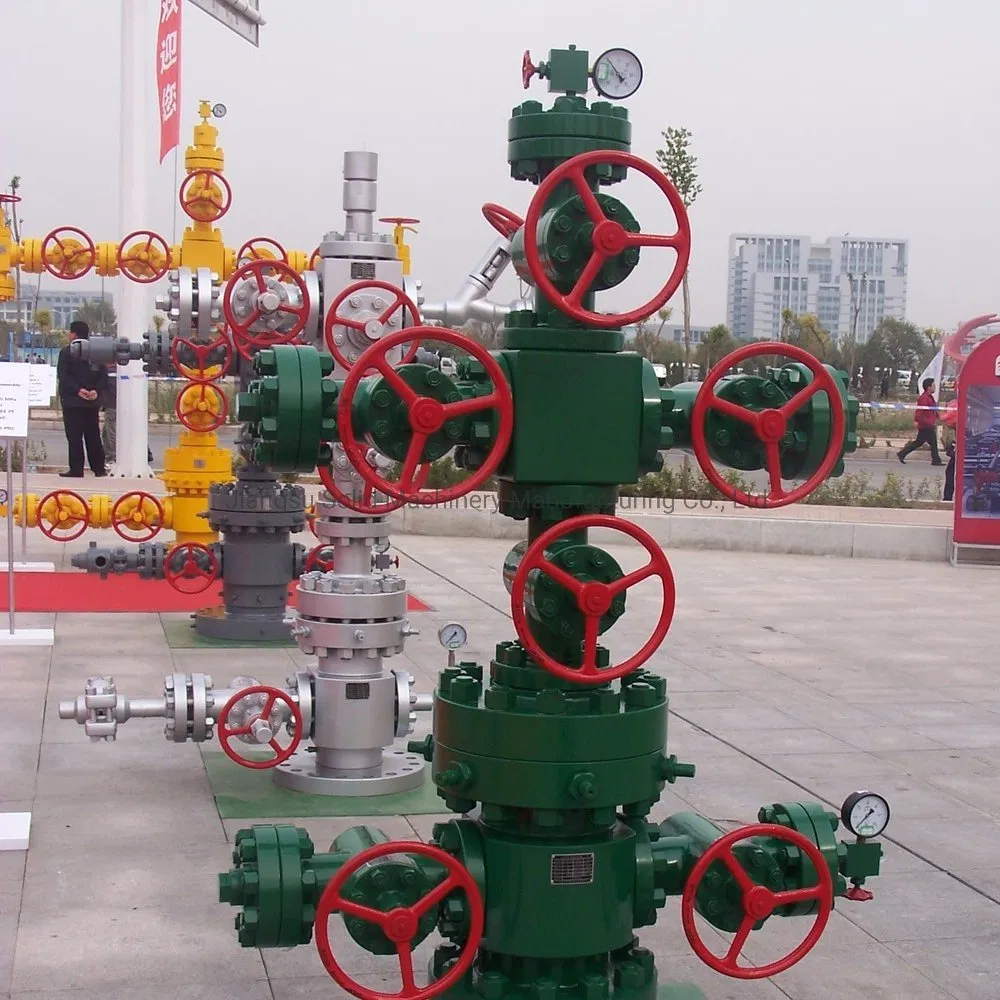

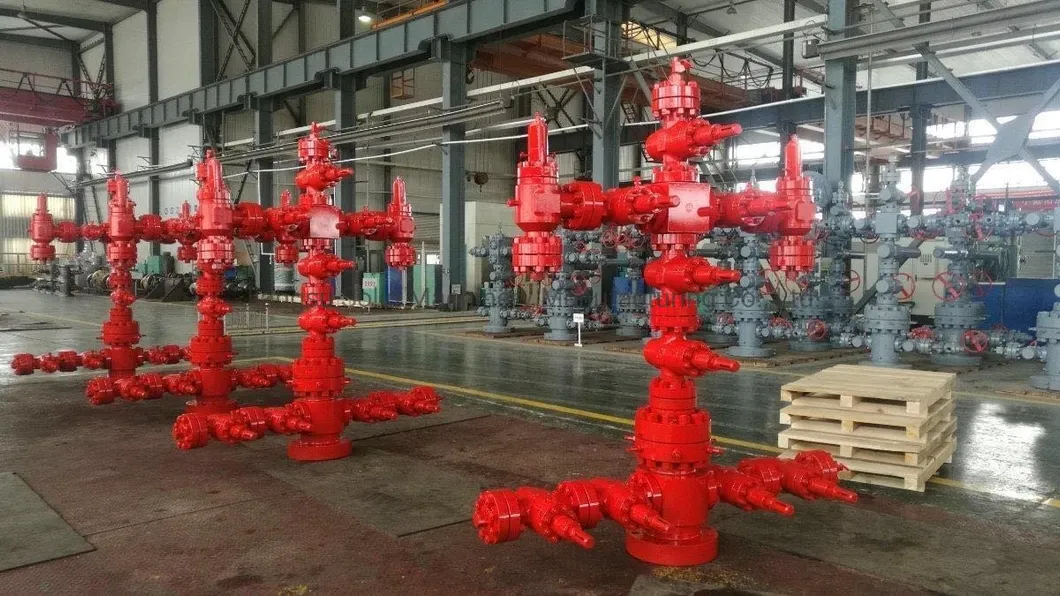

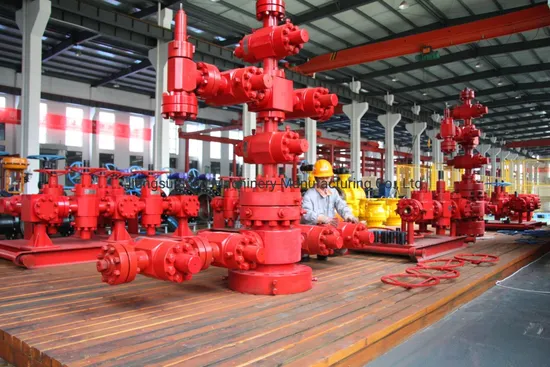

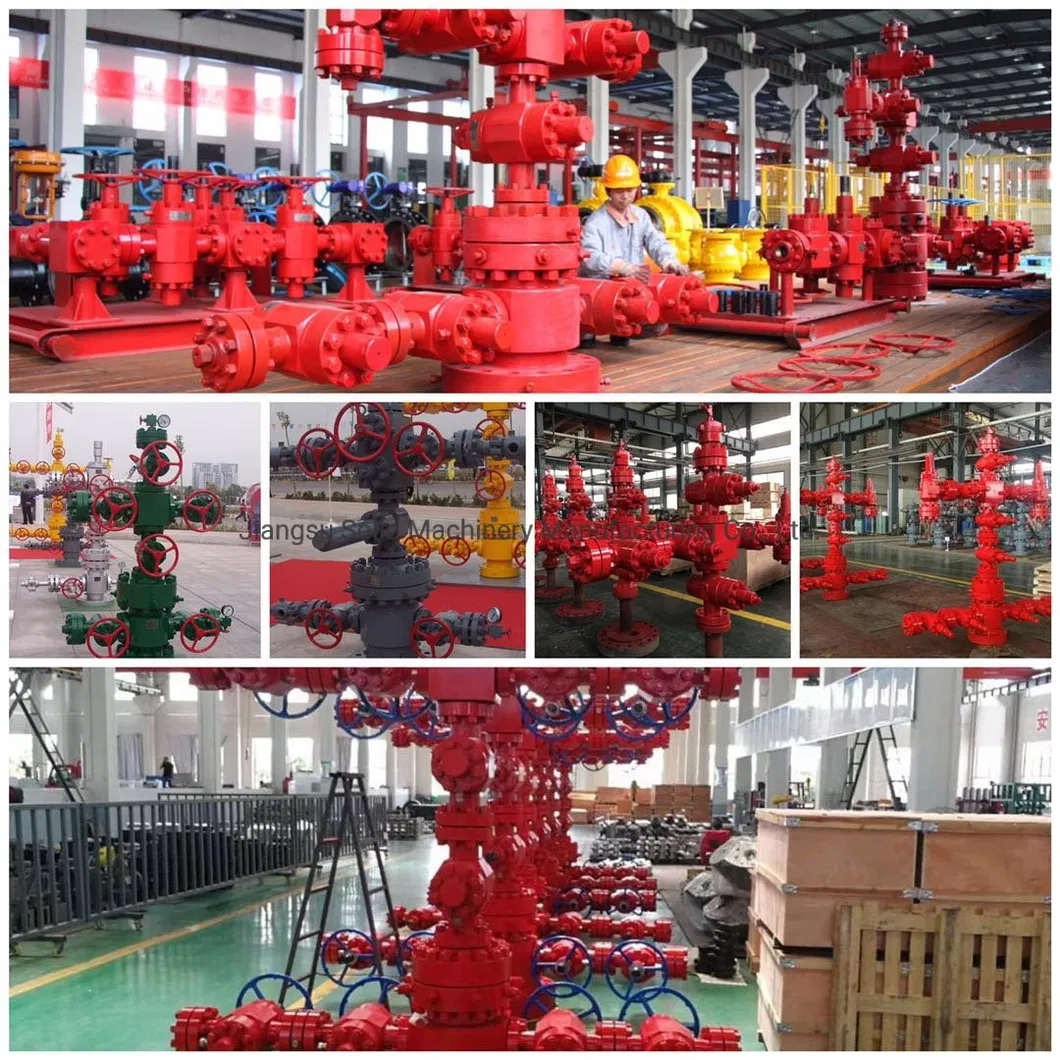

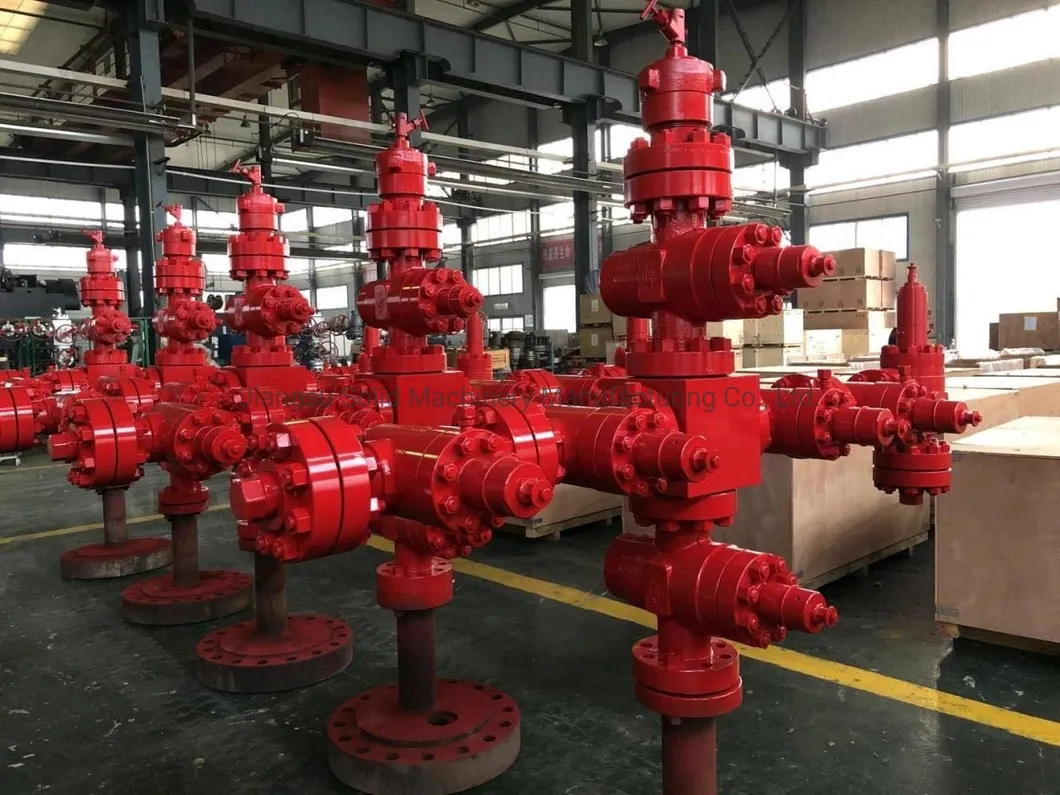

API 6A Wellhead Equipment in Oil and gas Christmas Tree/ X-max tree
Fix drilled wellhead,connect wellhead casing string ,seal and control the annular of casing,suspend tubing,control wellhead pressure and adjust flow rate,also induce oil into outlet pipeline,shut off oil well when necessary,and apply to acid fractuing,water injection and test service;Apply to all kinds of casing,tubing programs and connection forms;Feature realiable running,simple and convenient operating and repairing;Can be equipped with(pneumatic)hydraulic safety valve;Working Pressure:2000PSI-20000PSIWorking Mmedium:oil,natural gas,mud,including H2S,CO2Working temperature:-46°C-121°C(Class LU)Working class: AA, BB, CC, DD, EE, FF, HHSpecification level: PSL1-PSL4Specification level: PR1-PR2
Fix drilled wellhead,connect wellhead casing string ,seal and control the annular of casing,suspend tubing,control wellhead pressure and adjust flow rate,also induce oil into outlet pipeline,shut off oil well when necessary,and apply to acid fractuing,water injection and test service;Apply to all kinds of casing,tubing programs and connection forms;Feature realiable running,simple and convenient operating and repairing;Can be equipped with(pneumatic)hydraulic safety valve;Working Pressure:2000PSI-20000PSIWorking Mmedium:oil,natural gas,mud,including H2S,CO2Working temperature:-46°C-121°C(Class LU)Working class: AA, BB, CC, DD, EE, FF, HHSpecification level: PSL1-PSL4Specification level: PR1-PR2
