productAISI 4145h 调质直径9英寸、直径6 5/8法兰环状钻铤
Image 2Image 3Image 4Image 5
Image 1
Preview
基本信息产品详情证书

基本信息

型号编号4145H MOD
表面处理抛光
运营压力大气压
材料合金
钢材等级4145小时
保护者线束护套
属性Ns1和Ds1属性
标准根据API Spec 7-1
可用的Pony 领口可拆卸
沟槽防锈剂
运输包标准
规格3 1/8 英寸减 11 英寸
商标顺孚
起源中国
生产能力每 年 10 万吨

产品详情

Product Description
detail
Preview
Spiral Grooved Drill Collar
Our spiral drill collar is best suited for extreme drilling applications. The spiral grooves allows mud to circulate freely around the drill collar body thus relieving the pressure difference to reduce the occurrence of differential pressure sticking.
As an important part of drill string, drill collar can supply the drill bit and increase the rigidity of drill string. Drill
collar are manufactured strictly according to API Spec7-1 standard with material of AISI 4145H
Mod. We supply slick drill collars, spiral drill collars, etc. The size of drill collar we can provide is from 3.1/8 to 11 inches. We can also provide other drill collars at customers' specific request.
Drill Collars are one of the parts of a drills string. Drill for the Collars is meant to provide weight for drilling purposes. The Drill Collars are thick walled tube like pieces that are machined from solid steel bars, although they are often made from plain carbon steel or the non magnetic alloy of copper and steel or other premium alloys that are non magnetic in nature. Drill collar has bars of solid steel that are drilled from one end to the other to provide a passage for pumping the drilling fluids through the collar.
Collars that are available for drilling have an external diameter that is made of steel and can be slightly machine perfected for making sure of the roundness. Drill
Collars are sometimes perfected with the help of spiral Collars or helical shaped grooves. Drill threaded collar have connections that are male or one end and female on the other and. These are cut into a multiple collar that can be adjusted with screw along with other down hole tools. Drill helps make a bottom hole assembly or BHA.
MAGNETIC DRILL COLLAR
Slick and Spiral Drill Collarsaccording to API Spec 7-1
NS1 and DS1 properties
4145H Material
Stress Reflief Groove
SRG on PIN
Bore Back on Box
Connections Phospatized
Cold Roll on Threads to improvefatigue resistance
Thread Protectors
Pony Drill Collar available
Product Details

First class equipment could guarantee the whole process flow and the clave process be more efficient like heat treating and friction welding.

Meet the international requirement of the API 5DP, API 7G, & ISO 9001;

Advanced and strict inspection instruments could guarantee the high quality product with a more stable performance.
Features of Drill Collar
Superior-quality green pipe&Advanced heat treatment process-High Strength& high toughness(especially under low temperature).To meet or exceed requirements of the API 7-1,API 7G&IS09001.Equipped with advanced inspection instruments and a strictly enforced quality controlling system,the final products are guaranteed to be of superior and stable quality.Due to our professional technicians&product flexibility,we are capable of meeting some customer' s specific requirements.Drill collars are extra-heavy integral tools used to concentrate weight onto the drill bit so as to produce sufficient force for the drill bit to break rock efficiently while drilling. They are made of AISI 4145H modified steel and are connected between drill pipes and drill bits.Drill collars come in 30 or 31 foot lengths and are furnished as slick (as-rolled surface finish) or spiraled. Spiraled drill collars have grooves on its external surface which maintains an even flow of drilling fluid around the collar to equalize pressure and reduce differential-sticking of the collar to the wall of the oilwell.Our drill collar connections comply with dimensional requirements specified in API Spec. 7/7-1 and guidelines presented in API RP7G. Drill collars also come with slip and elevator recesses for safe and efficient handling. Slip and elevator recesses can be used together or separately and are machined in compliance with API RP7G guidelines unless otherwise specified.
DRILL COLLARS SIZES
detail
Preview

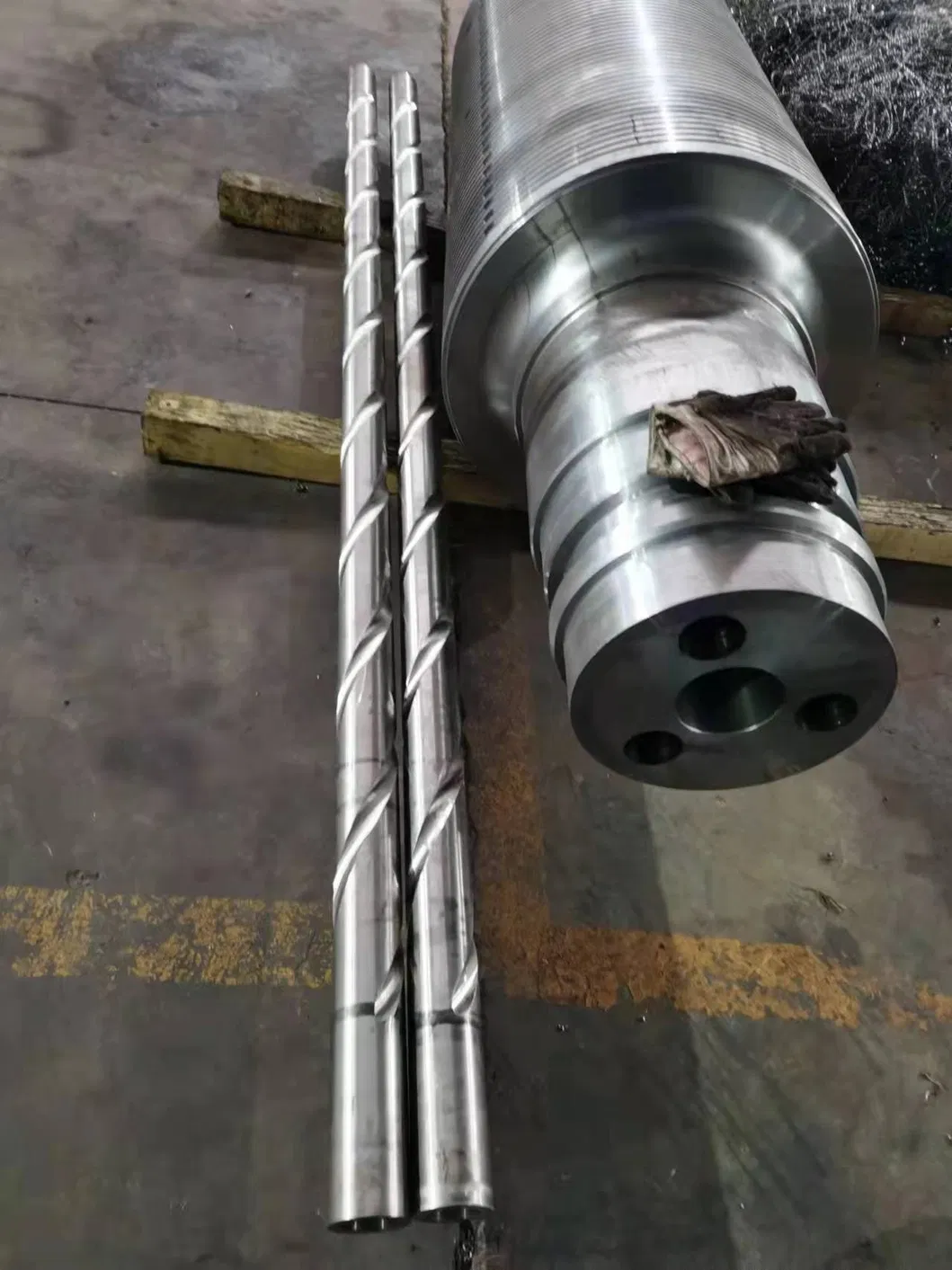

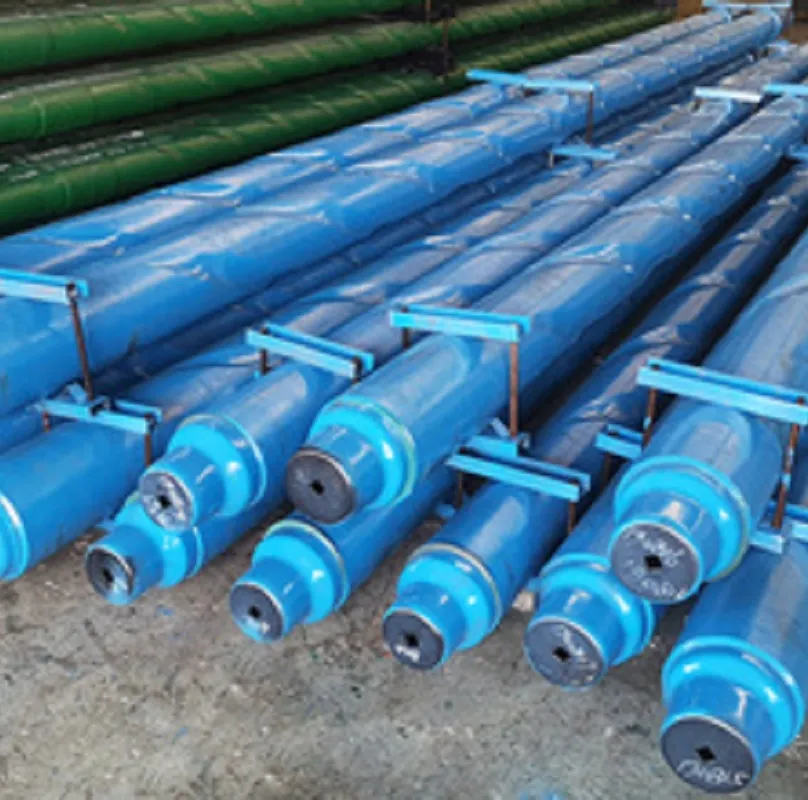

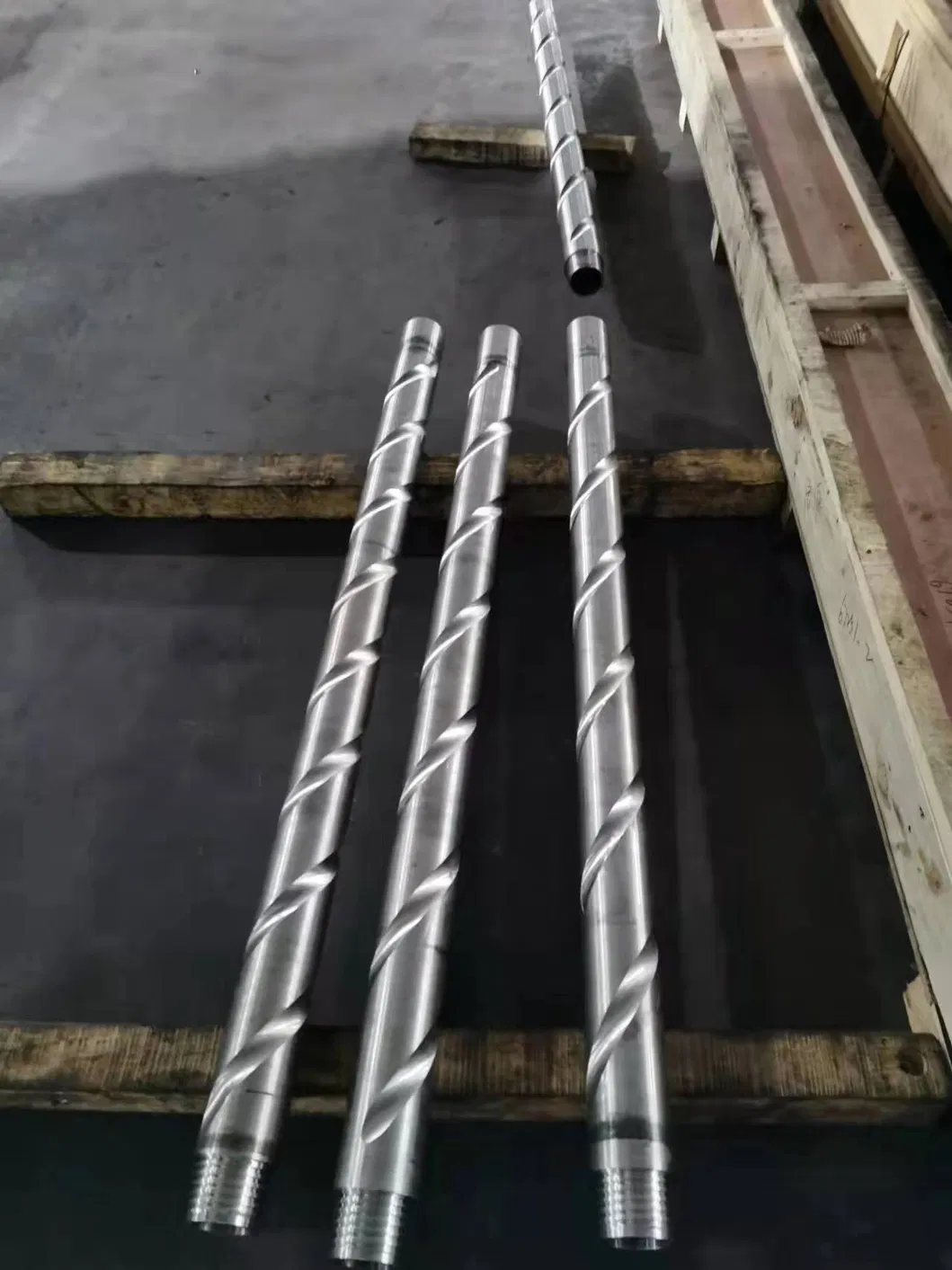

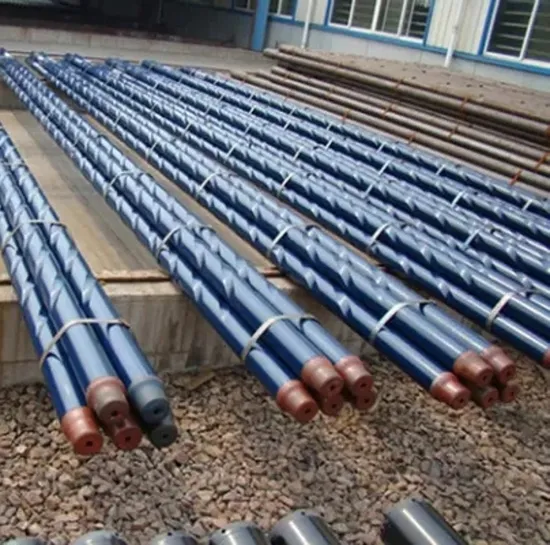

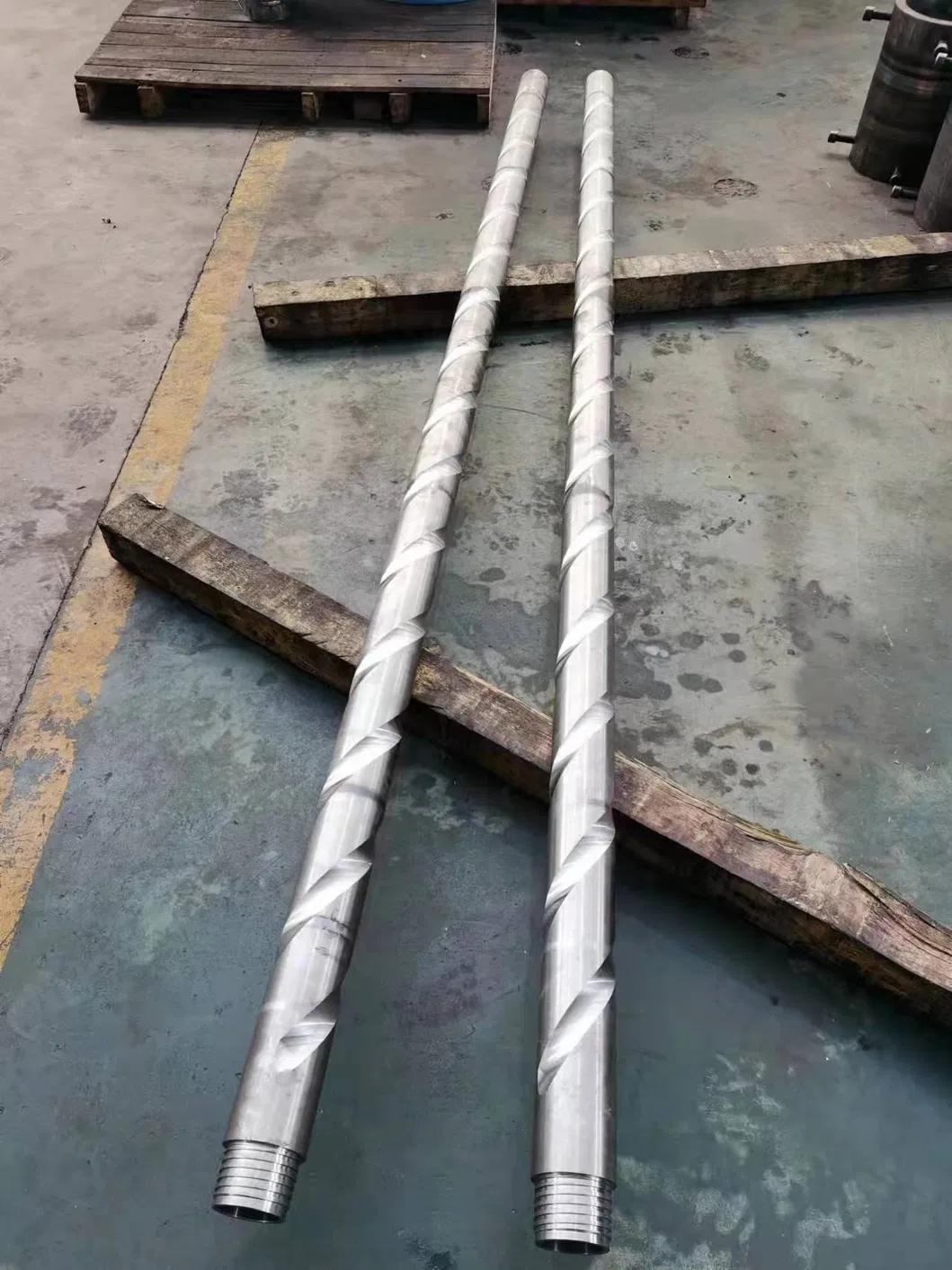

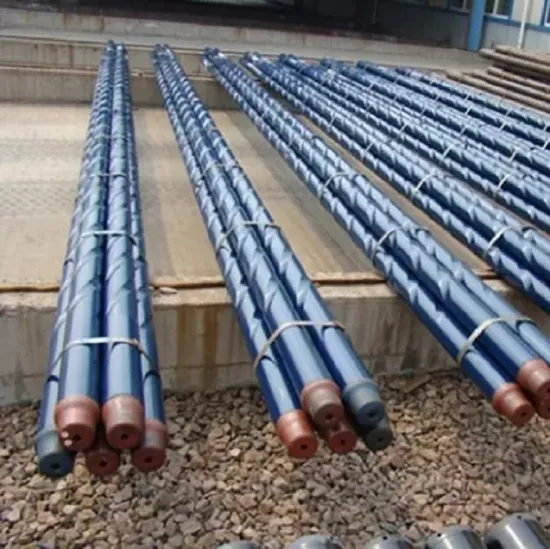

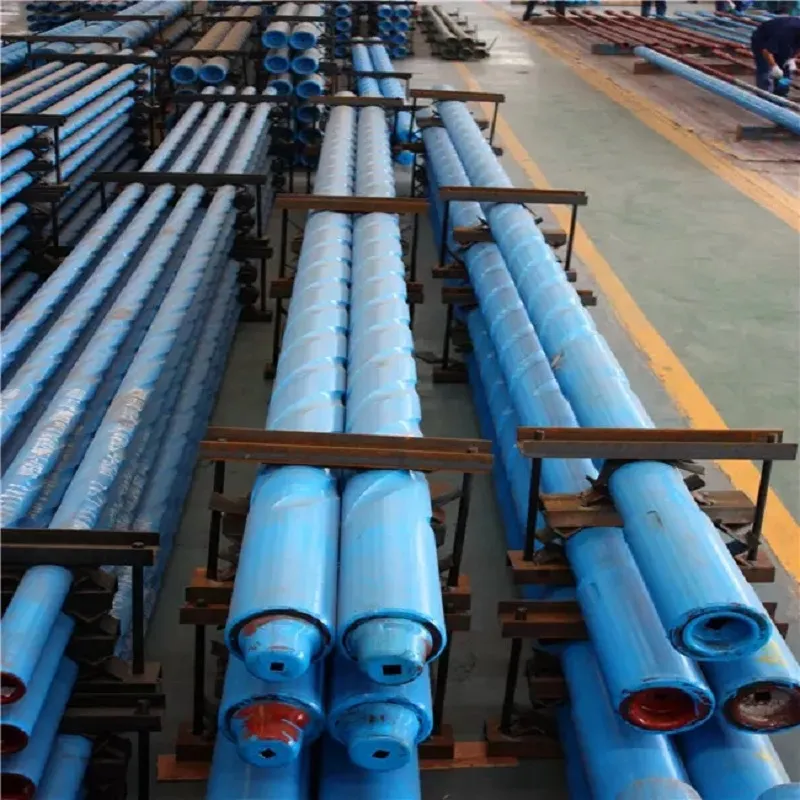

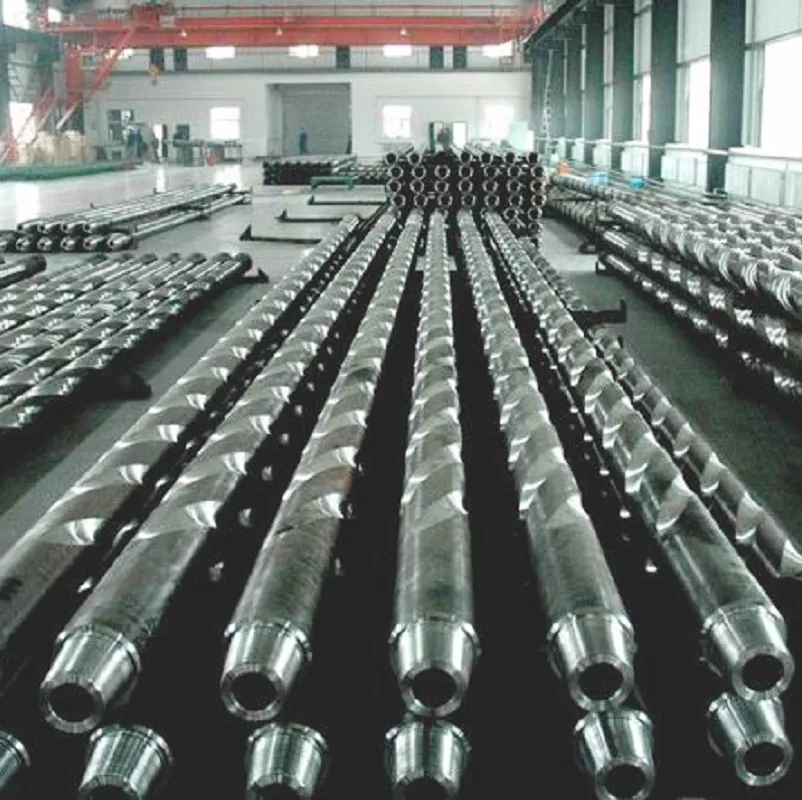

Detailed Photos
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
