The Hammer Union can be used for cementing trucks, all kinds of manifolds and other high pressure equipment, and pipes. It is an important part for transporting oil. Water, fracturing fluid and mixed fluid. These products are all made of high quality steel by forging and finishing cut. They have good. Mechanical performance and sealing property. Especially they can operate under the bad weather condition. They can be assembled fixed easily and conveniently. Main technical parameter model number collecting norm working pressure, structural length drift diameter. The product adopts some end connections of pipeline thread, tubing thread, butt-weld.

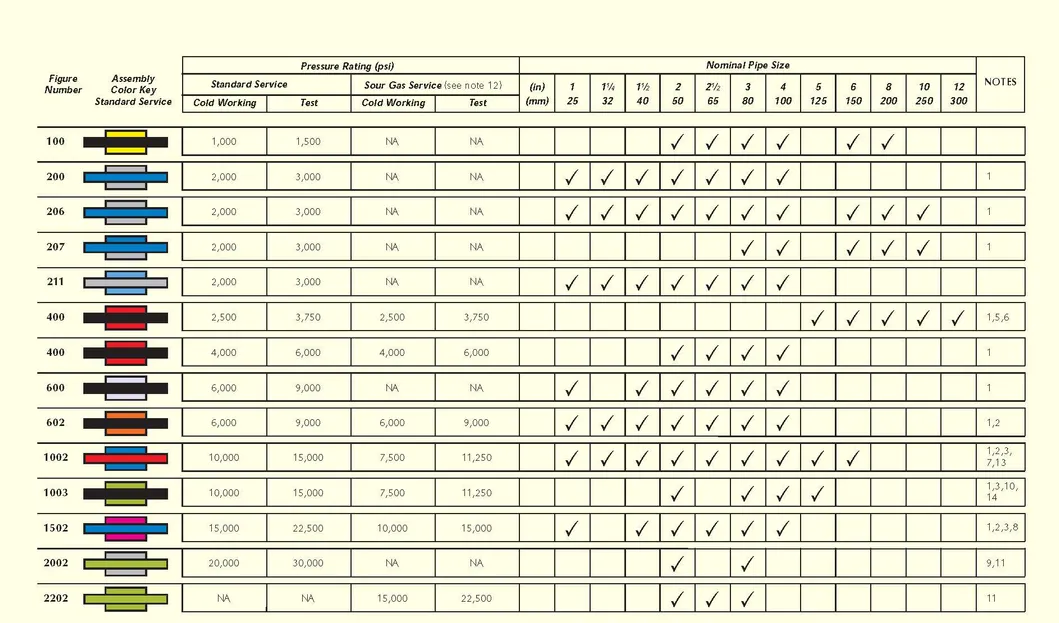

The Hammer Union type mainly consists of Figure 100, Figure 200, Figure 206, Figure 400, Figure 600, Figure 602, Figure 1002, Figure 1003, Figure 1502 and Figure 2002.

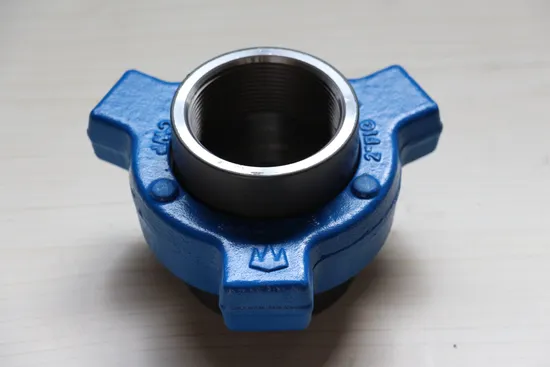

Figure 100 Hammer Union
Nominal pipe Size: 2; ± , 2-1/2; ± , 3; ± , 4; ± , 6; ± , 8; ±
Pressure Rating: 1000psi cwp; 1500 psi test;
Connections Type: Pipeline thread, tubing thread, butt-weld;
Component Parts: Nut, Male Sub, Female Sub, Seal Ring;
Sour Service Models to NACE MR-01-75.
Recommended service
Manifold and line connections.
Features
Pressure-tight make-up with hammer;
Economical, low-pressure union.
