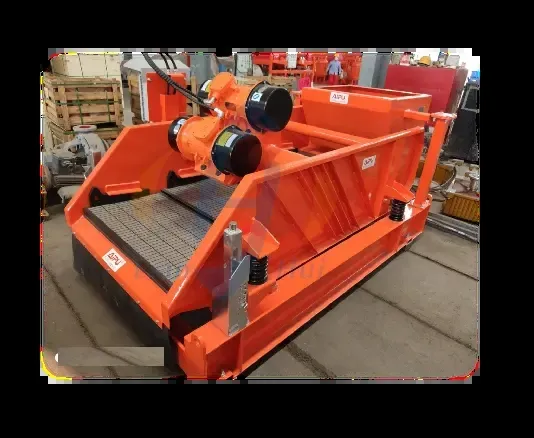

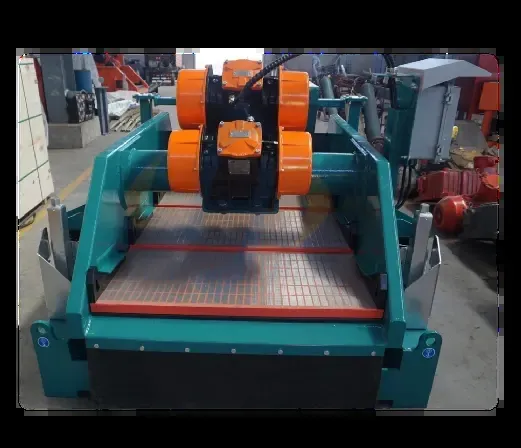

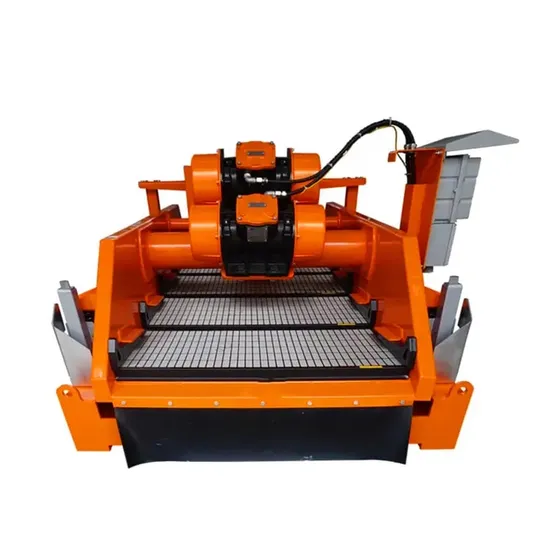

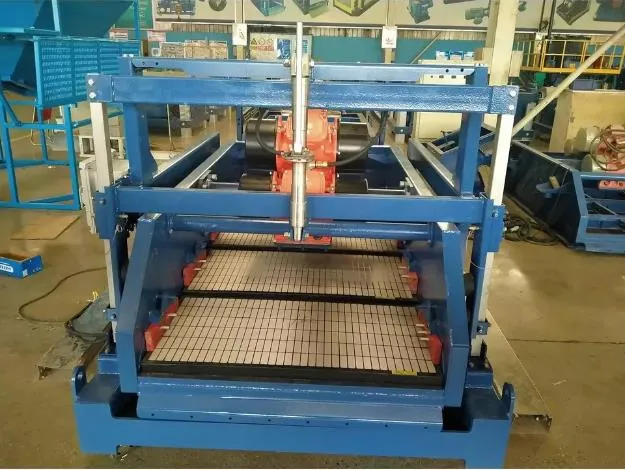

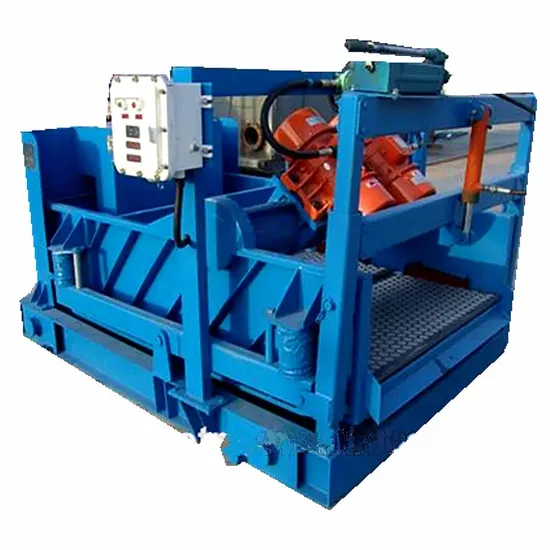

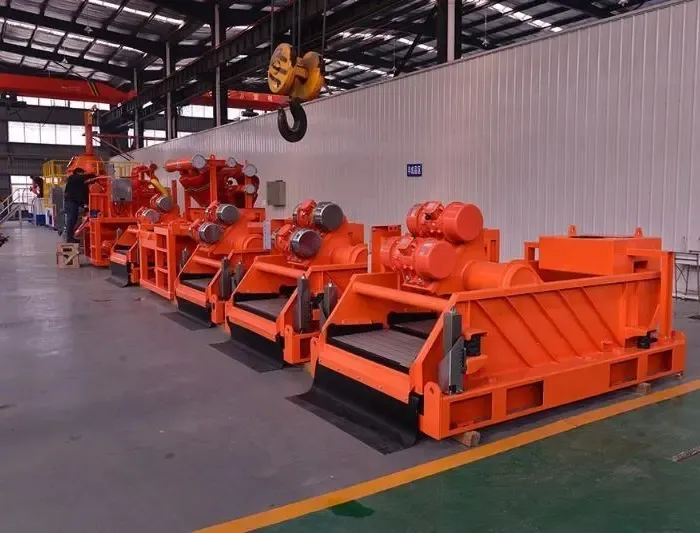

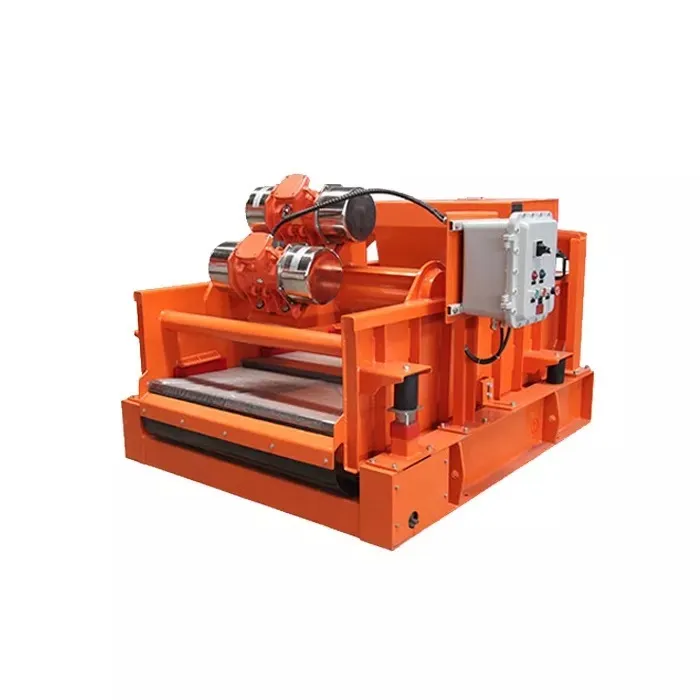

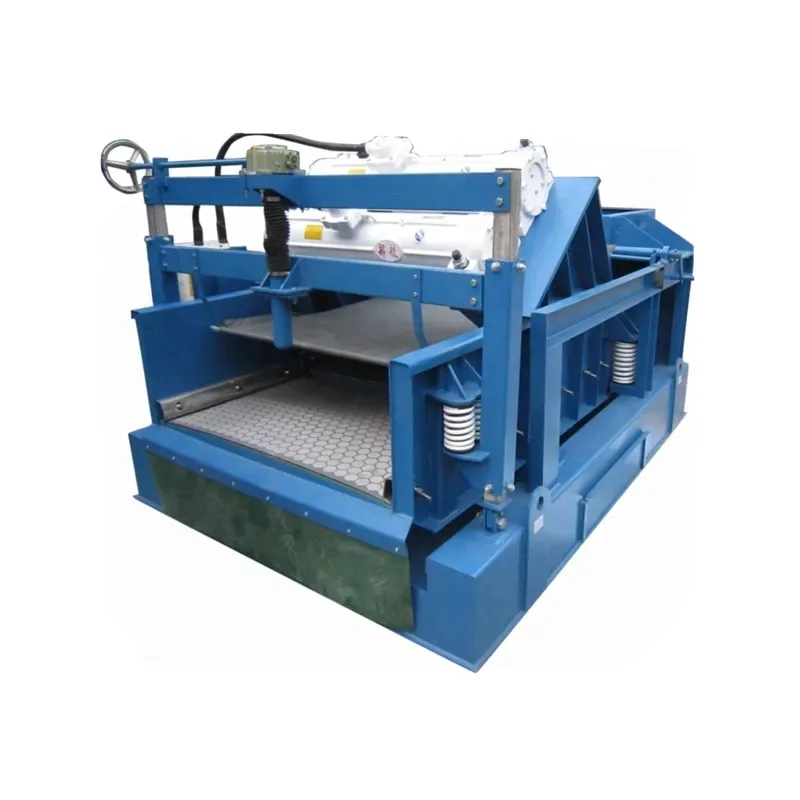

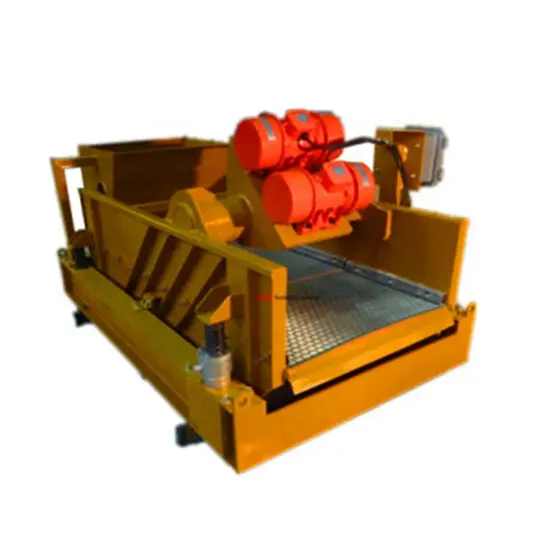

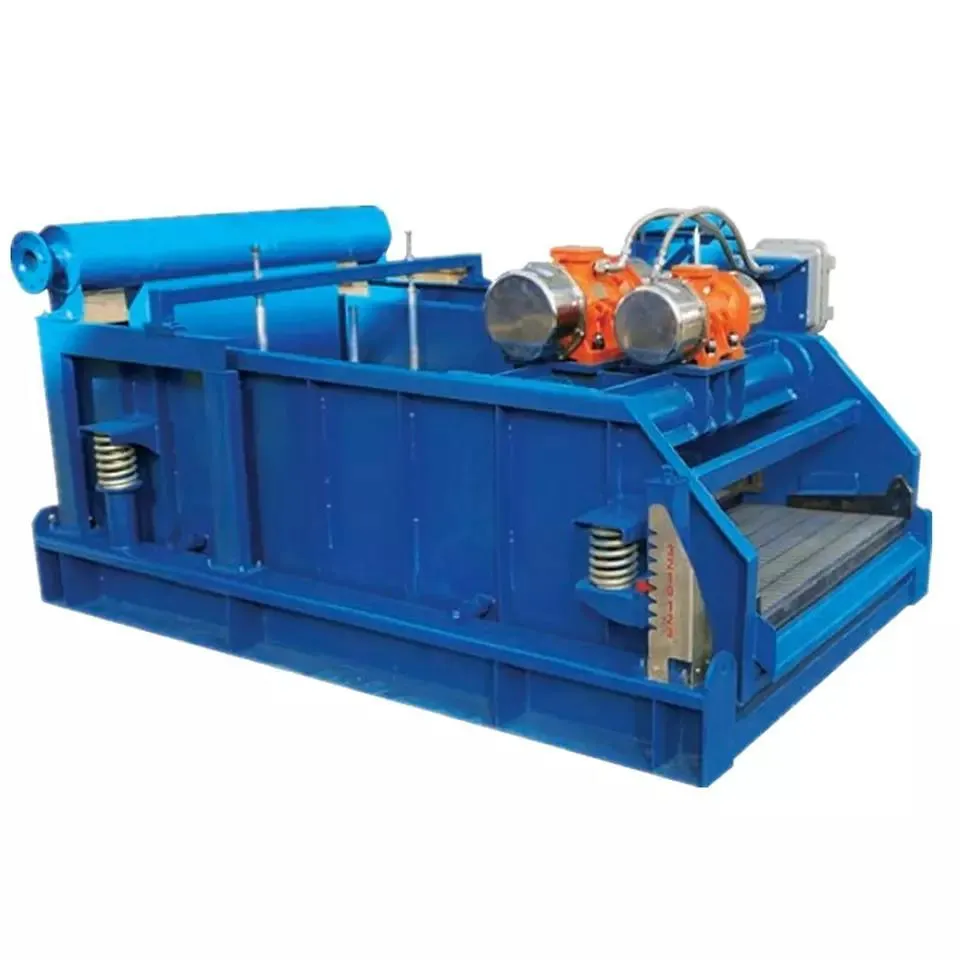

Drying Shaker are an ideal and effective
solid control equipment
for high-capacity treating in the heavy loading and tough drilling conditions , its
easy to maintain, the single side screens tension system make it
easy to change the screens. The
AWD system
could
change the angle
of shaker deack
from -1°~5°,it can
remove cuttings above 75μm
brought from the drilling.
Model
ZS240-3P
ZS220-3P
ZS180-2P
Viberation Model
Liner Motion
Motor
power,kW
2×2.2
2×1.3
Ex
degree
dIIBT4
Protection
IP66
Screen
area,m2
3×0.7×1.15
3×0.7×1.05
2×0.833×1.15
Bilateral
amplitude,mm
6
Vibration
frequency,Hz
24.3
strength
7.2
g
Capacity
35
l/s
30
26
Angle
adjustment
range
-2°~+6°
Overall
dimensions,mm
2710×1980×1540
2710×1870×1535
2300×1980×1285
Weight,kg
2080
1950
1650

Features of Products:
1.Adjustable G force up to 8.0, drying solids discharge more effcient
2.Mechanical shaker deck angle adjustable while working
3.Heat treatment on complete shaker deck for High G force operation.
4.Plate-type frame screen, wedge-type hold down unit for screen, so screen can be easily and fastly replaced.
5.Famous Brand Vibration Motors : Martin or Oli
6.International brand Siemens or Sch neider
7. Funneled feed inlet effectively lowers the feeding height for cuttings from conveyor

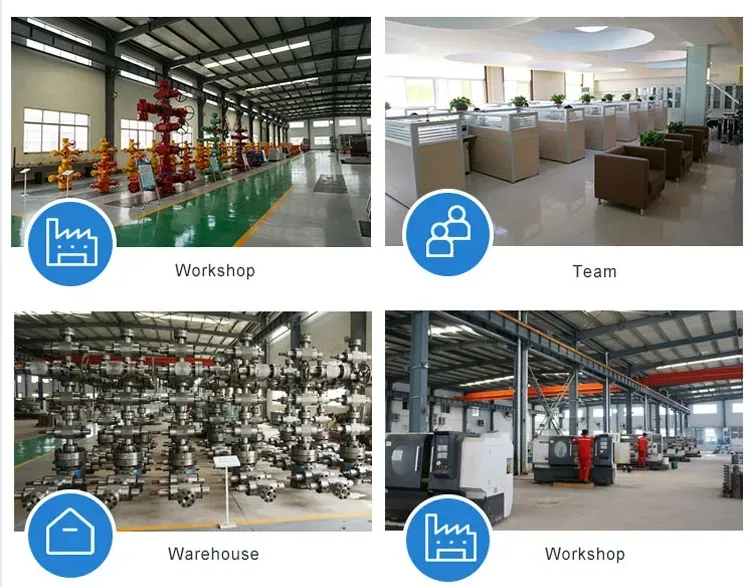

SHANDONG LIGHT FIR MACHINERY Co., Ltd(LFM) is located in Shengli Oilfield, Shandong Province, China.
