Products Description

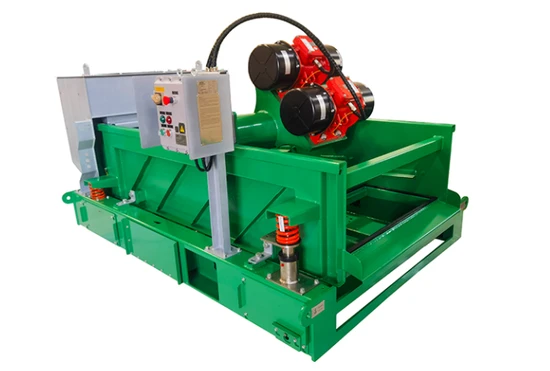

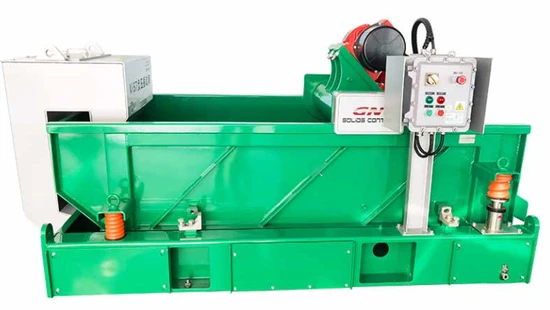

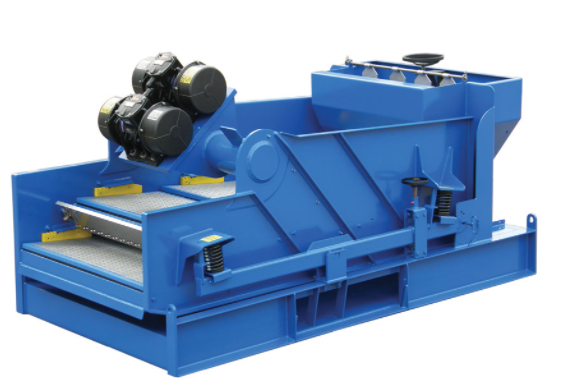

The mud shaker is a primary screening equipment in the drilling mud treatment system. Moving screens can be divided into: double track vibrating screens, translational elliptical vibrating screens, and linear vibrating screens based on their motion trajectories;

Product overviews

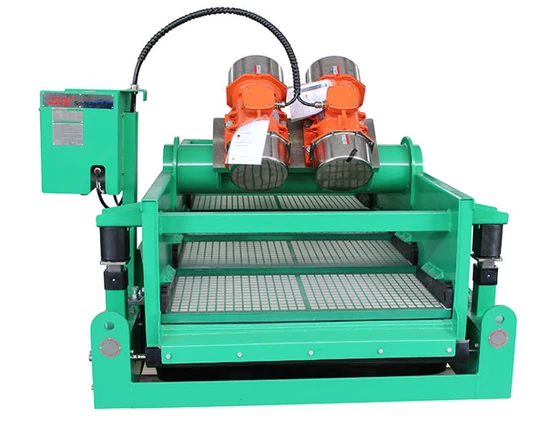

1.The dual trajectory mud vibrating screen is composed of two vibration motors with the same power and one low-power motor installed The new type of vibrating screen combines the trajectory characteristics of linear vibrating screen and translational elliptical vibrating screen, making it easy to achieve.The switching between linear and translational elliptical trajectories can adapt to different operating conditions. 2.The linear vibrating screen is driven by dual vibration motors. When the two vibration motors rotate synchronously or in reverse.The excitation force generated by the eccentric block offsets each other in the direction parallel to the motor axis, and in the direction perpendicular to the motor axis.The stacking is a combined force, so the motion trajectory of the screen machine is a straight line. 3.The translational elliptical vibrating screen is a new product that applies advanced dual motor automatic synchronization theory and adopts two vibration motors of different sizes, with them on a reference plane. Due to different steering and excitation of the two motors.The trajectory of motion generated by different vibration forces is elliptical.
Technical parameter & Accessories List
Model
SWZS703
SWZS583
SWZS584
SWZS585
SWPS584
Vibration Locus
Linear type
Oval type
Power
1.5kw*2
2.2kw*2
1.94kw+1.0kw
Vibration Intensity
≤7.1G(adjustable)
Double Amplitude
6.0mm
7.0mm
Single screen
processing capacity
120m³/h
90m³/h
130m³/h
150m³/h
Screen box adjustment angle
-3°~+3°
Explosion proof level
ExdIIBt4 / IECEX A-TEX
Sieve surface area
2.62 m²
2.04 m²
2.73 m2
3.41 m²
2.73 m²
Sieve surface specifications
700*1250mm
585*1165mm
Number of sieve surfaces
3
4
5
Starting cabinet
Magnetic force starter
Weight
1620kg
1450kg
1600kg
1750kg
Notes
The single screen processing capacity is measured when the mud specific gravity is 1.2g/cm3 and the viscosity
is 45s, with a mesh size of 40 on the screen

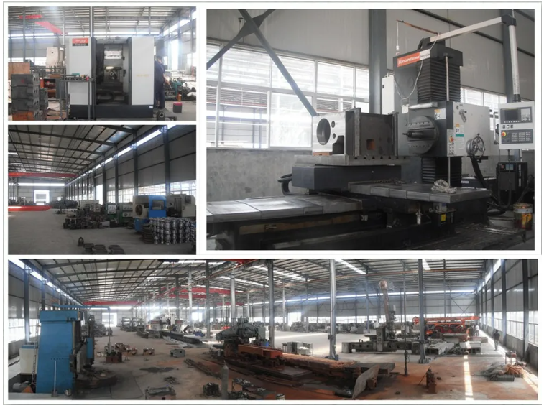

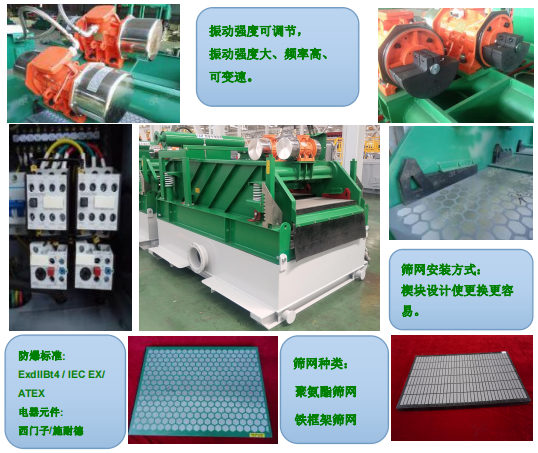

Manufacturing Technique

Drill rig spare parts:

1.Q:Are you a factory or trading company?
We are factory and China Top 10 line pipe manufacturer.
2.Q:Where is your factory located? How can I visit there?
We locate in Tianjin, China, 30 minutes from Beijing by train.
3. Q:What do your factory do regarding quality control?
From material to products, we inspect each process to keep good quality.
And SGS inspection can be accepted.
4.Q:How about MOQ ?
We have stock of common sizes at hand, so even few ton is accepted.
5.Q:How about payment ?
Both T/T and L/C can be accepted.
6.Q: How long does your warranty?
We can assured the quality within 90 days after receiving the cargoes.
