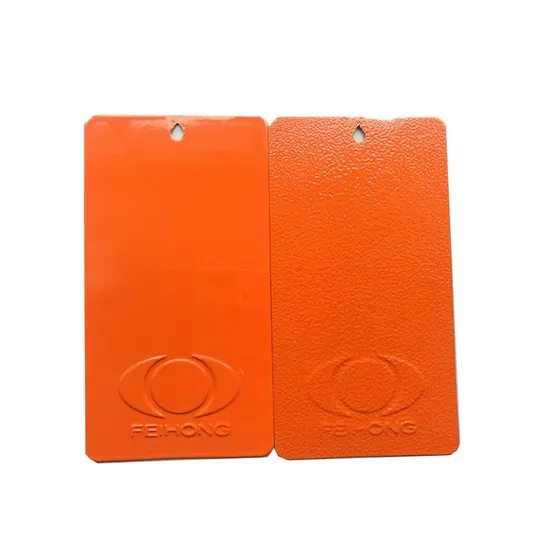

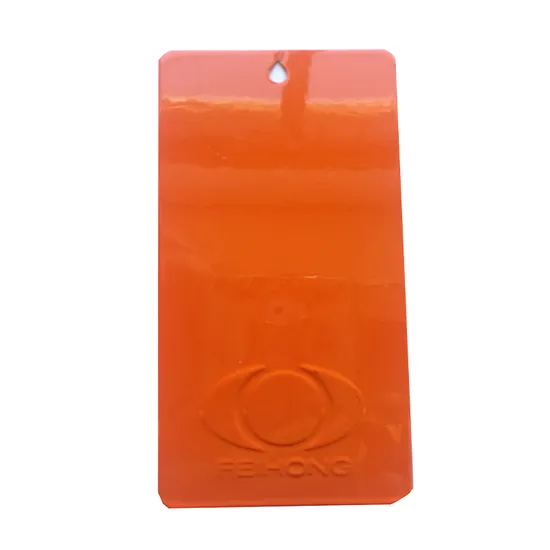

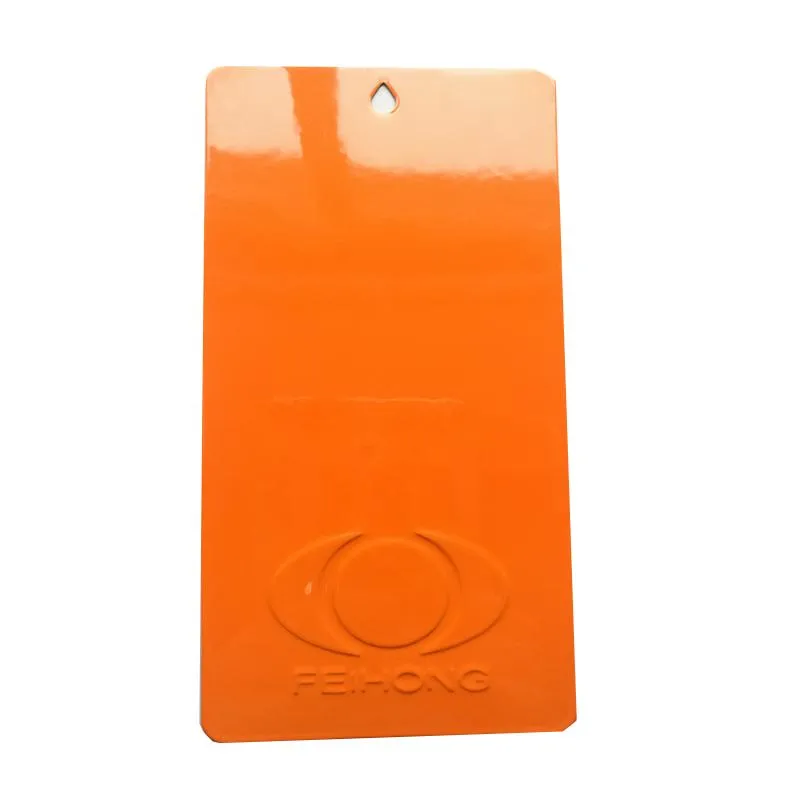

RAL 2004 RAL 2008 orange color smooth glossy epoxy polyester powder coating
Lean pipe / composite tube, also known as wire rods, steel composite pipe or flexible tube, is made of carbon steel. from high quality steel to surface treatment, coated with plastic resin welded steel pipe, the outer surface of the plastic layer using special thermo plastic adhesive, coating the inner surface of cover combination. To prevent separation of the coating and the pipe between them using a special adhesive bonding. Composition of products, with good looks, wear, bright color, rust no pollution, is an ideal alternative to stainless steel products. Standard quasi-linear rod material diameter 28mm, pipe wall thickness 1.0mm. The appearance of color can make different effects according to different requirements.Our Workshop:Equipment used:
Electrostatic gun
AVERAGE COVERAGE
8-12 square meters /
kg, thickness 60 microns (100% of the powder coating utilization rate)
PACKING
Outside carton lined with two layers of polyethylene bags, each containing 20 kg or 25kg net weight.
COLORS AVAILABLE
RAL colors coating powder
Pantone colors
Color-matching regarding customer requirement is available
GENERAL TYPES
Epoxy Polyester Hybrid powder coating
Smooth glossy powder coating

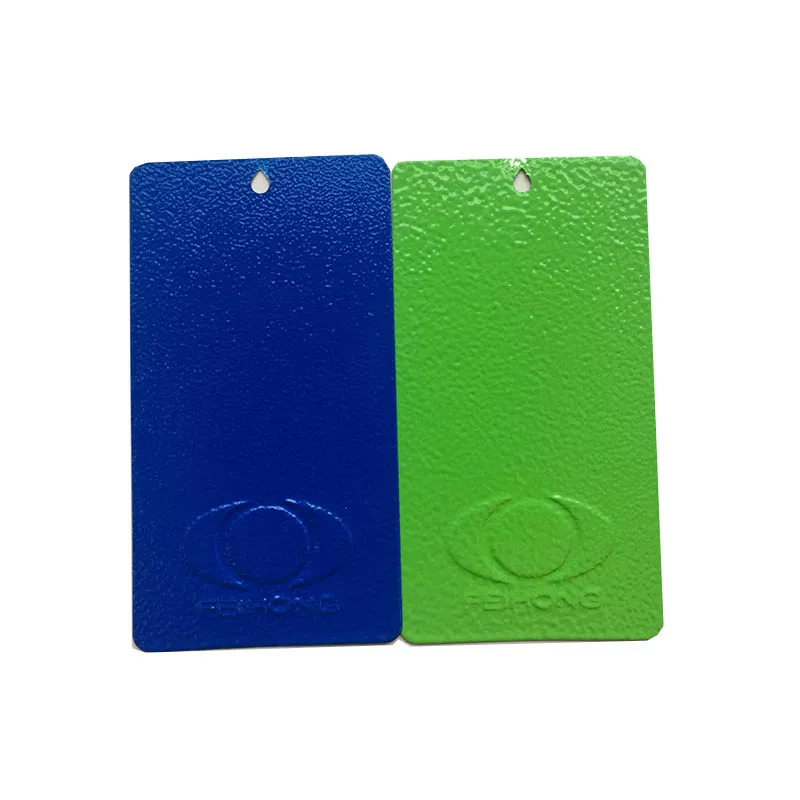

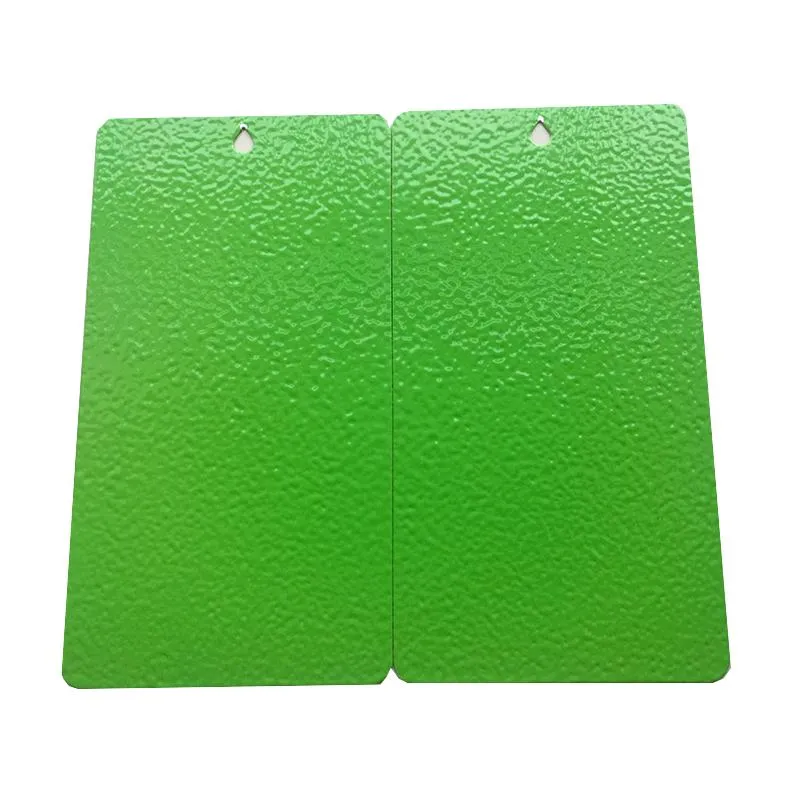

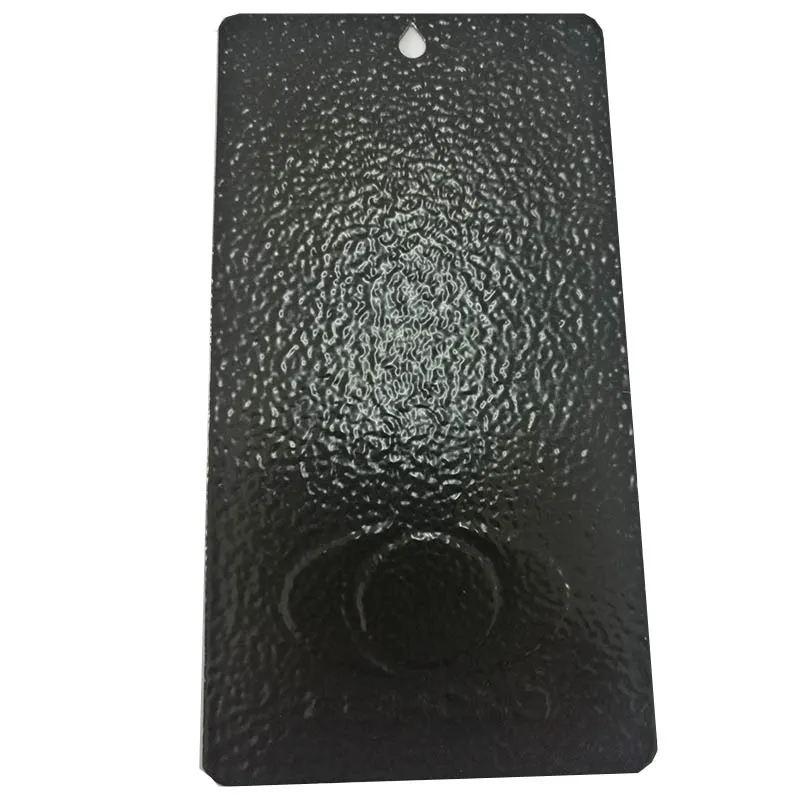

Textures include sand grain, hammer, silk pattern, sand textured, marble,metallic, multi-color.
PHYSICAL PROPERTIES
Specific gravity :1.2 ~
1.5g/cm3 up to colors
Particle size distribution:100% less than 100 microns (depending on the specific indicators art effects may be, according to the special requirements of painting adjusted)
Level of liquidity:24 ~
27 mm
CURING CONDITIONS
180 °C ~
200 °C (work piece temperature), 10-15 minutes
STORAGE AND TRANSPORT
Stored in less than 30 °C, ventilated, dry, clean room, not near the fire source, heating, avoid direct sunlight, the product in the transport should be to prevent rain, sun, prolonged sun exposure.Storage products in line with the above conditions, since the date of production, effective storage period is 6
months.Over the storage period may be re-tested and the results were consistent with, can still be used.
HEALTH AND SAFETY
Coating powder is a
non-toxic products, but should be avoided in the course of inhalation of dust.Proposed operators wear appropriate dust mask, glasses.If possible, try to avoid long-term skin contact with powder coating
We offer
free samples
to you.
You can contact me informatoin as follows,
Attn:Danae Ren
