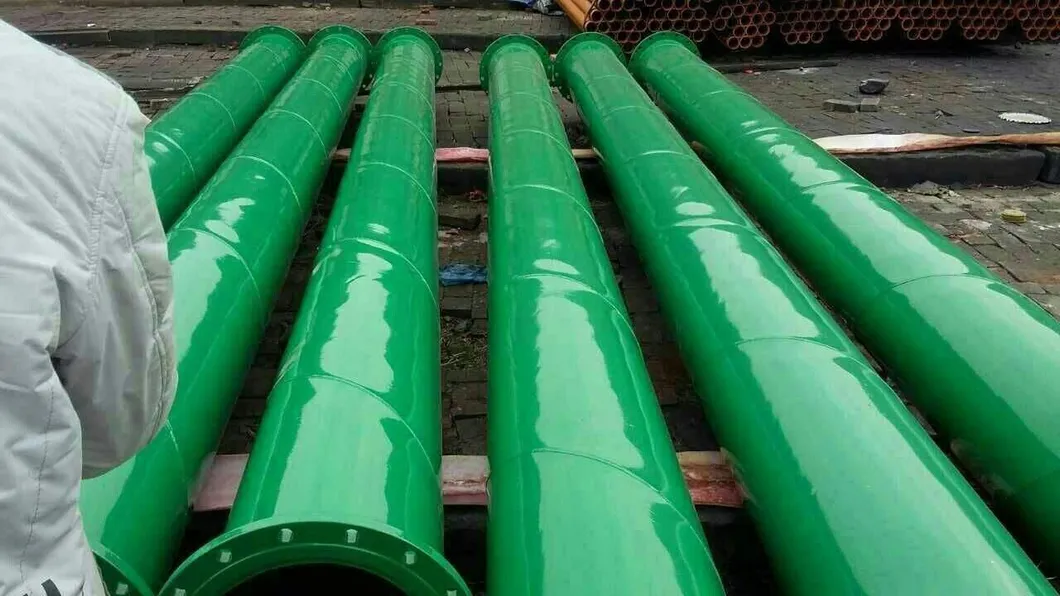

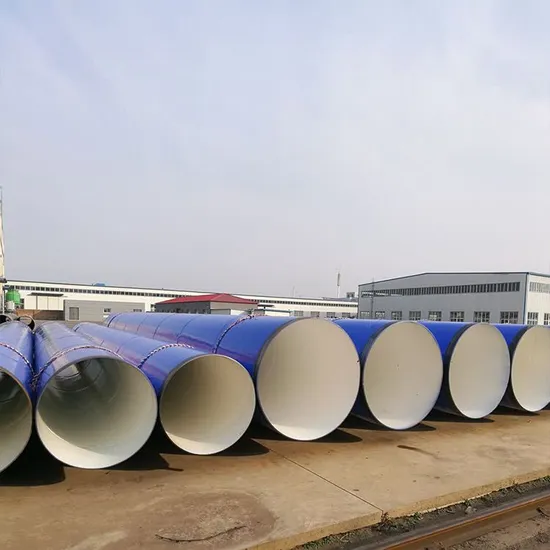

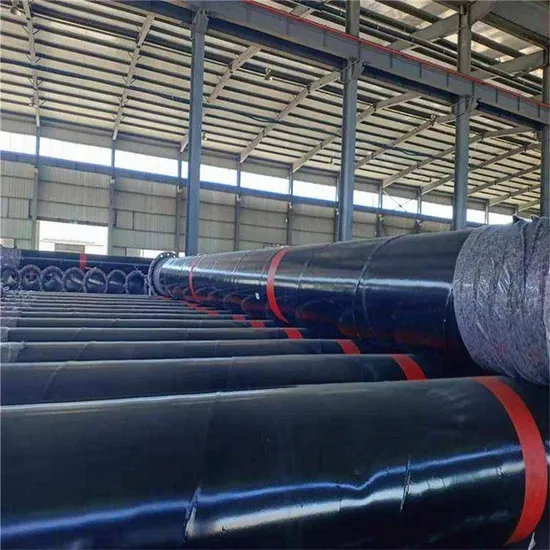

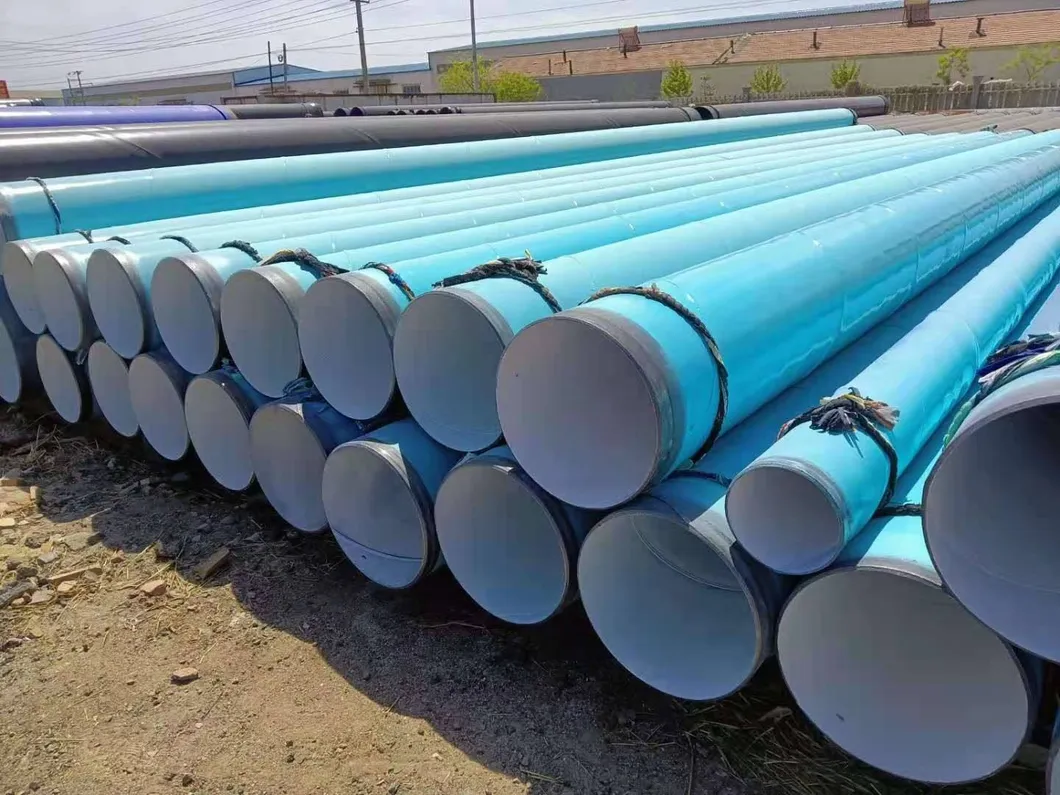

FBE Powder Coating with Excellent Corrosion Protection, Epoxy Resin Powder Coating for Oil PipelinesIntroductionIt's thermosetting epoxy powder is designed to protect pipelines from corrosion in the most demanding operating environments. This product has excellent properties of corrosion resistance and can be widely used in anti-corrosion for steel pipelines carrying oil, gas, water, and others.This product has been certified to meet the requirements of the CSA Z245.20-18 standard.Product FeaturesThe film has high density and adhesion.Excellent chemical corrosion resistance.Excellent physical-mechanical properties.Curing reaction speed can be adjusted according to the customer's request to satisfy
the requirement of different spraying.Powder Properties
Film Properties
Note: prepare specimens process
abrasive blasting to Sa2.5 near-white metal with a surface profile of 50-100
microns.Then,
clean the surface with high-pressure gas
Put the specimen into the oven (200ºC),
and
preheat for 40-60
min.Spray the powder on the
preheated
specimen with an electrostatic spray gun, then put it in the oven, and keep 5-10 minutes at 200ºC
The dry film thickness is 350±50µm.
Coating Reference1. Application: Factors such as plant capability, specifications, and pipe construction or characteristics can affect application conditions. The recommended application temperature range is 200-220ºC.2. Surface Preparation: Remove all surface contamination before abrasive blasting. Blast clean using steel grit to Sa2.5 near-white metal with a minimum surface profile of 2 mils/51 microns.Precautions1. All data are based on laboratory testing and practical experience.2. It is recommended that the product should pass process evaluation before mass use, so as to avoid an unnecessary loss to customers due to various reasons such as process.Package
and Storage

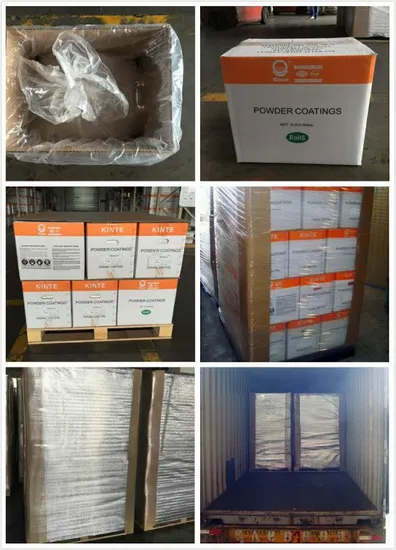

1. The package is 25kg per box, lined with polyethylene plastic bags. In the course of shipment, it should be loaded or unloaded lightly and avoid direct sunlight and heat, and moisture.
2. The product should be stored in a cool, ventilated, dry room with a temperature below 25ºC
and humidity below 65%.3. Keep away from fire and heat and tide.4.After use, it should be sealed in time to prevent powder from being polluted and
damped.5. Reduce the number of movements to avoid impact and pressure.6. The maximum stacking height should not exceed 5 layers.

Company Profile:Kinte Materials Science and Technology Co., Ltd. is subordinate to China Machinery Industry Corporation (a key state-owned enterprise directly managed by SASAC, ranking 284 among the world's top 500 in 2021). It is a national high-tech enterprise under China National Electric Apparatus Research Institute Co., Ltd. (Stock Code: 688128), a listed enterprise on the SSE STAR MARKET. Focusing on the R & D, production, and sales of environmentally friendly coatings (powder coatings, waterborne industrial coatings) and powder coating resins, the company is committed to improving the global market competitiveness of China's environmentally friendly coating industry. Now it has become the leader and promoter in China's technological development of environmentally friendly coatings as well as polyester resins for powder coatings! We have gained ISO9001 and ISO14000, ISO18001, RoHS, UL certification, and QUALICOAT
Certificates.Due to the excellent and stable quality, our products always enjoy a high reputation at home and overseas, and

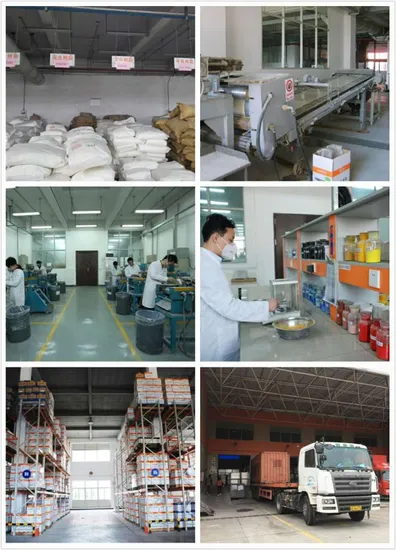

were sold to more than 30 countries.The powder coating branch was founded in 1992,
and now there are two factories
(the Guangzhou
factory and the Wuhan factory)
with an annual
production capacity of over 25,000 tons. And we have cooperated with many famous clients such as Gree,
Pansonic, HITACHI, Mitsubishi, Walmart, HUAWEI, EMERSON, Hisense, Dicastal, BYD, AAG,
etc.We unremittingly stick to the business principle of "Quality is the life, adhere to first-class technology, first-class
quality, first-class cost, and first-class brand". We would like to provide a
complete
set
of services and solutions for
both domestic and
abroad customers and would like to go forward to a brilliant future with you together.
