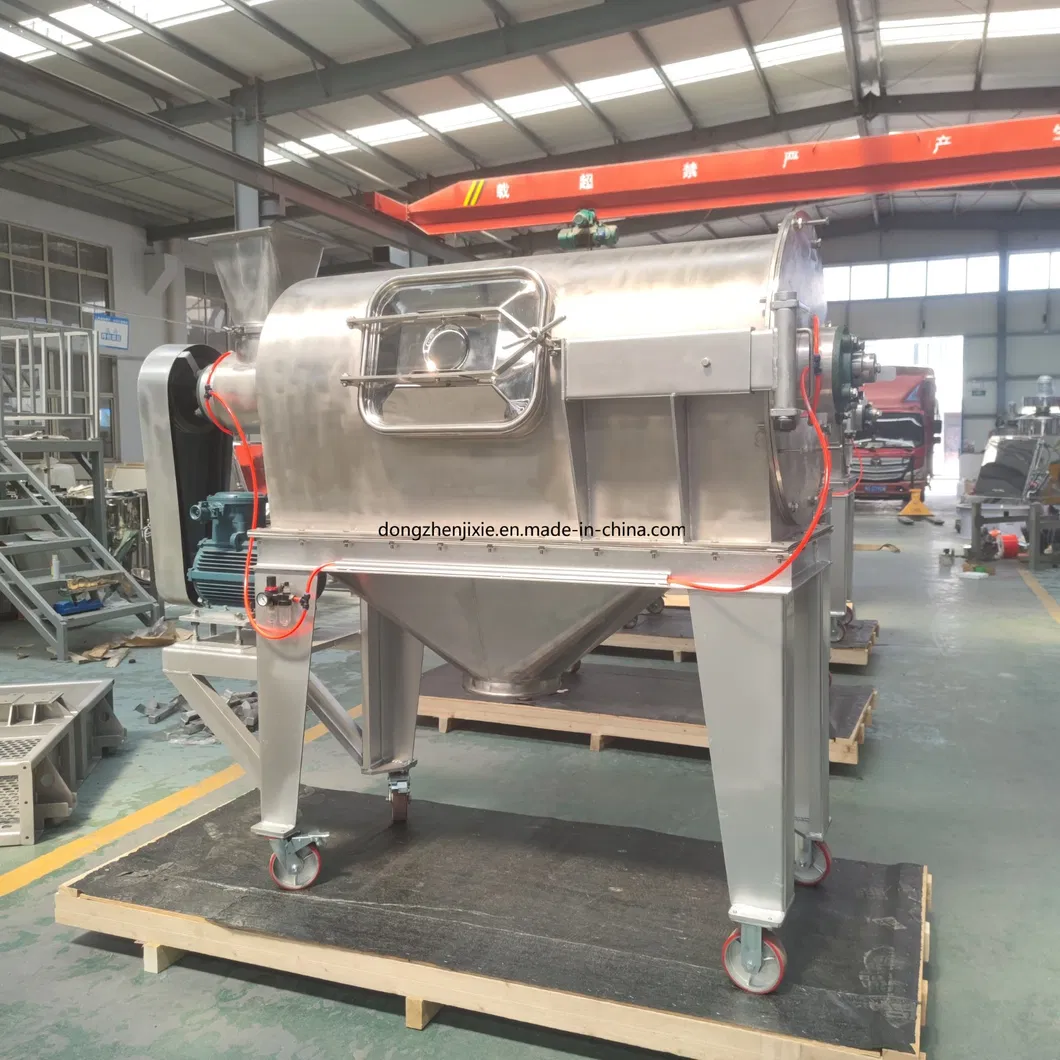

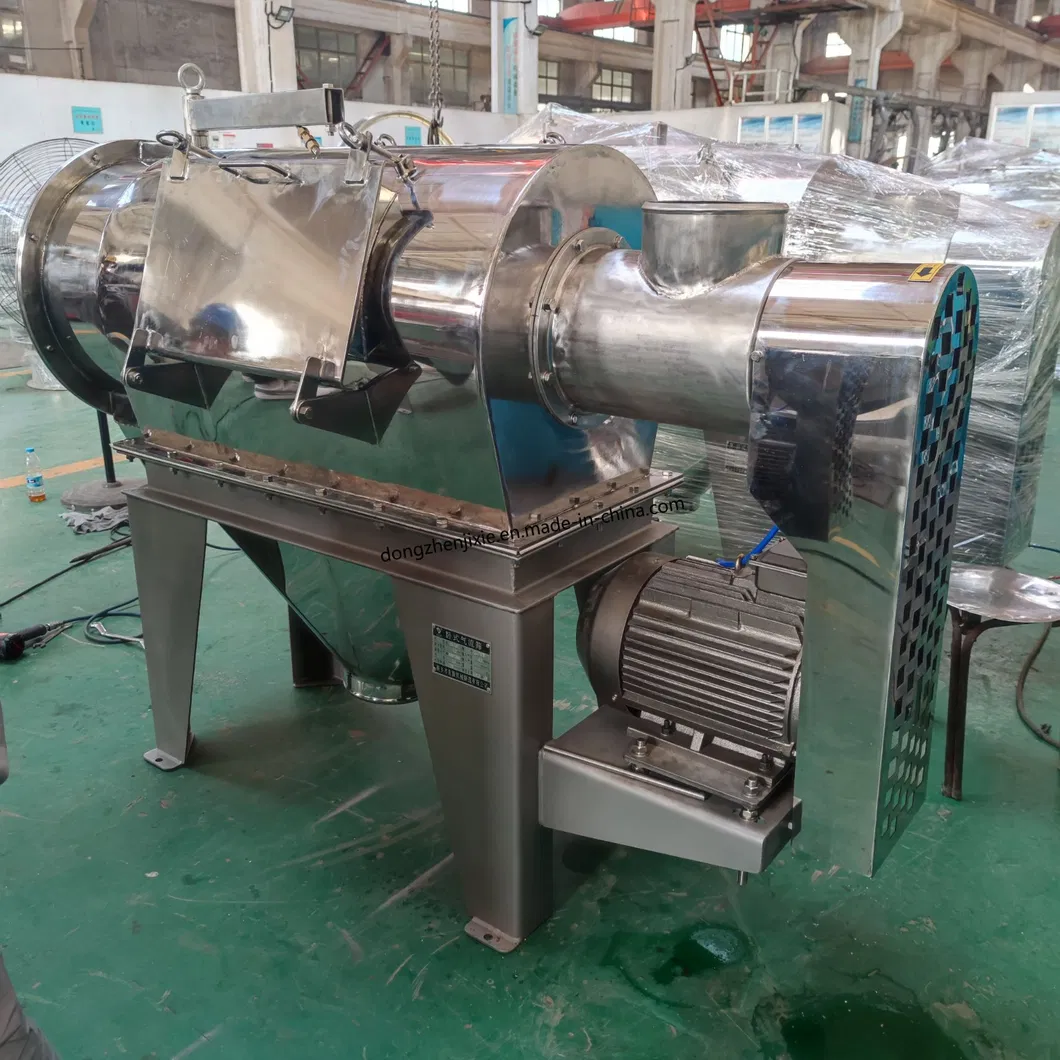

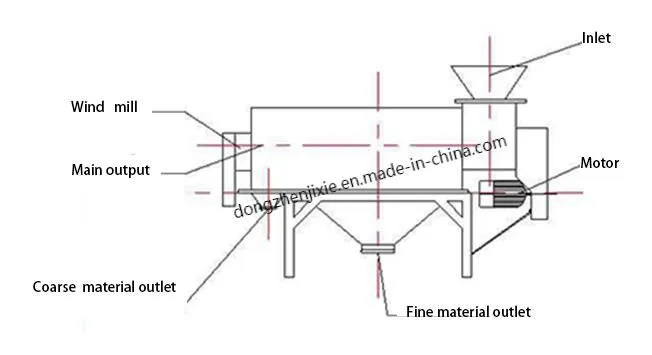

Working Principle

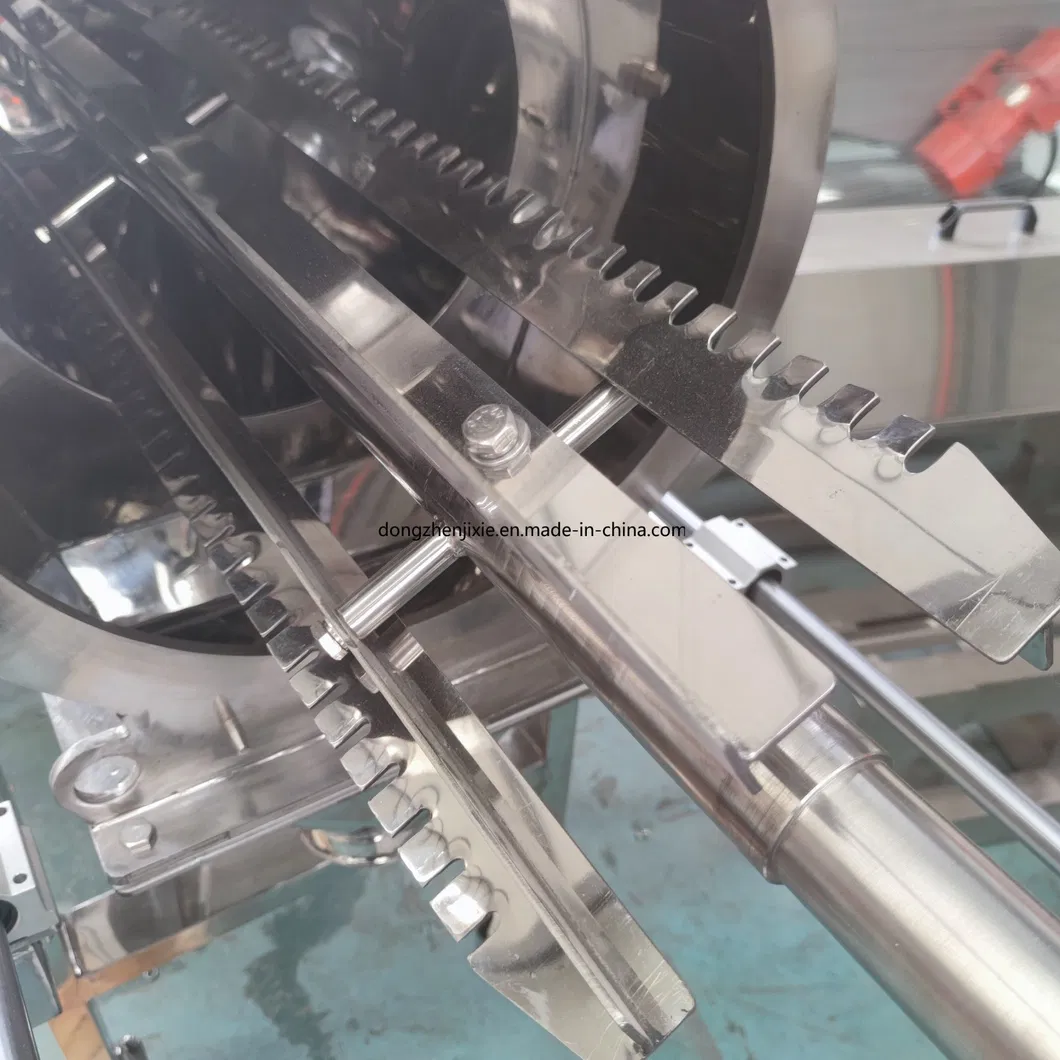

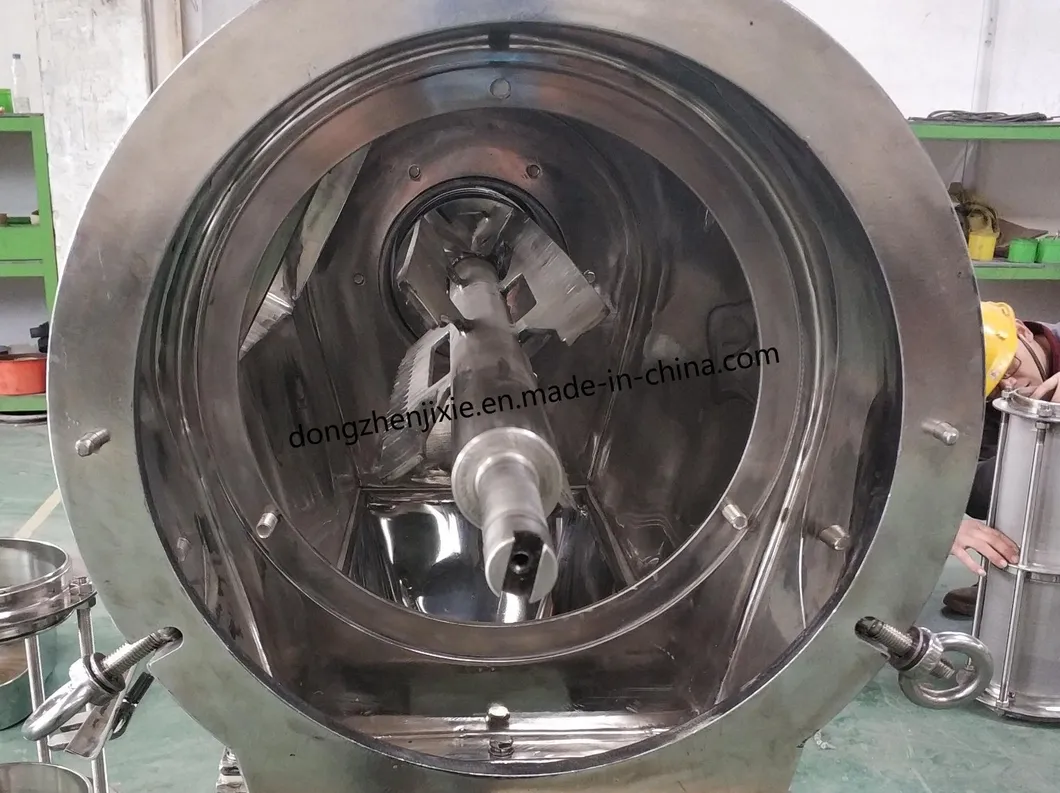

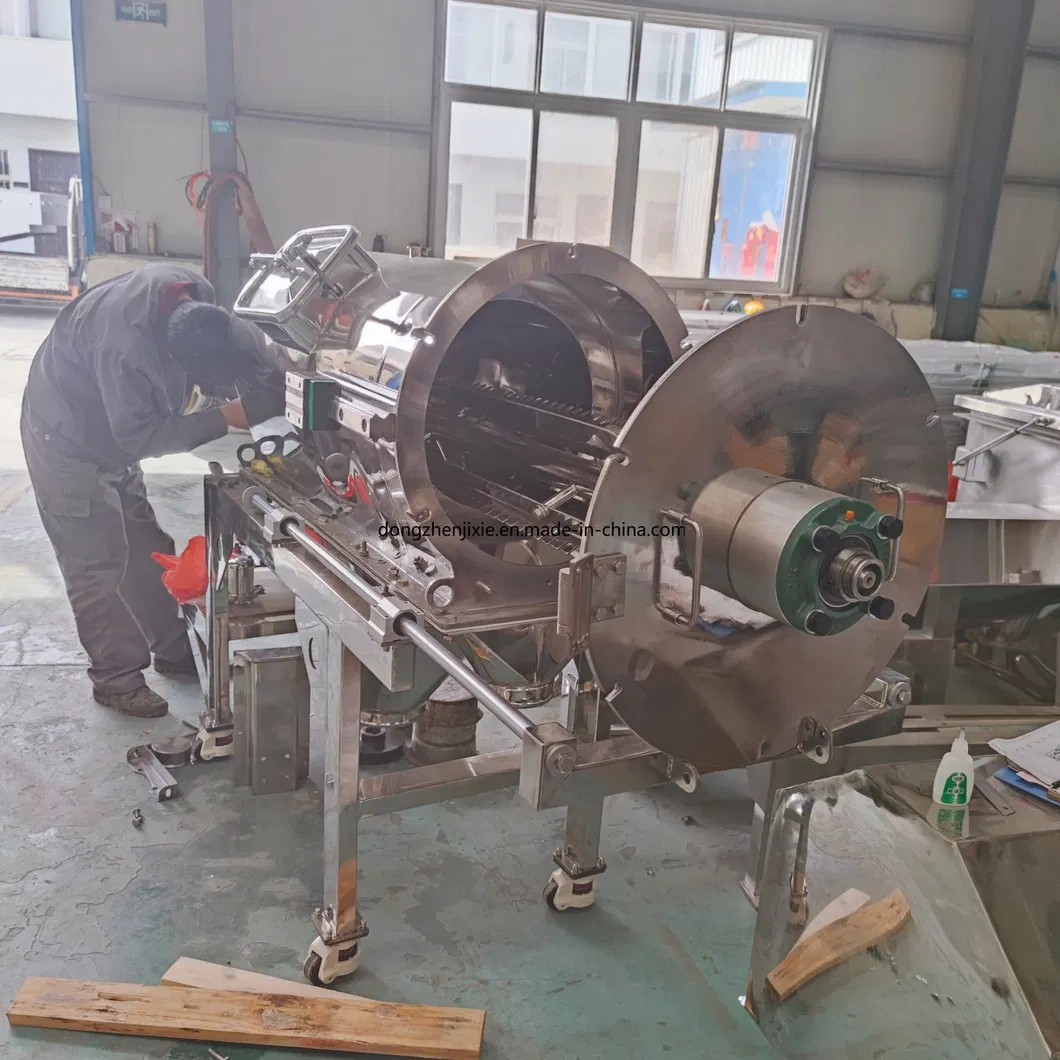

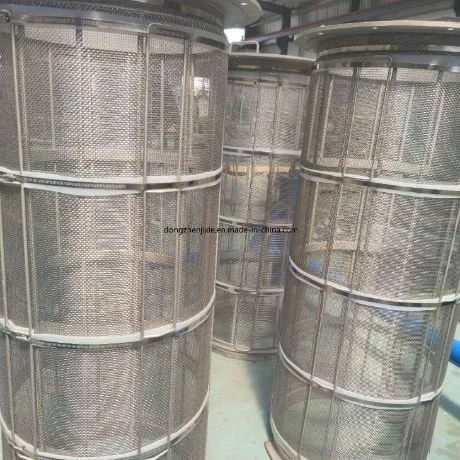

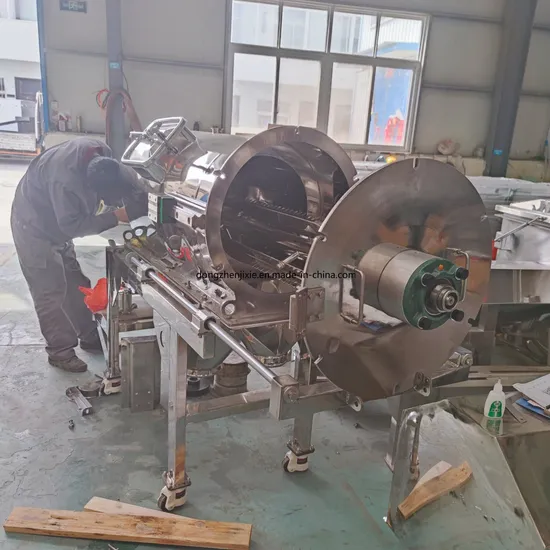

The horizontal airflow screen is in the shape of a cylinder and is placed in the body. After the material passes through the spiral conveying system, it is mixed with the airflow and atomized into the mesh cylinder. The material is subjected to centrifugal force and cyclone propulsion force at the same time through the wind wheel blades in the mesh cylinder, thereby forcing the material to spray through the mesh and be discharged from the fine material outlet.
Our Advantages

1.Efficient screening
Screening: single particles are screened with air flow through the screen in sequence. The air flow has high efficiency, does not stick to the screen, does not block the mesh, and has precise fineness.

2.Scientific research innovation
It can adapt to the screening requirements of various difficult-to-screen materials with different fineness and different output; it has energy-saving, high-efficiency and environmentally friendly effects.

3.Durable
The life of the fine screen is extended by more than 10 times, the output is steadily increased, the power consumption is reduced, and the quality of the finished powder passing through the screen is better.

4.Perfect combination
The screw feeder crushes the agglomerates and uses the airflow to promote the screening function, which increases the screening accuracy and the screen penetration rate.
Please contact us for more details

Product details

Product Parameters
Model
Material of construction
Particle size(mm)
Contact us to customize according to your needs
BL18-65
Stainless steel or carpon steel
≤150
BL30-100
BL40-120
BL65-185
Applications

Chemical industry: pigments, dyes, washing powder, soda ash, rubber, coatings, etcMetallurgical industry: alloy powder, gold powder, silver powder, aluminum powder, copper powder, nickel powder, zinc powder, casting sand and so on.Food industry: condiments, milk powder, flour, rice flour, sugar, egg powder, food additives, etcCeramic industry: alumina, quartz, mud, Kaolin, emery, ash ash and so on.
pigments, dyes, washing powder, soda ash, rubber, coatings, etc
alloy powder, gold powder, silver powder, aluminum powder, copper powder, nickel powder, zinc powder, casting sand and so on.
condiments, milk powder, flour, rice flour, sugar, egg powder, food additives, etc
alumina, quartz, mud, Kaolin, emery, ash ash and so on.

Xinxiang Dongzhen Machinery Manufacturing Co., Ltd.

Q:What factors I need to get a quotation?A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.Q:What is the real delivery time of your factory?A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.Q: How do your after-sale service work if the product got damaged?A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.)
A: Material bulk density, mesh size(length & angle for conveying series) & ideal capacity for proper type, granularity distribution is recommended. product material requirement (carbon steel Q235A, stainless steel SUS304 or SUS316,etc.) Voltage & Frequency(Hz) is also needed for a precise quotation.
A: 7 to 15 days for general series products, meanwhile, batches products & customized products would need 30 days to 60 days based on different situations.
A: In the guarantee time 12 months, our general after-sale service is changing the damaged parts for the customer, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: Vulnerable parts do not include.)
