Machine for Concentration of Concentrate and Tailings Dehydration Before Filtering

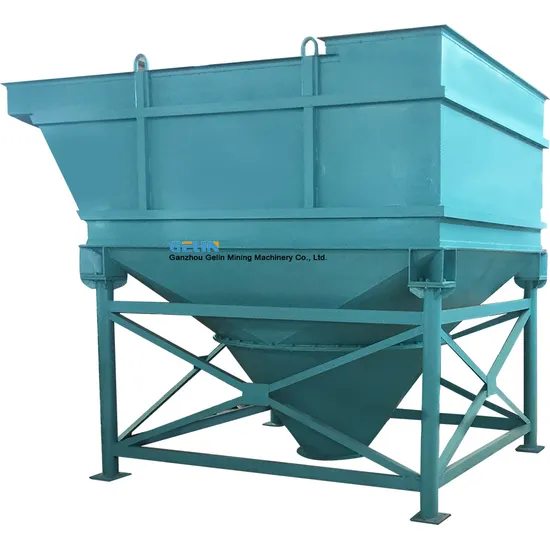

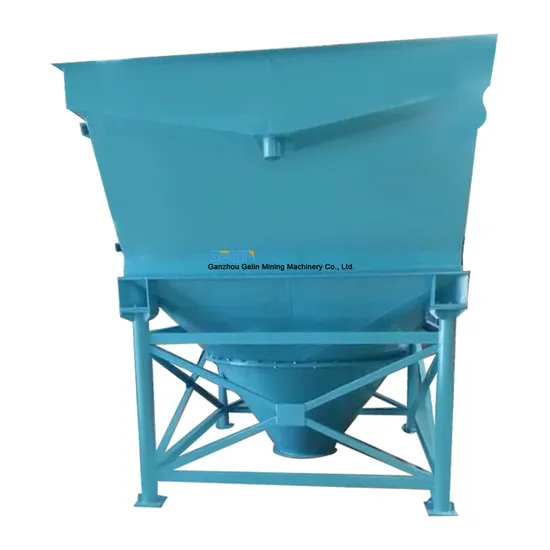

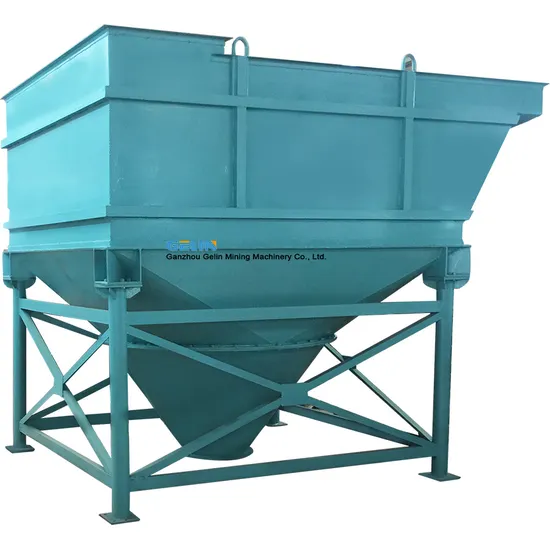

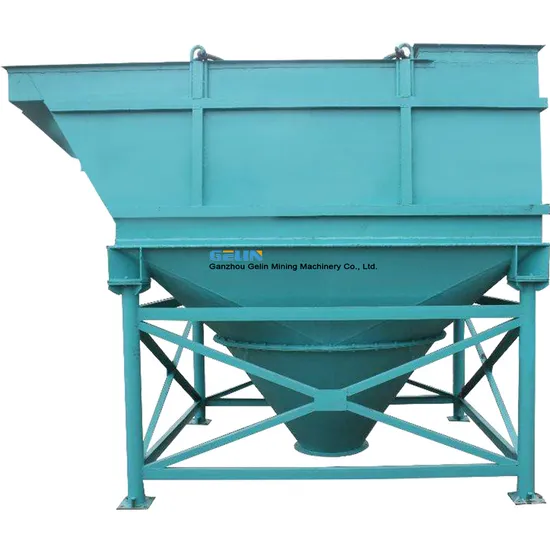

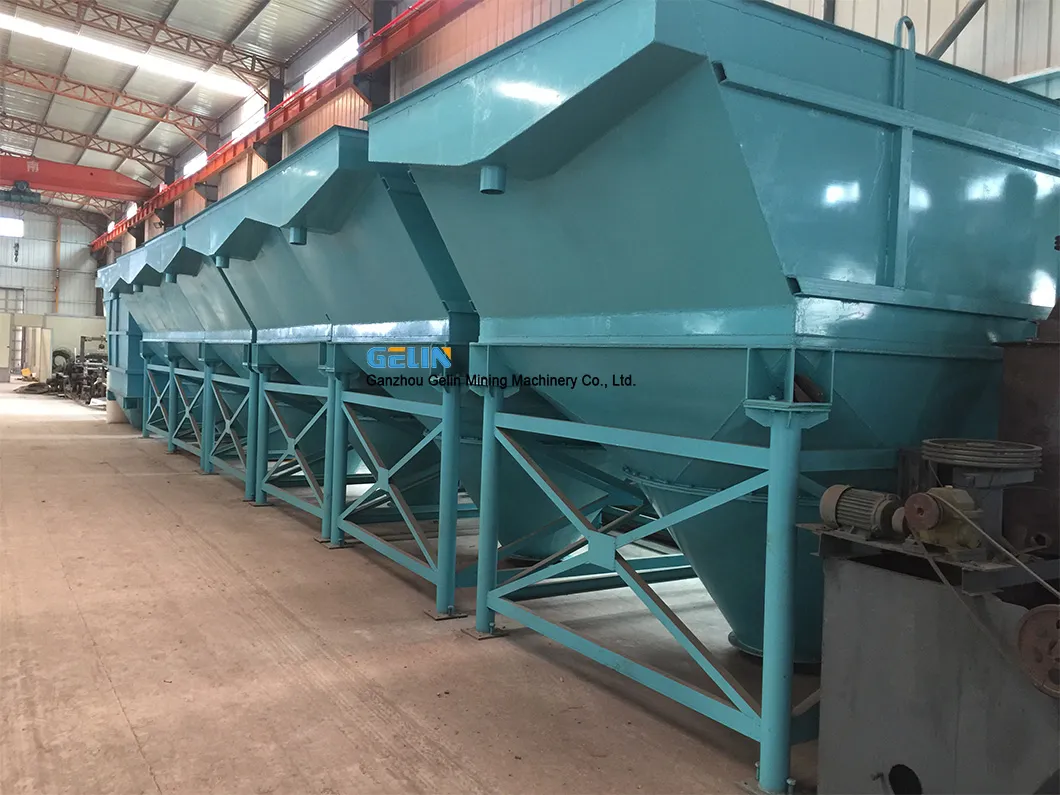

Thickener/Concentrator
is a kind of dewatering machine. It is generally used for the concentration of concentrate and the dehydration of tailings before filtering. The main purpose of the tailings dehydration is to make use of circulating water and facilitate the storage of tailings in the tailings dam. In addition, in order to improve the technical operation process, if the pulp is too thin and the operation conditions require thicker material, also need to concentrate. Therefore, the concentrator is one of the essential dehydration equipment in the process of mineral processing.
The products are widely used in the concentration and classification of metal and non-metal mines, the concentration and dry inclined discharge of tailings, the reuse of waste water, the sewage treatment of building materials, chemical industry and other industries, and the concentration before the dehydration and drying of kaolin, potassium, sodium feldspar and other products, so as to improve the dewatering effect and production capacity of pressure plate frame filter, ceramic filter, cloth belt vacuum filter.
Features

1. Low cost with small cubage,small floor area;2. High efficiency and energy saving;
3.Easy to operate and maintain;
4.Eco-friendly and widely used in coustruction,mechical industry.
Product Parameters
Model
Dimension(L*W*H)mm
Ore Pulp Concentration
Capacity (m³)
Sewage Treatment(m³/Day)
LZTY1m2
1700*1245*2610
10-40
35-60
100-150
TY-5m2
3580*2350*3500
300-500
TY-10m2
7160*2350*3500
500-1500

Working Principle:

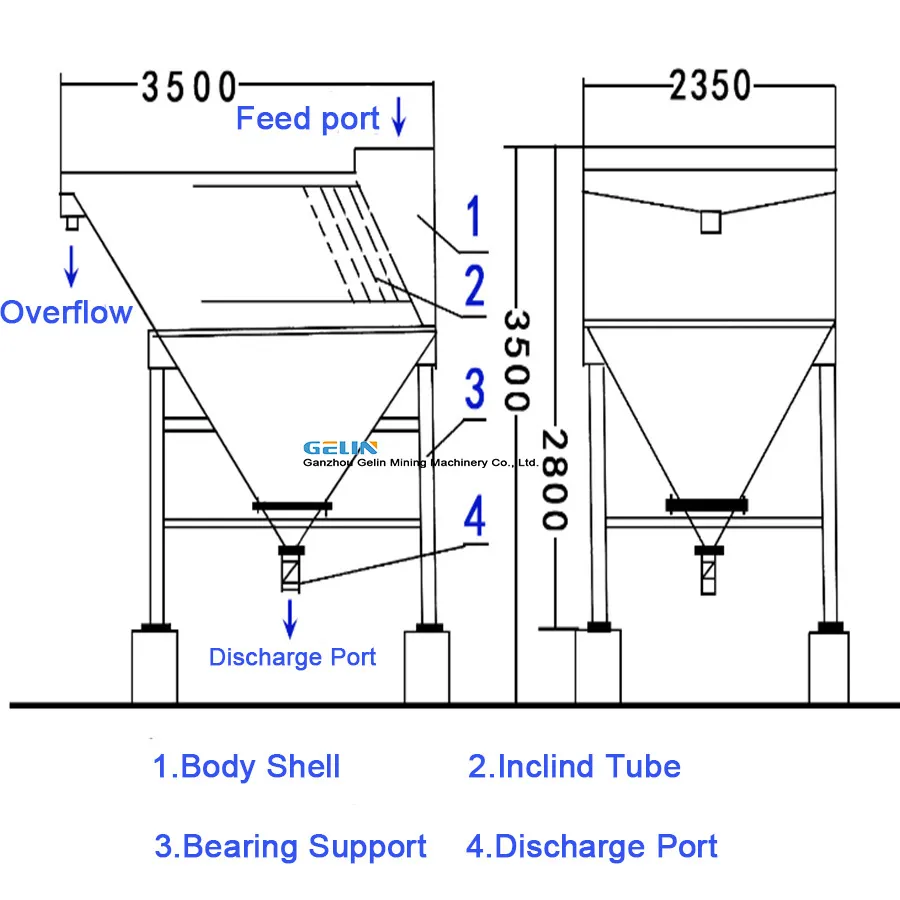

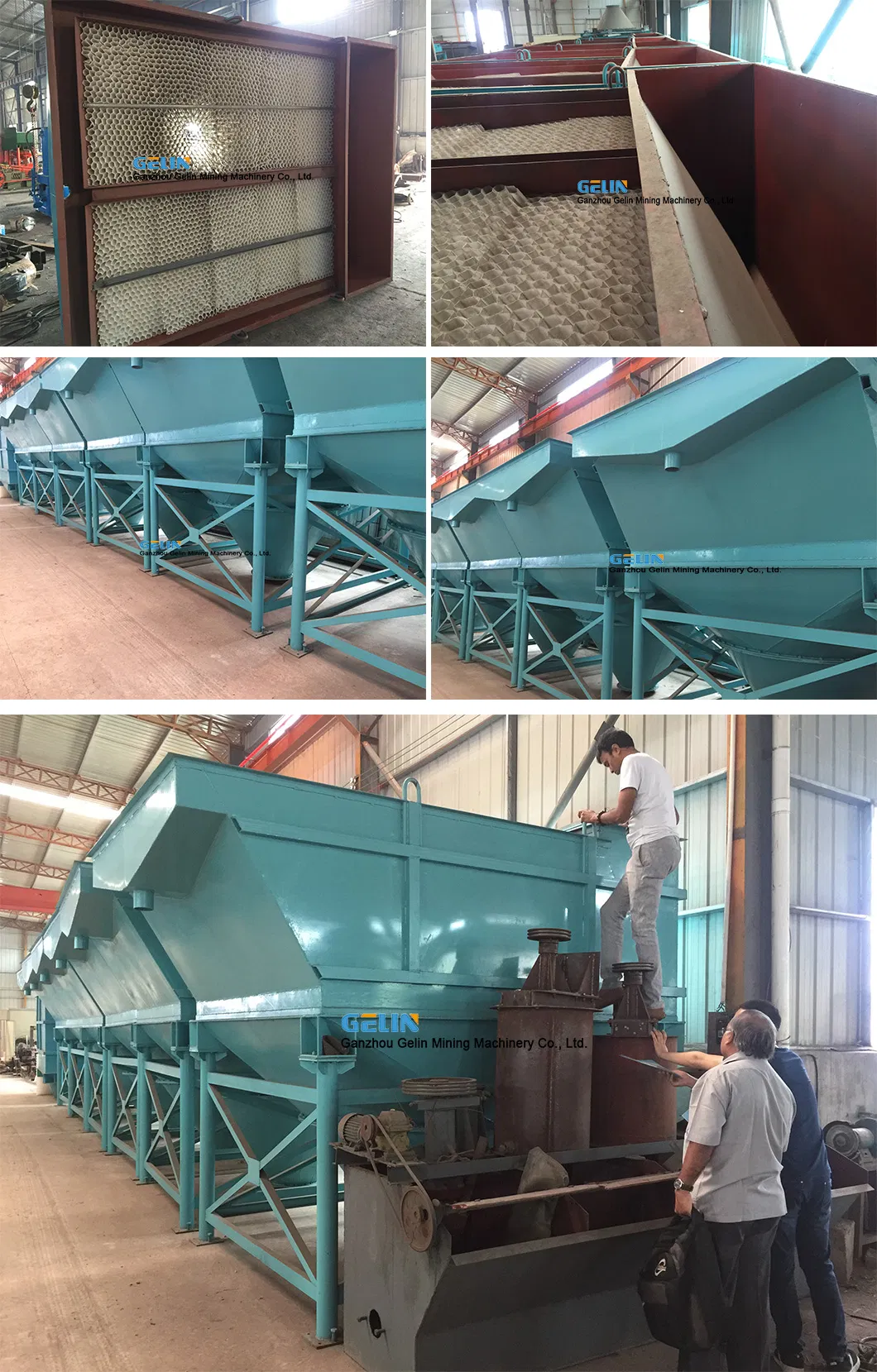

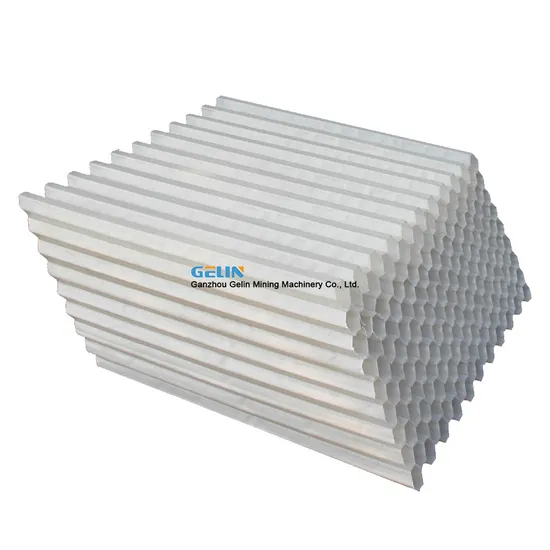

The slurry or other liquid to be treated enters the settling area from the feeding area, where a relatively dynamic and balanced suspension process is formed. The particles with larger particle size in the slurry, due to their larger settling speed, overcome the flow pulse force, pass through the suspension filtration in the concentration area, and quickly settle into the bottom discharge outlet for discharge, The particles which can't overcome the pulsating force of water flow enter the inclined pipe area with the rising of higher particles, and the inclined pipe area is filled with square thin-walled honeycomb tubes at a certain angle. The water flow is divided into many sedimentation units, and the fine particles entering the inclined pipe area reach the inclined pipe wall under the condition of laminar water force settlement. After accumulating a certain amount, they slide down to the settlement uplift area under the action of gravity. According to the design requirements of separation particle size treatment capacity, the fine particles that fail to settle in the inclined pipe area will be discharged with the flow, so as to realize the process of classification and sedimentation.

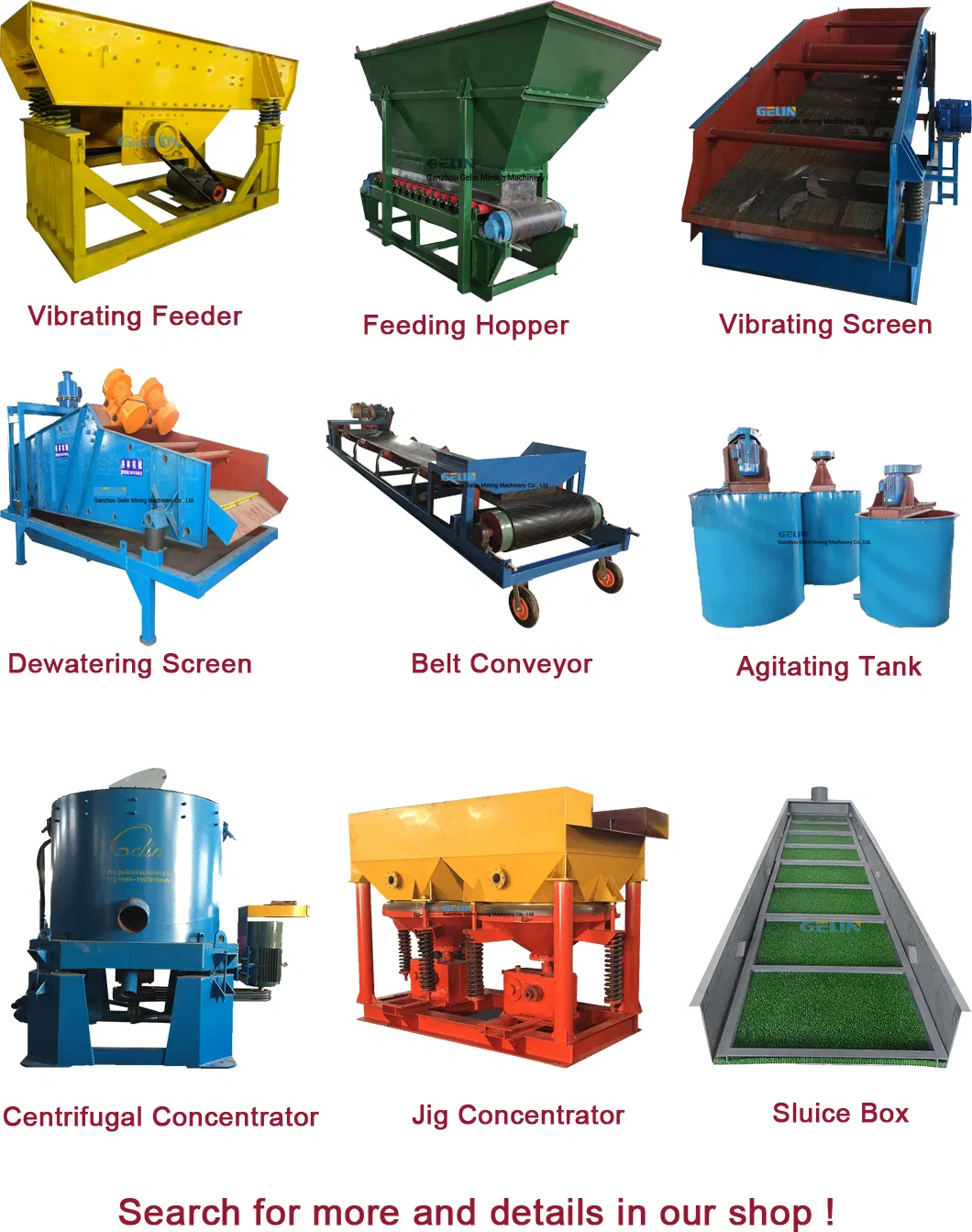

Other Mining Equipment

Ganzhou Gelin Mining Machinery Co., Ltd is an over 30 years professional manufacturer and exporter of mining machinery for crushing, screening, grinding, flotation, magnetic/gravity separation etc. in China.the machines are excellent for processing gold,diamond,iron ore, ilmenite, manganese ore etc. Gelin have a complete service system which can provide customer full service in mining field and after sales service.By now, Gelin's equipments and services are exported to over 60 countries,include America, Russia, India, Africa, Brazil, Chile,South Africa,Zambia etc.
Sincerely welcome
to visit our factory.

One Stop solution for beneficiation plant service:
1.Engineering consulting available,it makes clients have a comprehensive understanding of beneficiation plant,including mine value,useful elements,mineral processing technology,plant scale,essential equipments,etc.
2.Arrange mineral beneficiation experiment after received the material sample and beneficiation test report will be done after test.
3.After reaching agreement with client,we start to engineering design,including planning,investigation,data collection, project evaluation etc. and then comes up with design scheme of beneficiation plant construction and working drawings.

Q: Are you a trading company or a factory?A: We are a factory at Shicheng county with 110 workers,6 workshops covered 17,000m2 and office covered 2,500m2. Welcome to visit our factory at anytime.
Q: What is your payment terms? A: By TT(Telegraphic Transfer), 100% or 40% Deposit before production and 60% balance payment
paid off
before loading from factory.
Q: Is it possible to provide sample for your factory to do ore-dressing experiment? A: Yes, engineering consulting is available and we'd like to arrange mineral beneficiation experiment after received your sample and provide the test report.
