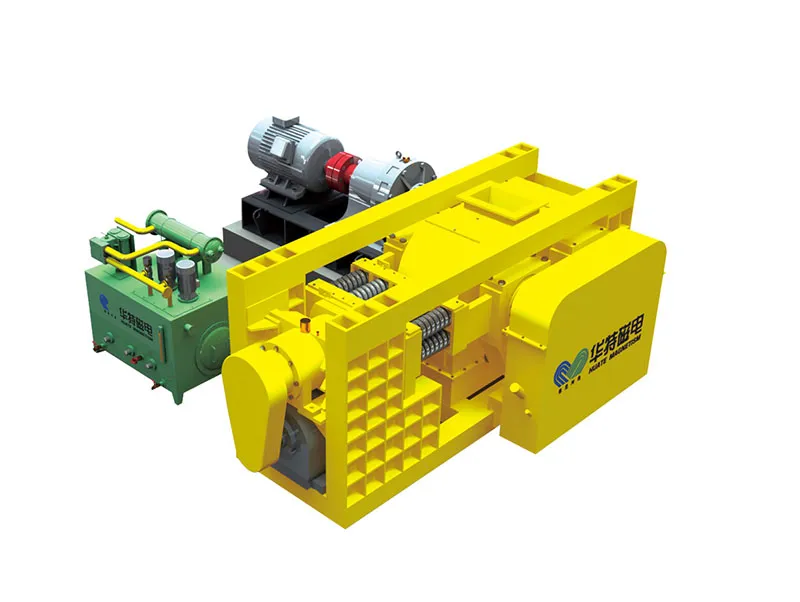

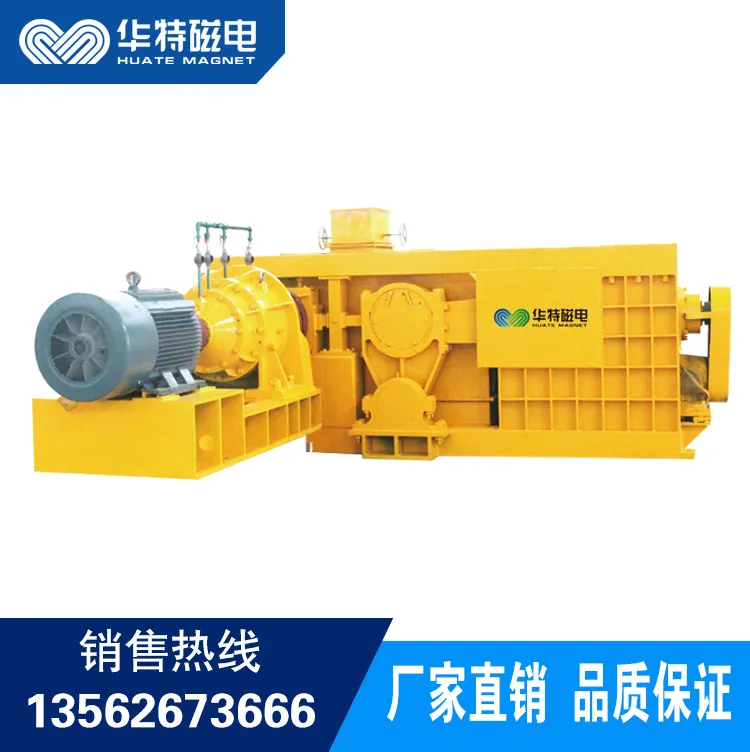

Single drive high pressure grinding roll

Applicable Scope:
Single-drive high pressure grinding roll is specially designed to pre-grind the cement clinkers, the mineral dross, the steel clinkers and so on into small granules, to ultra-crush the metallic minerals (iron ores, manganese ores, copper ores, lead-zinc ores, vanadium ores and others) and to grind the non-metallic minerals (the coal gangues, feldspar, nepheline, dolomite, limestone, quartz, etc.) into powder.
Technical Features
1.High Working Efficiency. Compared with the traditional crushing equipment, the processing capacity increases by 40 - 50%. The processing capacity for PGM1040 can reach around 50 - 100 t/h, with only 90kw power.Low Energy Consumption. As per the single roll driving way, it needs only one motor to drive. The energy consumption is very low. Compared with the traditional double drive HPGR, it can reduce the energy consumption by 20~30%.2.Good Wear-resistant Quality. With only one motor driving, the synchronization performance of the two rolls is very good. With wear-resistant welding surfaces, the rolls are with good wear-resistant quality and can be easily maintained.3.High Operation Rate: ≥ 95%. With scientific design, the equipment can be pressurized by the high pressure spring group. The working pressure can be adjusted automatically as per the spring group compress. There is no malfunction point.4.High Automation and easy adjustment. Without the hydraulic system, there is low malfunction rat.5.The roll surface is surfacing welded with alloy wear-resistant welding material, with high hardness and good wear-resistance; The pressure to the spring comes from the reaction force of the material, and the pressure is always balanced, which not only achieves the purpose of crushing, but also protects the roll surface; the movable roll and the stationary roll are meshed and driven by the gear system, and the speed is completely synchronized, thereby avoiding sliding friction between the material and the roll surface. Therefore, the service life is much higher than that of the double drive HPGR.6. Compact structure and small floor space.
Product Parameters

Huate, focusing on R & D, manufacturing and technical services of electric-magnetic separation equipment for
27 years, providing customers with
packaged solutions. We are specializing in manufacturing
superconducting magnetic separator, high gradient magnetic separator,
drum magnetic separator,
iron separator,
mining processing line, magnetic stirrer, non-ferrous metal separation equipment, non-metallic processing equipment, ocean & lake ecological equipment and so on more than 9
categories, 80
series and more than 700
models. Our service scope involves coal, mine, electricity, building material, metallurgy, port, environmental protection and so on more than 10 fields. With more than 15,000 customers, our equipment are exported to USA, Germany, Japan, Italy, Norway, South Africa, Brazil,
India, Pakistan and many other countries.

Huate

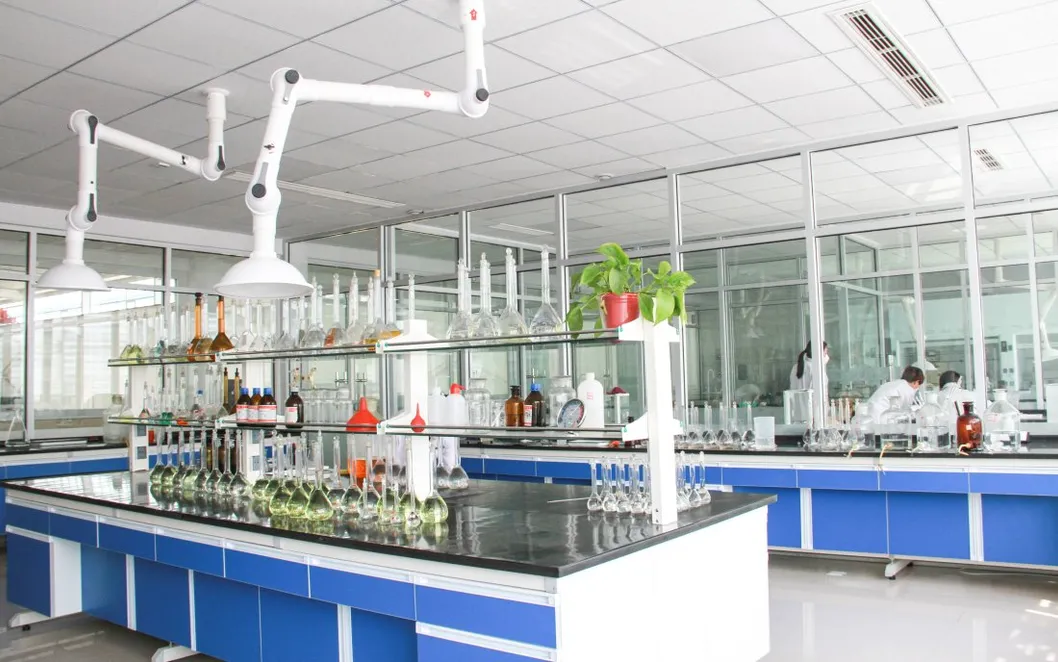

offers scientific research, engineering design, manufacture of equipment and after sales service for the customers. Our professional staff can
help you do the
mineral beneficiation
testwork
for free
with your sample ore,
and help you design the best processing line to maximize your profits,
our professional engineers are available overseas for equipment installation, commissioning and after sales support, even operation training for your native workers. We are committed to building long-term customer cooperation relationship.

After Sales Service
"Create value for clients wholeheartedly" has always been HuaTe's mission since its establishment. With our top tier installation team and professional after-sale service, we will always place both product quality and our clients at our ultimate priority.Where there are our products, there will be HuaTe's service, and our brand has left a deep impression on our clients all over the world.

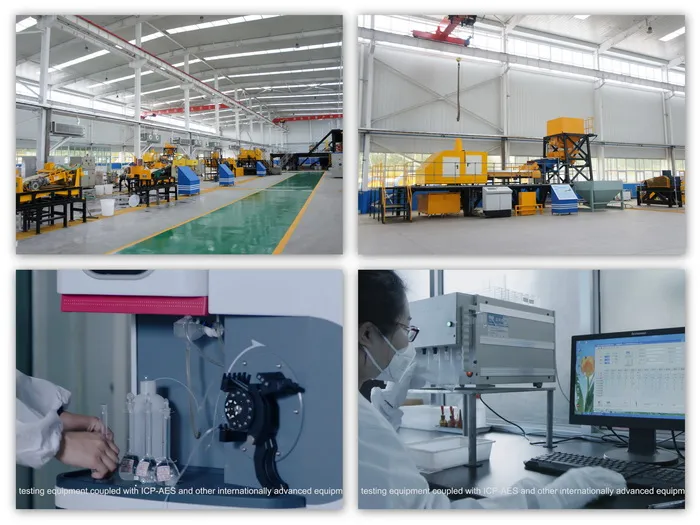

HuaTe has gained the certification of CE, quality, environment and occupational health and safety management systems. We have a comprehensive quality control system, modern testing machines, and professional supervision team in order to ensure the high quality of our products.

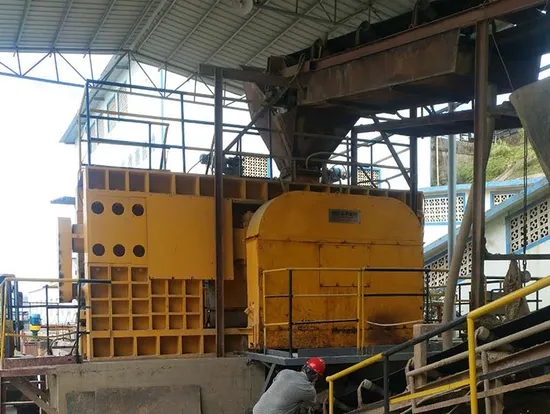

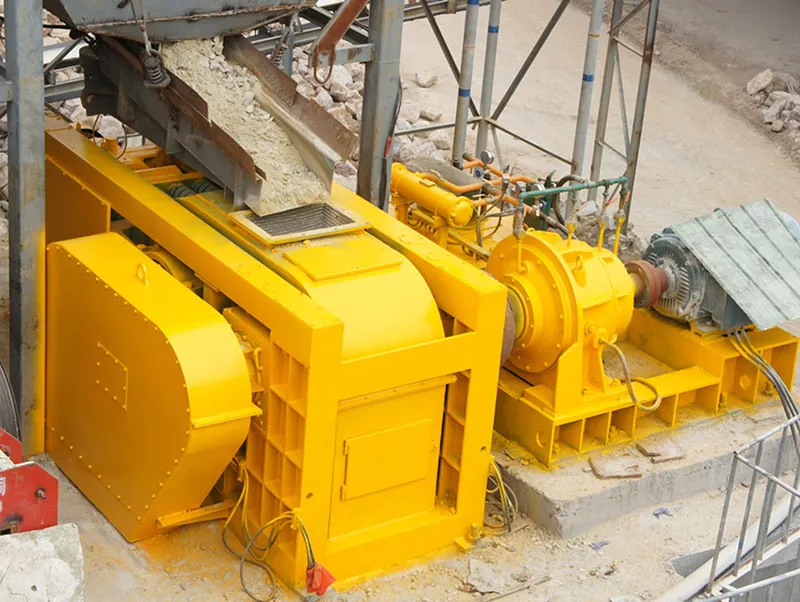

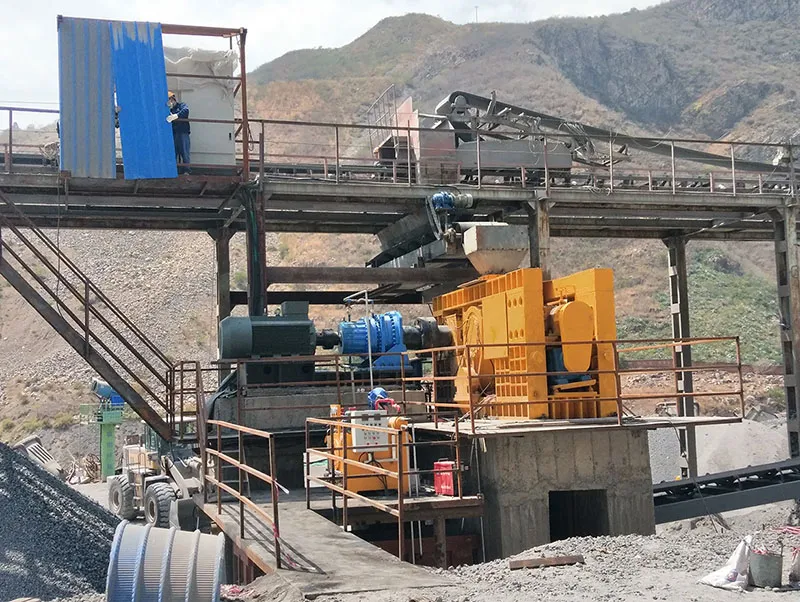

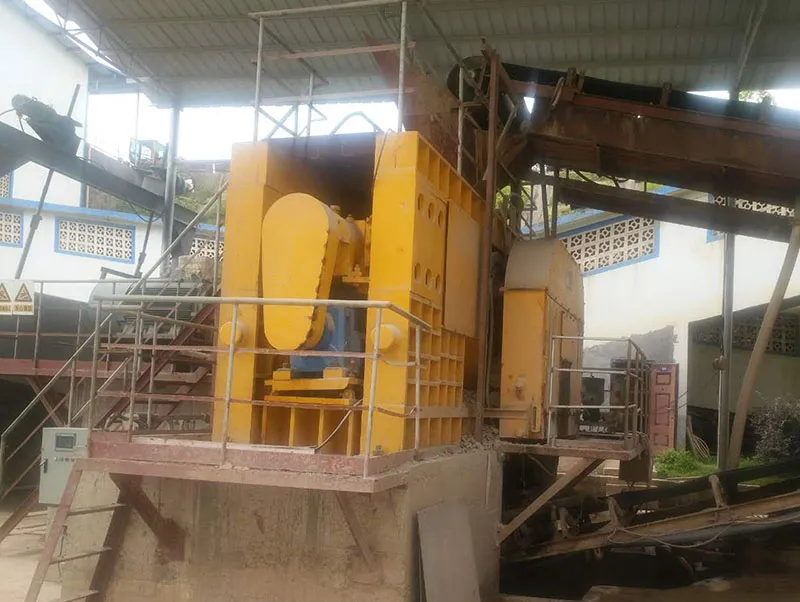

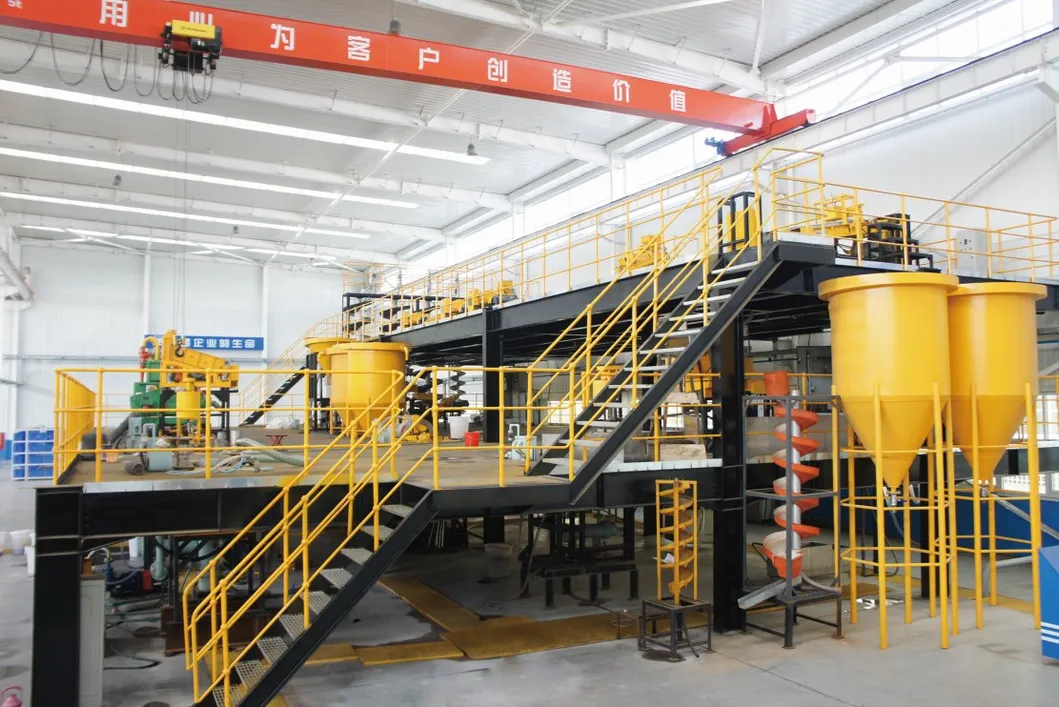

Equipment At-Site

Q:Factory or Trading company?
A:Shandong Huate Magnet is a factory
was established in1993.
Q:Factory Address?
A:

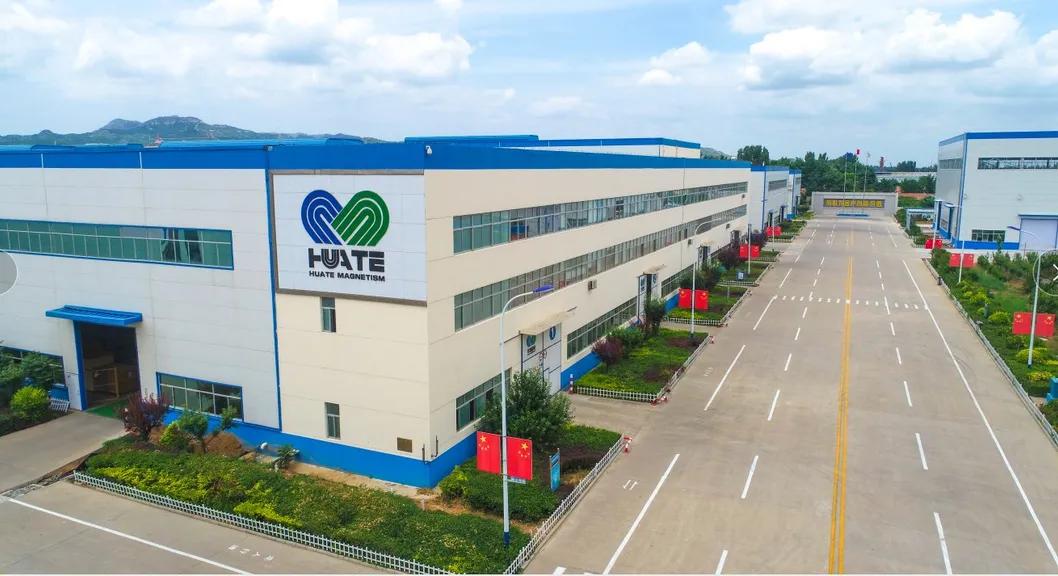

Our factory is located in Huate Road, Linqu County, Shandong Province, China. Welcome to visit us!
Q: About Quotation?
A: Before quotation, we need confirm the Belt width, Magnetic field intensity, Material size and Quantity, all of these factors will affect the price.
Q:Quality control?
A: Our
factory
have passed ISO9001 and CE certifications.
If you have any question please promptly chat with me or leave me a message, I will contact you within one business day. If you like to be contacted please leave your email address or cell phone number to me. Looking forward to your inquiry.
