High Pressure Hydraulic Iron Gypsum Power Briquette Machine

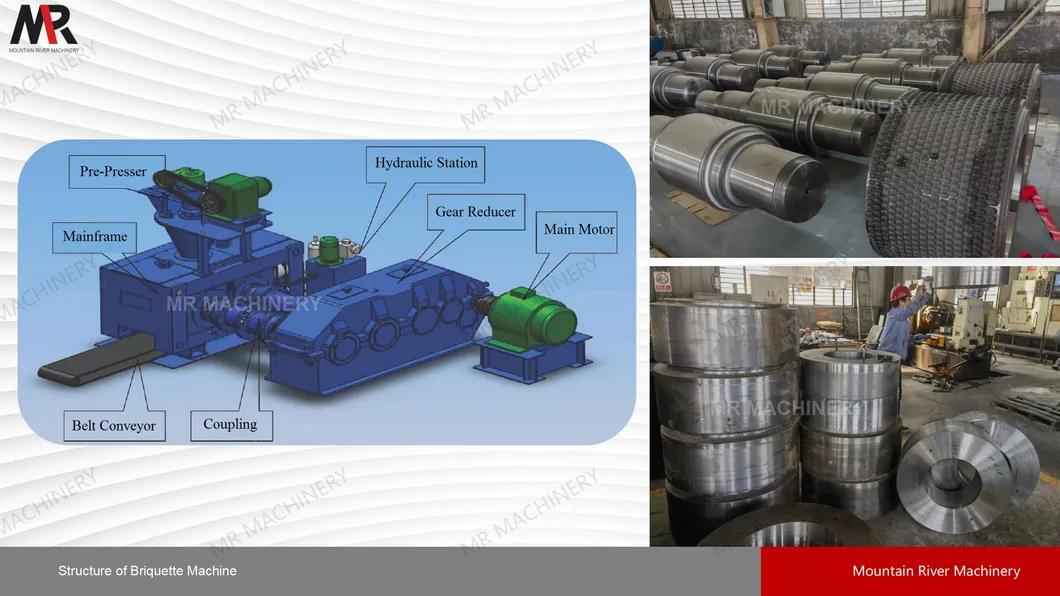

IntroductionMain Machine
In order to meet the requirement of materials' molding, prepress screw is driven by electromagnetic speed regulating motor . Type of regulating speed is manually operated. According to condition of ball molding, User can change prepress machine's rotating speed properly to reach max capacity. ball molding rate and capacity. After screening compressed material by screening machine, finished qualified briquettes are on the screening machine. Minus mesh material can return back to hopper for mixing with new materials for another compression.Rollers

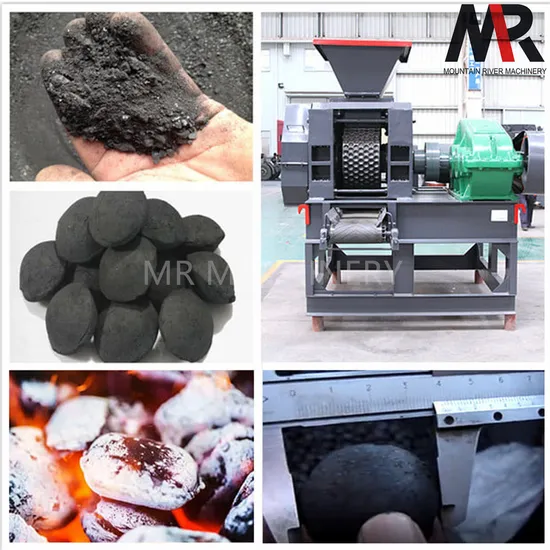

Briquette socket's shape in briquette machine's roller sheet can be chosen widely according to user's need. The ball's shapes include pillow shape, semi-cylinder shape, egg shape, bar shape, thin skin pill shape, walnut shape, apricot core shape, small particle shape and so on.Application

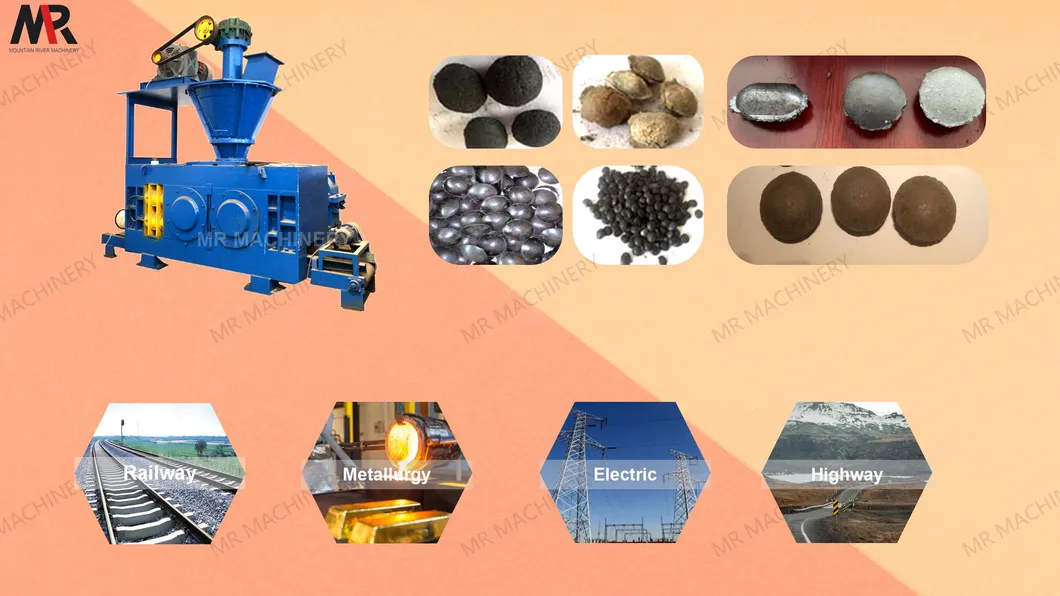

Briquette machine is the equipment which compress powder material into briquette. It is widely used. It can pelletize the following materials into briquette , grain or ball such as aluminum powder, activated carbon, alumina, bauxite, caustic soda, charcoal, clay, coke, iron scurf, coal, cryolite, fertilizer, plastic, limestone, pigment, urea, potassium salt….and so on. The purpose of compression is to reduce powder dust, control volume, being easy for next use and transport. It is designed to compress dry powder into briquette used in process of Pidgeon's magnesium reduction.Working Principle

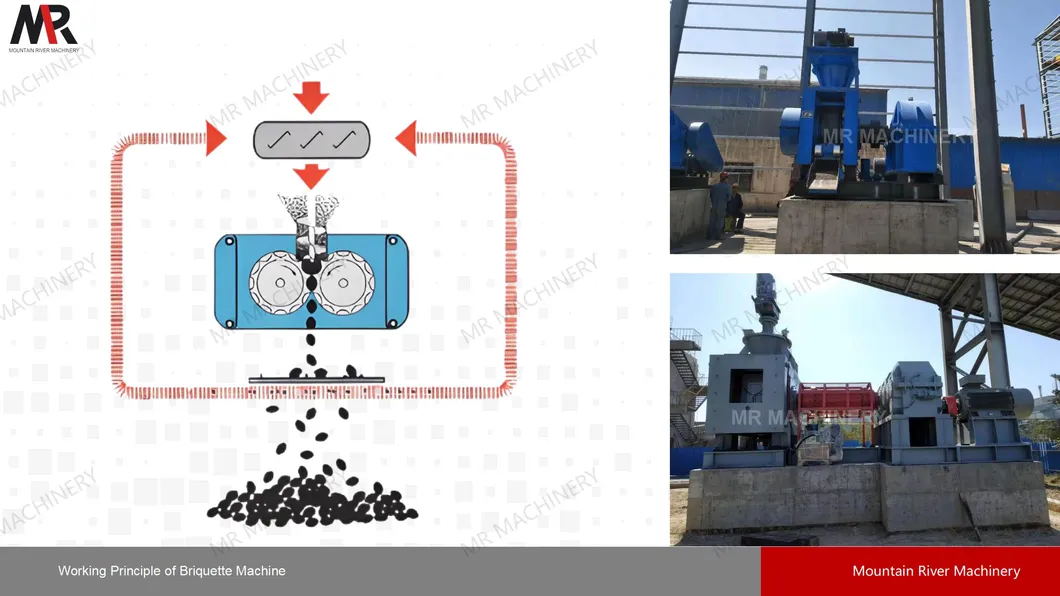

The materials are pressed into the pre-press device of the briquette machine with certain volume evenly when working, and the stable material position shall be kept in the pre-press device. The pre-pressing screw in the device will force the materials into the inter-space between the double rollers, then the materials shall be pre-pressed and transited to the arch groove of the pair-rollers. The roller pits with the same shape are distributed evenly on the roller surface. The 2 pair-rollers shall rotate at constant speed reversely through engagement drive. The rollers will press the materials at the entry into the groove and forcibly compress them. With the continuous rotation of the pair-roller, the bbriquette shall be taken off by the elastic force and gravity. The roller rotates to compress and form the materials periodically with the continuous operation of the motor to realize the batch production.TypesCoal Briquette MachineIntroduction
For this type of briquette machine, there is no hydraulic device installed, because the raw material is very easy for making briquette and then required strength of the briquette is no so high.Features
1. Big roller width.2. High capacity.3. Humidity of the raw material is high.4. Briquette needs to be dried.Medium Pressure Briquette MachineIntroduction
For this type of briquette machine, a medium pressure hydraulic pump is installed on the machine.Features
1. Medium pressure.2. High capacity.3. Raw material is metal ore or metal powder.4. Binder is necessary.High Pressure Briquette MachineIntroduction

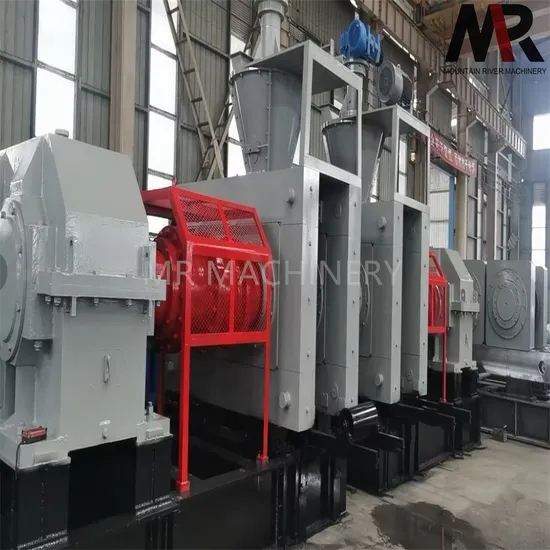

For this type of briquette machine, a high pressure hydraulic pump is installed on the machine.Features
1. High pressure.2. Low capacity.3. Raw material is non-metallic powders, such as clay, refractory, bentonite.4. Roller has bigger diameter than width.5. Pre-press device is installed.6. Forced-feeding.Technical Parameters
Company Profile

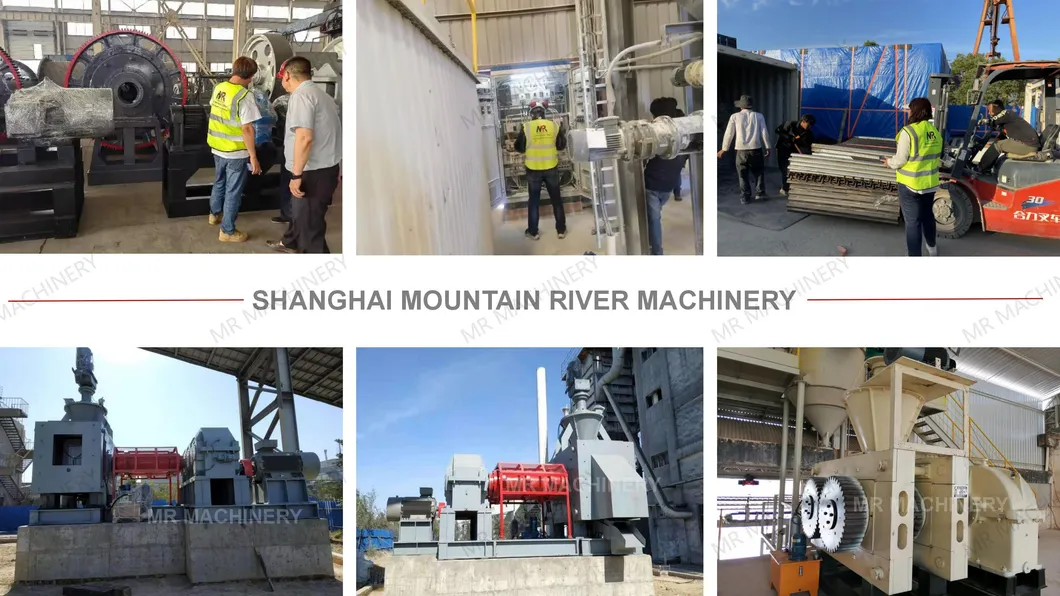

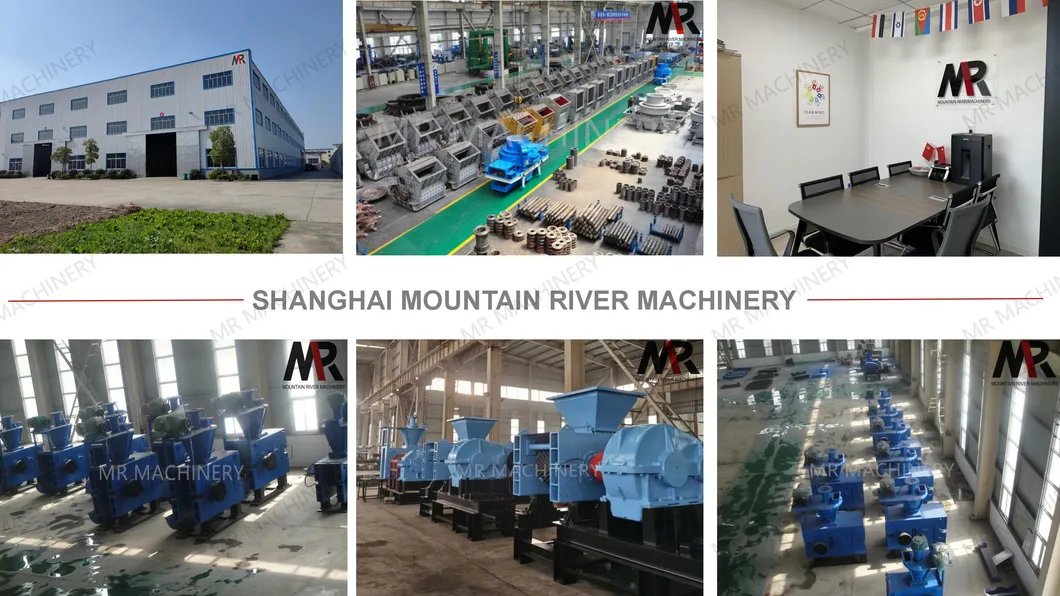

Shanghai Mountain River Machinery Co., Ltd (MR) is a professional manufacturer of briquetting, crushing and grinding equipment to process the stones from mountain, river, and minerals. In the past few decades, we have been focused on the design, research & development, manufacturing, sales, installation, and maintenance of the briquette equipment, crushing equipment, grinding equipment, other auxiliary equipment and all their spare parts.Our main products are: Coal Briquette Machine, Medium Pressure Briquette Machine, High Pressure Briquette Machine, Jaw Crusher, Cone Crusher, Impact Crusher, Vertical Impact Crusher, Hammer Crusher, Vibrating Feeder, Vibrating Screen, Sand Washer, Belt Conveyor, Raymond Mill, High Pressure Mill, High Efficiency Mill, Ultrafine Mill, Ball mill, etc. These equipment are widely used in the industry of mining, construction materials, chemicals, metallurgies, transportation, hydraulic engineering and so on.MR is an international company with headquarter in Shanghai China, 3 branch companies and 2 warehouses of spare parts in South America. Our business philosophy is: to have the most efficient communication with customers, to choose the most suitable equipment for customers, to produce the best quality equipment for customers, to provide the fastest after-sales service for customers. We have our own production base, with complete modern metal cutting equipment. We are equipped with advanced mechanical design, simulation test system and international first-class production lines and modern test bases. We have our own quality control system and we strictly follow the ISO9001:2008 standard on process of design, production, assembly and inspection.Questions & Answers1. How long is the delivery time of your product?
The delivery time is within 20 working days.2. What is the payment term?
The payment term is T/T.3.How long is the product warranty period?
Our warranty period is 1 year, excluding wearing parts.4.What's the after sale service of your company?
We will provide foundation drawing to the clients for installation. Besides, we can provide guidance service for installation and operation of workers, etc.5. Can your company provide wearing parts?
We can deliver you the spare parts within 10 working days after your order. If your equipment are not manufactured by our company, please provide us the wearing parts drawing or number.
