Magnetic Bars:
The filter magnet is a kind of common magnetic assembly and widely used in many industries.
The surface of the magnetic filter bar will generate strong magnetic field strength rely on its particular internal designing,
Then removing iron contained impurities and magnetic substance from pending material.
The magnetic filter bar is also the most important component of a magnetic separator system.
The magnetic filter bar is the main consumer of the permanent magnet industry.

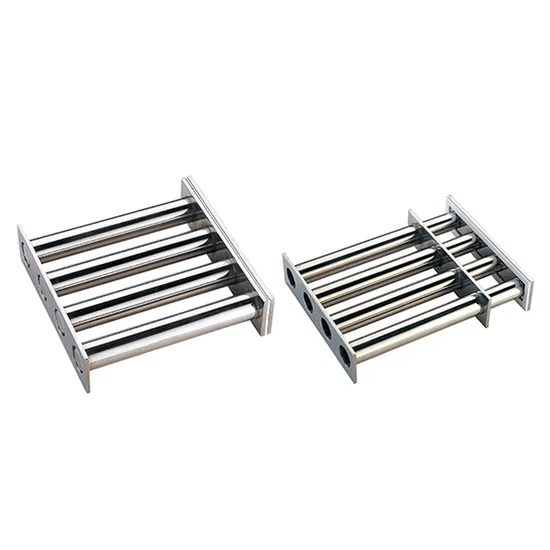

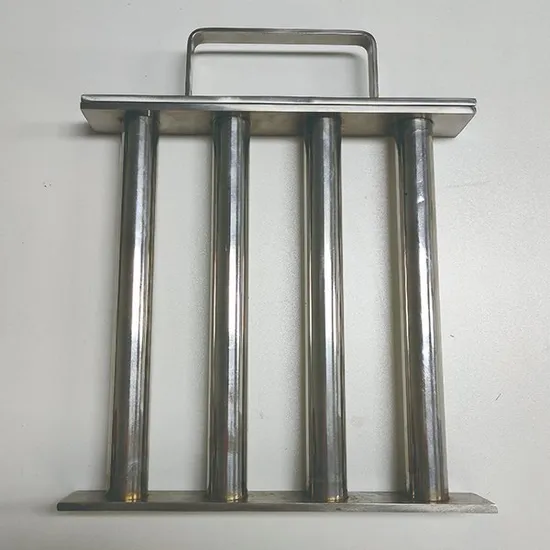

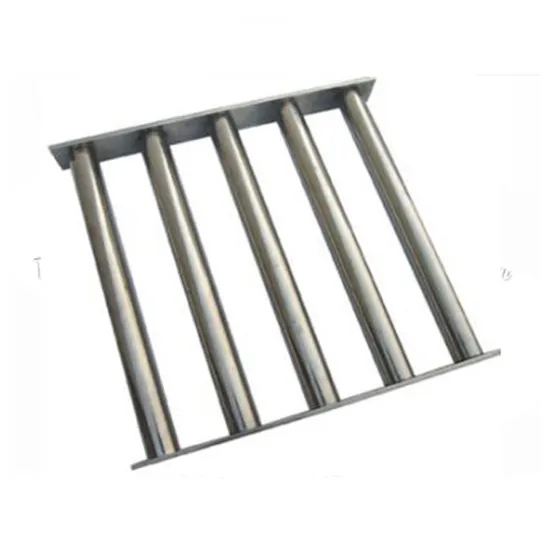

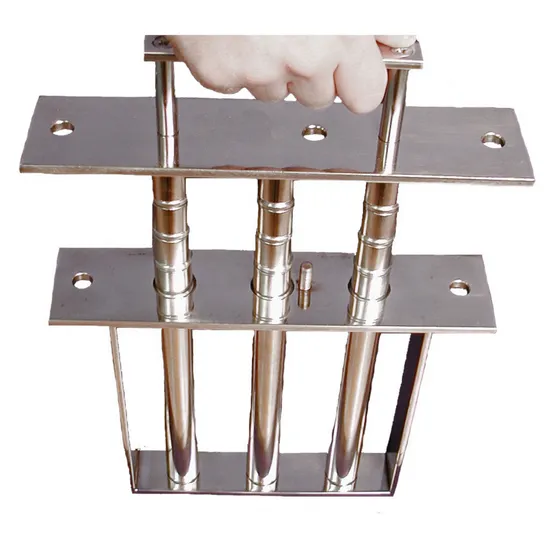

Magnetic bars are the main part of different magnetic grate separators. They can effectively
remove ferrous chips and metal particles from loosely packed, free-flowing materials.
Applications:
A magnetic bar is a Use for iron removal from food products, chemical products, drugs, feedstuffs and etc.The majority of Magnetic Bar contain NdFeB Rare Earth magnets but versions containing Ferrite magnets, SmCo Rare Earth magnets, and AlNiCo magnets also exist. The NdFeB versions come as standard strength and high-intensity strength as the two main options.They are all encased in a food quality stainless steel (usually SS304 but SS316 is also offered). By having a food quality stainless steel casing, the Separator magnet Bars are corrosion resistant and easy to clean.
The "standard" Magnetic Bar is SS304 encased, contains NdFeB magnets, offers 10kGauss (1 Tesla) at multiple locations along its length, is 25mm in diameter available in lengths varying from 50mm up to 500mm in 50mm increments, has M8 tapped holes at the ends and is rated to work in temperatures up to +80 deg C. We can offer variations from this standard design as well.You can make or modify your own separation system with Bunting Magnetic Bars. They are all constructed of durable 304 stainless steel tubing and are available with a tapped
hole, threaded bar, or plain sealed end plugs. Each cartridge is filled with Ceramic, SmCo, Alnico, Neodymium or Neodymium High-Intensity magnetic material. Custom lengths are available. Please feel free to inquiry us.
