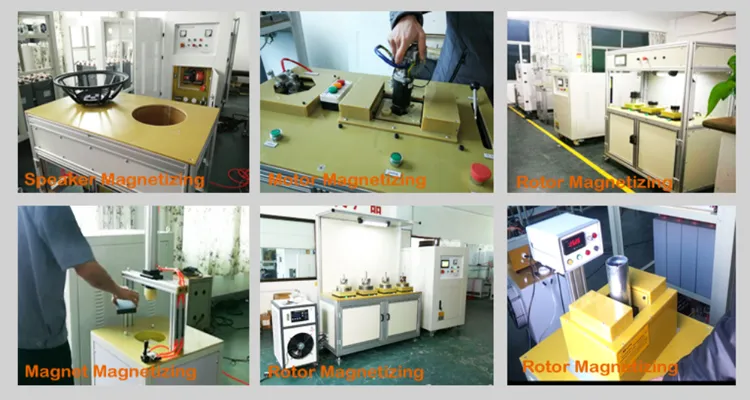

APPLICATIONS OF MAGNETIZER MACHINE
Our magnetizers, with energy capacities ranging from 2KJ to over 540KJ, when used with different magnetizing fixtures, can be used to process any of the permanent magnets and magnet assemblies on the market today.

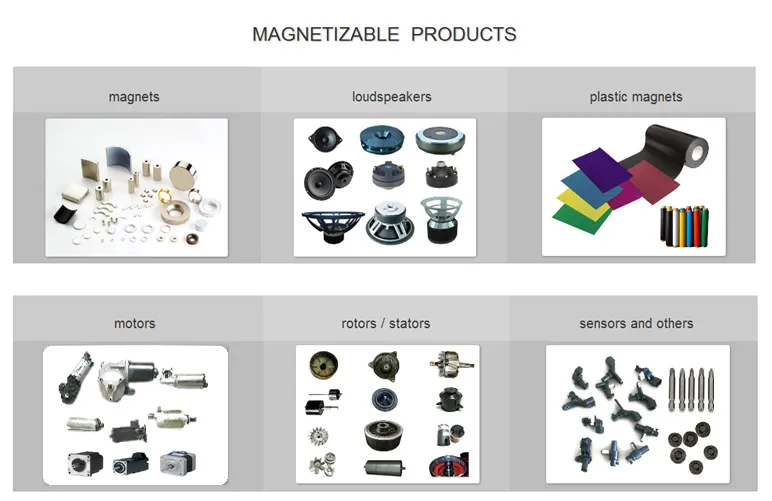

The common processable products are shown below:

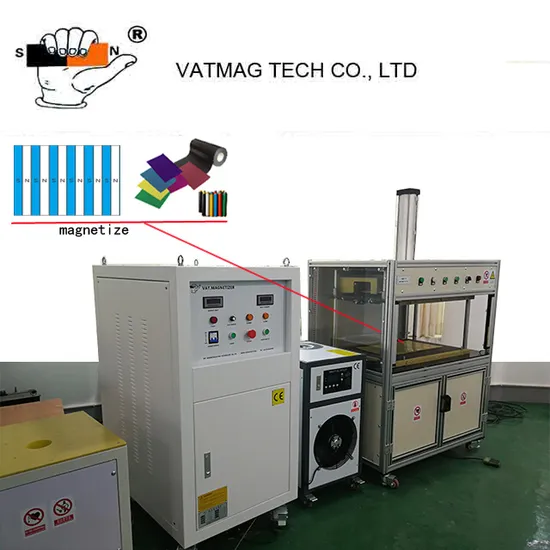

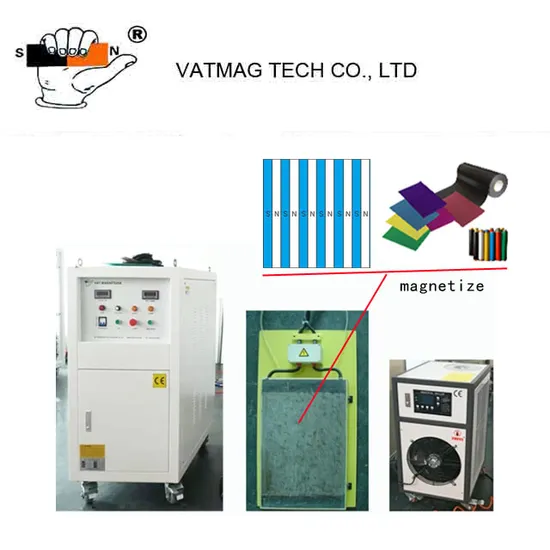

INTRODUCTION OF MAGNETIZER MACHINE

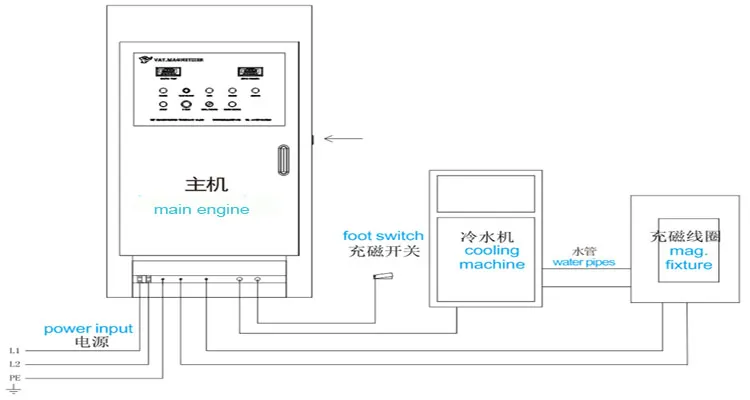

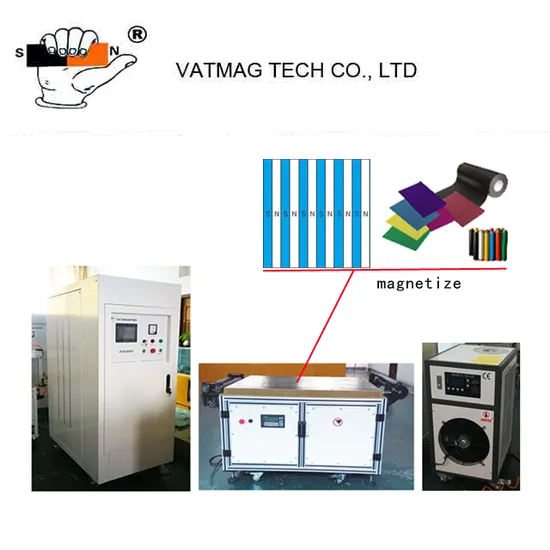

A complete set of magnetizer machine is usually made up of three parts:
1. Main Engine
2. Magnetizing table/fixture
3. Cooling machine
The main engine supplies power needed for activating strong magnetic field; The cooling machine is for coolimg the magnetizing coil because the coil's temperature will rise during magnetization process.
The magnetizing table/fixture is usually designed according to the magnet component or assembly customer wants to magnetize.

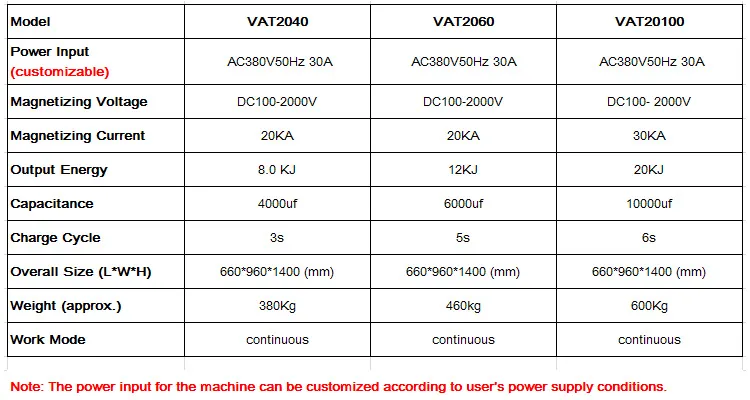

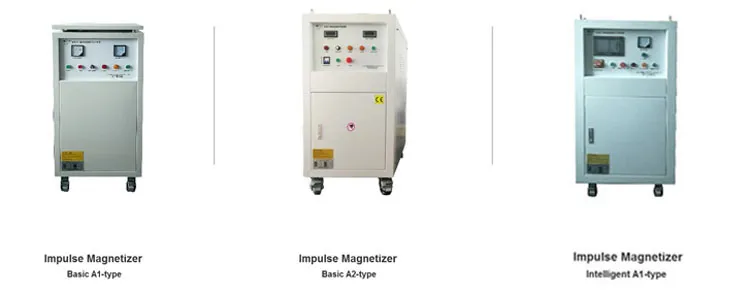

Main Engines for Choice

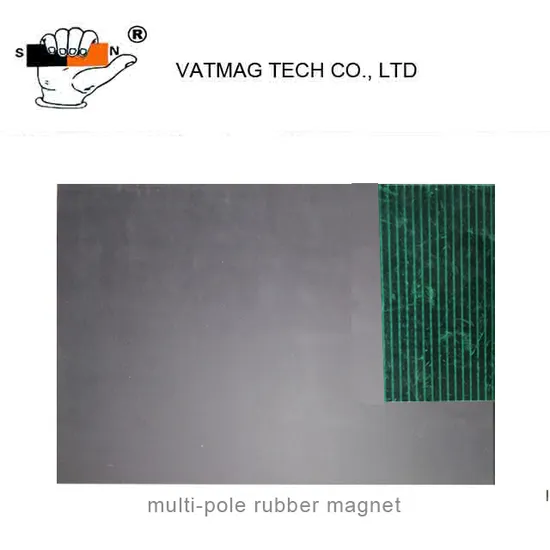

(Models suitable for rubber/bitumen plate)

Other models are available if the above-mentioned models don't meet your need, pls contact us by email.
Main Features
1.SCR: Adopts CRRC, or Toshiba or Mitsubishi brand.
2.High-voltage Capacitor: High quality magnetizer capacitors with long service life.
3.HMI Functions (
for Intellignent type models only
)
--Jobs can be prestored and called, which is convenient for interchange between different jobs.
--
Different ID for different authorized operators to protect the program against modified beyond authority.
--
Top and bottom limit of main working parameters can be preset and be used to compare with and analyze real time values.
--
Main working parameters in the process can be recorded and stored convenient to monitor the working conditions of the machine.
--
Automatic faults diagnosis and alarm function convenient for maintenance and repair of the machine.
4.Voltage can be stepless regulated.
5.A voltage loss automatic compensating circuit is equipped to guarantee that each time magnetizing energy is uniform and thus to improve the equal quality of magnetized products.
6.An overload protection device is adopted to protect the important expensive components from being damaged and reduce the loss in case of accident.
7.Residual voltage automatic release circuit is adopted to guarantee the safety.
The following Functions are available if needed (Extra Charge Required)
1. Magnetizing current display and alarm.
2. Magnetizing coil temperature monitor and alarm.
Special requirements please feel free to contact us.

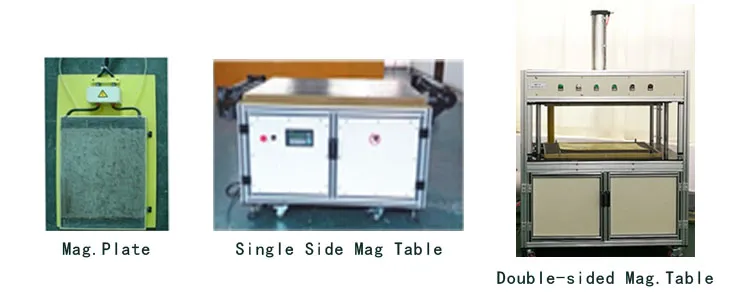

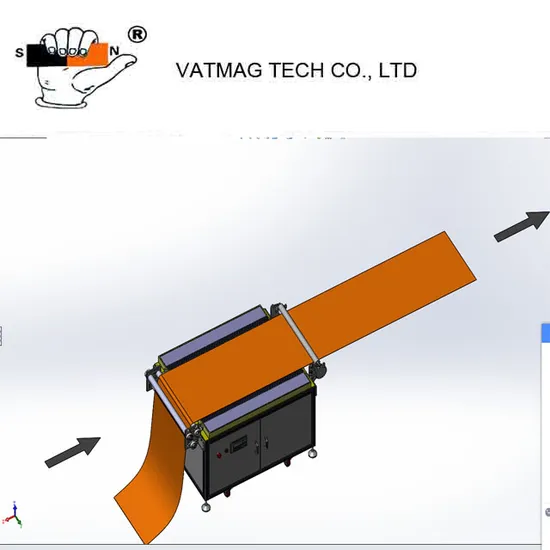

Magnetizing Tables
(
suitable for magnetizing rubber/bitumen plate)

The magnetizing table is customized according to customer's production requirements.
Other custom make magnetizing fixtures are available if needed.

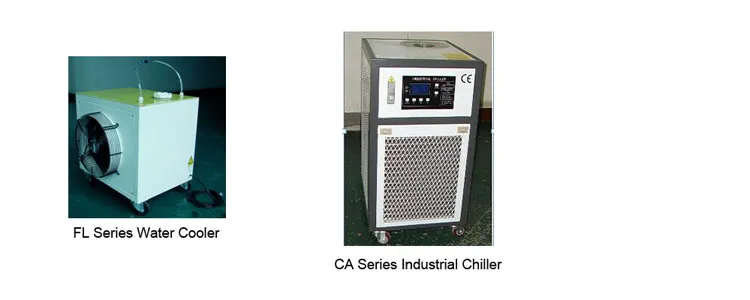

Cooling Machine for Choice

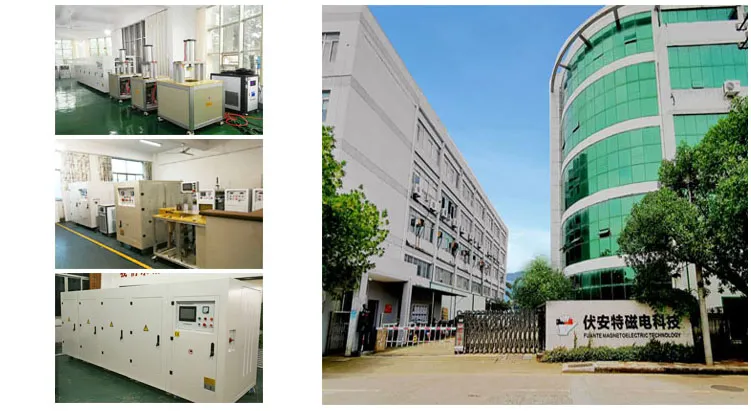

ABOUT OUR COMPANY

Our
company, founded in 1999 (former name Shengzhou VAT Magnetoelectric Equipment Factory), is a scientific and technological enterprise specializing in the research and development and production of magnetizer & demagnetizer machines and magnetic measuring devices.
At present, the company has five series of products, namely motor series magnetizer & demagnetizer machine, speaker series c magnetizer & demagnetizer machine, magnetic material series magnetizer & demagnetizer machine, special-purpose magnet assembly magnetizer & demagnetizer machine, and magnetic measuring devices. The products are sold well in China and successfully sold to Germany, USA, Canada, the United Kingdom, France, Italy, Russia, Ukraine, Mexico, Hungary, Brazil, South Africa, Turkey, Australia, the Philippines, South Korea, Thailand, Vietnam, Malaysia, India, etc. totally more than 20 national markets.
We have established good cooperation relations with many famous domestic university laboratories and many industry leaders at home and abroad. Many of our clients are leaders in the industry, including many Fortune Global 500 companies and well-known multinational companies. Our company has also become a lab for many enterprise's
new products development, especially in the post-assembly magnetisation for PM rotor manufacture.
Our Sales Profile

PRODUCTS CATAGORY
1. Speaker series magnetizers
2. Motor series magnetizers
3. Magnets series magnetizers
4. Other applications magnetizers
5. Magnetic measurement apparatus

How to select
magnetizer & demagnetizer
Pls provide us with the following information about the production requirements of your products,
we can help you in the selection of machine model:
1.Magnet material and grade
2.Size of the rubber magnet size
3.Number of poles, or pole pitch
4.Production speed.
5.Other production requirements that are necessary.
After careful evaluations of users' production requirements, our engineers will recommend a system that will meet your requirements.
