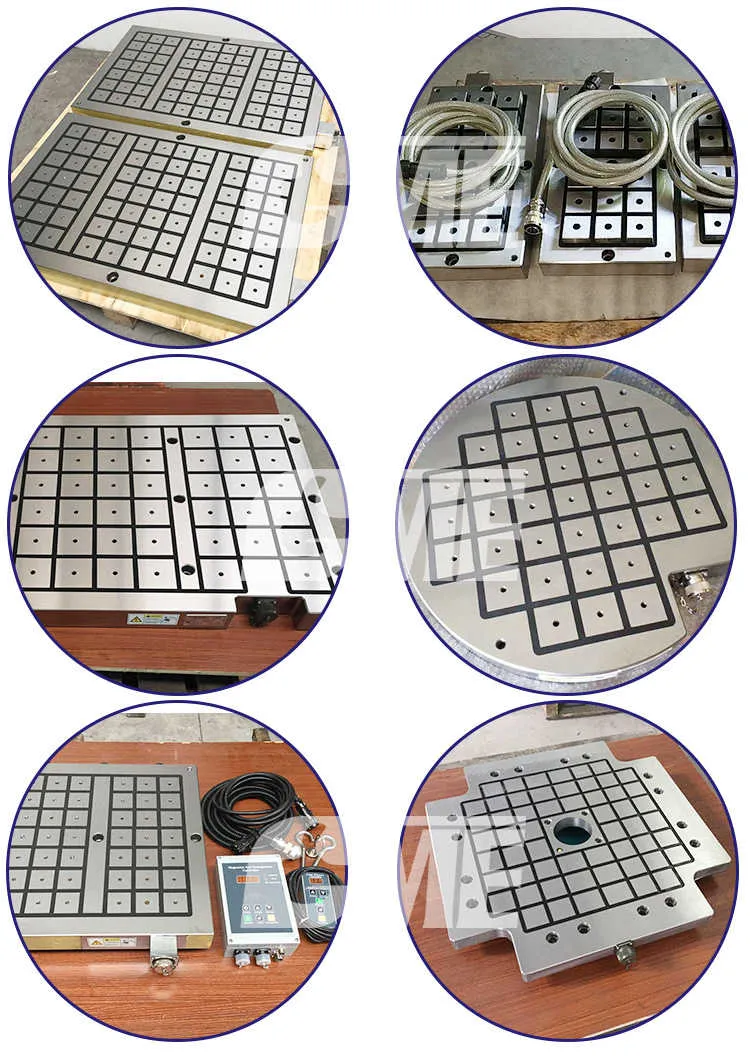

Electro
Permanent Magnetic Chuck

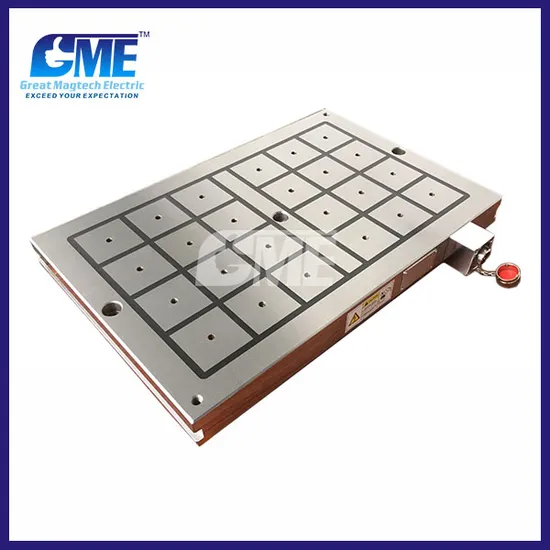

EP50
Electro-Permanent Magnetic Chuck is one of magnetic chuck or magnetic clamps for machining, milling, grinding and lathing. Please see our most popular item EP50 Electro Permanent Magnetic Chuck as below:

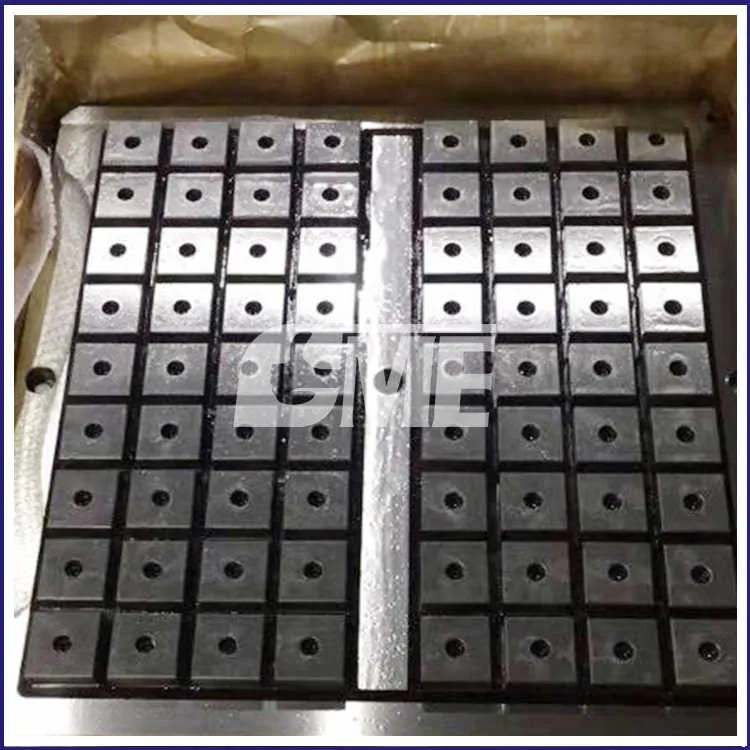

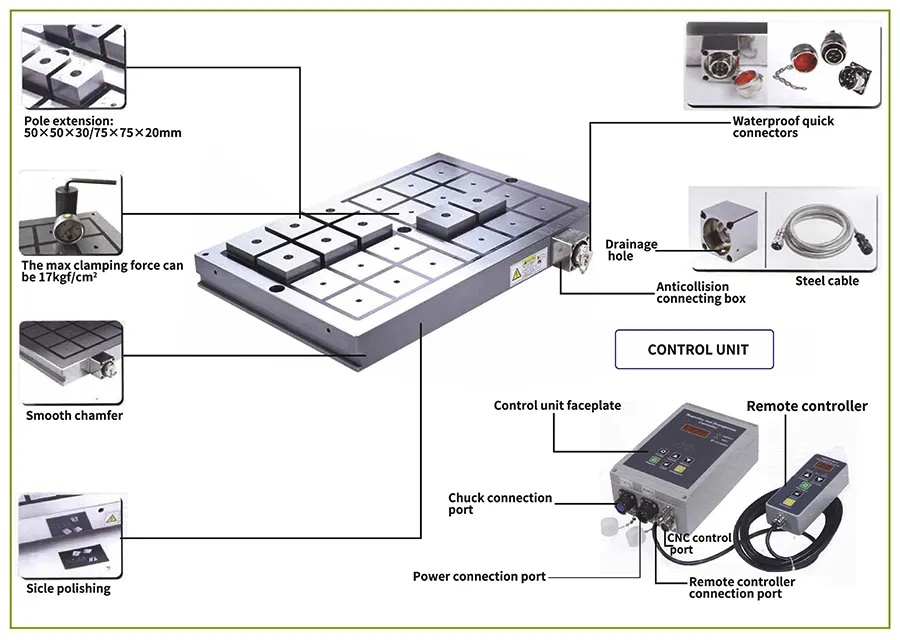

Material and Accessory of Electro Permanent Magnetic Chuck
EP50:

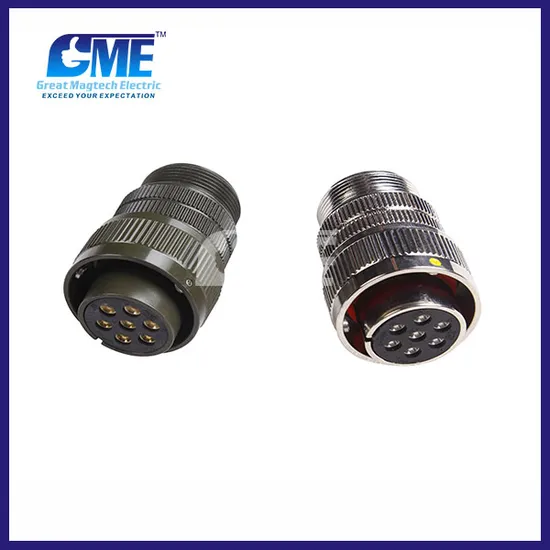

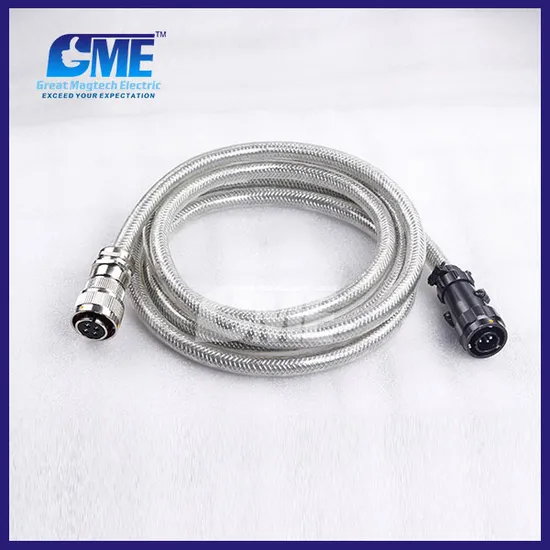

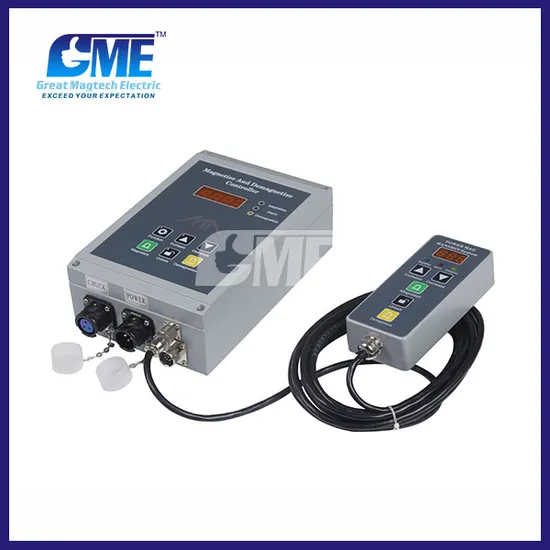

1. High Consistency Alnico Magnet and Neodymium Magnet, guarantee the table surface suction strength stability.2. Controller, power supply for electromagnet 220V and 380V Option. Controller Manual.3. Connector and Socket: Importing from Korea and high waterproof.4. Long Steel cable, high waterproof.5. Table face and side: Polishing and grinding treatment for high precision Parallelism. Customer often mill again after receiving goods.6. Smooth Chamfer.7. Anti-Collision Connecting Box.8. Slot around the side -
for easy assembling to the machine table.Features of Electro Permanent Magnetic Chuck:
1. Electric permanent magnet chuck only uses electric energy during the magnetization and demagnetization stages. No power is required during processing, and the workpiece is fixed by the magnetic force generated by the high-energy permanent magnet.2. Comprising 50x50mm poles, and the suction force of each magnetic pole is about 350kg and 14-17kg/cm².3. Magnetization or demagnetization time is 0.5-5 seconds.4. Workpiece gripping at least 4
pole contact faces.Advantages of Electro Permanent Magnetic Chuck
EP50:
1. Wide Applicability and Flexibility:
Clamped by one-side, workpiece (uneven workpieces) can also be machined from 5
sides.Moreover, low compact magnetic chuck design, but it's allowed larger workpieces dimension than magnetic chuck table face.2. Consistency of magnetic force and high processing accuracy.The table top has a
large suction force of 14-17kg/cm²;
2 times suction strength that that ordinary magnetic chucks, absorbing all ordinary steels and mold steels well.No thermal deformation, to effectively improve the processing accuracy.

3. Safety and energy saving:
No electrical energy is required during the processing. The magnetic force will not lose, if the power off suddenly. So the workpieces will fall off and break the CNC machines when processing. Effectively guarantee the safety of system and workers.No power wasted at this magnetic chuck when workpieces processing;
4. Excellent Waterproof Performance:
Use waterproof and oil-proof connector, easy to plug and unplug. Not afraid of spraying oily or water-based liquids such as chip oil.5. High efficiency:
convenient and quick installation, shorten production cycle and improve production efficiency 50% at least.The stop blocks are allowed to move to any side on table.Available to connect several magnetic chuck to a
single controller.6. Low cost:
The machine tool does not need to make any changes, reduces tool wear, and has no maintenance costs.7. Warranty:
1-Year Quality Warranty, Components free replacement within Warranty Period for electromagnet repair, Shipping cost by Clients.Application of Electro Permanent Magnetic Chuck
EP50:
1. Used for both normal and heavy duty drilling, milling, and CNC machining center

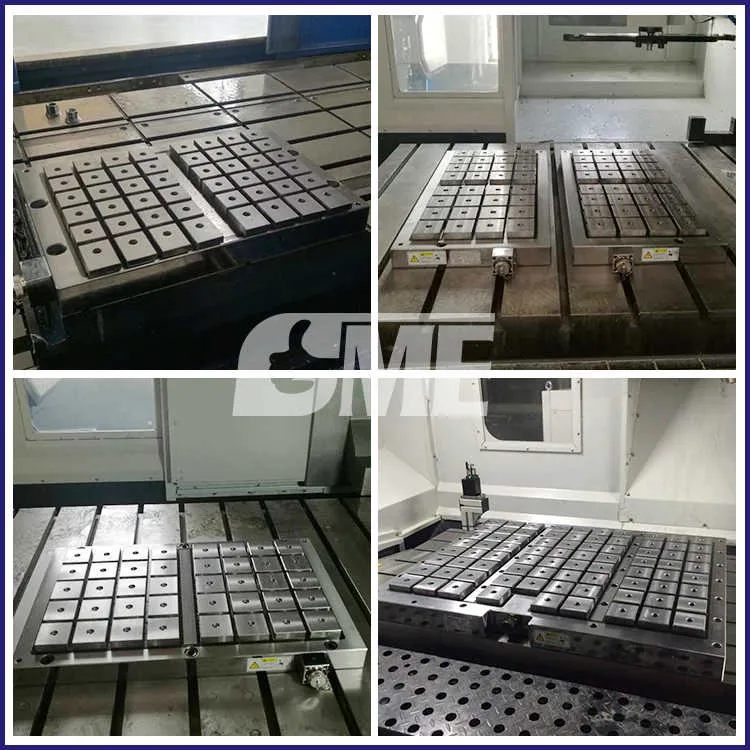

2. workpiece dimension can be larger than the size of the suction cup.3. Suitable for thinner and medium thickness workpieces, normal working air gap (The smallest size is 250X250x10mm).4. Used for small, medium dimensions with normal operating air gaps and thinner workpieces.Electro Permanent Magnetic Chuck for CNC Machine Center

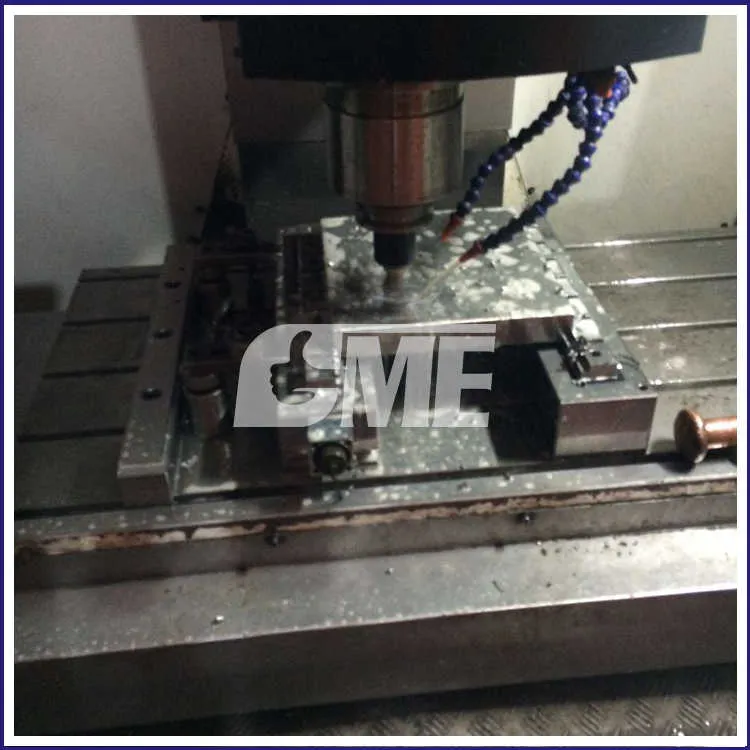

Electro Permanent Magnetic Chuck for Milling:
Electro Permanent Magnetic Chuck for Drilling:

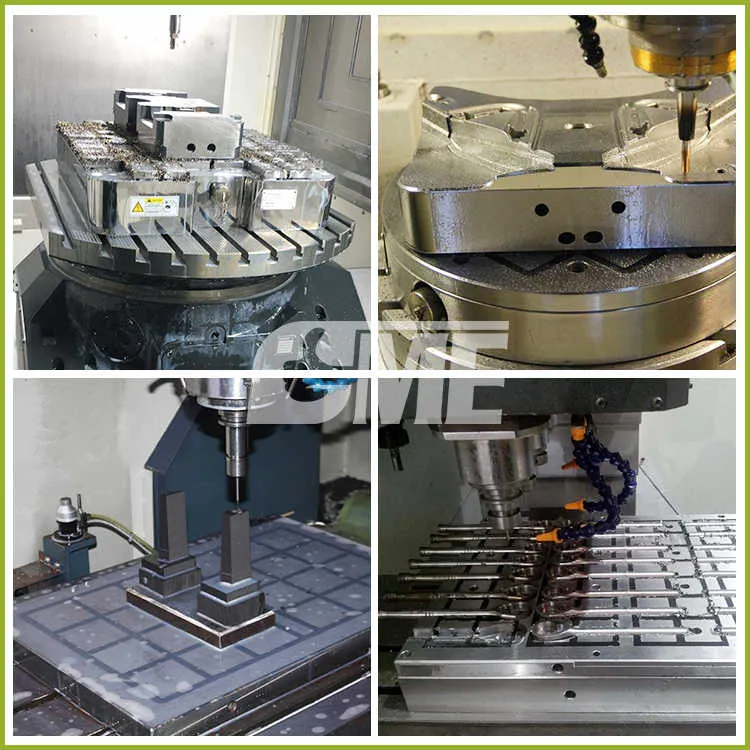

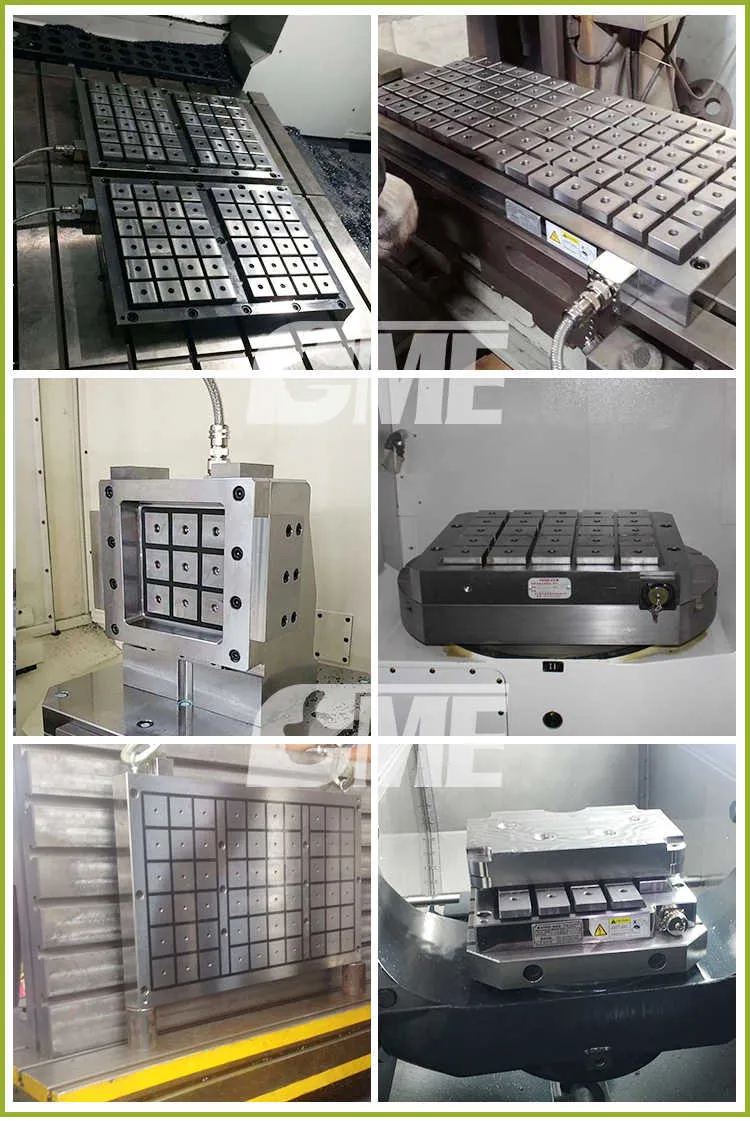

Electro Permanent Magnetic Chuck Customer InstallationInspection of Electro Permanent Magnetic Chuck:
1. Slipping force Test
2. Waterproof Test
3. Temperature Rising Test
4. Electrical &
Demagnetizing Tests

Pictures before Packing:
Inner Anti-rust Oil

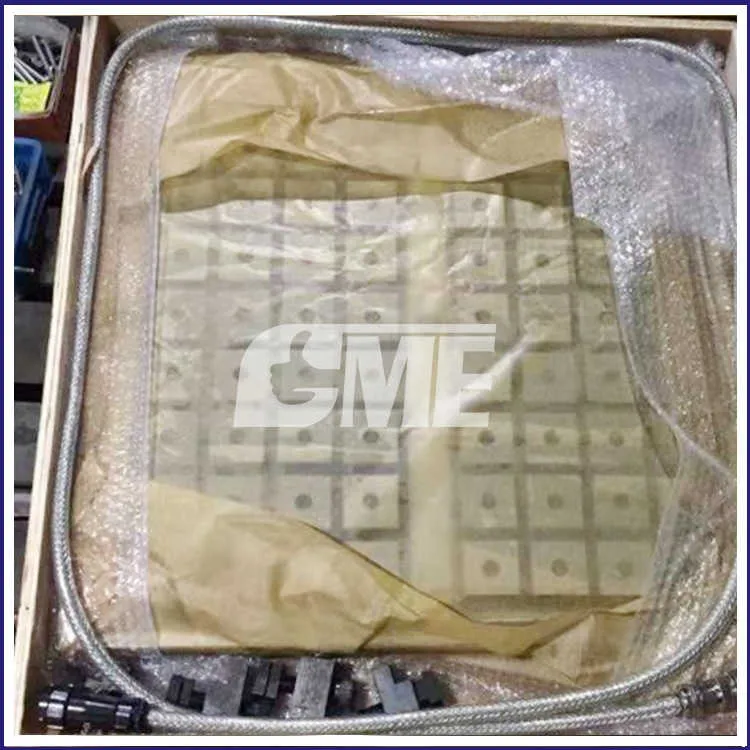

Inner Packing:
Pictures After Packing:
For this magnetic chuck price, please contact us on email or Chat Now.
