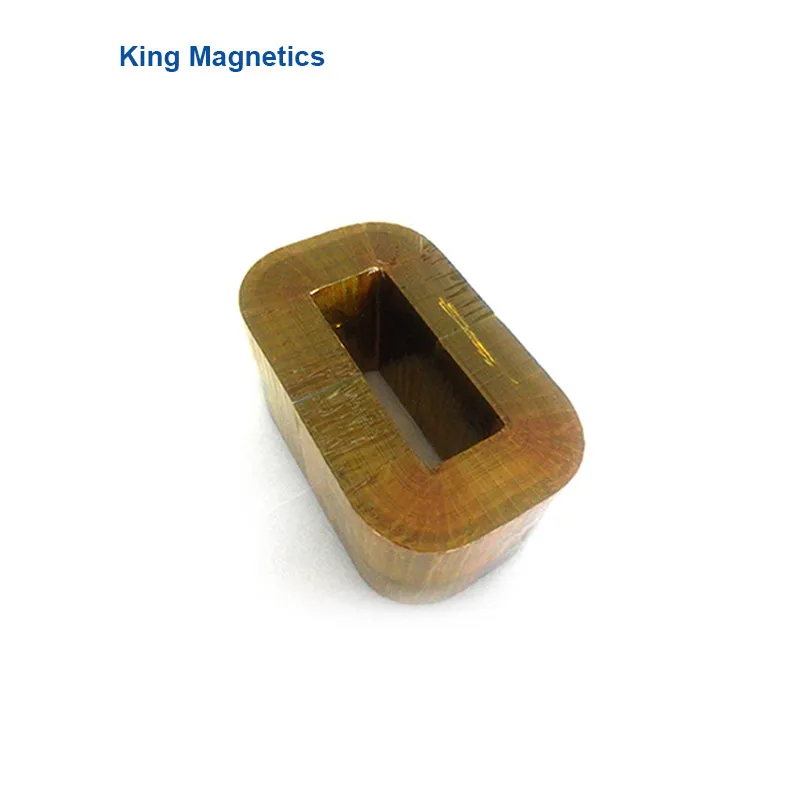

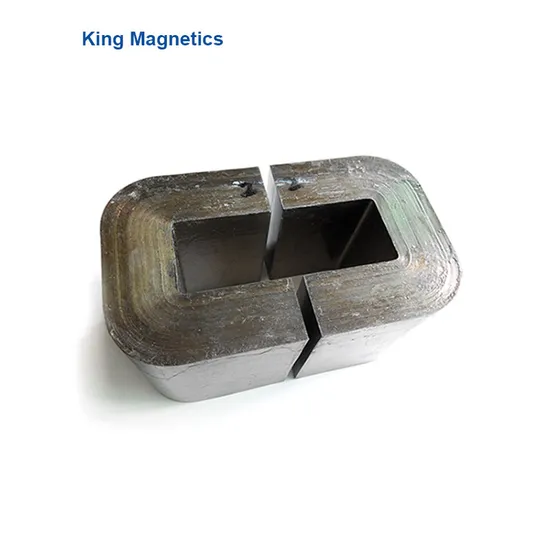

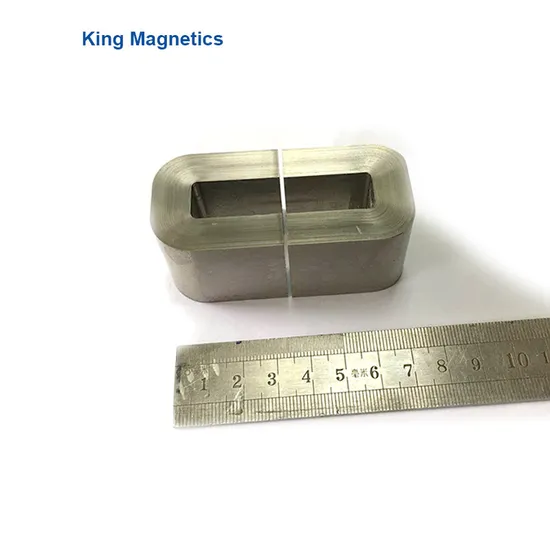

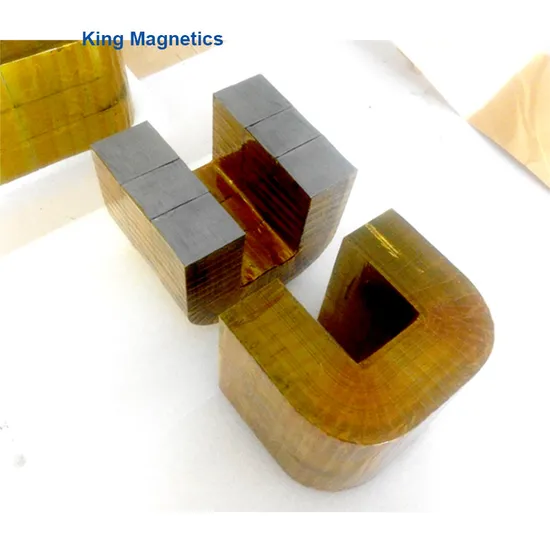

Split core with nanocrestalline ribbon nanocrystallinr core for current transformer

Nanocrystalline C core is upgrade product of amorphous c core, with high saturation flux density, low coercivity, low core loss, very low noise, higher frequency up to 20KHz, suitable for main power transformer, audio transformer, output inductor, boost PFC choke coil. Can replace ferrite cores, permalloy cores, silicon steel cores. Dimensions can be custom-made.
Features
Material: Fe-based nanocrystallineSaturation flux density induction: 1.25TCurie temperature(ºC): 560Stacking factor: >0.75Saturation magnetostriction(*10^-6): <2Resistivity (μΩ.cm): 130Ribbon thickness: 25μmCore shape: C type cut core
Applications
>> High frequency transformer (frequency recommended 20-30KHz)>> Solar inverter filter>> PFC choke>> Differential mode choke
>> Output filter>> Hi-Fi Audio transformer>> High efficient transformer
Standard core dimensions of
Nano Crystalline C Cores
Other specifications are available according to customer's requirements.

Our Services
1. Nanocrystalline cores for common mode chokes
- Very high permeability, suitable for EMI common mode chokes.2. Amorphous and nanocrystalline c cores
- High saturation flux density, and low core loss.- Nanocrystalline c cores are the updated material with ultra
high performance.3. Custom cores and magnetic components

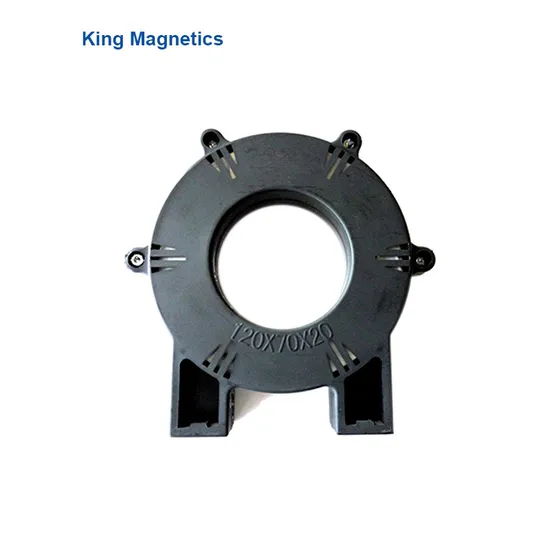

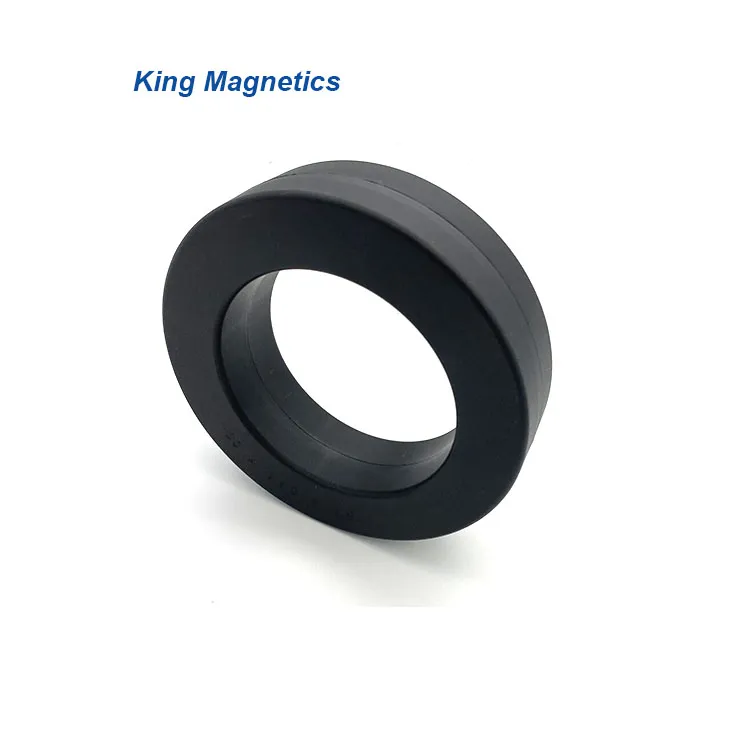

- Oval shape nanocrystalline cores for VFD noise suppresor.- Amorphous inductors for output DC choke or PFC choke.- Nanocrystalline toroidal cores for common mode choke.
