基本信息产品详情证书
基本信息
| 型号 | 462725公里 |
| 认证 | ISO9001, RoHS |
| 品牌 | 金氏磁铁公司 |
| 材料类型 | 纳米晶磁芯 |
| Model 指模型。 | 1K107 |
| 贸易术语 | EXW 是指工厂交货。 |
| 用法 | 共模电感 |
| EMI/EMC滤波器 | EMI/EMC滤波器 |

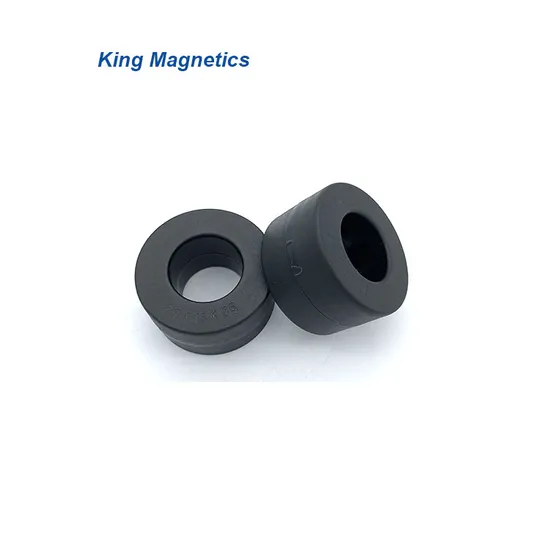

| 描述 | Finemet纳米晶1K107b环形变压器 |
| 质量体系 | ISO:9001:2015 |
| 铝 | 80微亨利（电感单位） |
| 提前期 | Sm2Co17 |
| 运输包 | 纸箱 |

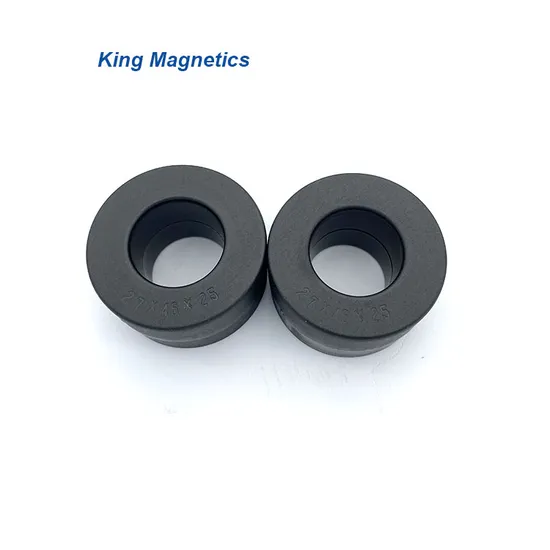

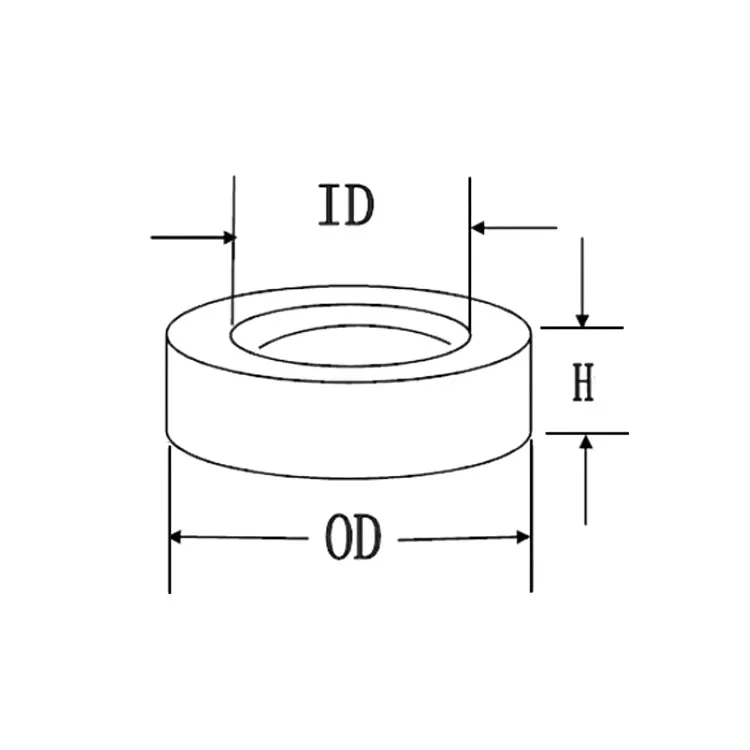

| 规格 | 46×27×25毫米 |
| 商标 | 纳诺福斯 |
| 起源 | 珠海 |
| 商品编码 | 8504901900 |
| 生产能力 | 每日5万片 |
产品详情
Product Description
Preview
Nanocrystalline cores feature very high permeability over low frequency to high frequency up to 30Mhz. They are very suitable for common mode choke to be used as EMC filter to compress conducted common mode noise. Compared to traditional ferrite core, nanocrystalline core has a lot of advantages as high inductance, good filter effective, small size and volume, less turns of copper wire, lower power consumption and high efficiency.
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: 80000
Permeability @ 100KHz: 20000
Curie temperature(ºC): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
Applications
>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies
>> VFD
Inverter Drive Motor Systems

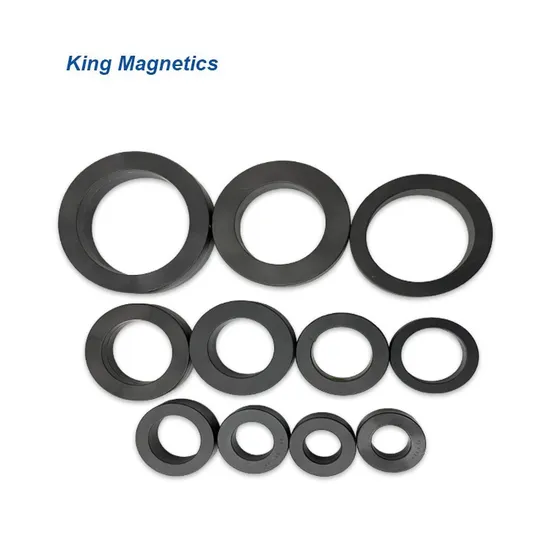

Standard Cores
Features
Material: Fe-based Nanocrystalline core
Saturation flux density induction: 1.25T
Permeability @ 10KHz: 80000
Permeability @ 100KHz: 20000
Curie temperature(ºC): 560
Stacking factor: 0.78
Saturation magnetostriction(*10^-6): <2
Resistivity (μΩ.cm): 115
Ribbon thickness: 25μm
Core shapes: Troidal core
Applications
>> EMC Filter
>> Switched mode power supply
>> Computer power supply
>> Communication and network power supply
>> Laser and X-ray power supply
>> Welding equipment and Electrical plating power supply
>> Solar energy equipment and Wind power generator
>> Household electrical appliance
>> Uninterruptable power supply (UPS)
>> Frequency converter
>> Inducted heating equipment
>> high-speed railway power supplies
>> VFD
Inverter Drive Motor Systems
Standard Cores
Preview
Preview
These cores are our standard products, we can also design and produce high performance cores according to customer's requirements, including sizes, inductance and applications. We can help customers to select the best performance cores.* Epoxy coated.
** AL tolerance -30%/+50%
KMN322115Y - Three phase common mode choke core.
Our Services
1. Nanocrystalline cores for common mode chokes
- Very high permeability, suitable for EMI common mode chokes.
2. Amorphous and nanocrystalline c cores
- High saturation flux density, and low core loss.
- Nanocrystalline c cores are the updated material with ultra
high performance.
3. Custom cores and magnetic components
- Oval shape nanocrystalline cores for VFD noise suppresor.
- Amorphous inductors for output DC choke or PFC choke.
- Nanocrystalline toroidal cores for common mode choke.
** AL tolerance -30%/+50%
KMN322115Y - Three phase common mode choke core.
Our Services
1. Nanocrystalline cores for common mode chokes
- Very high permeability, suitable for EMI common mode chokes.
2. Amorphous and nanocrystalline c cores
- High saturation flux density, and low core loss.
- Nanocrystalline c cores are the updated material with ultra
high performance.
3. Custom cores and magnetic components
- Oval shape nanocrystalline cores for VFD noise suppresor.
- Amorphous inductors for output DC choke or PFC choke.
- Nanocrystalline toroidal cores for common mode choke.
