Kmac-63非晶态核心音频磁粉核电性电动车及充电装置铁氧体磁体

Preview

基本信息产品详情证书

基本信息

型号	KMAC-63
认证	ISO9001
品牌名称	金氏磁业
部分编号	Kmac-63
名称	用于电动汽车和充电D的铁氧体磁铁
饱和感应	1.56吨
类型	Amcc-200 C形切割核心
用法	高频电感器、变压器
应用	太阳能逆变器、音频变压器
饰面带厚度	25微米
运输方案	纸箱
规格	16乘以20乘以70乘以30乘以52乘以102毫米
商标	纳米生物毒理学
起源	珠海
生产能力	每月500套

产品详情

Product Description

Preview

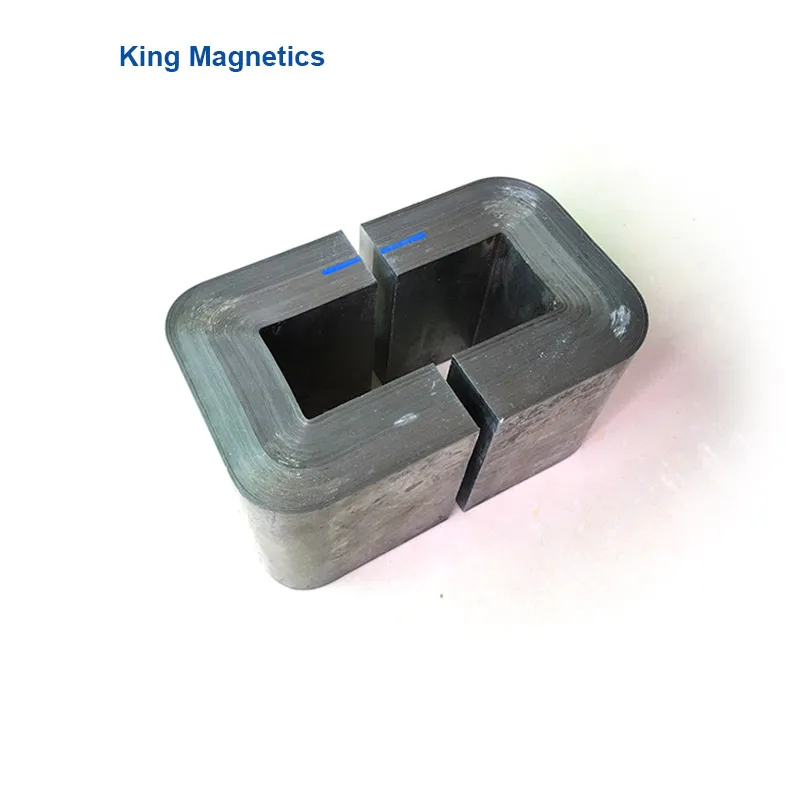

Amorphous core audio finemet core ferrite magnets for electric vehicles and charge device

Preview

Features
Material: Fe-based amorphous core
Saturation flux density induction: 1.56T
Curie temperature(ºC): 410
Stacking factor: >0.8
Saturation magnetostriction(*10^-6): <30
Resistivity (μΩ.cm): 110
Ribbon thickness: 25μm

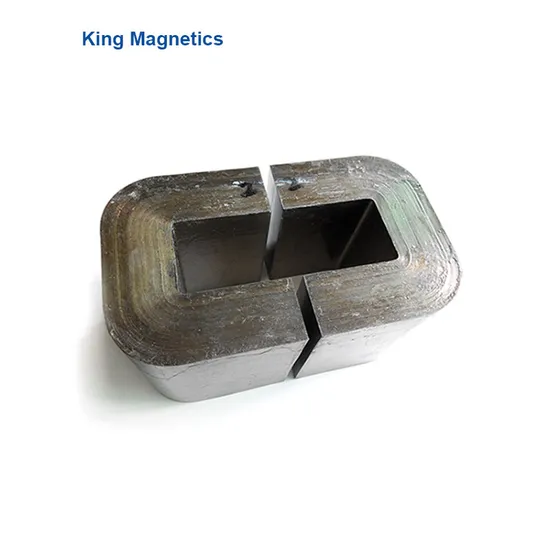

Core shape: C core
Applications
>> Solar inverter filter
>> PFC choke
>> Midium frequency transformer
>> Diffrental mode choke
>> Output filter
>> Audio transformer
Standard core dimensions
Other specifications are available according to customer's requirements.

Preview

Our Services

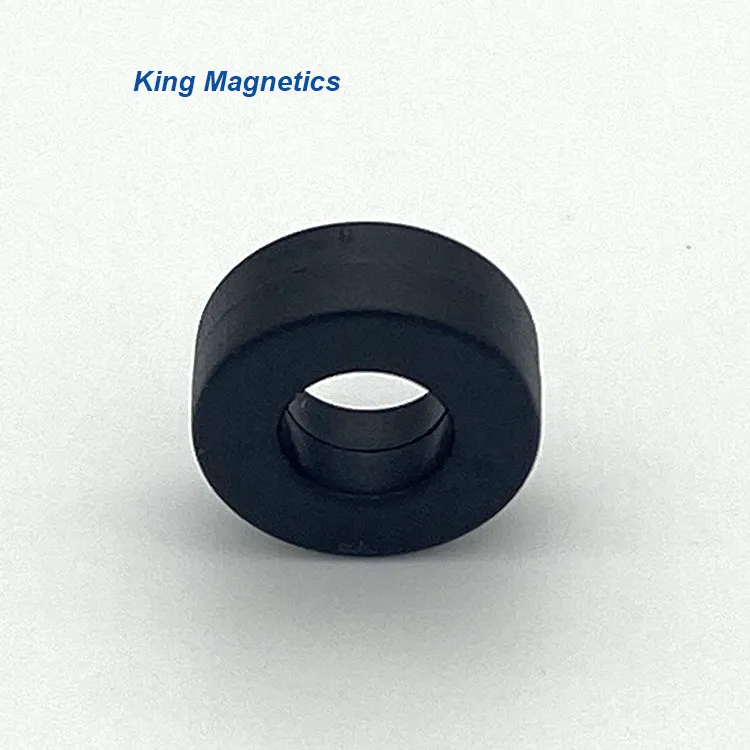

1. Nanocrystalline cores for common mode chokes

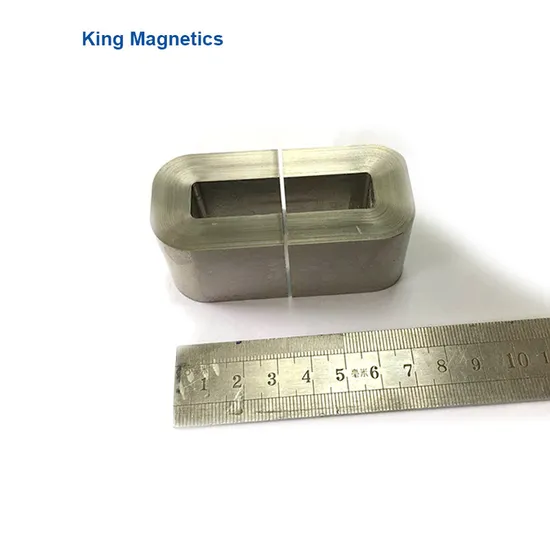

- Very high permeability, suitable for EMI common mode chokes.2. Amorphous and nanocrystalline c cores
- High saturation flux density, and low core loss.- Nanocrystalline c cores are the updated material with ultra
high performance.3. Custom cores and magnetic components
- Oval shape nanocrystalline cores for VFD noise suppresor.- Amorphous inductors for output DC choke or PFC choke.- Nanocrystalline toroidal cores for common mode choke.
