Technical Performance
Rock Drill

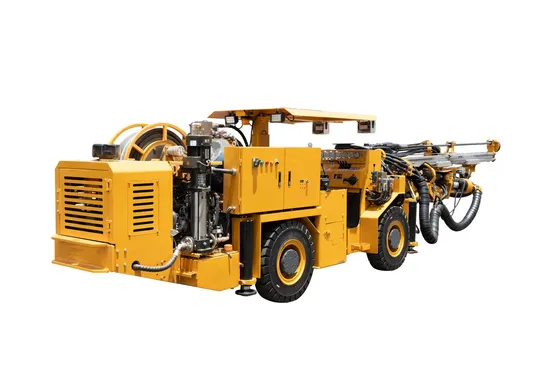

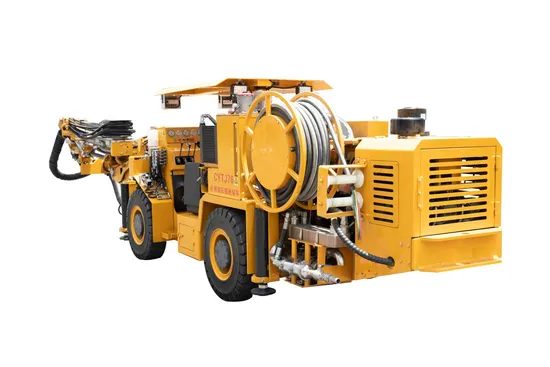

The CYTJ102 mining hydraulic tunnel drilling rig is equipped with a double buffering and shock-absorbing system to ensure the best service life of the drilling tool;
The pressure oil film protects and lubricates the joint interfaces and reduces internal pollution of the rock drill.

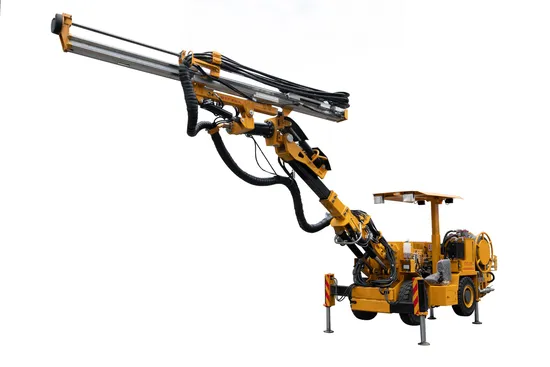

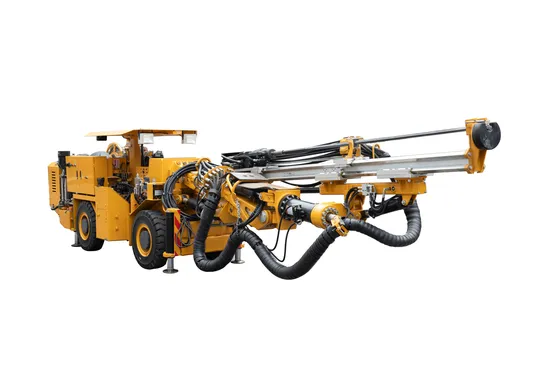

Hydraulic Drill Boom
Heavy-duty drill boom, the drill boom supported by double triangle suspension provides accurate hydraulic parallel maintenance function in all directions.
Hydraulic Propulsion Beam
Heavy-duty aluminum alloy propulsion beam has high
anti-bending and torsional strength and long service life;
The surface of the propulsion beam is covered with stainless steel skin, and polyurethane rubber wear-resistant pads are used between moving parts.
Control System
The hydraulic rock drilling control system has an automatic anti-jamming function RPCF (rotary pressure control force).
Chassis
Sturdy articulated heavy-duty chassis, four-wheel drive; powered by a water-cooled diesel engine; four hydraulic outriggers for firm stability.
Other Configuration
Lift-able
safety roof
to prevent impact from falling objects; cable reel; electrically driven piston air compressor; electrically driven booster water pump (hydraulic booster water pump can also be customized);task
lights.
Technical Specifications
1838ME
Rock Drill
Propulsion Beam
Drill Arm
Air System
Water System
Directly controlled hydraulic system DCS; basic functions include automatic anti-jamming.
Electrical System
Hydraulic System
Physical Parameters
Overall Size
Side View

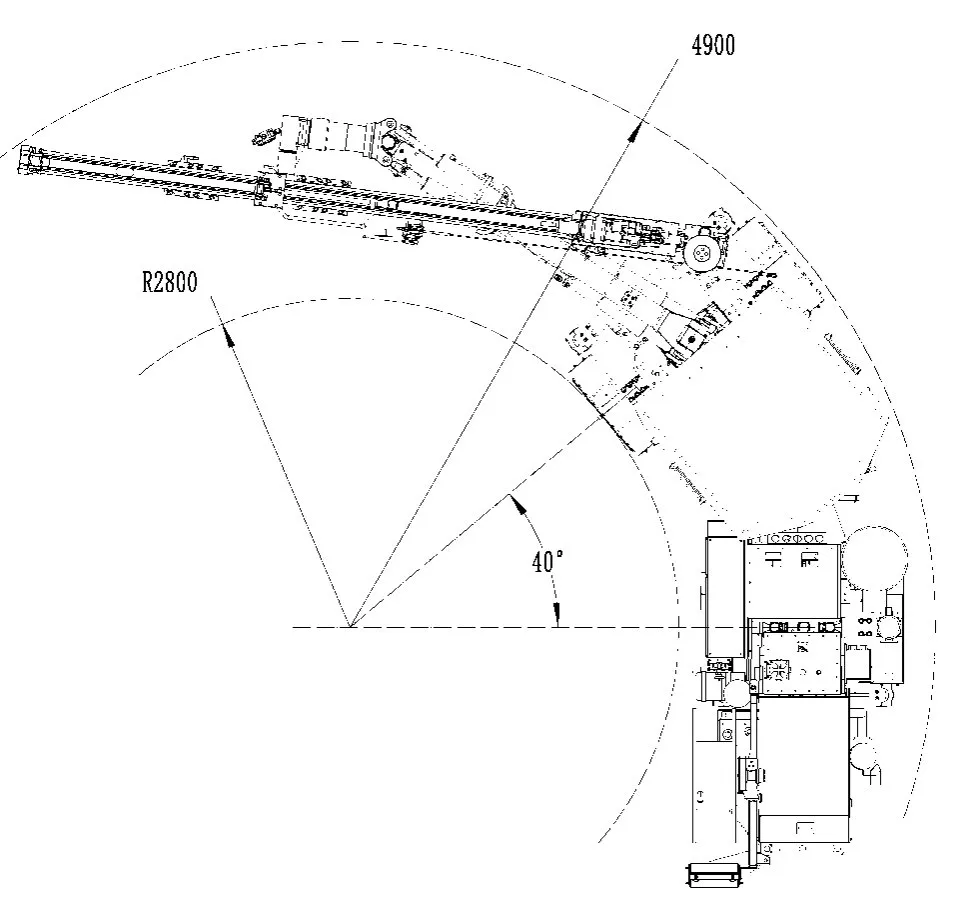

Working Scope
Size
Total Weight:11000kg
Driving Speed km/h
Turning Radius
