基本信息产品详情证书
基本信息
| 型号编号 | HDL-200C |
| 条件 | 新 |
| 钻井直径 | φ100至φ300 |
| 钻井深度 | 180-220米 |
| 位类型 | 钻头 |
| 钻孔方式 | 旋转 |
| 类型 | 爬虫 |
| 重量 | 17500千克 |
| 旋转头输出速度 | 80转/分 |
| 旋转头的输出扭矩 | 14000n。M |
| 输入功率（发动机） | 194千瓦 |
| 运输包 | 钻机裸露，配件纸箱包装 |
| 规格说明 | 7500乘以2400乘以3000 |
| 商标 | 安曼 |
| 起源 | 中国 |
| 商品编码 | 843041 |
| 生产能力 | 每月10万套 |
产品详情

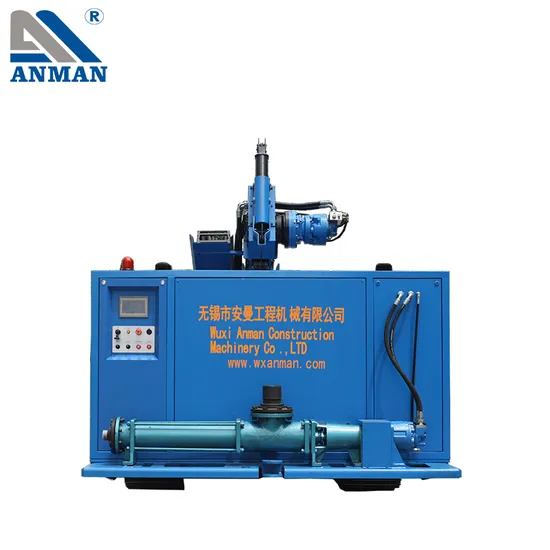

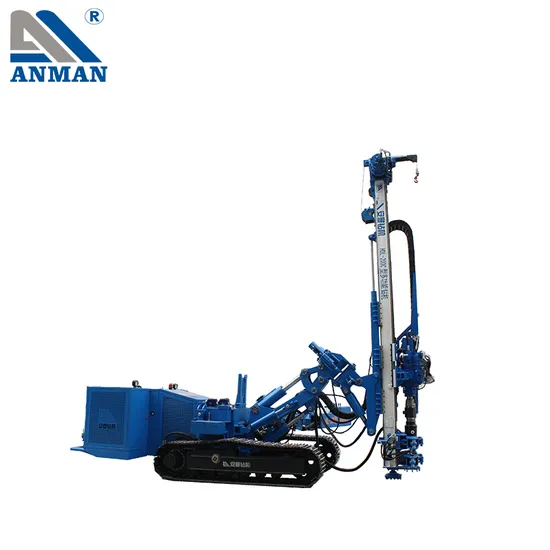

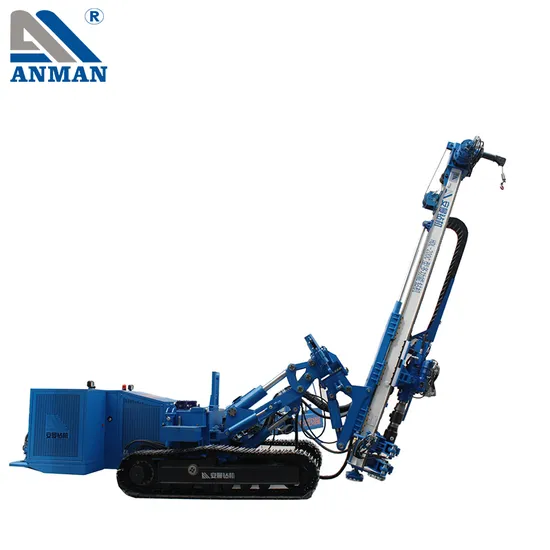

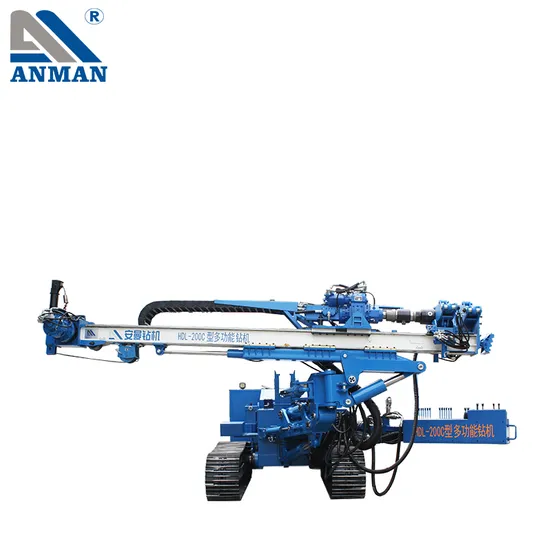

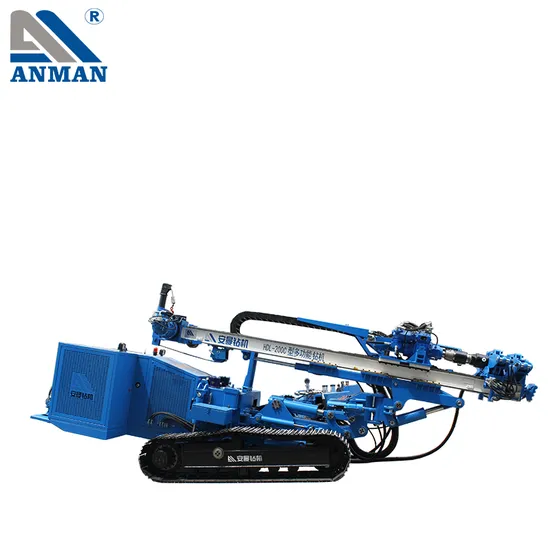

HDL-200C
Top Drive Type Multifunctional Drilling Rig
Product Description
HDL-200C
series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex
formation according to market request.
Specification
Model number
HDL-200C
Hole diameter(mm)
Φ100~Φ300
Hole depth(m)
180~220
Rod diameter(mm)
Φ73,Φ89,Φ102,Φ114,Φ146,Φ168,Φ194,Φ219
Hole angle(°)
-30~105
Output speed of rotary head(max)(r/min)
80
Output torque of rotary head(max)(N.m)
14000
Lifting speed of rotary head(m/min)
0~10,50
Feeding speed of rotary head(m/min)
Input power(Diesel)(kW)
194
Dimension(L*W*H)(mm)
7500*2400*3000
Vertical Working Dimension (L*W*H)(mm)
6200*2400*7450
Weight(kg)
17500
Elevating power of winch(KN)
11
Impact power of rotary head(max)(N.m)
900
Impact frequency of rotary head(max)(b/min)
2200
Rated lifting force (kN)
Rated feeding force (kN)
Feeding stroke(mm)
3600
Sliding stroke(mm)
1500
Climbing angle(°)
20
Working pressure(MPa)
25
Walking speed(m/h)
1600/1000
Gripper diameter(mm)
Φ73~Φ250
Fuel tank volume(L)
300
Details
Successful projects
Top Drive Type Multifunctional Drilling Rig
Product Description
HDL-200C
series drilling rig is top drive type multifunctional drilling rig which our company design and manufacture for complex
formation according to market request.
Specification
Model number
HDL-200C
Hole diameter(mm)
Φ100~Φ300
Hole depth(m)
180~220
Rod diameter(mm)
Φ73,Φ89,Φ102,Φ114,Φ146,Φ168,Φ194,Φ219
Hole angle(°)
-30~105
Output speed of rotary head(max)(r/min)
80
Output torque of rotary head(max)(N.m)
14000
Lifting speed of rotary head(m/min)
0~10,50
Feeding speed of rotary head(m/min)
Input power(Diesel)(kW)
194
Dimension(L*W*H)(mm)
7500*2400*3000
Vertical Working Dimension (L*W*H)(mm)
6200*2400*7450
Weight(kg)
17500
Elevating power of winch(KN)
11
Impact power of rotary head(max)(N.m)
900
Impact frequency of rotary head(max)(b/min)
2200
Rated lifting force (kN)
Rated feeding force (kN)
Feeding stroke(mm)
3600
Sliding stroke(mm)
1500
Climbing angle(°)
20
Working pressure(MPa)
25
Walking speed(m/h)
1600/1000
Gripper diameter(mm)
Φ73~Φ250
Fuel tank volume(L)
300
Details
Successful projects
