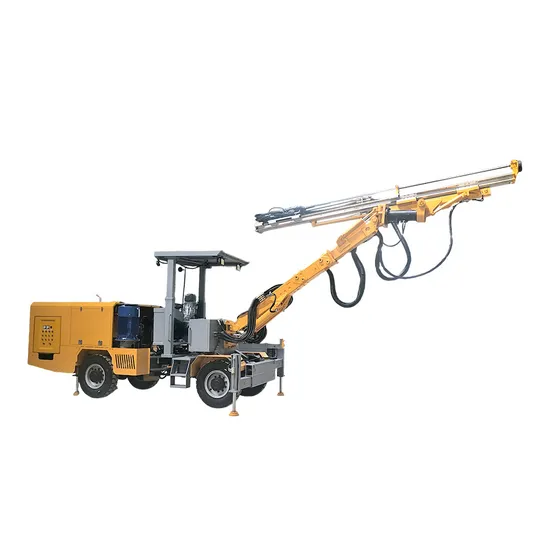

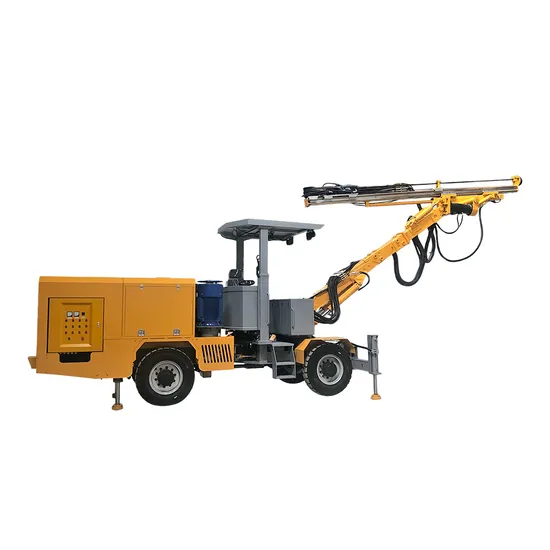

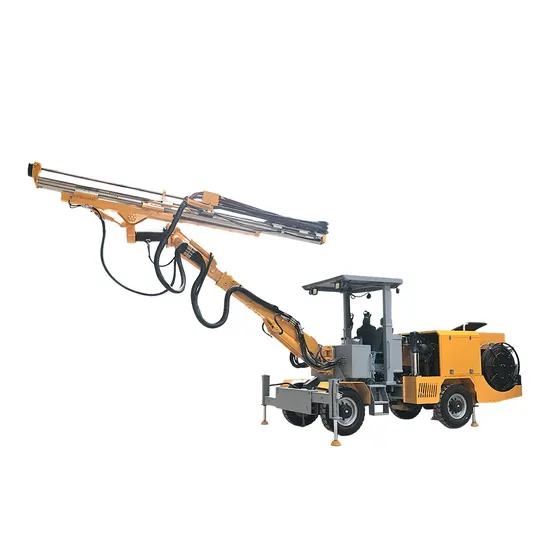

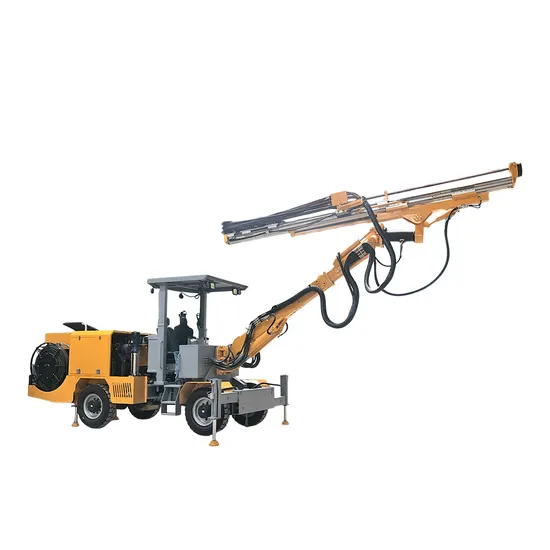

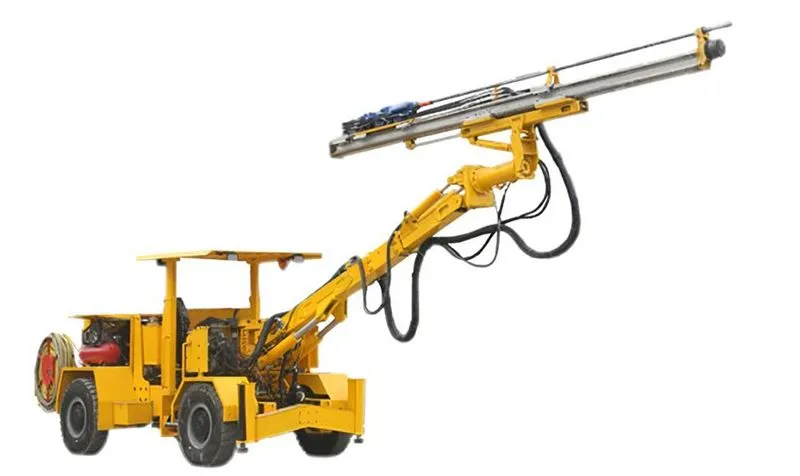

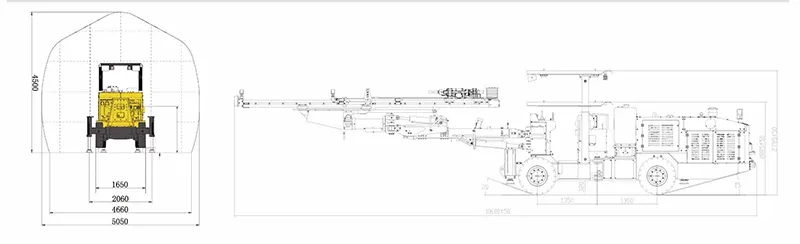

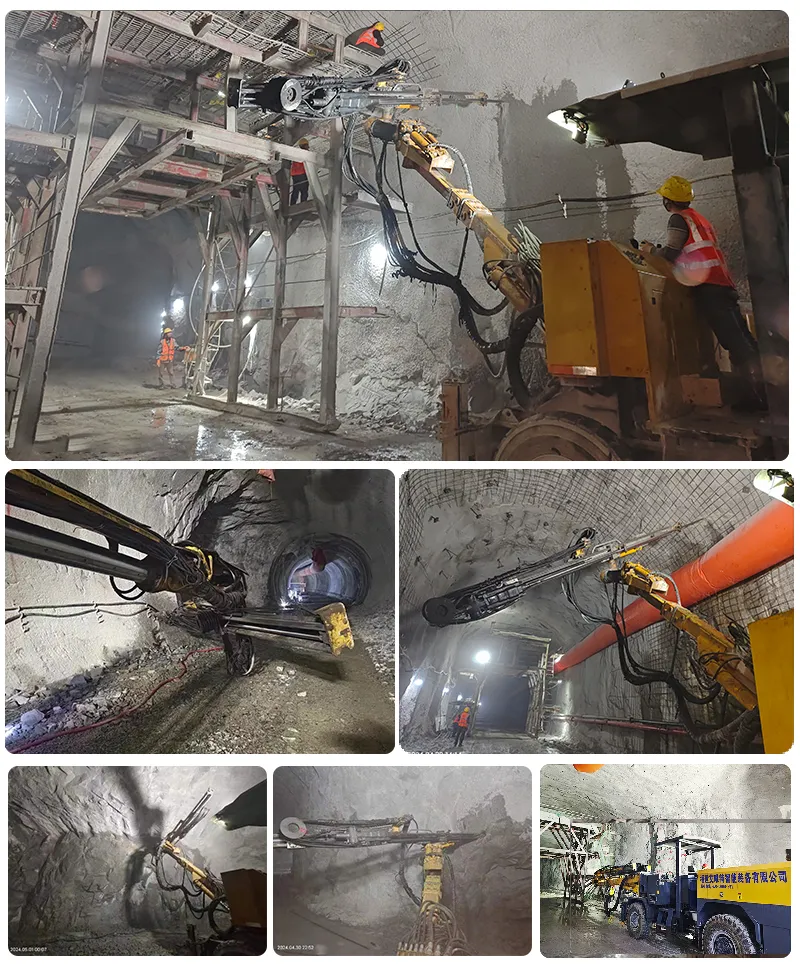

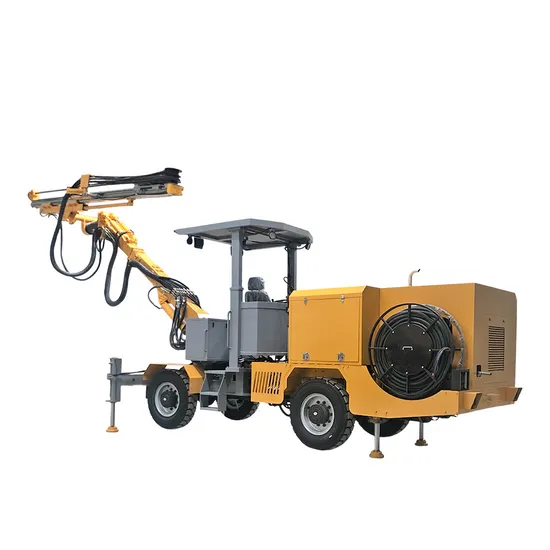

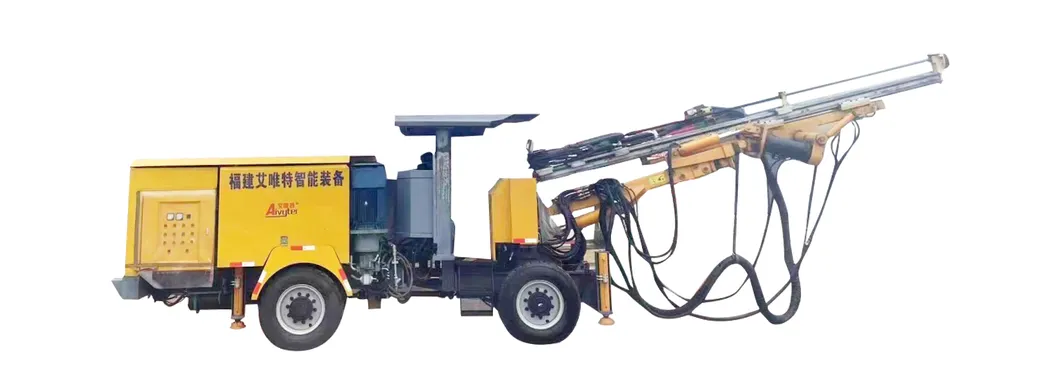

CYTJ45 KA mining hydraulic drilling jumbo is widely used in small and medium-sized underground metal mines, water conservancy and hydropower, highway and railway tunnels, chemical industry, etc. It is suitable for a wide range of rocks with a Pugh hardness of f=6-16 or higher. It can work and turn in tunnels with a width of only 3.3 meters; the thruster can rotate 360° horizontally and vertically in both directions, and has the functions of opening stone doors and drilling anchor holes.Aivyter single boom drill jumbo, with its fully hydraulic rock drilling system, is an efficient, reliable, and perfect choice for complete engineering projects with very low failure rates!

1. Boom system: Fully hydraulic double triangle telescopic boom, single-stage telescopic, telescopic stroke single arm 1250mm, big arm lifting 60° and lowering 30°, big and small arms can be automatically leveled. Large working surface range: single arm excavation height 4500mm.2. The propulsion, impact and rotation of the entire rock drill are all controlled by hydraulics. Compared with electric hydraulic control, it has faster response speed, lower failure rate, and lower wear and tear on drill rods and drill bits.3. Engineering chassis, good rigidity and strength, engineering axle, hydraulic gearbox, stable performance, low failure rate, easy maintenance.60KW water-cooled turbocharged engine, strong power, climbing grade>18°; good passability, minimum ground clearance 350mm.4. Different drill rods such as 3700/4300 can be selected according to customer needs.The propulsion beam adopts an aluminum alloy frame with strong bending and torsion resistance.5. Using well-known domestic brands of high-power rock drills.
Product Parameters
