基本信息产品详情证书
基本信息
| 型号编号 | SJZ3.5 |
| 关键词 | 气动立轴钻机 |
| 垂直轴直径（总） | 四米五左右 |
| 撤回维度 | Φ1.4×6m |
| 移动臂的数量 | 3. |
| 移动式起重机的升降运动 | 150度 |
| 钻井范围 | 直径165-6米 |
| 岩钻 | Ygz70 |
| 油泵动力 | 5.8千瓦 |
| 工作压力 | 10-12兆帕 |
| 进给冲程 | 3.5米 |
| 气压 | 0.5-0.7兆帕（或MPa为压强单位）。 |
| 气动耗量 | 38立方米/分钟 |
| 钻杆长度 | 3.9米 |
| 比特 | 直径38-55毫米 |
| 总重量 | 4100千克 |
| 认证 | CE、RoHS、ISO 9001:2000、ISO 9001-2008、BV |
| 条件 | 新（的） |
| 电机 | 交流电动机 |
| 售后服务 | 视频支持 |
| 保修 | 视频支持 |
| 钻井深度 | 400米 |
| 运输包 | 海韵包装。 |
| 规格 | 400米 |
| 商标 | GLORYTEK |
| 起源 | 中国北京 |
| 生产能力 | 每月20套 |
| 包装尺寸 | 610厘米乘以210厘米乘以270厘米。 |
| 包装总重量 | 4100.000千克 |
| 包装尺寸 | 610.00厘米×210.00厘米×270.00厘米 |
| 包装总重量 | 4100.000千克 |
产品详情

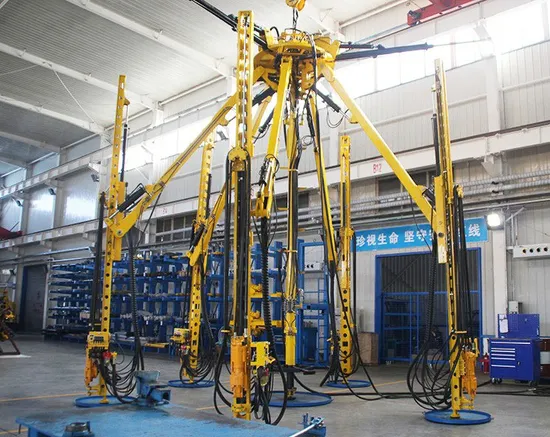

Pneumatic Vertical Shaft Drilling Jumbo
Preview
Product Description
Preview
SJZ series pneumatic vertical shaft drilling jumbo is a special equipment to drill vertical well.It suits a wide
range of shaft diameters, and features of flexible operation, precise positioning and reliable safety. It is powered by
pressed air, transmitted by hydraulic system, and all the movements are mechanized. Equipped
with highly effective pneumatic Rock Drill, long propelling stroke, and parallel movement mechanism, the accuracy and
efficiency of drilling blast holes are naturally upgraded, thus auxiliary working time is greatly saved.Veritical shaft drilling jumbos can cover all the well diameters in the mining construction industry. It can also be customized as per customers'
requirement.
Product Parameters
range of shaft diameters, and features of flexible operation, precise positioning and reliable safety. It is powered by
pressed air, transmitted by hydraulic system, and all the movements are mechanized. Equipped
with highly effective pneumatic Rock Drill, long propelling stroke, and parallel movement mechanism, the accuracy and
efficiency of drilling blast holes are naturally upgraded, thus auxiliary working time is greatly saved.Veritical shaft drilling jumbos can cover all the well diameters in the mining construction industry. It can also be customized as per customers'
requirement.
Product Parameters
Preview
Company Profile
Preview
Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.
Preview
Preview
Preview
Preview
FAQ
Preview
Q: How can we choose a suitable water well
drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A:
We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.
Q: Are you a factory or a trading company ?
A:
We are an integrated corporation specialized in manufacturing and exporting.
Q: What is your payment terms?
A: We can accept T/T,L/C.Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
