Basic Info.
| Model NO. | SME-Zr-002 |
| Application | Liquid |
| Material | Zirconium |
| Pressure | 1.6MPa≤p<10.0MPa |
| Storage Medium | Moncombustible/Nontoxic |
| Pressure Level | 1.6 MPa -10 MPa |
| Condition | New |
| Diameter | 500mm |
| Length | 2500mm |
| Tube Wall Thickness | 1.2mm |
| Shell Thickness | 86mm |
| Tubesheet | ASTM B551 |
| Tube Material | ASTM B551 |
| Shell Material | 516 Gr.70 |
| Weight | 500kg |
| No. of Tubes | 300 PCS |
| Surface | 50sqm |
| Media | Methionine |
| Transport Package | Seaworthy Packing |
| Specification | ASME U, PED, TEMA, API650, EN13445 |
| Trademark | Suntech |
| Origin | Nanjing |
| HS Code | 84196019 |
| Production Capacity | 300 Pieces/Year |
Product Description
Product Description
Preview

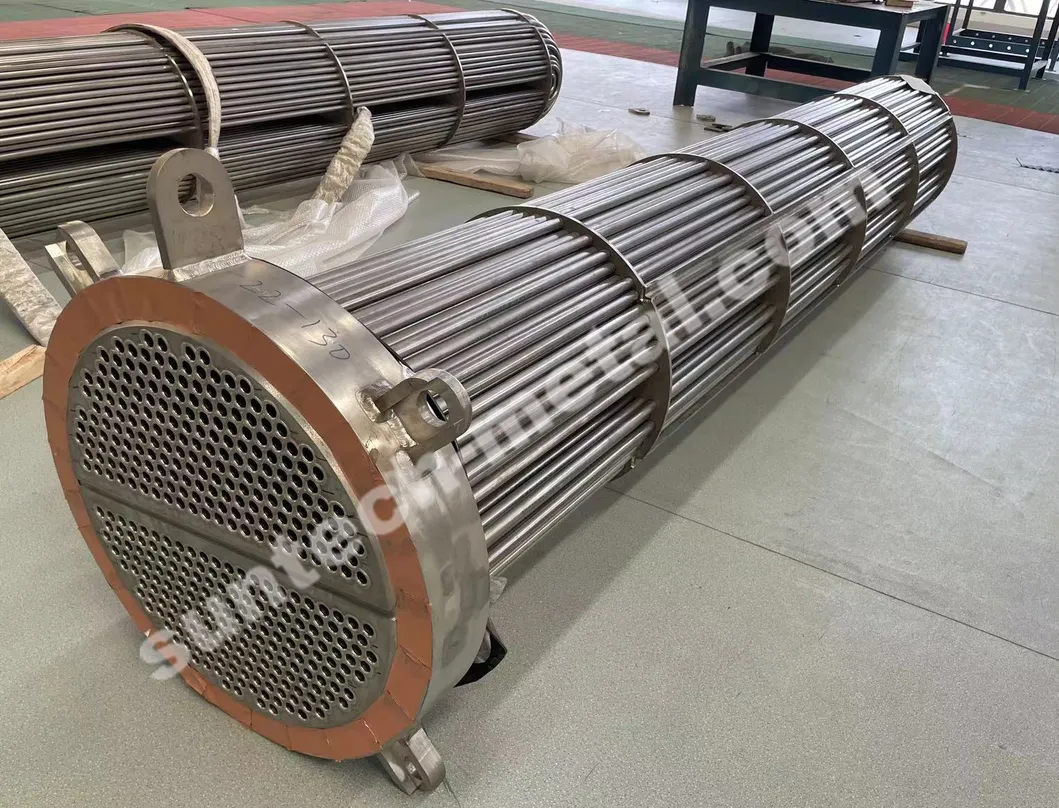

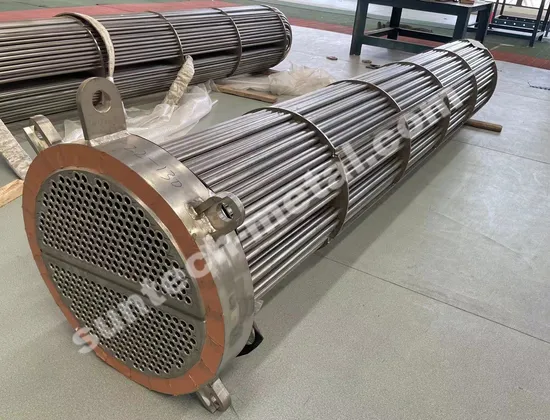

Item Name: Zirconium R60702 U-tube Heat Exchanger
Application: Methionine Industry
Material:
ASTM B551 R60702
Dimension: OD450*T130mm* Length 2500*
Weight: 500Kg
Nanjing Suntech provides high grade pressure vessel, reactors, heat exchangers, heaters, towers, tanks, columns, condensers, reboilers, separators, evaporators made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel and clad metals, designed and fabricated according to ASME U, PED, TEMA, API650, EN13445 and other codes. These products have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection.
Our mill has around 40 welders qualified for 252 types of welding, including SAW, STAW, GTAW, GMAW) and 9 persons for non-destructive inspection (including PT, UT, MT, PT), and 5 NDE persons are qualified with the requirements of ASME.
Manufacturing area is 15000 m2, among which, there are more than 1000M2 isolated workshop on non-ferrous metal welding. Rolling capacity is 80mm maximum, with a lifting capacity of over 70tons.
Application: Methionine Industry
Material:
ASTM B551 R60702
Dimension: OD450*T130mm* Length 2500*
Weight: 500Kg
Nanjing Suntech provides high grade pressure vessel, reactors, heat exchangers, heaters, towers, tanks, columns, condensers, reboilers, separators, evaporators made of Nickel Alloy, Titanium Alloy, Copper-Nickel Alloy, Zirconium, Tantalum Alloy, Super Stainless Steel and clad metals, designed and fabricated according to ASME U, PED, TEMA, API650, EN13445 and other codes. These products have been widely used in such fields as petro-chemical, chemical, salt manufacturing, pharmacy, metallurgy, power, electronics, sea-engineering and environment protection.
Our mill has around 40 welders qualified for 252 types of welding, including SAW, STAW, GTAW, GMAW) and 9 persons for non-destructive inspection (including PT, UT, MT, PT), and 5 NDE persons are qualified with the requirements of ASME.
Manufacturing area is 15000 m2, among which, there are more than 1000M2 isolated workshop on non-ferrous metal welding. Rolling capacity is 80mm maximum, with a lifting capacity of over 70tons.
Preview

Preview

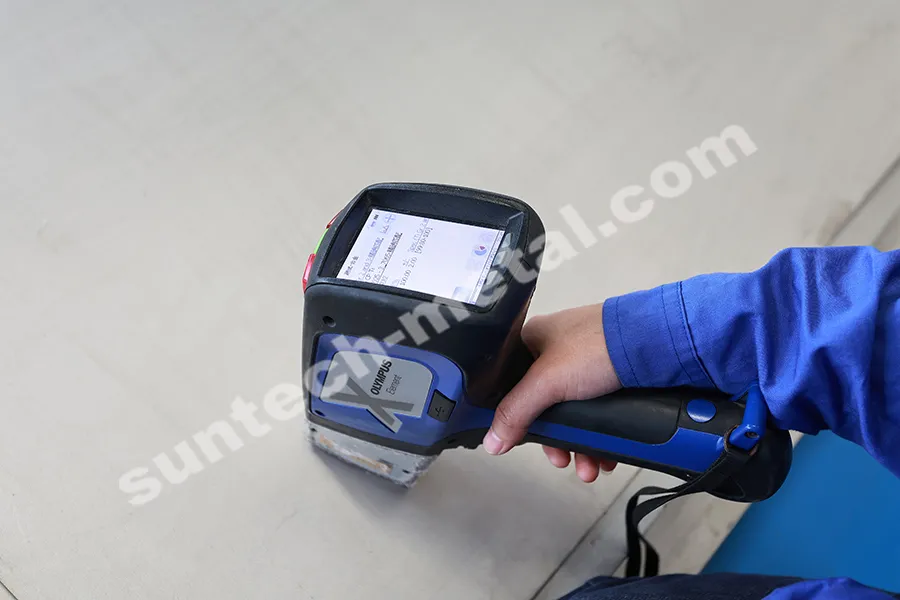

Material Inspection
Preview

Preview

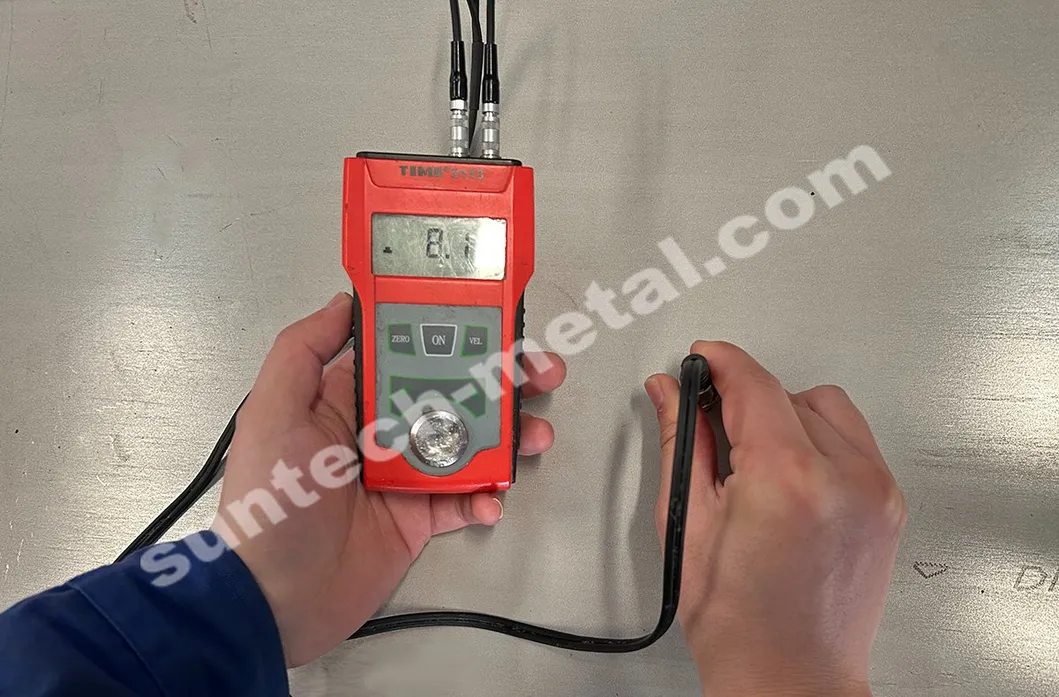

Thickness Inspection
Preview

Preview

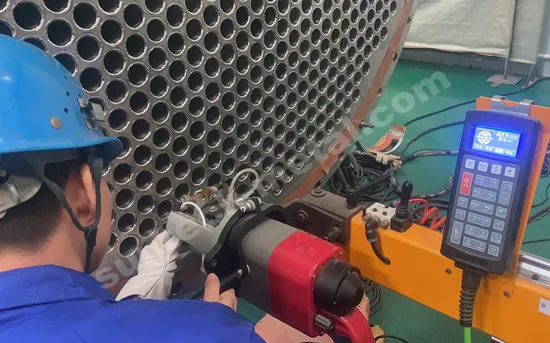

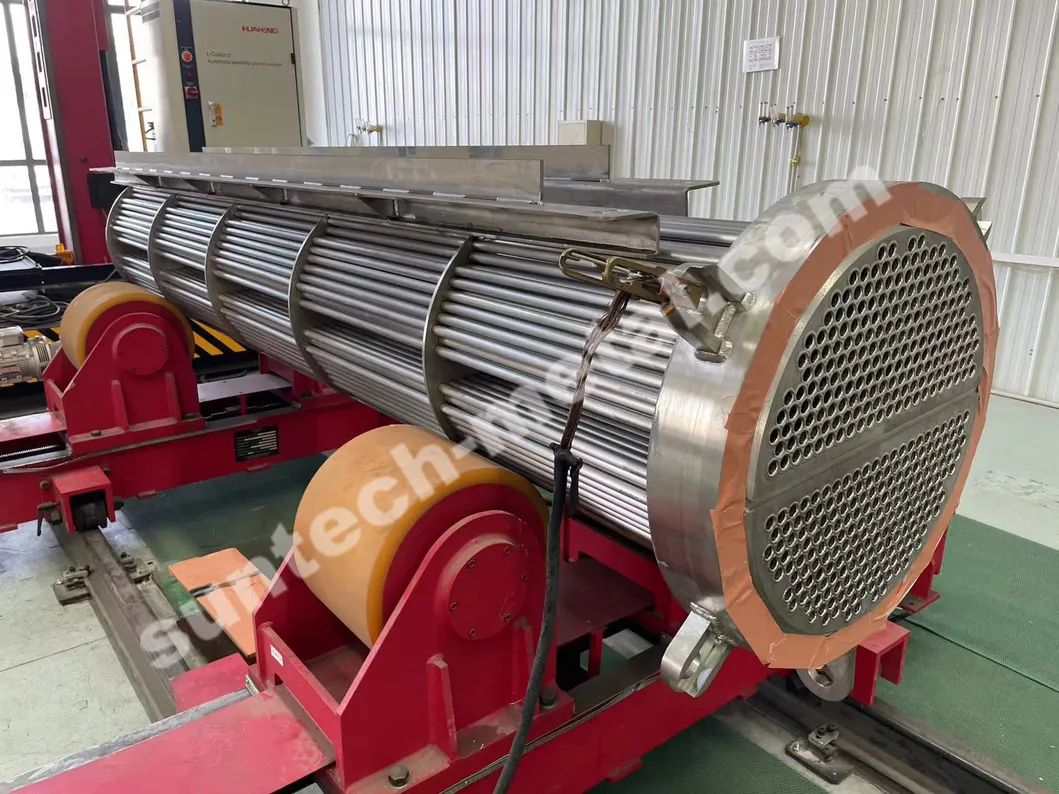

Fabricating Process 1
Preview

Preview

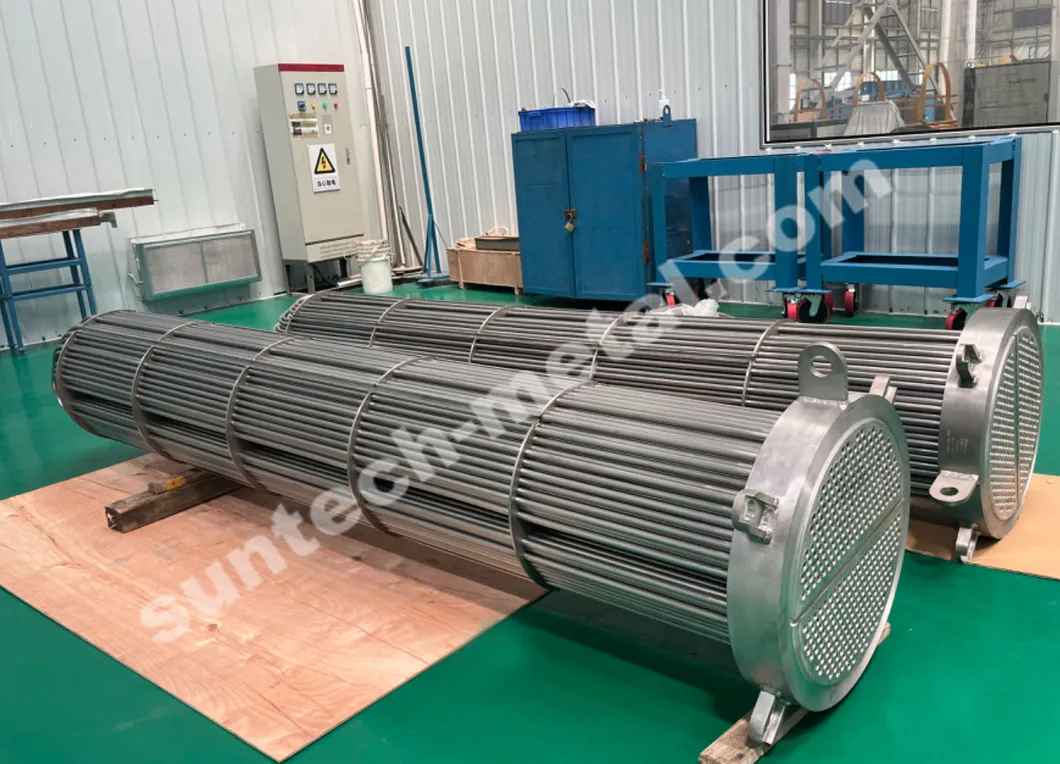

Fabricating Process 2
Preview

Preview
Certifications
Name:ASME certificate
