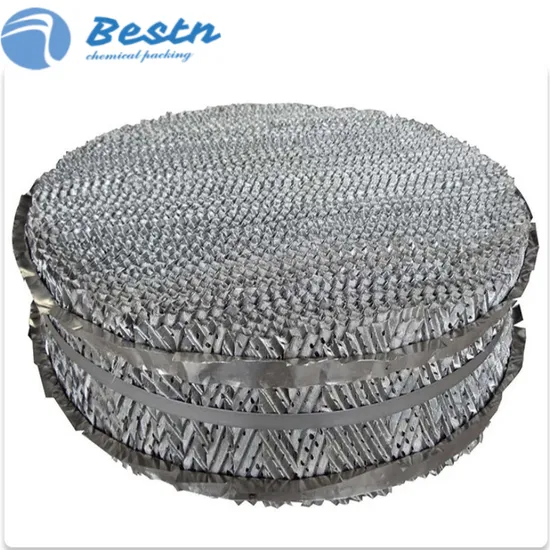

Metal structured packing
mainly include the wire gauze corrugated packing and perforated plate corrugated packing.With low resistance, uniform distribution of gas-liquid, high efficiency,big flux,not obvious enlarging effect.It is applied to negative pressure, normal pressure and pressurization operation.
Technical Specification

Type
Model
Wave Crest Height
Theo. Plate
Surface area
Void Volume
Pressure Drop
mm
m-1
m2/m3
%
Mpa/m

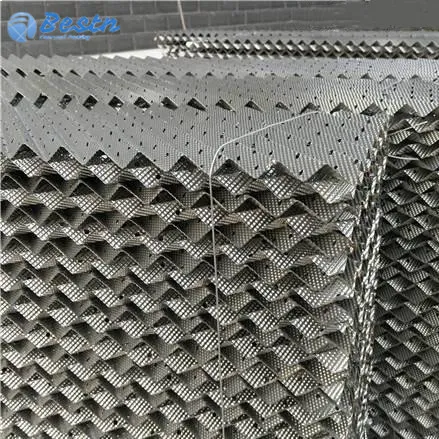

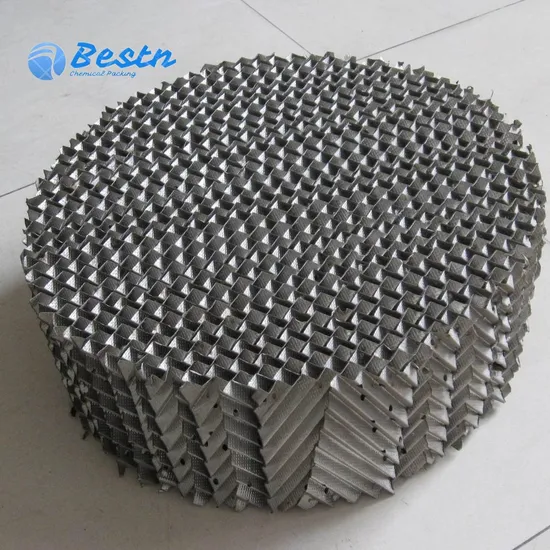

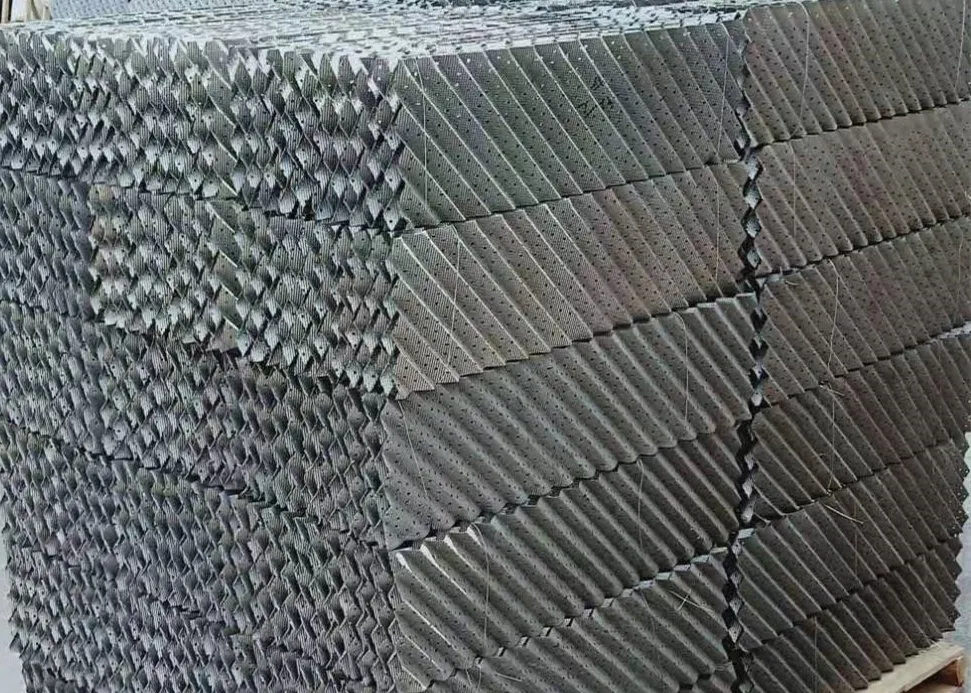

Perforated
plate corrugated packing
SM125Y
24
1-1.2
125
98.5
1.5*10-4
SM250Y
12
2-2.3
250
97
1.52*10-4
SM350Y
8
3.5-4
350
95
SM450Y
6.5
4-4.5
450
93
1.8*10-4

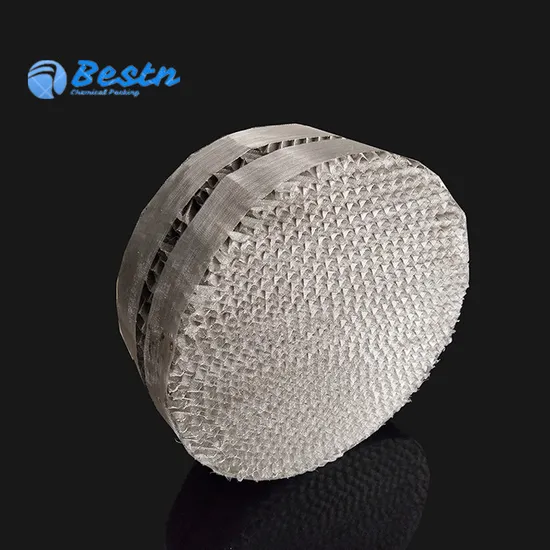

Wire gauze corrugated packing
AX250
2.5-3.0
1.05*10-4
BX500
6.3
4.5-5.5
500
3.0*10-4
CY700
4.3
'8-10
700
87
4.5-6.5*10-4
1000Y
3.1
'12-14
1000
75
8.2-10*10-4
AX250 produces precision distillation with high production intensity and fewer theoretical plates;
BX500: Vacuum distillation with thermal sensitivity and difficult separation characteristics, especially for vacuum distillation with pressure less than 7KPa;
CY700: Separation of isotopic mixtures and isomeric mixtures.

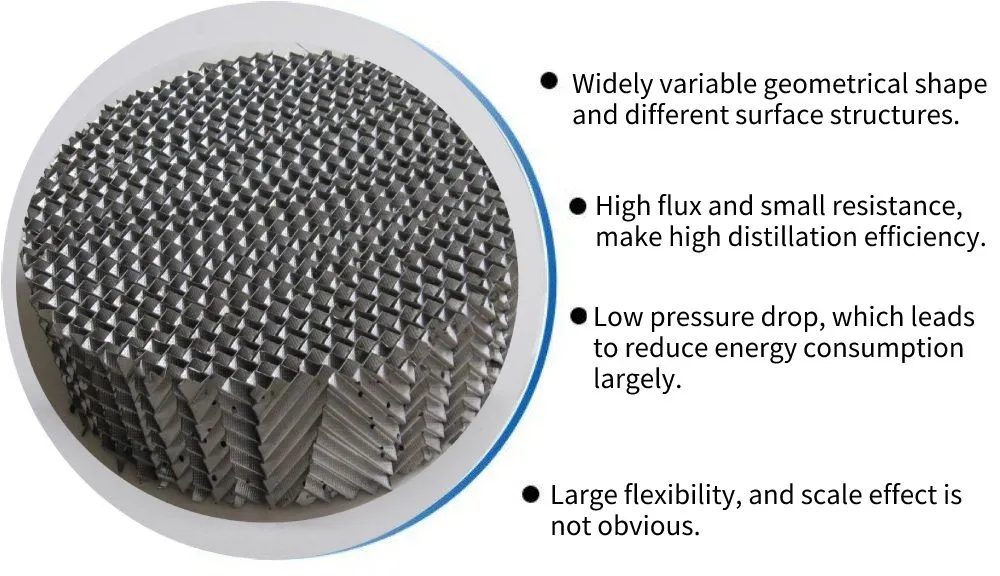

Our Advantages

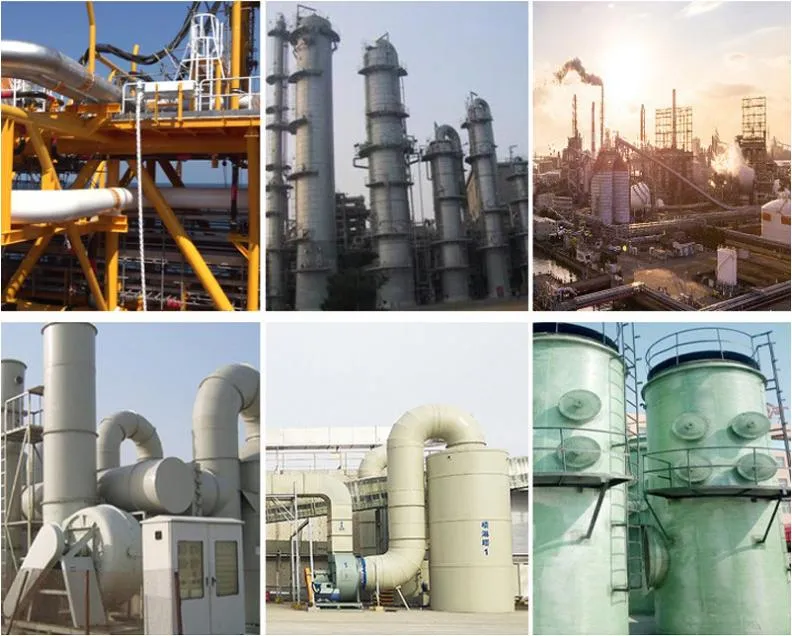

Applications:
1.Mass transfer of temperaure sensitive chemical products.
2.Negative pressure,pressurization operation.
3.Batch and continuous distillation.
4.Waste gas purification

Shipping and Packing
Package Type
Container Load Capacity
Delivery time
Quality
Insurance
Payment Terms
20 GP
40 GP
Ton bag
20 m3
40 m3
Within 7-14 days
Chinese National Standard; Offer quality assurance as request.
T/T, L/C, Paypal, West Union
Plastic bag
Paper box
Wooden box
