基本信息产品详情
基本信息
| 型号编号 | ZX16-45/45-70 |
| 润滑方法 | 油脂润滑 |
| 包装尺寸 | 92x72x62厘米 |
| 包裹重量 | 65公斤 |

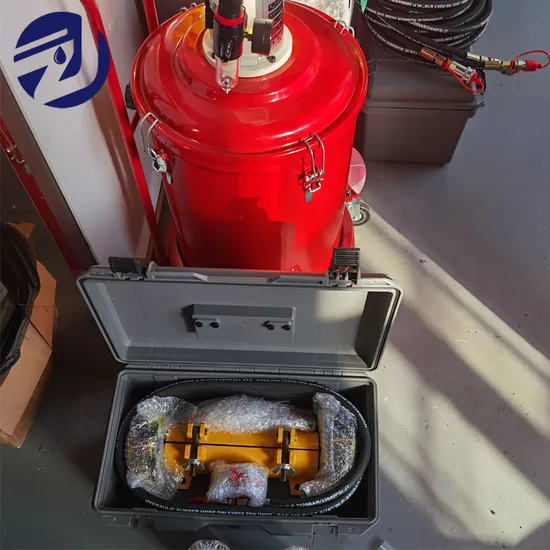

| 润滑油泵 | 高压气动黄油泵 |
| 所需气压 | 6-8巴 |
| 泵的压缩比 | 50比1 |
| 最大压力 | 400巴 |
| 密封装配 | 按钢丝绳型号定制 |
| 矿渣破碎机 | 按钢丝绳型号定制 |
| 适用绳索直径 | 6-16毫米、16-45毫米、45-70毫米或定制 |
| 应用程序 | 鹤、拖拉机、电缆起重机、港口、造船厂 |
| 运输包 | 木包装 |
| 起源 | 中国 |
| 商品编码 | 8479400000 |
| 生产能力 | 每年1000套 |
| 包装尺寸 | 长为 92.00cm，宽为 72.00cm，高为 62.00cm。 |
| 包装总重量 | 65000千克 |
| 包装尺寸 | 92.00厘米×72.00厘米×62.00厘米 |
| 包装总重量 | 65.000千克 |
产品详情
Preview

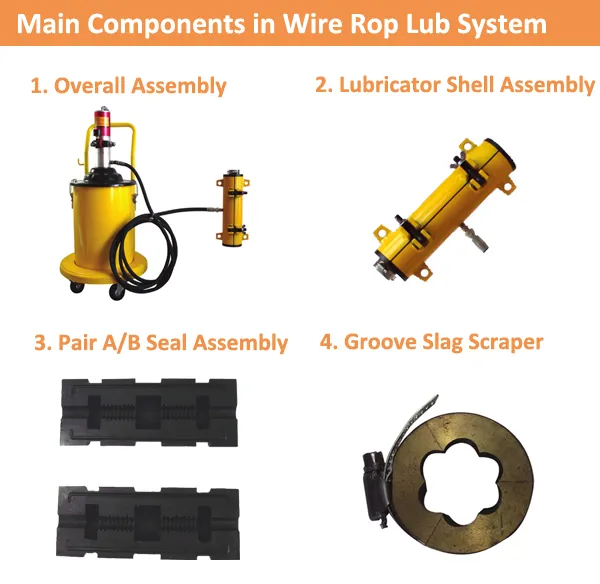

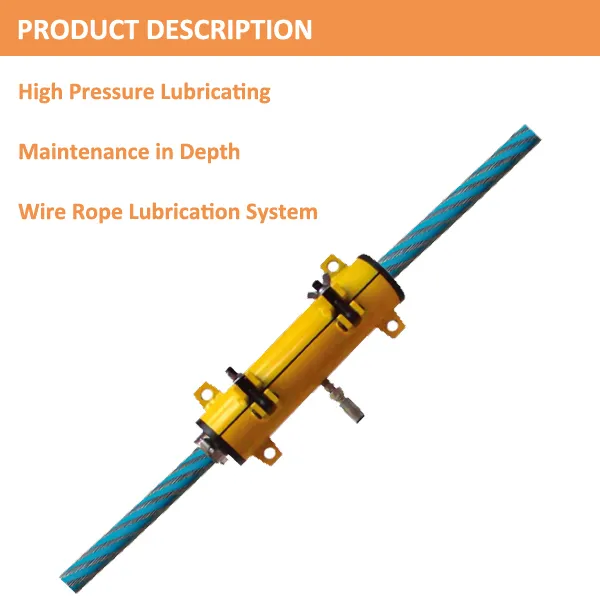

Product Structure:
Preview
Preview
1. High pressure grease supply, permeable lubrication, strong penetration
The spiral wire rope brush can effectively remove the contaminants on the wire rope surface and improve the lubricant permeability.
2. Be economical and efficient
Pressure lubrication can control oil quantity quantitatively to avoid waste.Lubrication can be carried out at the same time, high efficiency.
3. Easy installation, light weight

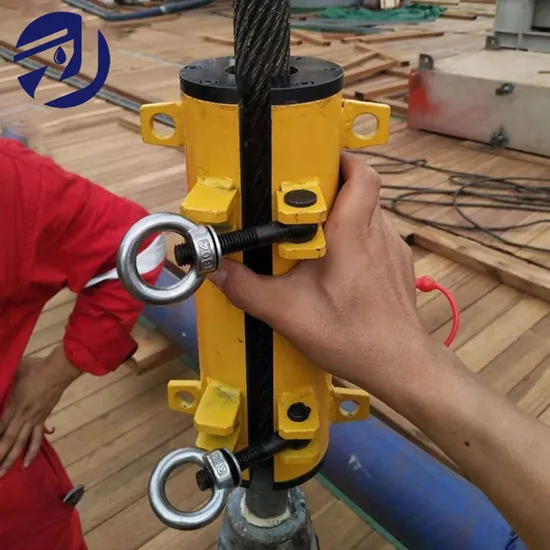

The installation of lubrication components can be completed by opening the two wire rope fixing clips and clamping the wire rope tightly.Two people can do it in a matter of seconds.
4. Quantitative conveying lubricant, convenient and quick adjustment
Lubricant outlet pressure adjustment and flow adjustment only adjust the air inlet pressure or flow of pneumatic lubrication pump.
5. Long service life

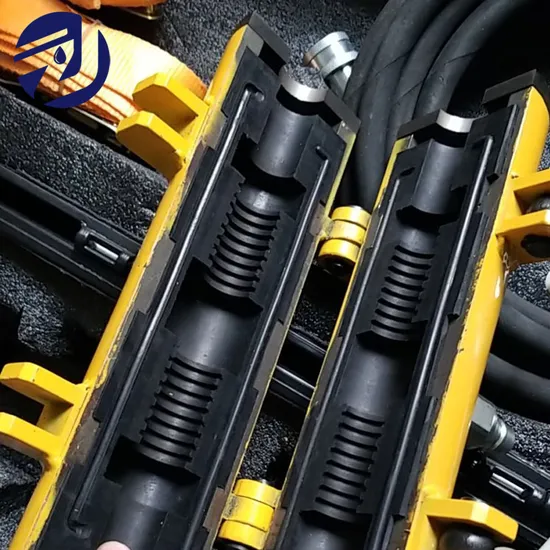

A set of sealing assemblies can lubricate at least 3000-6000 m.Other parts can be used for a long time without replacement, and the design life can be up to 20 years.
Test certificate:
A 22mm steel wire rope and plastic cover in the open air, if not lubricated, only 8 months will be completely rusty and unable to use.A wire rope lubricated by wire rope lubrication system can extend its service life by more than two times.Product Parameters:
Product Application:This product are widely used in petrochemical, electric power, ships, automobiles, industrial and mining equipment and other occasions of wire rope lubrication.Such as crane, crane, tower crane, shore bridge, gantry hoist, crane and other heavy lifting equipment wire rope, elevator wire rope, electric hoist driving wire rope, etc..Product Model Selection:
The spiral wire rope brush can effectively remove the contaminants on the wire rope surface and improve the lubricant permeability.
2. Be economical and efficient
Pressure lubrication can control oil quantity quantitatively to avoid waste.Lubrication can be carried out at the same time, high efficiency.
3. Easy installation, light weight
The installation of lubrication components can be completed by opening the two wire rope fixing clips and clamping the wire rope tightly.Two people can do it in a matter of seconds.
4. Quantitative conveying lubricant, convenient and quick adjustment
Lubricant outlet pressure adjustment and flow adjustment only adjust the air inlet pressure or flow of pneumatic lubrication pump.
5. Long service life
A set of sealing assemblies can lubricate at least 3000-6000 m.Other parts can be used for a long time without replacement, and the design life can be up to 20 years.
Test certificate:
A 22mm steel wire rope and plastic cover in the open air, if not lubricated, only 8 months will be completely rusty and unable to use.A wire rope lubricated by wire rope lubrication system can extend its service life by more than two times.Product Parameters:
Product Application:This product are widely used in petrochemical, electric power, ships, automobiles, industrial and mining equipment and other occasions of wire rope lubrication.Such as crane, crane, tower crane, shore bridge, gantry hoist, crane and other heavy lifting equipment wire rope, elevator wire rope, electric hoist driving wire rope, etc..Product Model Selection:
Preview
FAQ
Preview
How to Choose the Right Lubricator Model
1. Please confirm the wire rope model code from which we can check diameter, strand count & type.

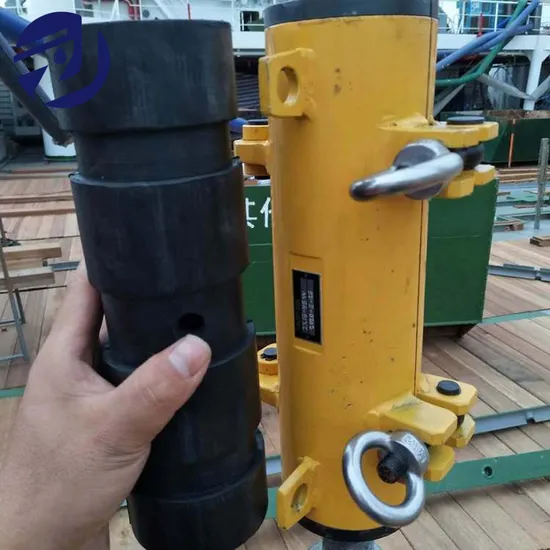

2. How many spare parts will be needed? Slag scraper & seal assembly.
What Services You Can Get From US
•
High
quality products which can always exceed your expectation
Thousands of high-quality parts and accessories in stock
24 Hours/7 Days Support Program
Comprehensive web site with online parts ordering
Constantly upgrade the technology for different industries to ensure advanced and efficient
Fully staffed engineering and R&D departments
We accept various trade terms including EXW,
FOB, C&F, CIF, DDU
1. Please confirm the wire rope model code from which we can check diameter, strand count & type.
2. How many spare parts will be needed? Slag scraper & seal assembly.
What Services You Can Get From US
•
High
quality products which can always exceed your expectation
Thousands of high-quality parts and accessories in stock
24 Hours/7 Days Support Program
Comprehensive web site with online parts ordering
Constantly upgrade the technology for different industries to ensure advanced and efficient
Fully staffed engineering and R&D departments
We accept various trade terms including EXW,
FOB, C&F, CIF, DDU
