基本信息

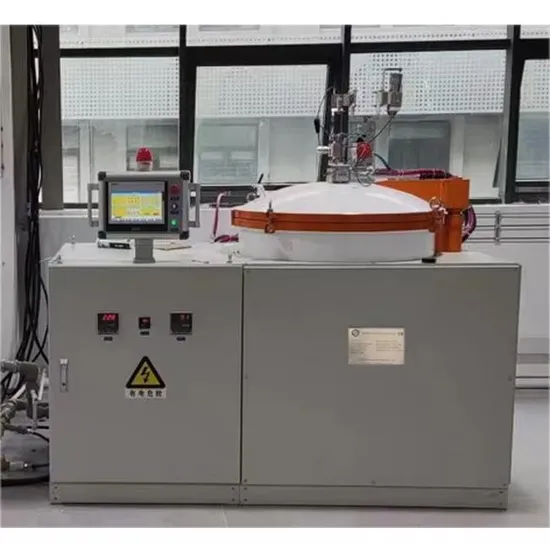

型号编号 | CB-Lab |
认证 | CE,ISO |
结构 | 垂直型(在各种分类标准下的种类) |
品牌 | 卡博特克 |
额定输出功率 | 60千瓦 |
温控方法 | Pid和Man |
最大设计温度 | 3000摄氏度 |
工作温度 | 2850c |
工作环境 | 在2200摄氏度以下真空,氩气到3000摄氏度 |
热点区大小 | 直径200xh300mm |
闭环式冷却水 | 每小时十五立方米 |
运输包 | 真空袋和木箱 |
规格 | 800公斤 |
起源 | 中国 |
商品编码 | 8514199 |
生产能力 | 每年300套 |
产品详情
Product Description
Preview
General Introduction

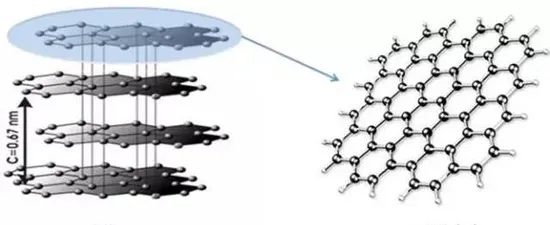

Graphitization can be defined as the structural change from highly disordered or defective carbon atom structures towards a perfect 3D crystal of pure graphite.
After carbonization, the carbon atoms are in chaotic order and thus do not have suitable properties. Raising the temperature allows the atoms to travel to more suitable positions, at extremely high temperatures, to form ideal graphite with superior properties.
The ordering process is started by heat treatment up to 3000 °C in inert atmosphere. The original carbon material contains multiple small domains of graphene molecules known as basic structural units. During heat treatment those small domains grow, all differences in orientation of the layers are removed and large straight layers are developed.
After final heat treatment in a Carbotech furnace at up to 3000 °C, the graphite properties are nearly ideal, as well as homogeneous and very reproducible making it an ideal starting material for a number of industrial applications.
Special features
* Max Desing temp of 3000ºC, designed with a PROGRAMMABLE controller
* Features Fluke pyrometer and Argon inlet hole on the top cover
* Integrated design, easy for installation, small footprint, ideal for laboratory and universities
* Special Features:Energy-saving, user-friendly, accurate temp control, excellent temp uniformity
* Support fully automatic, semi-automatic and manual modes
* Security: Comprehensive PLC for water, gas, electricity control and protection system, ensure safe operation
*
Materials heat treatment:Ideal for a wide variety of carbon materials, such as, battery materials, graphite powergraphite thermal conductive sheet, petroleum coke, needle coke, nanotube, VGCF, carbon blace, CC composites, carbon fiber, graphene, and more
*
Application: Graphitization,carbide growth,sintering, Ceramic firing, purification
Product information
Technical details
Configuration Options
* Cooling Device: Closed loop cooling tower/chiller: continuous supply the cooling water to furnace chamber, cover, inductor and more
* Temp Control below 1000ºC: Low temp sensor, temp controller and switch system
* Gas Purifier: improve the purity of Argon to 99.999%.
* Roots pump and more: if need high vacuum
* Graphite container: made of graphite, smaller than crucible, easier for samples in and take out
Samples for Testing Available
Graphitization can be defined as the structural change from highly disordered or defective carbon atom structures towards a perfect 3D crystal of pure graphite.
After carbonization, the carbon atoms are in chaotic order and thus do not have suitable properties. Raising the temperature allows the atoms to travel to more suitable positions, at extremely high temperatures, to form ideal graphite with superior properties.
The ordering process is started by heat treatment up to 3000 °C in inert atmosphere. The original carbon material contains multiple small domains of graphene molecules known as basic structural units. During heat treatment those small domains grow, all differences in orientation of the layers are removed and large straight layers are developed.
After final heat treatment in a Carbotech furnace at up to 3000 °C, the graphite properties are nearly ideal, as well as homogeneous and very reproducible making it an ideal starting material for a number of industrial applications.
Special features
* Max Desing temp of 3000ºC, designed with a PROGRAMMABLE controller
* Features Fluke pyrometer and Argon inlet hole on the top cover
* Integrated design, easy for installation, small footprint, ideal for laboratory and universities
* Special Features:Energy-saving, user-friendly, accurate temp control, excellent temp uniformity
* Support fully automatic, semi-automatic and manual modes
* Security: Comprehensive PLC for water, gas, electricity control and protection system, ensure safe operation
*
Materials heat treatment:Ideal for a wide variety of carbon materials, such as, battery materials, graphite powergraphite thermal conductive sheet, petroleum coke, needle coke, nanotube, VGCF, carbon blace, CC composites, carbon fiber, graphene, and more
*
Application: Graphitization,carbide growth,sintering, Ceramic firing, purification
Product information
Technical details
Configuration Options
* Cooling Device: Closed loop cooling tower/chiller: continuous supply the cooling water to furnace chamber, cover, inductor and more
* Temp Control below 1000ºC: Low temp sensor, temp controller and switch system
* Gas Purifier: improve the purity of Argon to 99.999%.
* Roots pump and more: if need high vacuum
* Graphite container: made of graphite, smaller than crucible, easier for samples in and take out
Samples for Testing Available
Preview

Preview

Preview
Safety Package for Export
Preview

Preview
30 years rich experience in customizing high temp furnaces, leading manufacturer in China.Welcome to send your inquiry, Carbotech will offer the thermal solution for your materials!
Preview
将石墨化炉系统升温至3000℃石墨加热元件
¥629880 ~ ¥716760
