基本信息
型号/编号 | KDM-3 |
应用程序 | 实验室 |
碟形(轮)型 | 研磨盘 |
材料 | 钢 |
工作方式 | 高速通用 |
光碟直径 | 100毫米至400毫米 |
变速 | 可变速 |
产品名称 | 垂直行星式球磨机 |
重量 | 55 公斤 |
电压 | 220V-50Hz/1100V-50Hz |
核心组件 | 皮带,齿轮 |
电源供应 | 0.75千瓦 |
转速 | 90-870转/分 |
职位 | 四个工作岗位 |
可匹配的jar卷 | 50毫升/100毫升 |
材料进料量 | 小于10毫米 |
售后服务 | 免费备件、现场安装…… |
保修服务后 | 视频技术支持、备件 |
保修 | 18个月 |
产品类型 | 粉末 |
输出大小(网格) | 45-535目 |
运输包 | 530*300*340毫米 |
规格 | 0.2L-20L |
商标 | 景盛 |
起源 | 中国湖南 |
商品编码 | 8479909090 |
生产能力 | 每年五十万件 |
包装尺寸 | 120.00厘米×75.00厘米×92.00厘米 |
包装总重量 | 33万千克 |
包装尺寸 | 这是指一个长为120.00cm、宽为75.00cm、高为92.00cm的物体。 |
包装总重量 | 33万公斤 |
产品详情

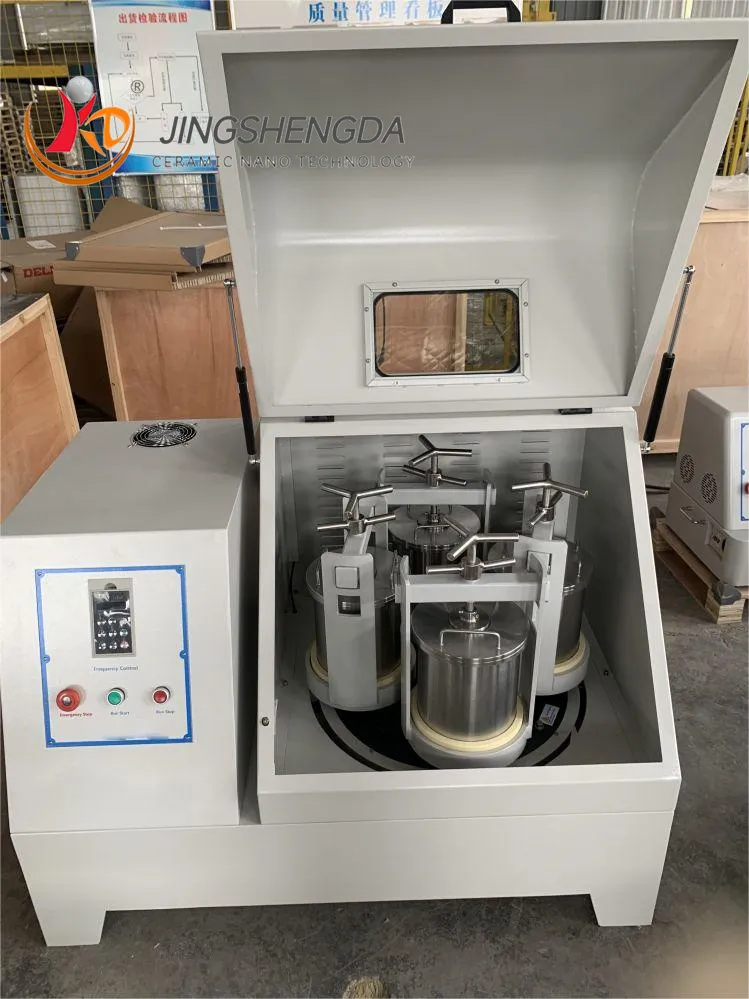

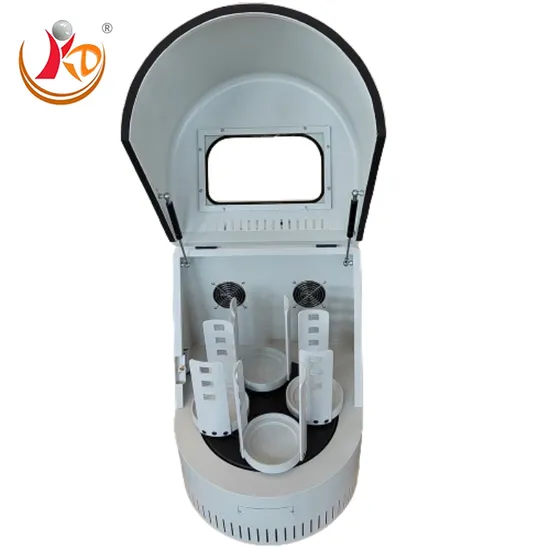

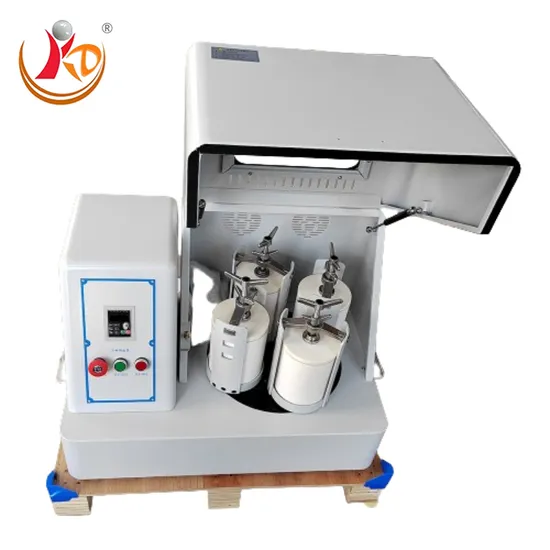

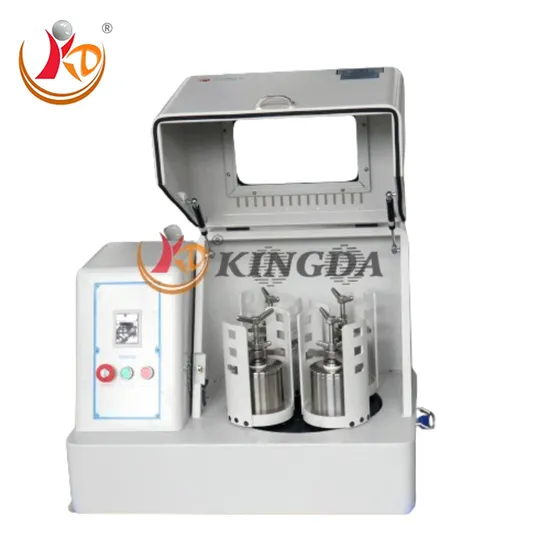

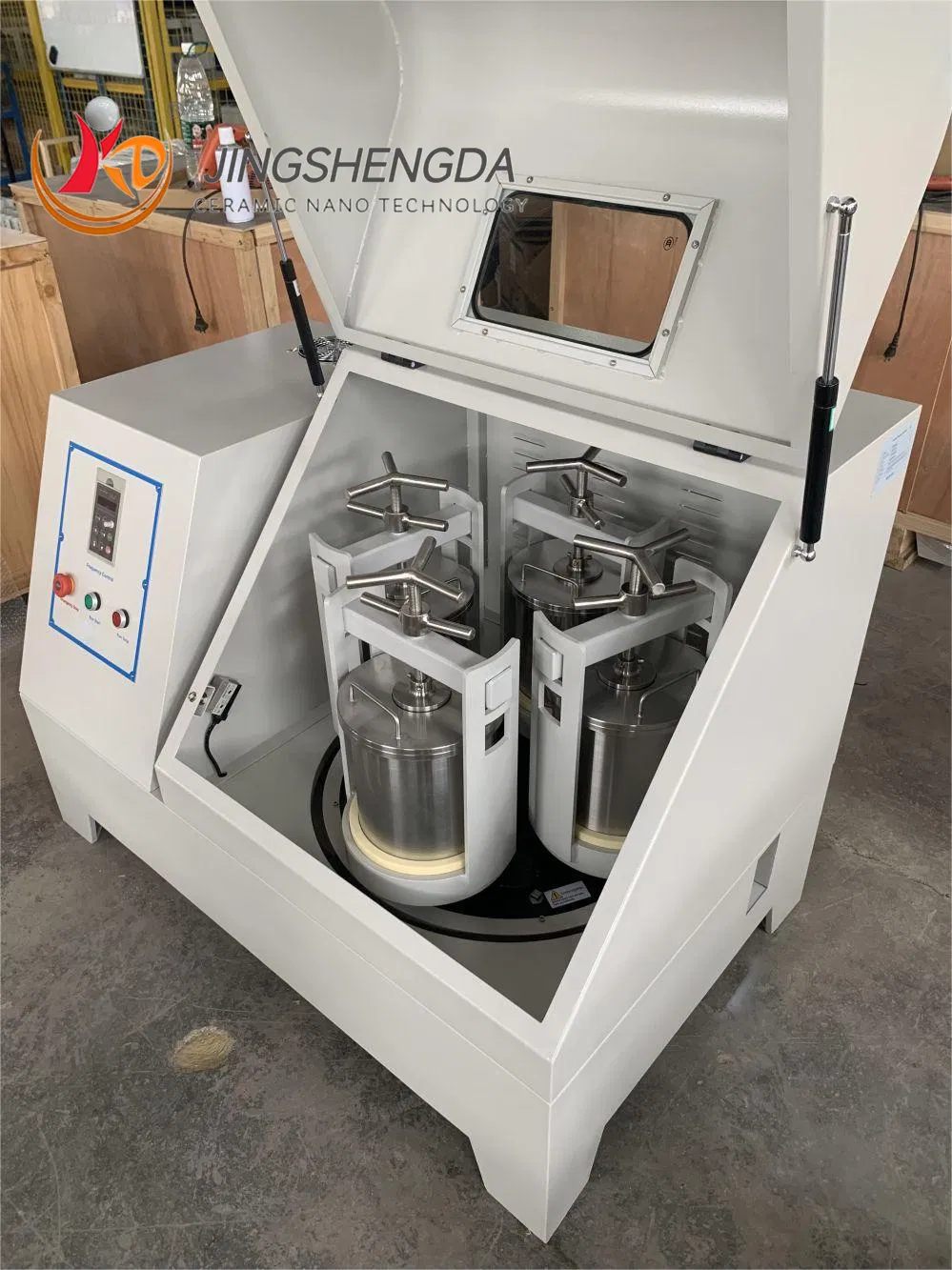

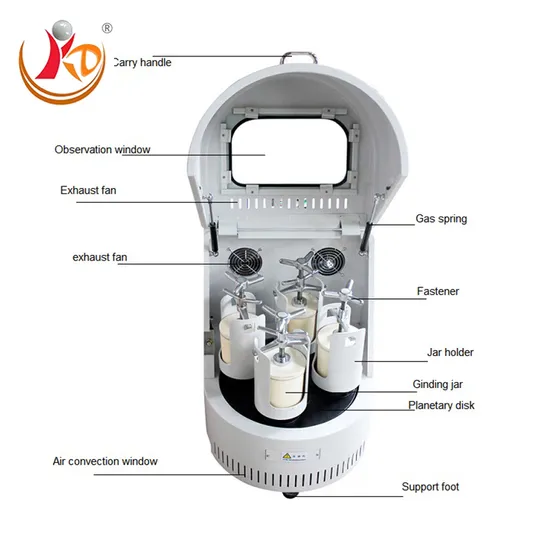

best grinding vertical planetary ball mill with alumina grinding jar and zirconia beads
Preview
Product Description
Preview
Detailed Photos
Preview

Preview

Preview

Preview

Preview
Features
Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.

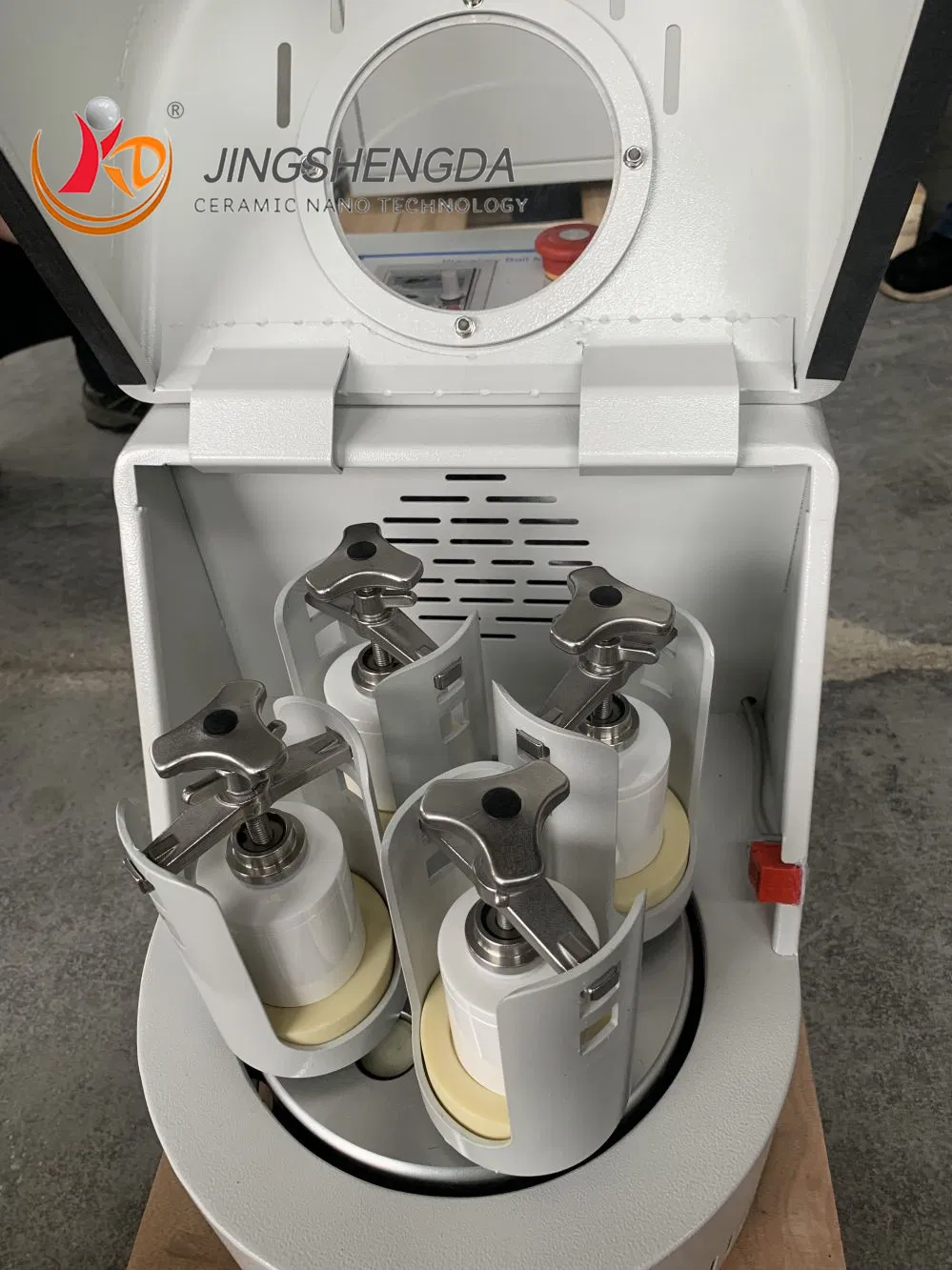

Four powder samples from different sizes and different materials can be produced at one time.
The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.

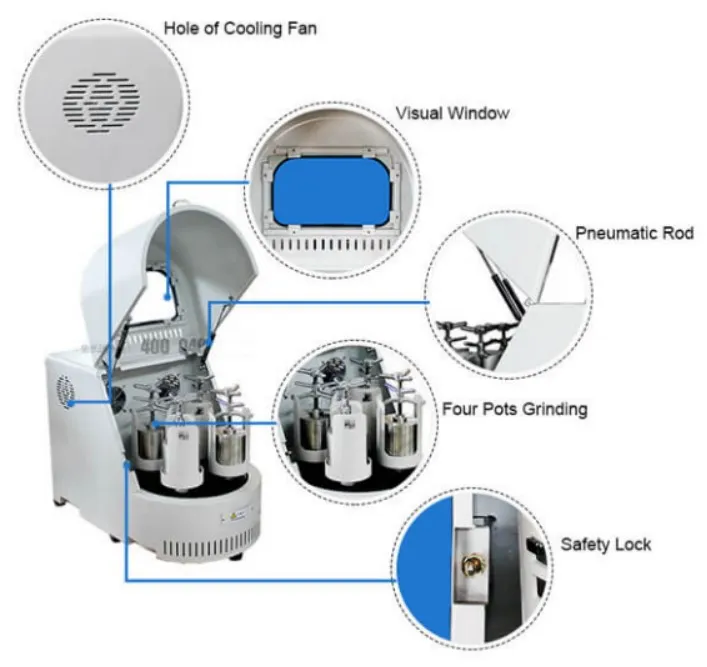

Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
After Sales Service
Our Service
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We
respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
4.
If
you
have
any
questions, please
contact
with
us without any hesitation,
we
will reply you in 12 hours.
Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
Planetary movement principle is adopted in the machine, which has high speed, large energy, high efficiency, small Granularity.
Four powder samples from different sizes and different materials can be produced at one time.
The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental result. The converter is equipped with device of under voltage and over-current to protect the motor.
The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve efficiency of grinding.
Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety, lower noise, small loss.
Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
