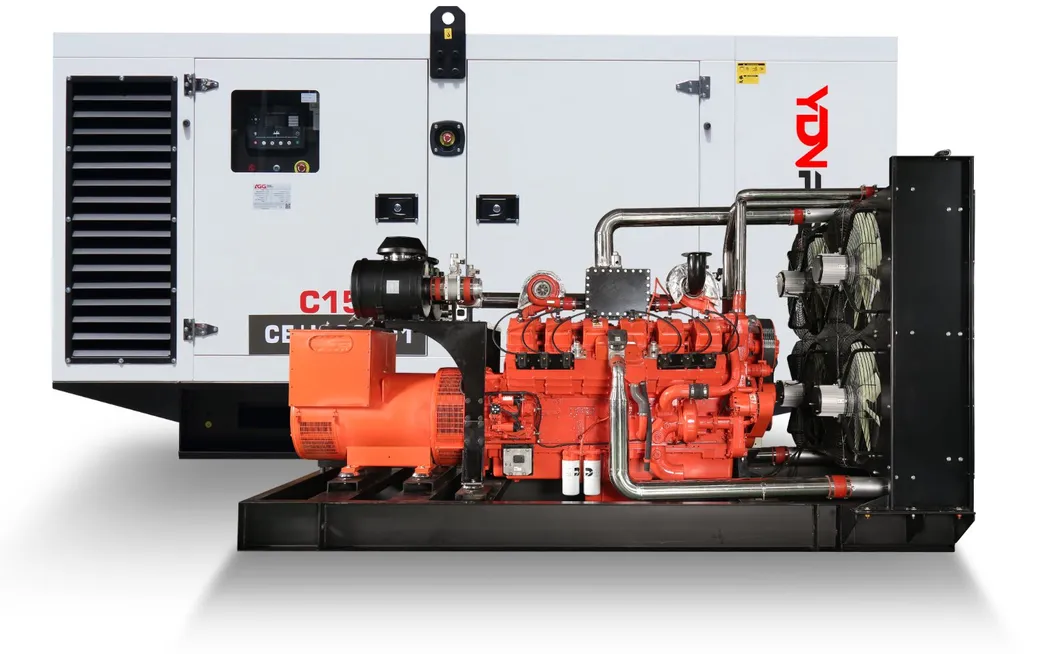

Genset Model
YDNX-20
Rated electric power
20kw
Rated thermal power
40kw
Rated electrical efficiency
30%
Rated thermal efficiency
60%
Rated overall efficiency
90%
Noise
60dB(A)@1m
Dimension(mm)
1580×785×1105

YDNX-100
100kw
145kw
35%
51%
86%
75dB(A)@1m
4450×1320×2080
YDNX-150
150kw
229kw
34.1%
52.1%
86.2%
74dB(A)@1m
4770×1350×2100

YDNX-250
250kw
384kw
34%
52%
5284×1540×2480

YDNX-400
400kw
501kw
37.9%
47.5%
85.4%
85dB(A)@1m
6050×1950×2550
YDNX-500
500kw
698kw
36.4%
50.9%
87.3%
6353×2130×2590
Requirments for Natural gas generator
1.Methane should be at least 85%2.The natural gas temperature should be between 0-60
3. No inpurity should be in the gas. Water in the gas should be less than 20g/Nm3.
4. Heat value should be at least 8500kcal/m3, if less than this value, the power of the engine will be declined.
5. Gas pressure should be 3-100KPa, if the pressure is less than 3KPa, booster fan is necessary.
6.The gas should be dehydrated and desulfurated. Make sure that there is no liquid in the gas. H2S<200mg/Nm3

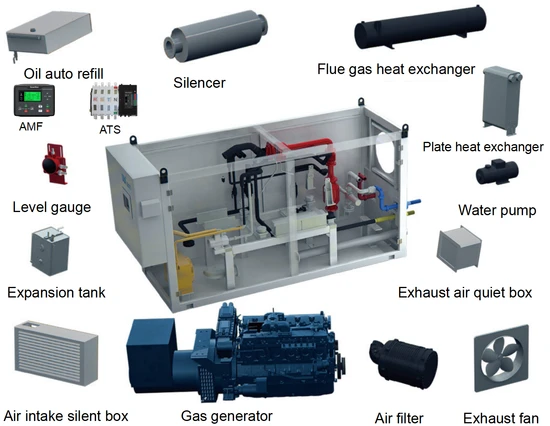

Detailed Images
Control System
Name:
Electronic throttle
Brand:
BOSCH
Original: Germany
Control the supply of gas flow

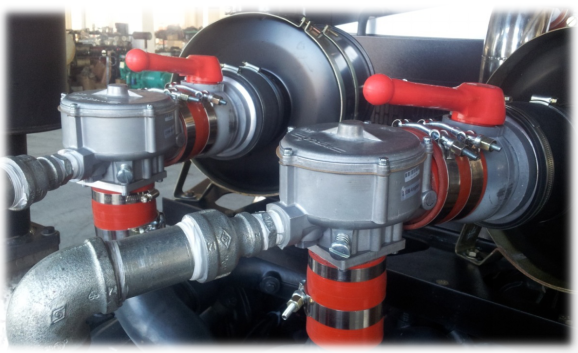

Mixed system
MIXERBrand: IMPCOOriginal: USA
Mix gas and air for combustion
Regulator System
RegulatorBrand:
MADASOriginal:
Italian
Regulate the pressure of gas supply
Central control system
Name: ECUBrand: YDN
Original: China
Central control system of gas generator, computer of gas generator, ignition control system, speed control system, hybrid system and so on.
Famous Brand Control Module
Brand:Smartgen/DSE/And other famous brand
Real-time monitoring of unit operating conditions
To prevent damage to the unit due to excessive oil temperature and high water temperature
Recommend Products
>>Welcome to contact us<<

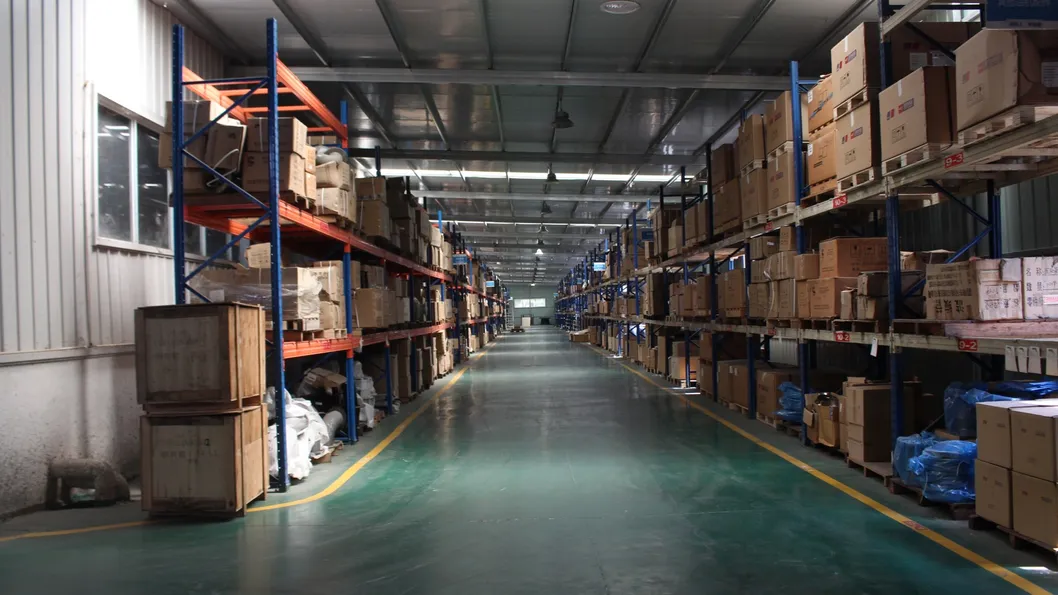

Our Factory
