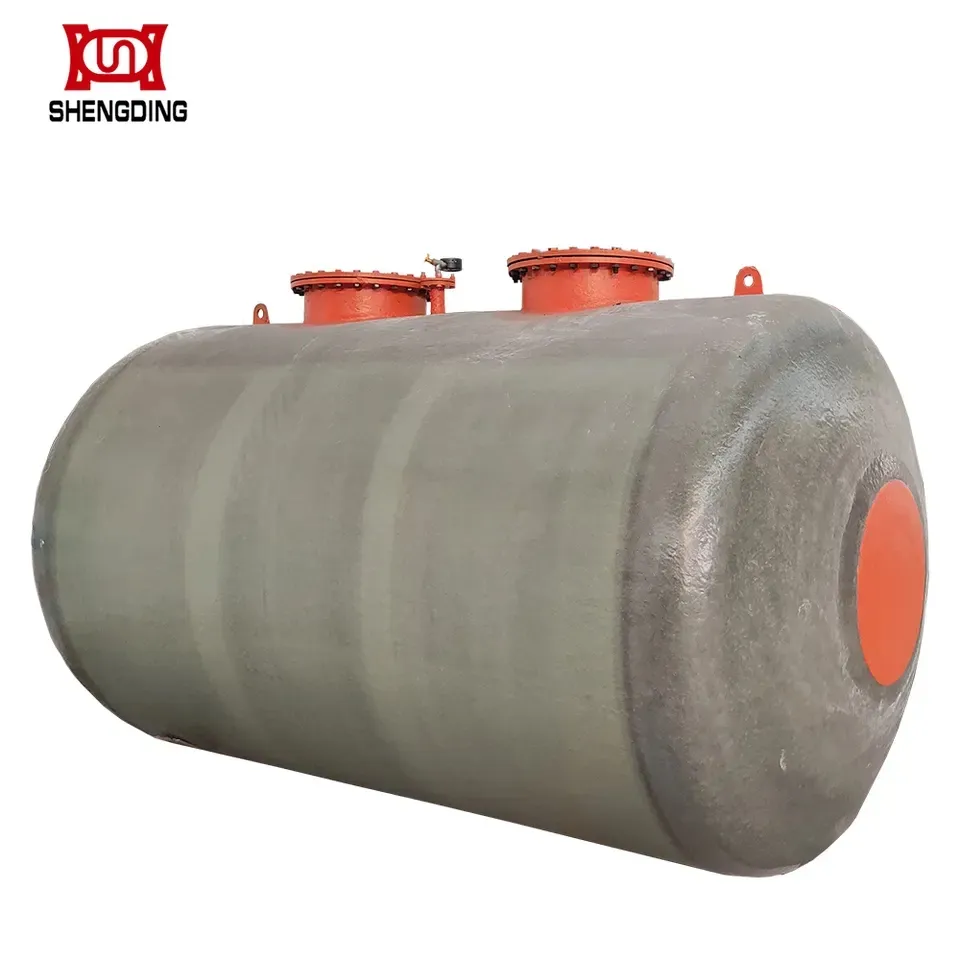

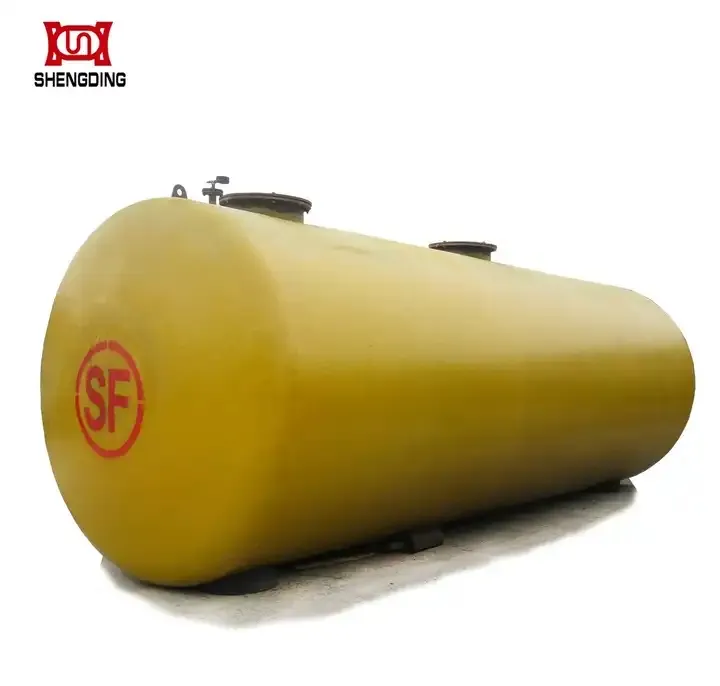

Double Wall Underground Fuel Storage Tank

1.
For underground storage of flammable and non-flammable liquids.
2.
Horizontal cylindrical type, consist of inner carbon steel tank and outer FRP shell.
3.
Provided with socket for the leak detection system.
4.
Pressure tests to check the inner tank and the space between the inner and the outer tanks as well.
Product Parameters
Double Walled Tank Parameters
Tank capacity
Manhole diameter
Oil discharge
Dimension Length*Diameter(mm)
5 CBM
580mm
DN65
2700*1600
10 CBM
3400*2000
20 CBM
5600*2200
30 CBM
6000*2600
40 CBM
6800*2800
50 CBM
8400*2800
Why Choose Us
Double Walled Tank Application
Double-walled tanks are generally used for:
---Service stations.
---Private fuel stations.
---Storage of flammable liquids for heating systems.
---Feeding generators.
---Storage of aircraft and ship fuels.
---Storage of chemicals and water-polluting liquids.
---Collection and storage of lubricants and drain oils.
---Collection and storage of waste and effluent water.

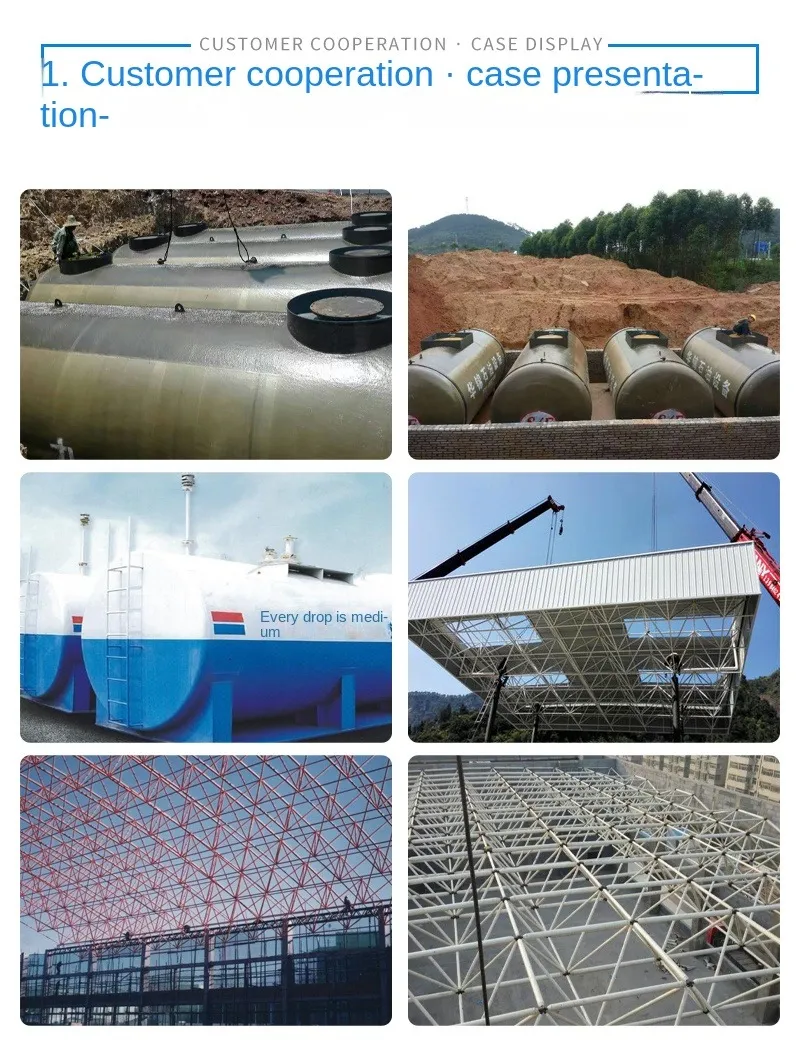

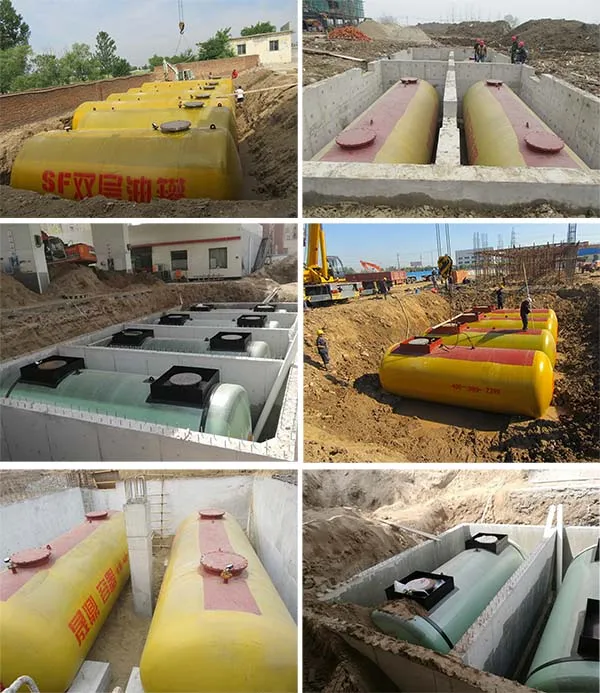

Customer Photos

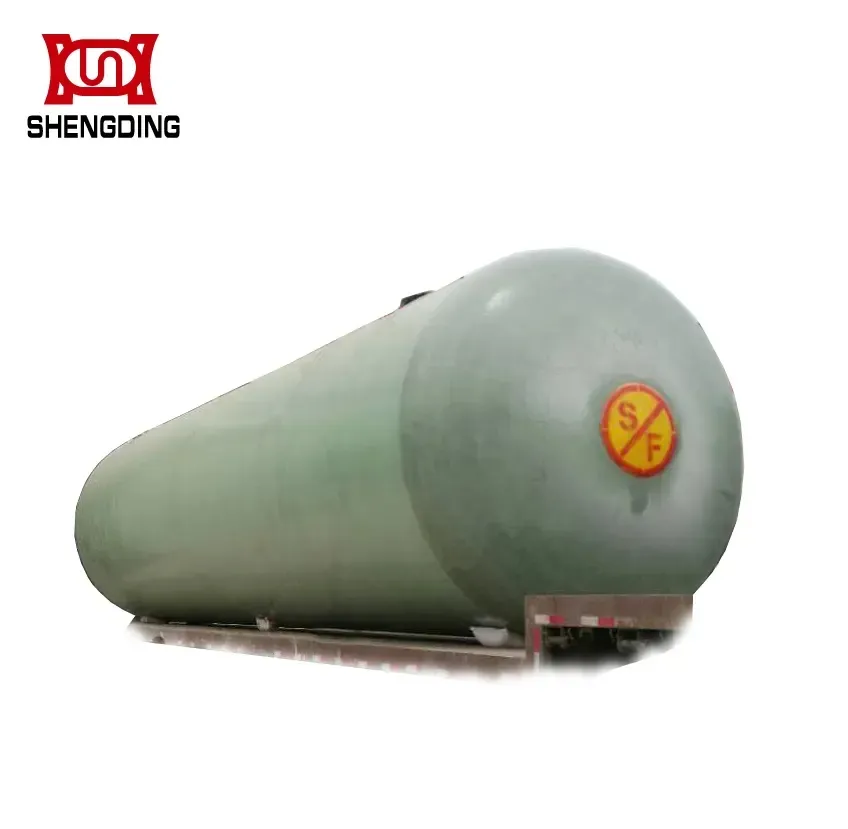

Double Walled Tank Feature1. Safety: double walled fuel tank, anti-static, fire control measures, choosing sanitation measures according to engineering . 2. Environmental protection: The external FRP layer can prevent the contamination of the soil and water source from the leakage. By using of leakage detector, it can keep the monitoring all the time.3. Economic practically: The service life of the S/F double walled tank is more than 30 years, which can reduce the comprehensive cost.
