基本信息
| 型号编号 | 均质机 |
| 压力 | 积极的 |
| 搅拌器模型 | 锚式搅拌器 |
| 加热 | 热水加热 |
| 自动评分 | 自动的 |
| 接触部分 | 316L不锈钢 |
| 加热夹克 | 304不锈钢 |
| 全容量 | 550升 |
| 顶部安装式搅拌器 | 1.5千瓦，36转/分 定制 |
| 底部乳化搅拌器 | 5.5千瓦，转速3000转/分或可选范围为0~3000转/分 |
| 隔热层 | 2 英寸聚氨酯 |
| 运输包 | 海运木制包装 |
| 规格 | 带搅拌器和乳化混合器的500升容器 |
| 商标 | 排名 |
| 起源 | 中国温州 |
| 商品编码 | 8479820090 |
| 包装尺寸 | 120.00厘米乘以120.00厘米乘以230.00厘米。 |
| 包装总重量 | 60万公斤 |
| 包装大小 | 120.00厘米乘以120.00厘米乘以230.00厘米。 |
| 包装总重量 | 60万公斤 |
产品详情
Product Description
Preview
400 Liter SS316L mixing homogenizing tank cosmetic mixing equipment
Food grade homogenizer for jelly ace product. CMC, ink, painting,
chemical fertilizer mixing equipment
Application:
For the mixing, homogenizing, and heating / cooling of chemical gel and creamStainless steel mixing tank structure
Sanitary design with sealed top and dish bottom.With bottom mount homogenizer / emulsifying mixer, drainage port on the center of the homogenizer / homogenizer
Water jacketed for both hot and cold-water circulation
Top mount agitator for low speed gently mixing
A high-performance thermal insulation wall out side the jacket to protect the operator from got hurt by the low / high temperature
Mechanical seal and stainless-steel mechanical seal base to keep external water enter into the tank
Stainless steel agitator transmission frame to improve the stability of the mixing

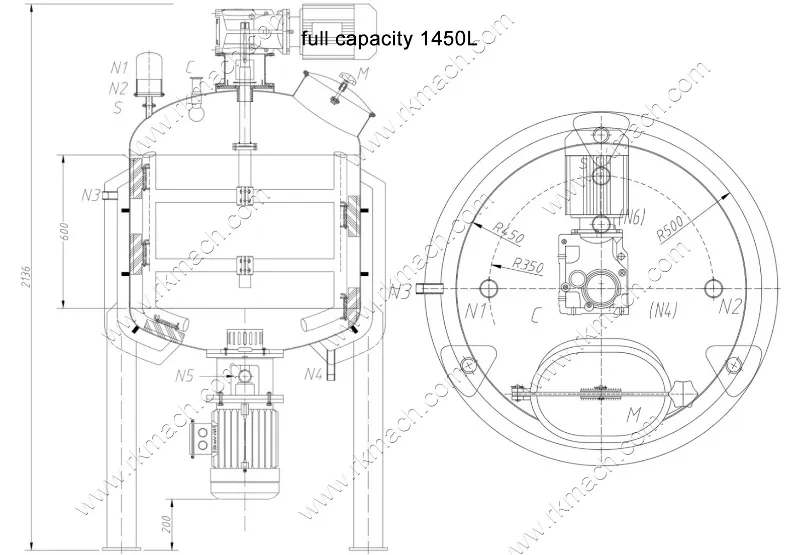

Product sketch
Food grade homogenizer for jelly ace product. CMC, ink, painting,
chemical fertilizer mixing equipment
Application:
For the mixing, homogenizing, and heating / cooling of chemical gel and creamStainless steel mixing tank structure
Sanitary design with sealed top and dish bottom.With bottom mount homogenizer / emulsifying mixer, drainage port on the center of the homogenizer / homogenizer
Water jacketed for both hot and cold-water circulation
Top mount agitator for low speed gently mixing
A high-performance thermal insulation wall out side the jacket to protect the operator from got hurt by the low / high temperature
Mechanical seal and stainless-steel mechanical seal base to keep external water enter into the tank
Stainless steel agitator transmission frame to improve the stability of the mixing

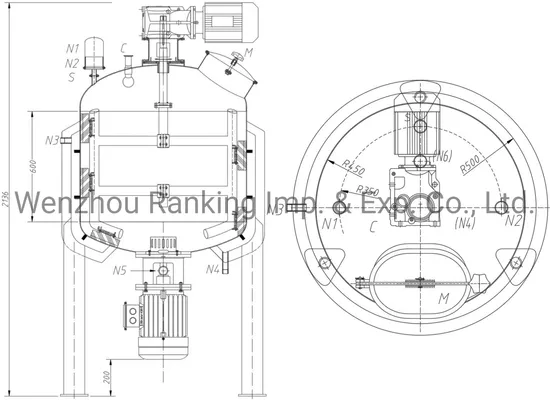

Product sketch
Preview
Preview
Technical parameters of 400Liter stainless stell homogenizing mixing tank

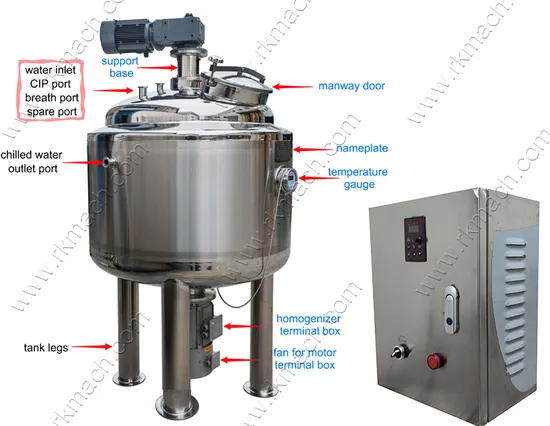

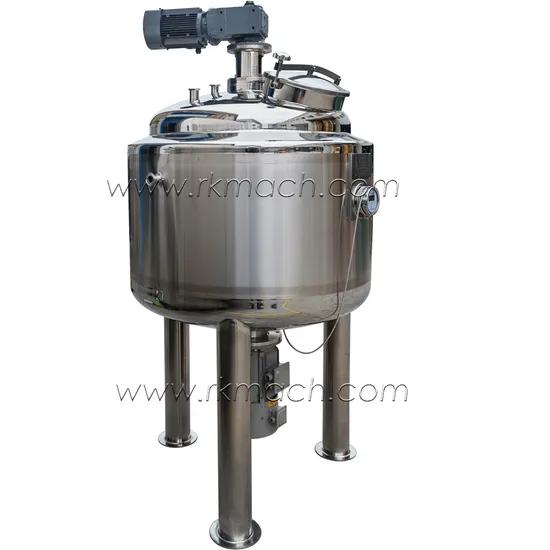

Mixing tank product image
stainless steel control box with variale speed controller / inner view of the bottom homogenizer
Anchor type mixer / frame mixer with PTFE scrapers for tank bottom and size wall / frequency
converter
Drainage port on the bottom homogenizer.All product will flow out from the homogenizing head rotor and stator assemble.Space from the lower point of motor to floor is about 200mm to keep the motor away from the floor and easy to remove the motor when necessary.
the price for stainless steel mixing tank may change time to time.
Please talk to our online team to get the latest price.

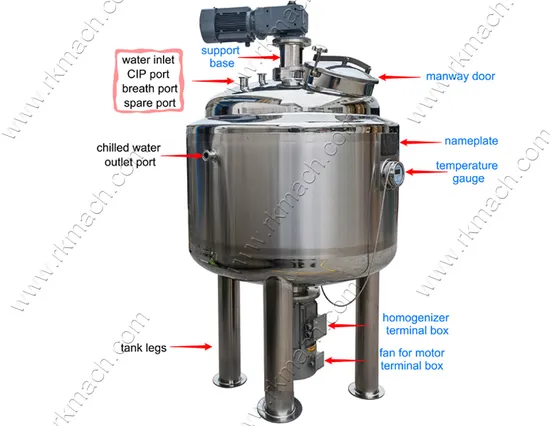

Mixing tank product image
stainless steel control box with variale speed controller / inner view of the bottom homogenizer
Anchor type mixer / frame mixer with PTFE scrapers for tank bottom and size wall / frequency
converter
Drainage port on the bottom homogenizer.All product will flow out from the homogenizing head rotor and stator assemble.Space from the lower point of motor to floor is about 200mm to keep the motor away from the floor and easy to remove the motor when necessary.
the price for stainless steel mixing tank may change time to time.
Please talk to our online team to get the latest price.
