基本信息
应用程序 | 药物加工、化工产品加工、食品普 |
条件 | 新 |
材料 | 不锈钢 |
不锈钢 | 4到6转每分钟 |
粉末 | 11千瓦 |
操作方法 | 连续的 |
电压 | 380伏 |
加热方法 | 电热 |
核心组件 | 轴承、泵、齿轮电机、齿轮箱、PLC |
运输包 | 木制包装箱 |
规格 | 50至2500升 |
商标 | 华腾大唐 |
起源 | 中国北京 |
商品编码 | 8419399090 |
生产能力 | 500套/年 |
产品详情
Product Description
Preview

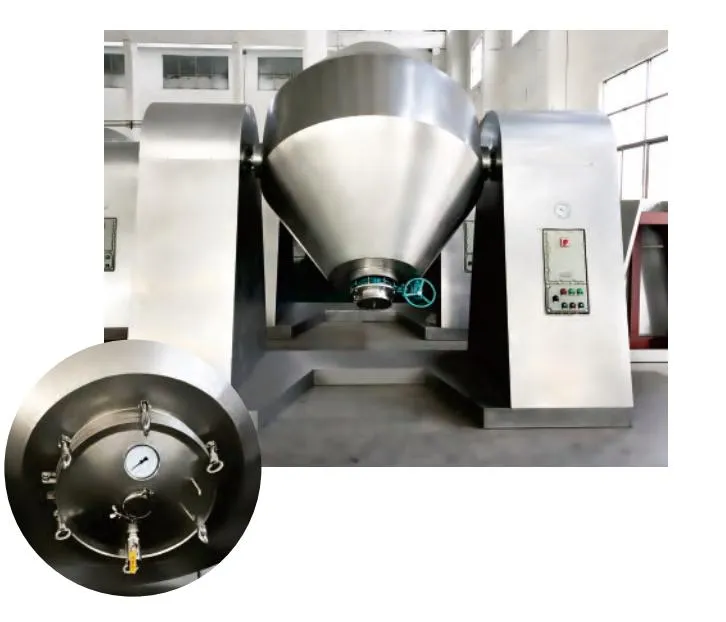

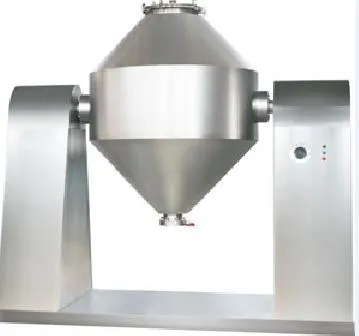

GSZ double cone rotary vacuum dryer produced by our company can be divided into GSZ
glass lined type and GSZ
stainless steel type according to the material of inner tank. According to the different properties of materials required by customers, customers can choose according to their needs. In the production and sales of more than ten years, our company has made a variety of breakthroughs in the glass enamel double cone rotary dryer through continuous innovation and improvement according to the actual needs of customers, overcoming a variety of difficulties in enamel technology. In the drying performance and ensure the purity of materials in the international advanced level.
Product overview
SZG double cone vacuum dryer is a new generation drying device developed by our factory in combination with domestic similar product technology. Double cone vacuum adopts belt chain two elastic connection modes, so the equipment runs smoothly. The specially designed process fully embodies the good concentricity of the two shafts. The heat medium and vacuum system adopt reliable mechanical seal or rotary joint of American technology. Based on these, we developed SZG-a, which can not only Stepless-speed regulation, but also constant temperature control.
As a professional drying equipment manufacturer, our products are available from high temperature heat transfer oil as heat medium, medium temperature steam and low temperature hot water. When drying sticky materials, our factory will specially design a "plate " mechanism or set bearing balls in the tank .
Material to be dried
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature(for example, biochemistry)products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
glass lined type and GSZ
stainless steel type according to the material of inner tank. According to the different properties of materials required by customers, customers can choose according to their needs. In the production and sales of more than ten years, our company has made a variety of breakthroughs in the glass enamel double cone rotary dryer through continuous innovation and improvement according to the actual needs of customers, overcoming a variety of difficulties in enamel technology. In the drying performance and ensure the purity of materials in the international advanced level.
Product overview
SZG double cone vacuum dryer is a new generation drying device developed by our factory in combination with domestic similar product technology. Double cone vacuum adopts belt chain two elastic connection modes, so the equipment runs smoothly. The specially designed process fully embodies the good concentricity of the two shafts. The heat medium and vacuum system adopt reliable mechanical seal or rotary joint of American technology. Based on these, we developed SZG-a, which can not only Stepless-speed regulation, but also constant temperature control.
As a professional drying equipment manufacturer, our products are available from high temperature heat transfer oil as heat medium, medium temperature steam and low temperature hot water. When drying sticky materials, our factory will specially design a "plate " mechanism or set bearing balls in the tank .
Material to be dried
It is suitable for the raw materials that need to concentrate, mixed and dried at low temperature(for example, biochemistry)products in chemical, pharmaceutical and foodstuff industries. Particularly it is suitable for the raw materials that are easy to be oxidized, volatilized and have night heat sensitivity and is toxic and not permitted to destroy its crystal in drying process.
Preview

Preview

Preview
Characteristics
When oil is used to heat,use automatic constant temperature control .It can be used for drying biology products and mine Its temperature of operation can be adjusted form 20-160oC.
Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect So the raw material can not be polluted.
It is in conformity with the requirement of GMR It is easy in washing and maintenance.
When oil is used to heat,use automatic constant temperature control .It can be used for drying biology products and mine Its temperature of operation can be adjusted form 20-160oC.
Compared to ordinal dryer, its heat efficiency will be 2 times higher.
The heat is indirect So the raw material can not be polluted.
It is in conformity with the requirement of GMR It is easy in washing and maintenance.
Preview

Preview
证书
标题:中国玻璃衬里化工设备协会
