product维尼尔码头的聚氯乙烯(PVC)板材桩塑料钢板桩
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
基本信息产品详情证书

基本信息

型号编号NX-PSP
形成方式注射
应用程序结构性组件,功能组件
材料属性低温柔性或冲击力
所服务市场建筑与建设
定制的定制的
用法外部
颜色单一颜色
表面处理完成
产品名称乙烯基海堤PVC板桩塑料钢板
宽度718毫米
长度定制
厚度9毫米
运输包裸包
规格718毫米
商标南翔
起源江西萍乡
商品编码3926909090
生产能力每天500米

产品详情

Product Description
detail
Preview

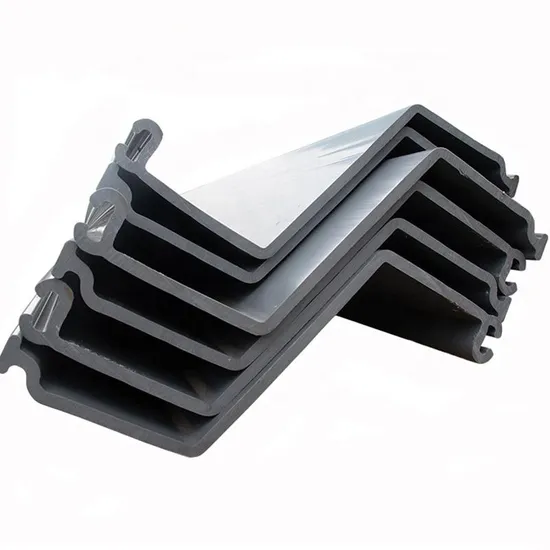

Vinyl Seawall PVC Sheet Piles Plastic Steel Sheet Pile
PVC sheet piling systems are the new standard with many advantages compared to hard wood, concrete and steel sheet piling. Vinyl sheet piles are made of poly vinyl chloride also known as PVC: a material with excellent resistance to weather influences and it has a long service life. Moreover, the material will not be affected by natural forces occurring in the ground, rodents, and salt or fresh water. PVC sheet piling has a number of benefits over traditional steel timber or concrete piling, including, costs, durability, ease of handling and a reduced environmental impact.
Advantages and Disadvantages of Traditional Sheet Pile
detail
Preview
detail
Preview

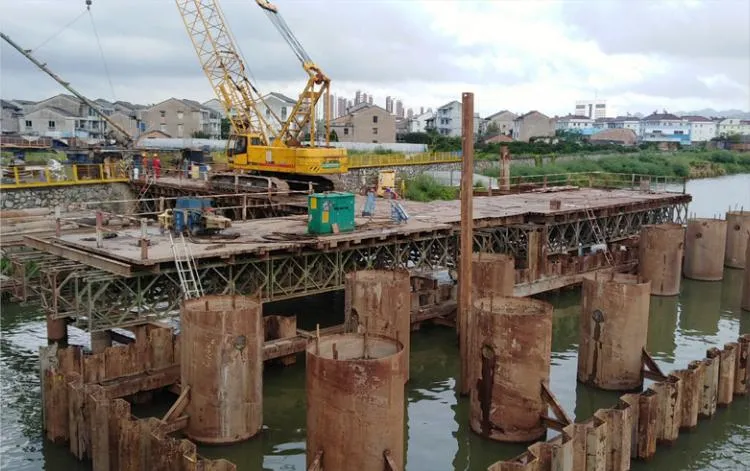

Steel Sheet Pile
The thickness of each part of the pile is the same, the section size can't be optimized, resulting in the increased of the amount of steel, the shape of the lock position is difficult to control, the joint buckle is not strict, can not stop water, and the pile is easy to tear during the use process Product Parameter
detail
Preview
detail
Preview

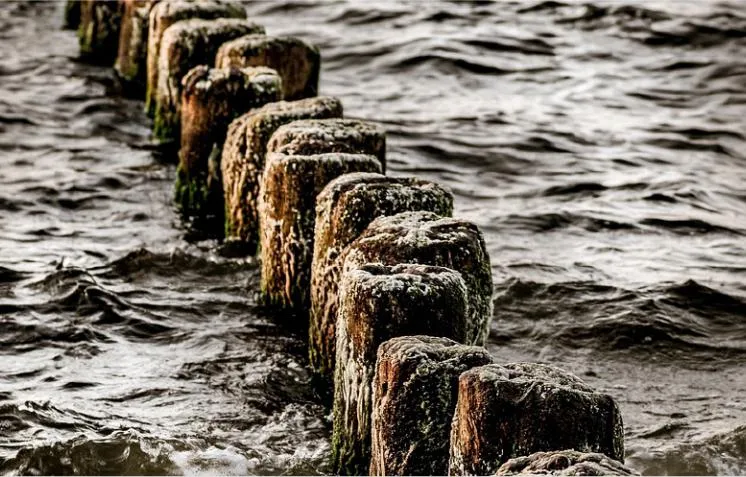

Wooden Sheet Pile
Wood is anisotropic heterogeneous material, mainly shown as a variety of physical and mechanical properties of the differences. Wood cracking is easily caused by the characteristics of uneven expansion and anisotropy. Wood is a kind of hygroscopic material, so it is easy to wet rise and dry shrinkage under natural conditions, affecting the stability of the size of wood products, resulting in deformation.
detail
Preview
detail
Preview

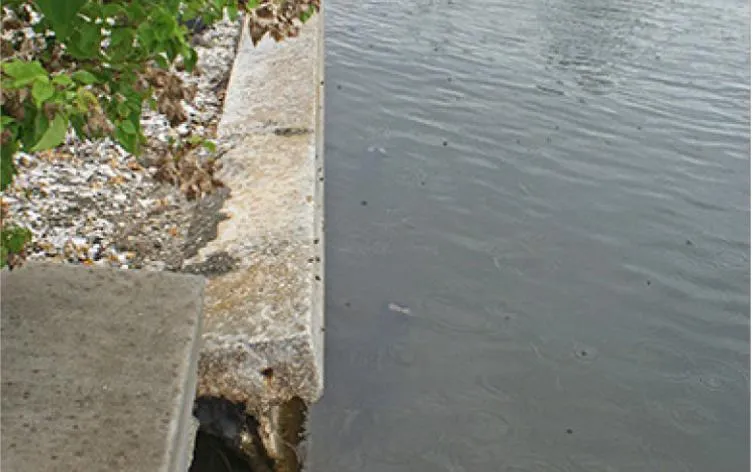

Concrete Sheet Pile
The Squeezing effect of concrete sheet pile is negative in saturate clay, which will lead to quality accidents such as broken pile and neck shrinkage of case-in-place pile. For precast concrete pile and steel pile, the pile will float up, reduce bearing capacity and increase settlement. The squeezing effect will also cause damage to surrounding buildings and municipal facilities, but it is positive in loose soil and unsaturated fill. Will play the role of encryption, improve the bearing capacity.

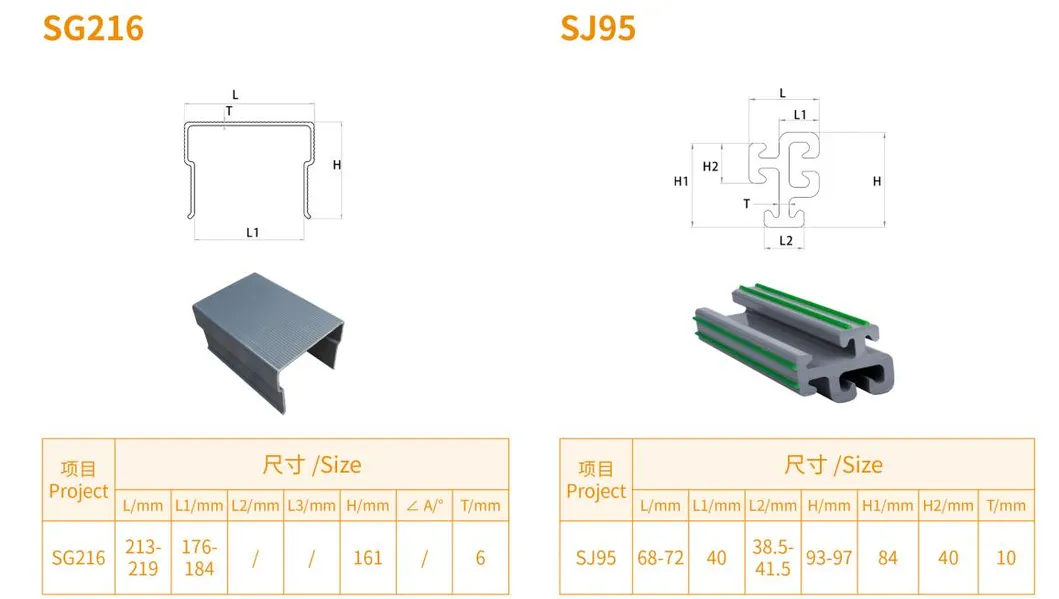

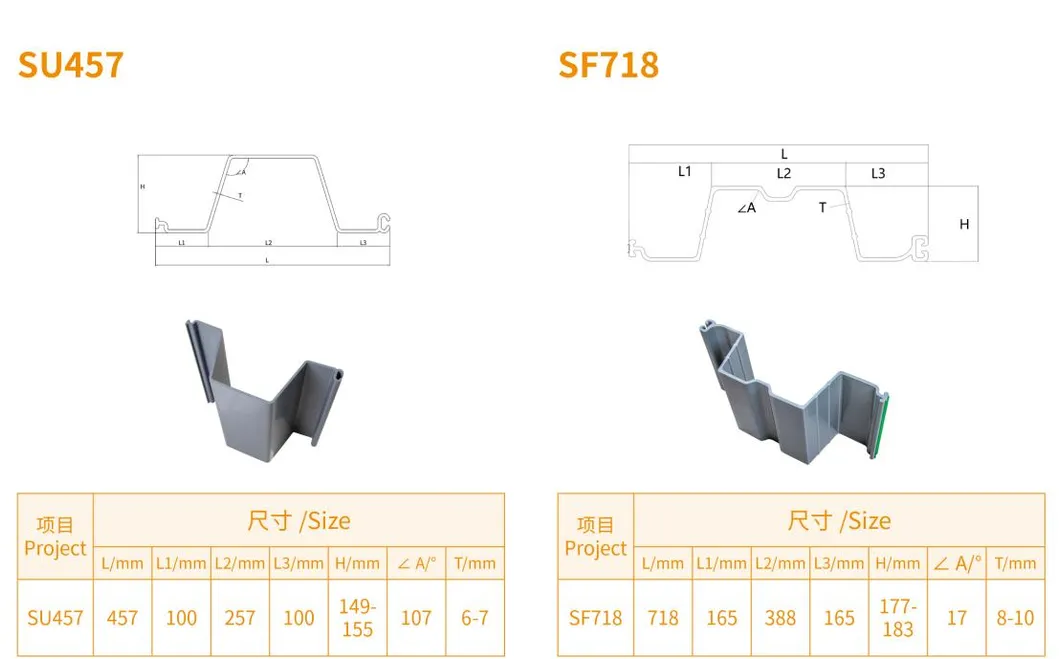

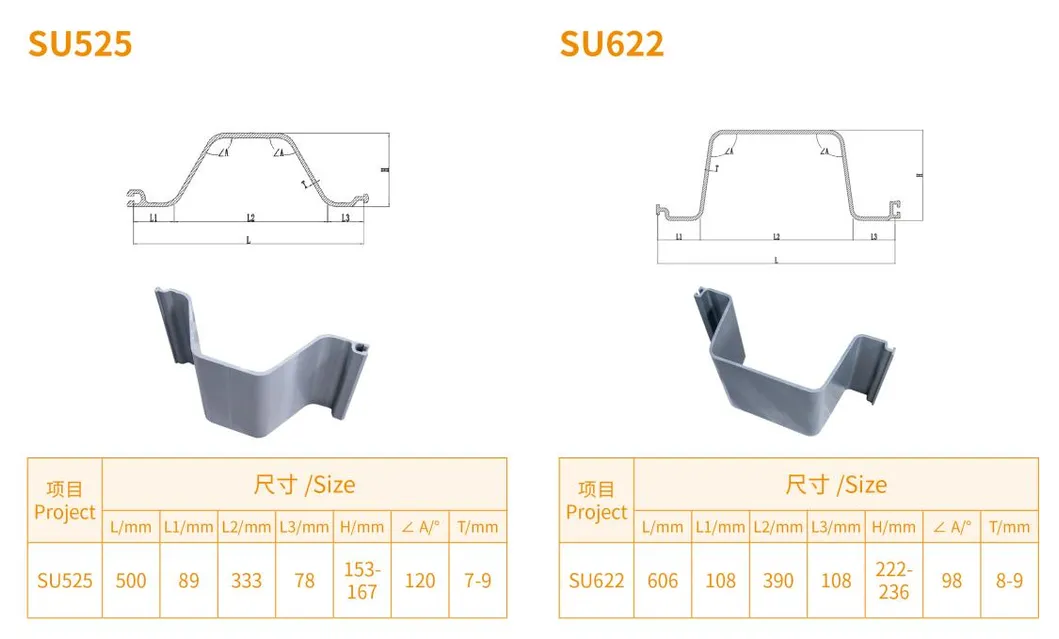

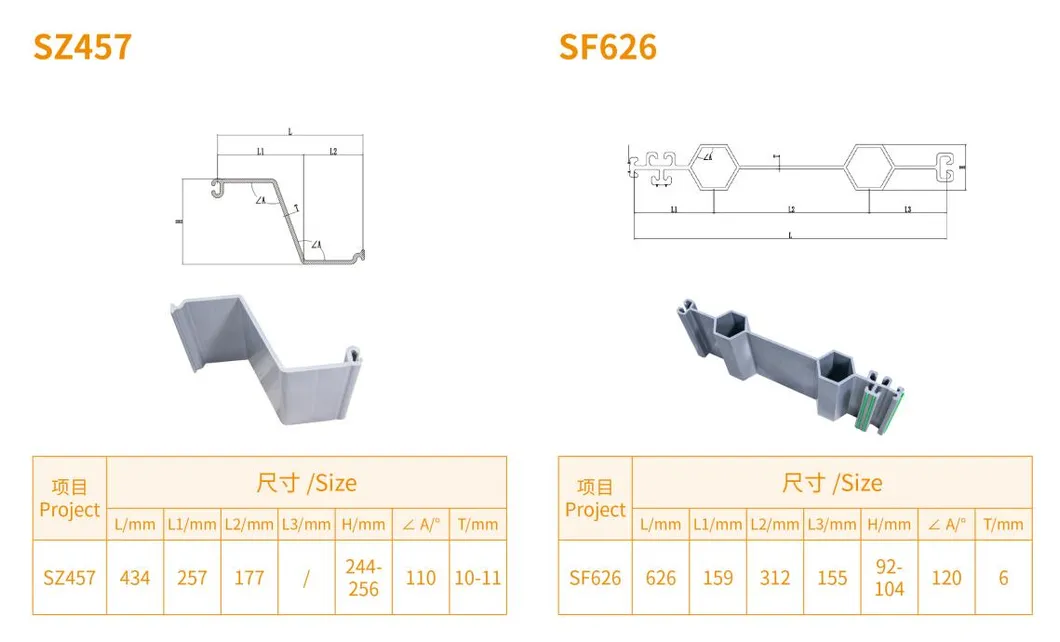

Product Parameters
detail
Preview

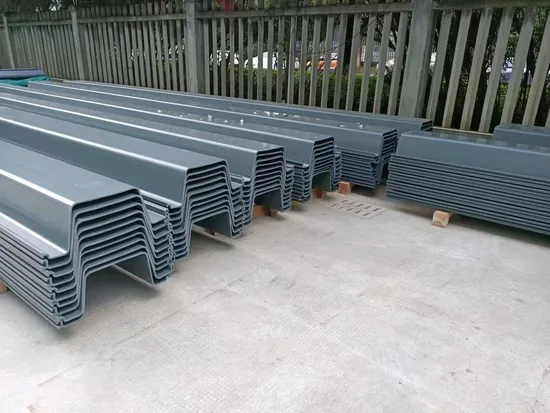

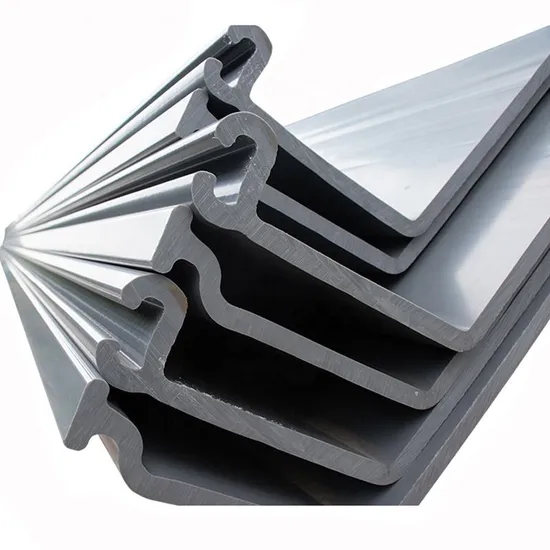

Detailed Photos
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview

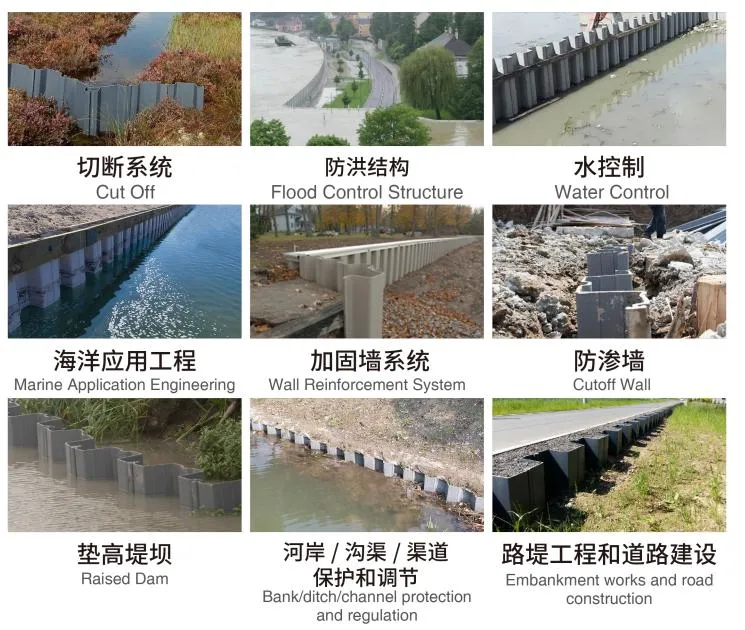

Application
detail
Preview
detail
Preview

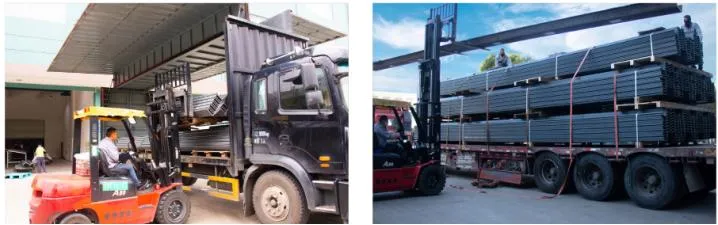

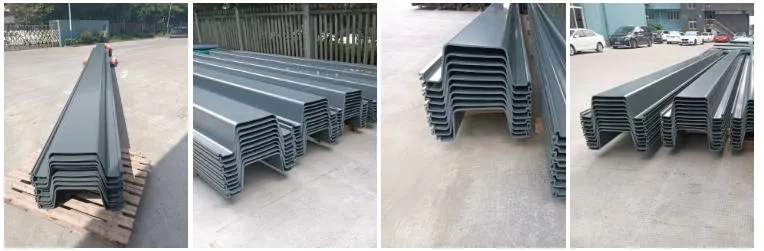

Packaging & Shipping
detail
Preview
detail
Preview
detail
Preview

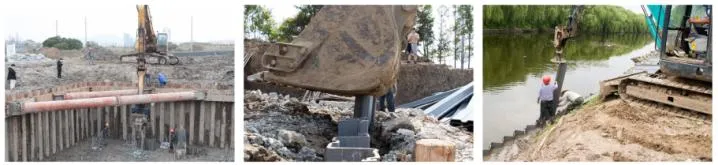

Project Installation
-When install shorter length, it is recommended to manually insert mallet and pile cap into the ground.-When the installation is longer or the ground conditions are more difficult, it is recommended to use the pile hammer, can directly use the standard pneumatic hammer or light vibrator-When the installation depth is above 4M or under harsh conditions, it is recommended to use the steel sheet pile with the same shape as the ecological sheet pile for construction. The support of the steel sheet pile can penetrate the hard soil quickly and speed up the installation.
detail
Preview
detail
Preview
