productDimex Lotus高紫外L108 UPVC滑动窗框和门
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
基本信息产品详情证书

基本信息

型号(NO.)L108
类型卡斯门UPVC
材料UPVC
成型方法挤压
应用结构组件
材料属性抗紫外线和耐候性
服务市场建筑与施工
定制的定制的
用法内部与外部
颜色单色
表面处理完成
运输包标准包装
商标DIMEX
起源中国
生产能力年产量三十万吨

产品详情

Product Description
detail
Preview
Dimex Lotus High UV L108 UPVC Profiles for Sliding Window and Door
Product Manufacturer:
DIMEX is a German specialist of uPVC window/door profiles and systems. It was founded in Germany in 1933, with about 90 years history till now.GKBM acquired it in 2010.About UPVC Profiles:UPVC profiles refer to Unplasticized PVC extruded profiles used for making Windows
& Doors. As early as the end of the 1950s PVC profiles have appeared in Germany and put into use.
DIMEX UPVC Window
profiles:
With 2.5 mm wall thickness.High UV Retardant with 8 Parts of Titanium Dioxide
8000 hours
Xenon Tested
Eco Friendly
Fire Resistant
Sound Proof
Energy Saving
Termite Proof
Water Resistant
Burglar Proof
30 years DIMEX
Own warranty against Discoloration & against Brittleness
These economic & lightweight advantages make DIMEX Premium windows most competitive in Global Markets.They are especially launched for Big Projects, where the Quality & prices can be assured.They are a complete system to make all kind of project - Fixed, Sliding and Casement
Windows & Doors.In this system we have separate window & door profiles as compared to other brand profiles. Who use the same window profiles for doors.Being A German Brand Popular in your local
Markets for over 20 years, they provide more security to the end customer, and are more reliable for the Window makers.
L108 uPVC Profiles
DIMEX L108 system equipped with built-in louvers and integrated sun shading. It was
specifically designed for sliding windows & doors with very high sashes as well as sliding doors in high-rise buildings with high wind-load. If the architectural designs of sliding doors requires no fixed window on top of sliding door with L108
sash height up to 2.5m can be built. Special sill profiles allow for easy entrance through these sliding doors but still preserve a very high level of water tightness.
L108 Sliding Windoor Profiles' Features:
1.European classic design, economical and practical, certified by SKZ Germany.
2.The hardware is versatile and easy to select and assemble
3.Excellent energy saving effect
4.Excellent sound insulation
5.Safe and reliable
6.System Uf 2.2
W/.K (including steel reinforcements)
7.System depth: 108mm - 4
Chambers
8.Glazing width range from 6mm
-
40mm
Specifications:
Cross section: 108mm
Profile type: frame, sash, mullion
Color: white, brown, blue, etc.Processing: extrusion, co-extrusion, laminated, entire body coloringAccessories:
glazing bead, coupling, seal strip, post, cover, etc.Certificates:

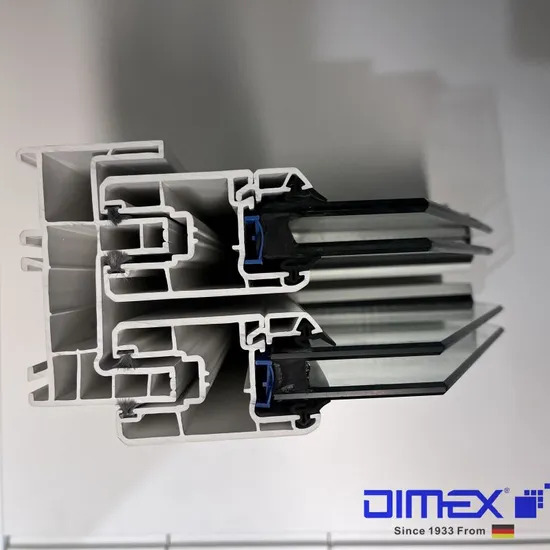

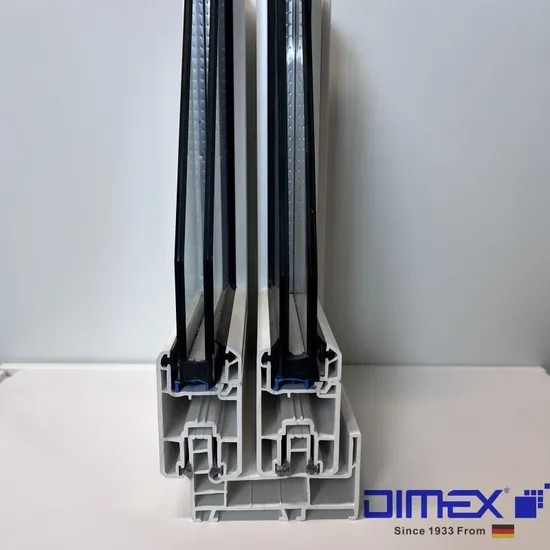

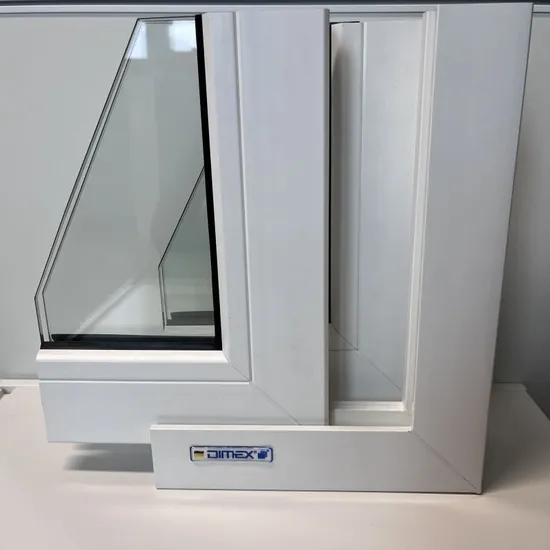

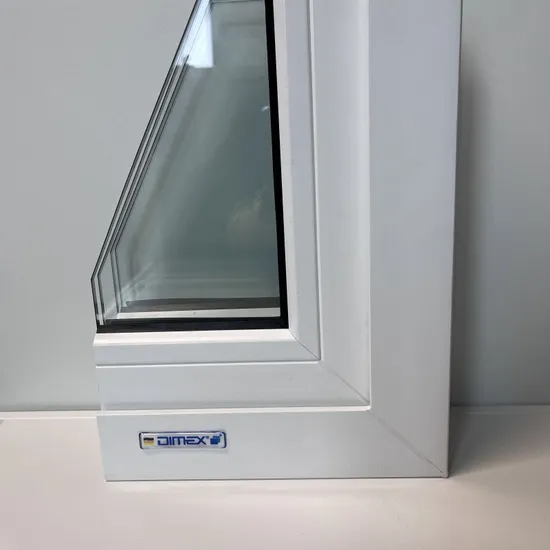

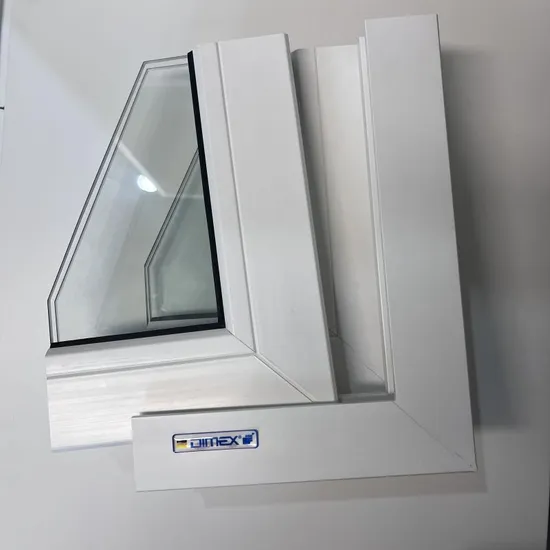

SKZ, ift, CE, TUV, SGS, ISO9001.Pictures:
detail
Preview
