Zoomry, a
professional
belt conveyor
manufacturer and EPC contractor founded in 2002, specializes in providing bulk material handling solutions that help customers lower production costs, increase productivity and lessen environmental impacts.
Since its inception, company has strived to develop and manufacture environmentally friendly bulk material conveying equipment that is tailored to the working environments of customers. As a
factory, our product line includes not only complete sets of long-distance overland conveyors,
tubular belt conveyor
s, troughed belt conveyors and radial telescopic
stacker
conveyors but also the critical conveyor parts. Currently, our bulk material conveyors have been extensively used in a
number of industry sectors such as mining, chemical, coal plant, ore, thermal power plant, aggregate plant,cement factory, steel plant etc.Zoomry has a
quality inspection center consisting of a
chemical lab, a
hardness lab, a
conveyor roller
lab and a
mechanical performance testing lab, having more than 60 testing equipment. All our belt conveyor systems are thoroughly examined to ensure that they meet or exceed the national standards, and their quality is compliant with ISO 9001 quality management system, ISO 14001 environmental management system and CEMA certification.
We move the World!
Welcome to visit our factory and contact me freely

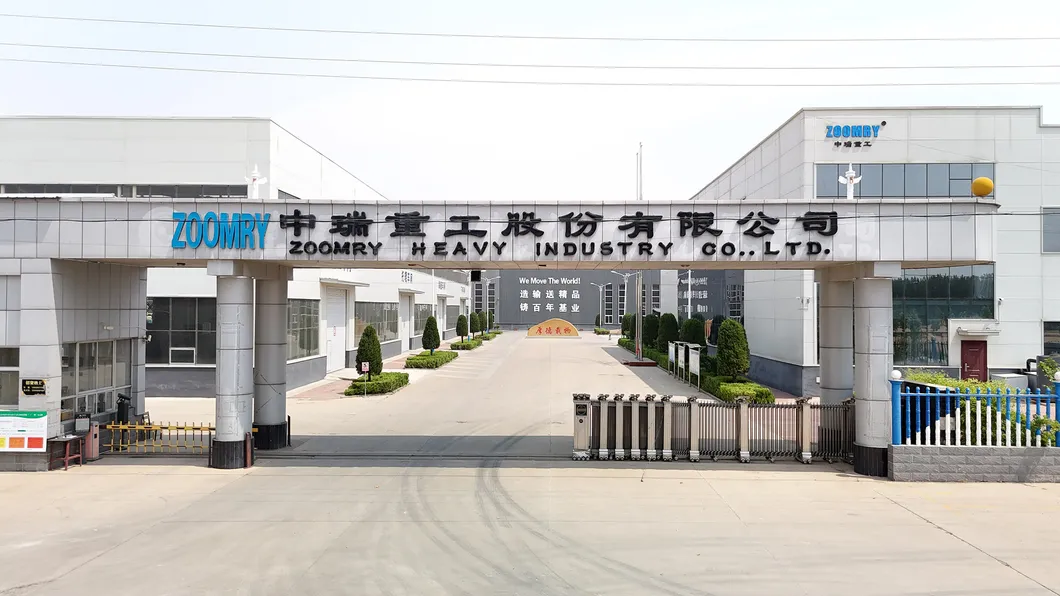

Zoomry Heavy Industry Co.,LTD
Wang xiaomeng || Salesperson

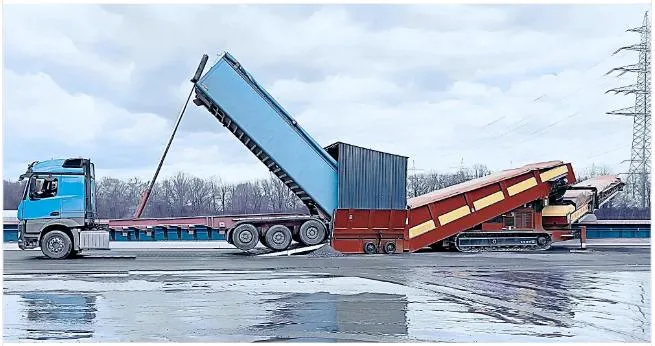

Truck unloader is an important machinery working with our ZRSF series Mobile telescopic
stacker.It have wheeled type and crawler type, it has a ramp for the dump truck to drive on so to dump the material into it.There are two truck ramps or four truck ramps for choice.Transportation capacity start from 200thp-1800tph. Belt width from 1400mm-1800mm.
Undercarriage
-
Heavy-duty
truck
frame
- Maximum of
the
conveyor
discharge
height reach to 5.8m.
- Super heavy duty
tires optional.
- Air
brakes,
brake
and
directional
lights,
and
mudfiaps are
optional.
- Hudraulic jacks to support

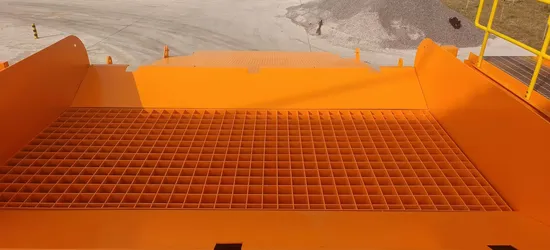

Low position and easy reachable receive Hopper
-
Customized hopper size from 3.5m- 5.7m width to match all kinds of your wheel loaders or excavators
with
a
widely opening
-
5.0 kw-7.5
kW
electric / hydraulic
power
pack
- Optimized
grid for kinds of aggregates or minerals
Conveyor
Frame
- belt width from 800mm - 1600mm x length from 8m -20m conveyor
-
Heavy-duty frame special for heavy duty dump trucks
- belt
speed from 1m-4m per second
-
Screw
type
take-up
Belt
- EP belt special for truck unloader, EP100 (5+4+2 ), EP 200(6+4+3)
- Site Vulcanized
splice gives longer lifespan
-
Ground
accessible
start / stop
push
button
controls, radio congtrol optional
- China top brand belt which was widely used on all of our long distance
belt conveyor
- LESS
power
cable
- 380-460
volt,
3
phase, 50/60 HZ power can be designed by client's site suituation
Drive
- 300- 2200 ton per hour unloading
capacity
-
Dual 11 kW electric
head
end
drive
(1,800
RPM,
TEFC
3/60/460)
- Gear
reducers adopt international brands like
FLENDER / SEW
- Backstops
-
Drive
pulley
-
20"
[508mm]
diameter
ceramic
lagged
head
pulley
with
Haerbin®
bearings
-
Tail
pulley
- with
Haerbin®
bearings
Idlers
- Long life ZOOMRY idlers also for all of our long distance belt conveyor system projects
- Impact idlers
in
the
load
area
Options
-
Belt
cleaner
-
Discharge
hood
-
Wireless
remote
control
-
Hydraulic
undercarriage
lift
cylinder
-
Hydraulic
landing
jack
-
On-board
diesel
GenSet
- can be customized
