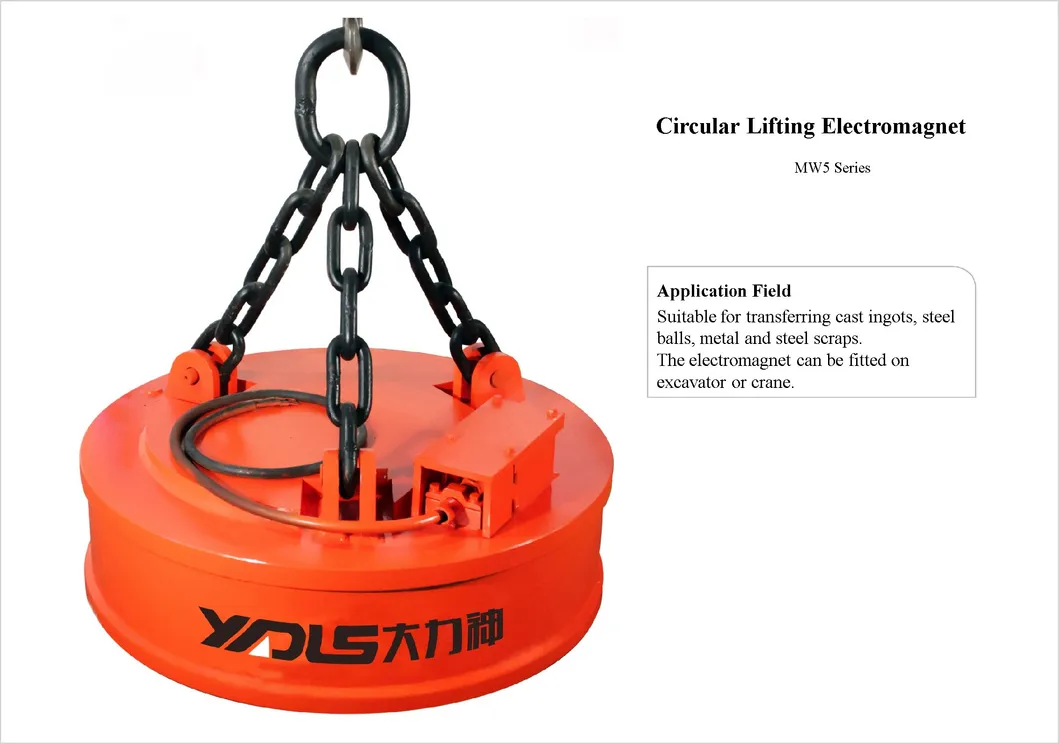

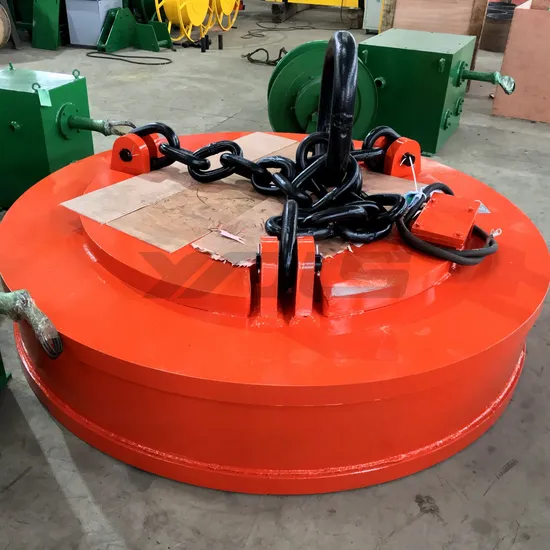

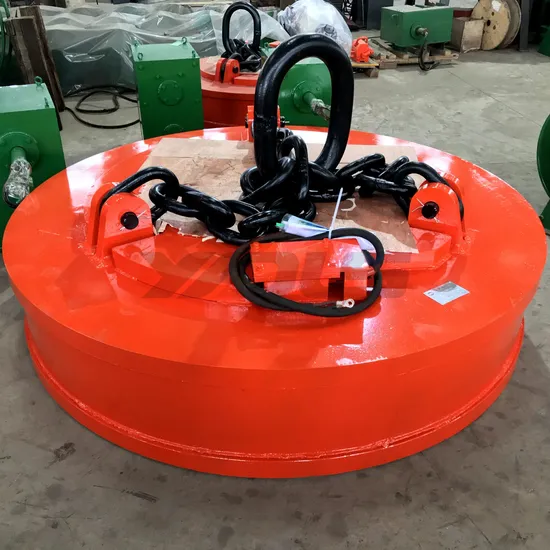

Lifting Electromagnet MW5 Series for handling steels, working as lifting appliance of traveling electric crane, mobile crane/ lifting truck, excavator etc.
Functions: Handling casting ingots, steel balls and other steel scraps.
Options:
A. Normal temperature lifter
B. High frequency lifter
C. High temperature lifter
General Specifications:
Conductor/Coil: Aluminum or Copper
Shape: Round, oval and/or square
Power: 3.3~33.9 kw
Lifting capacity (kg)
-steel ball: 2500~26000
-hot steel ingot: 200~3800
-cold steel ingot: 380~4800
-hot steel scraps: 100~2250
-cold steel scraps: 120~2850
1. The electromagnet is sealed up, with good moisture and dust proofing.
2. Structure of magnet is reasonably designed and optimized, features light weight, strong attraction force and low energy consumption.
3. Energizing coils to generate magnetic strength is processed with special technology, to improve its electrical and mechanical property. Insulation Grade of coils is F to H for longer service life.
4. The energizing ratio is increased from 50% to 60% or 75%, with higher effectiveness.
5. With special heat-protection method, materials up to 700 degree centigrade can be handled by the lifting magnet.
6. Considerate design for easy and convenient installation, operation and maintenance.

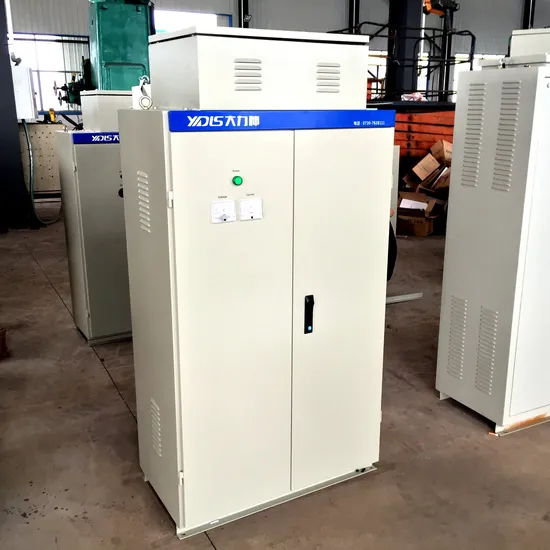

7. Complete scope of supply, including control panels, cable, cable reels, lifting chains, beams and battery sets.
Note: Products in different configuration are available

Packaging Detail:Iron Case or Polywood Case.
Delivery Detail:Within 20 days since the date of receipt of deposit.
Specifications
1. High lifting capacity, light self-weight
2. insulation grade can be up to F
3. Low power consumption, long service life
Applications

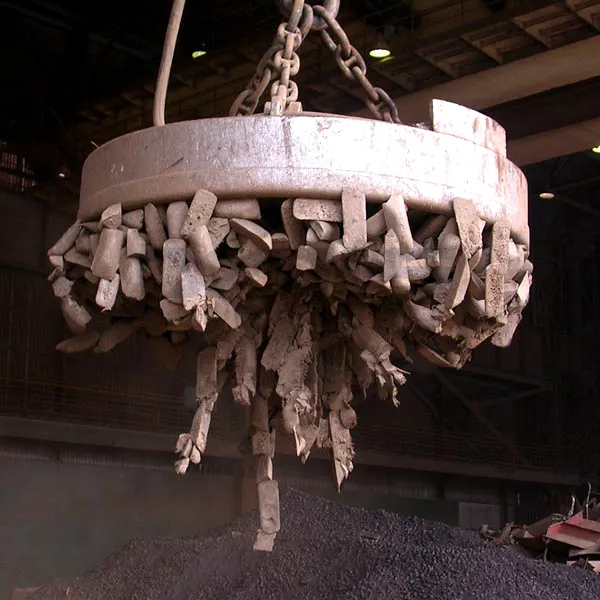

Suitable for transferring cast ingots, steel balls, metal and steel scraps.
The electromagnet can be fitted on excavator or crane.
Features
The protection plate for coil adopts abrasion-resisting and shockproof rolling high-manganese steel.
The electromagnet is dealt with special technology, thus insulation grade can be up to Grade F.
Coils of magnets are made of Aluminum (flat aluminum wire covered by double spun glass) or cooper.
High lifting capacity, light self-weight.
Low power consumption, long service life.
Technical data
Three types for option:
1. Normal temperature type (DC-220V TD-60%)
2. High frequency type (DC-220V TD-75%)
3. High temperature type (DC-220V TD-60)
More details, please contact us directly.

Our company

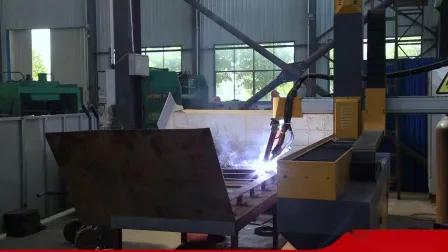

Factory Photos
