基本信息
| 型号：NO. | 噢哈特20 |
| 材料 | Q355B是一种钢 |
| 提升能力 | 50吨 |
| 固定形式 | 焊接类型 |
| 吊装眼型 | 折眼 |
| 绳芯类型 | 钢芯 |
| 电源 | 手动操作 |
| 形状 | 扁平的 |
| 认证 | GS、CE、RoHS、ISO 9001、ABS Rina |
| sling color 摇摆的色彩 | 黄色 |
| 额定起升负载 | 50吨 |
| 自重 | 5.0吨 |
| 允许的偏心荷载 | 百分之十 |
| 环境温度 | -10~+55 |
| 运输包 | 容器 |
| 规格说明 | 6340*2934*2896毫米 |
| 商标 | Qshi |
| 起源 | 中国江苏 |
| 商品编码 | 8431209000 |
| 生产能力 | 一千 |
产品详情
Product Description
Preview

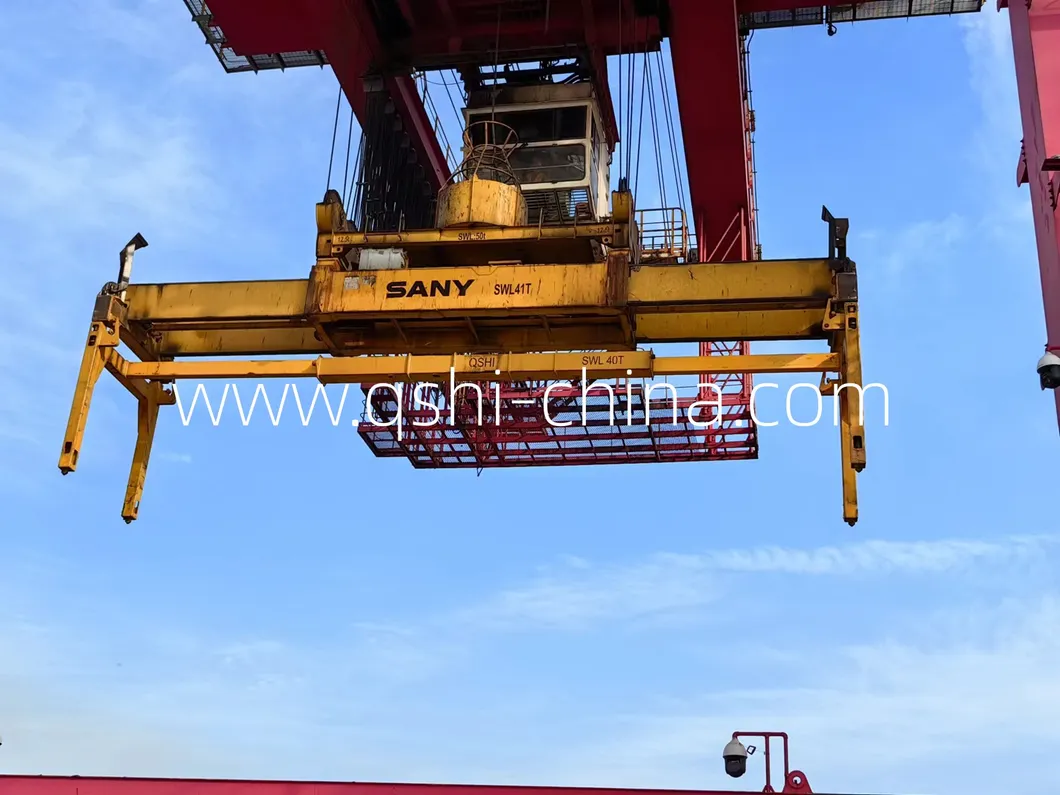

50t Telescopic Over Height Frame Spreader with Container Spreader Adapter
Product Description:
It is comprised by two parts which including an over-height frame and a park standing. The park standing can be used for protecting the OHF from been worn out.In addition, it is applicable for the maintenance of relevant equipment. It can be attached by the forklift, which makes it convenient to move in the yard.
Drawing:
1. Model: OH01002. Effective height
:2896 mm 3. -high self-weight: 5.0
tons (2.1
tons hanger, chassis 2.9
tons)4.Scope
of
application:
20,40,45
feet
ISO
compliant
containers..5.Spreader rated lifting capacity (spreader): 40 tons.ultimate load 50tons.6.Applicable ambient temperature: -10 ~ +55 ºC.7.Overall adapt of flange connection (easy to load containers
).8. Connection method: Over-height spreader
frame
and
container connected by rotating pin.9.Spreader on the hole are installed M10 * 1 flat
brass nozzle .10. Material selection: the main material Q355.
Pictures:
Product Description:
It is comprised by two parts which including an over-height frame and a park standing. The park standing can be used for protecting the OHF from been worn out.In addition, it is applicable for the maintenance of relevant equipment. It can be attached by the forklift, which makes it convenient to move in the yard.
Drawing:
1. Model: OH01002. Effective height
:2896 mm 3. -high self-weight: 5.0
tons (2.1
tons hanger, chassis 2.9
tons)4.Scope
of
application:
20,40,45
feet
ISO
compliant
containers..5.Spreader rated lifting capacity (spreader): 40 tons.ultimate load 50tons.6.Applicable ambient temperature: -10 ~ +55 ºC.7.Overall adapt of flange connection (easy to load containers
).8. Connection method: Over-height spreader
frame
and
container connected by rotating pin.9.Spreader on the hole are installed M10 * 1 flat
brass nozzle .10. Material selection: the main material Q355.

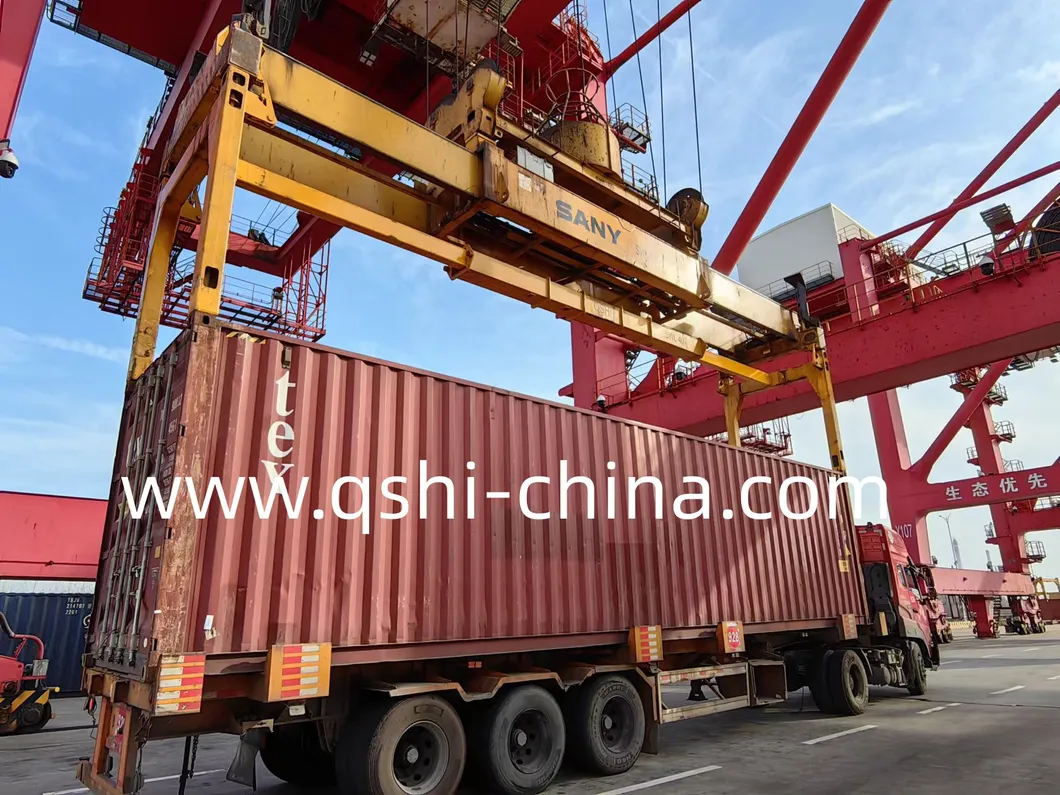

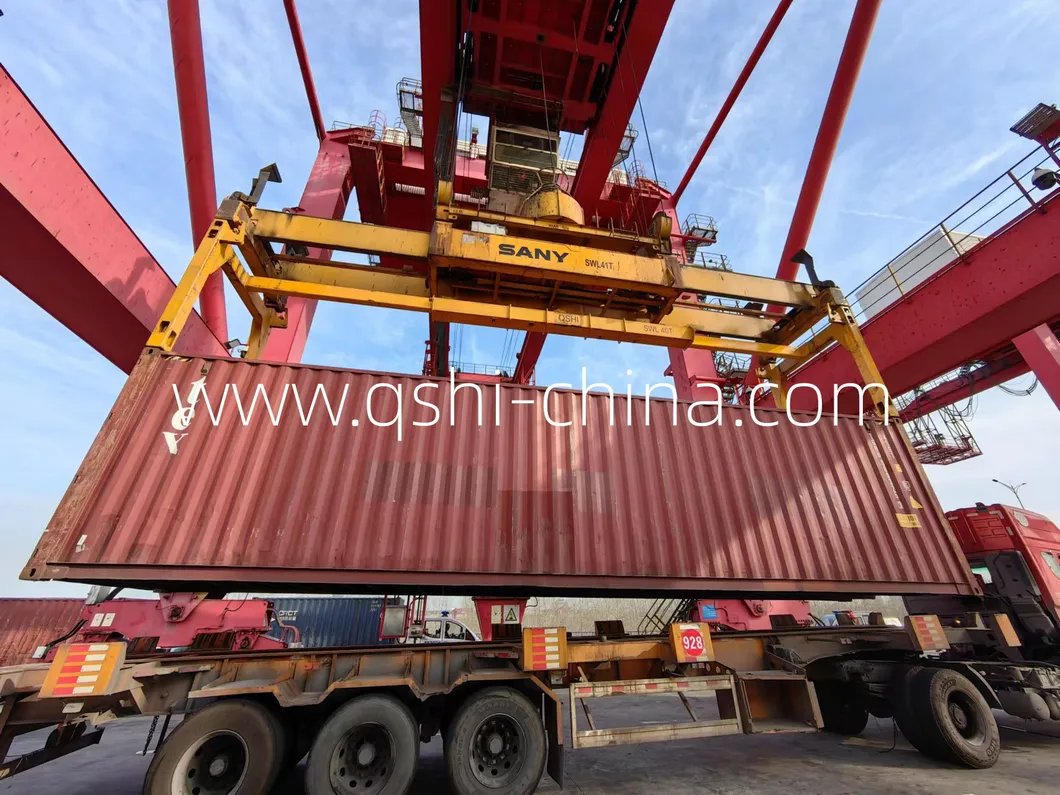

Pictures:
Preview
Preview
Preview
Preview
Preview

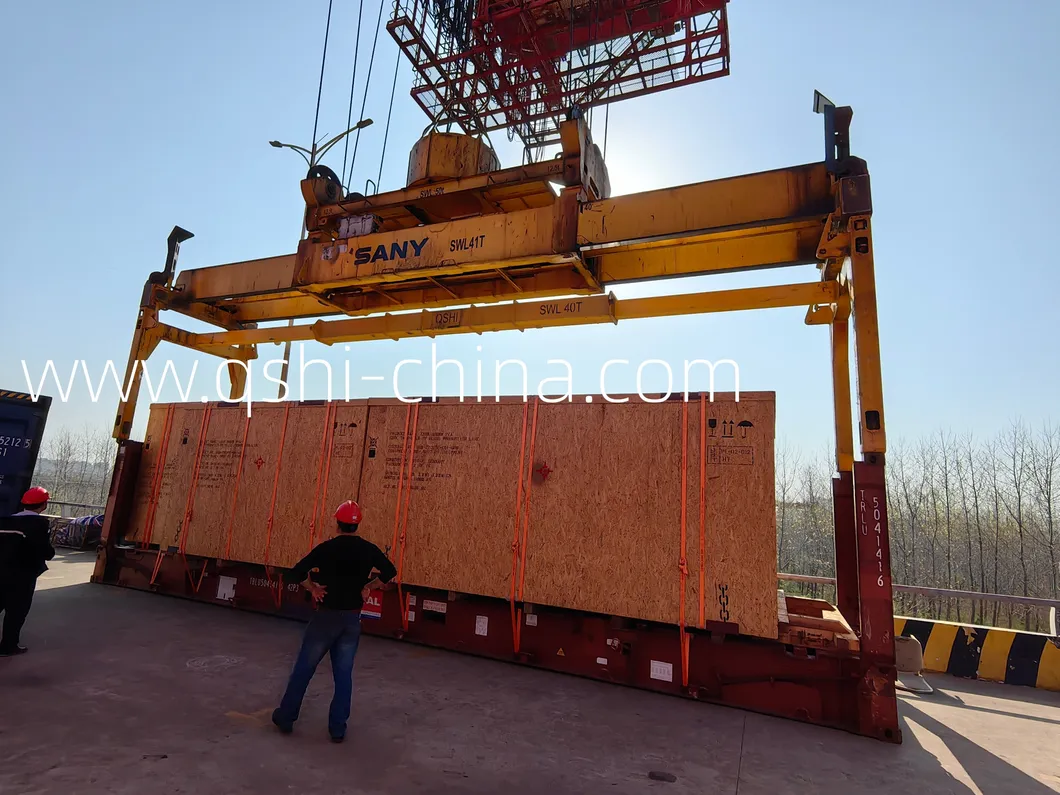

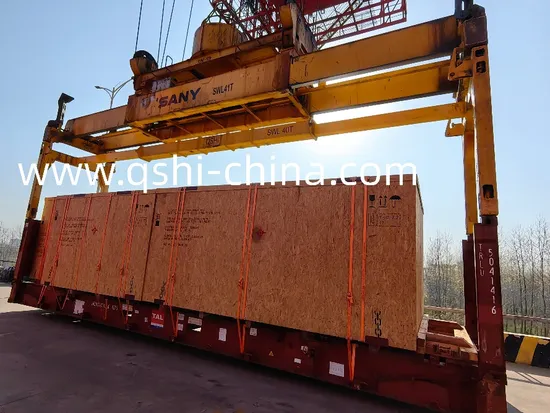

Loading test:Packing:Service:
1.Pre-sale services:
a:
Design customized project for clients.b:
Design and manufacture products according to clients special requirement.c:
Train technical personnel for clients.2.Services during the sale:a:
Help
clients to find reasonable freight forwarders
ahead of delivery.b:
Help clients to draw solving plans.3.After-sale services:a:
Assist clients to prepare for the construction scheme.b:
Install and debug equipment.c:
Train the first-line
operators.d:
Examine equipment.e:
Take initiative to eliminate the troubles immediately.f:
Provide technical exchanging.
1.Pre-sale services:
a:
Design customized project for clients.b:
Design and manufacture products according to clients special requirement.c:
Train technical personnel for clients.2.Services during the sale:a:
Help
clients to find reasonable freight forwarders
ahead of delivery.b:
Help clients to draw solving plans.3.After-sale services:a:
Assist clients to prepare for the construction scheme.b:
Install and debug equipment.c:
Train the first-line
operators.d:
Examine equipment.e:
Take initiative to eliminate the troubles immediately.f:
Provide technical exchanging.
