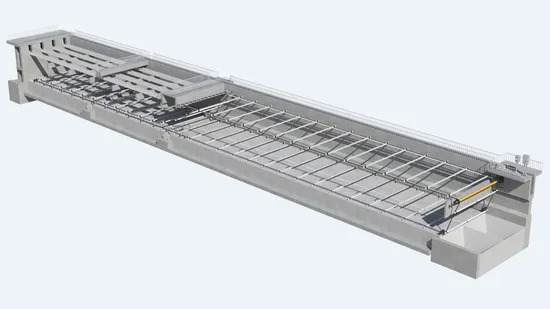

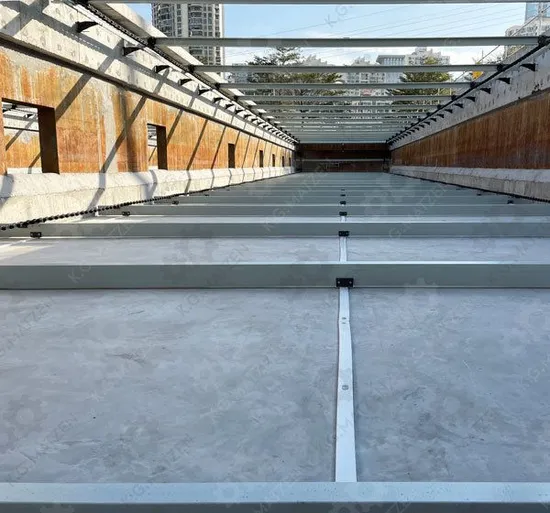

Sweep off continuously & stably the sludge/grit of the floor whiling removing the floating scum of the water surface in various rectangular sedimentation tank/grit chamber with high loads.

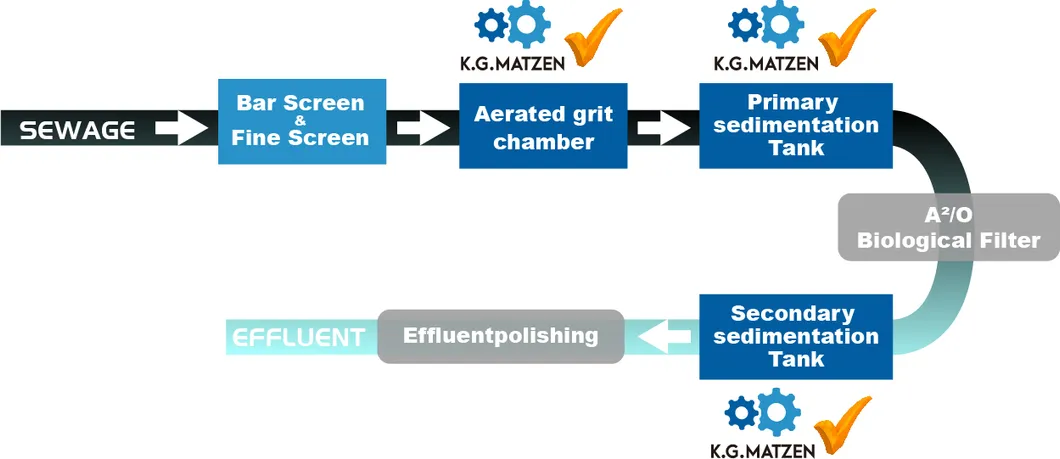

Application

·

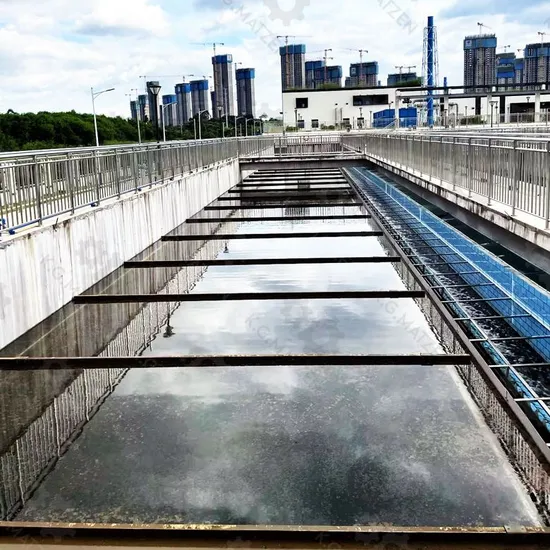

Horizontal-flow sedimentation tank
Double-layer sedimentation tank
Peripheral-feed and peripheral-take off clarifier
Aerated grit chamber
Horizontal-flow grit chamber
Main Structure

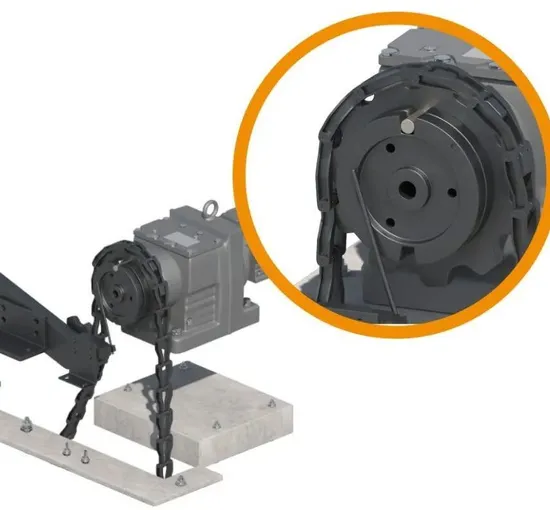

Driving unit
(above of the sedimentation tank)
Driving motor & speed reducer.
Non-metallic driving sprocket (overload protection system)
NH-78 non-metallic driving chain.
Tightener device.
Driving unit (below of the sedimentation tank)
Non-metallic driving sprocket (40T, NH-78 chain)
Head shaft (non-metallic/metallic/stub shaft/telescoping)
Non-metallic head shaft sprocket (23T, NMC-152 chain)
Non-metallic driven sprocket (17T, NMC-152 chain)

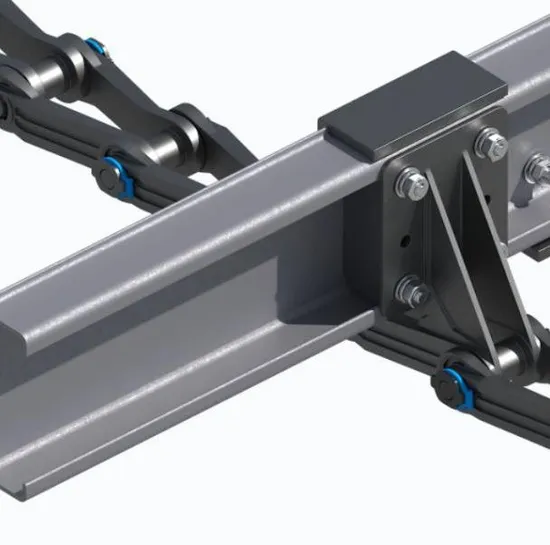

NMC-152 collector chain
Our Advantages
√
Light weight of the collector chain, low elongation after water absorption.√
Stable sprocket engagement and low failure rate during high loads operation.√
The scraper flights have sufficient strength and stiffness.√
The collector has low weight and energy consumption, being capable to working continuously for 24h per day.√
Anti-abrasion material of components, long service life, low maintenance costs.√
Low speed ensures effective sedimentation and removal of sludge, and avoids sludge disturbance & floating.√
It can be applied to industrial wastewater treatment by unique material optimization of key components.√
Suitable for various rectangular sedimentation tanks with a width of 1-12m.

1. Q: What products do you produe?
1. Q: What products do you produe?
A: We The products and services cover the R&D, manufacturing and sales of the process equipment of solid waste, sewage, exhaust gas treatment.2. Q: What information do we need before ordering?
A1: Pls advise your requirements for overall treatment process.A2: Pls offer the water quality report for influent water or raw water type.A3: Pls advise the max treatment capacity for design.A4: Pls advise the quality demands for the effluent water or the usage of effluent water.3. Q: How long is your lead time?
A: Generally it is 25 days, depends on your needs and project scales.4. What other services can you provide?
A1:
Provide free technical design support before sale
A2: In addition to the free warranty service, we also provide the full life-cycle service for the sludge collector system.
2. Q: What information do we need before ordering?
3. Q: How long is your lead time?
4. What other services can you provide?

Founded in 1971 in Denmark, the K.G.MATZEN® is a global high-tech company focusing on water treatment business. The products and services cover the R&D, manufacturing and sales of the process equipment of solid waste, sewage, exhaust gas treatment.
The K.G.MATZEN® has been committed to developing innovative solutions to meet the global environmental and resource challenges.
Based on the global perspective of environmental resources, the K.G.MATZEN®launched the business restructuring after being acquired in 2020.
A new company - the K.G.MATZEN Environmental technology (Shanghai) Co., Ltd.
(the K.G.MATZEN® China) - was established to meet the fast market demands of Asia Pacific in Shanghai, China.
The production workshop and assemble plant were set up simultaneously as well in Wuhan, China.
Now, the K.G.MATZEN® China combines well the first-class R&D and management capabilities of the global team with local advantages of China, focusing on the equipment manufacturing, assembly and technical service for the environmental protection field in Asia Pacific.
We can provide:
K.G.MATZEN® Screens & Pretreatment System
K.G.MATZEN® Rectangular Clarification System
K.G.MATZEN® High Efficiency Sedimentation Tank System
K.G.MATZEN® Odor Control System
K.G.MATZEN® Flushing Gate System of Retention Tank
With the development of global water treatment business, the
K.G.MATZEN® China is actively exploring and expanding in the field of municipal sewage treatment, and striving to provide customers with tailor-made service packages and one-stop solutions.
We are based on China, serve the global.
