Chenrui Medical cryogenic Oxygen plant with oxygen cylinder filling system for producing high quality oxygen for sale

PSA oxygen generator principle

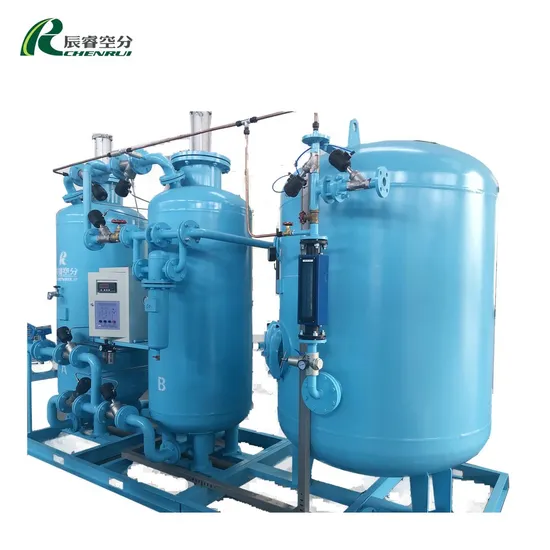

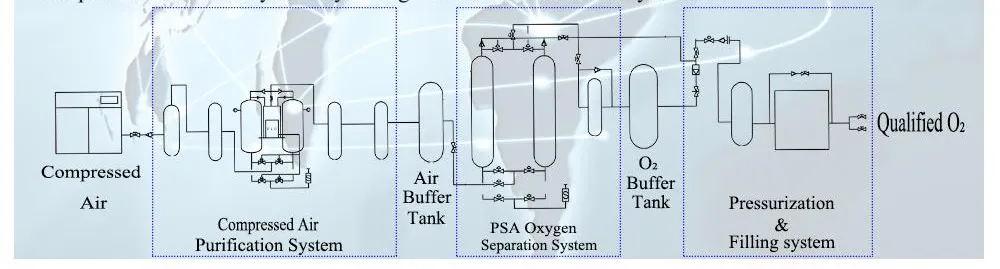

CBO series PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performance of molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve's surface and inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecular sieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower. Oxygen generator is constructed according to the principle of operation PSA (pressure swing adsorption) and it compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce oxygen, the other one release nitrogen gas to atmosphere. The process comes in cycle way. The generator is controlled by PLC.

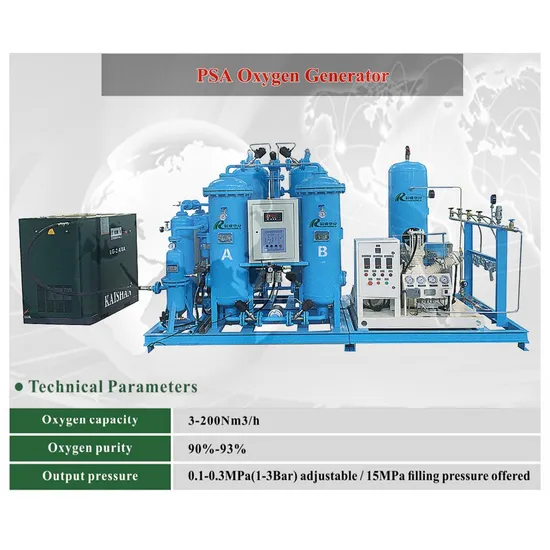

1. Specification
- Purity: 90%-93%
- Capacity:3~400Nm3/h
- Oxygen pressure: 0.1-0.4MPa
- OEM Services
- PSA Oxygen Generator

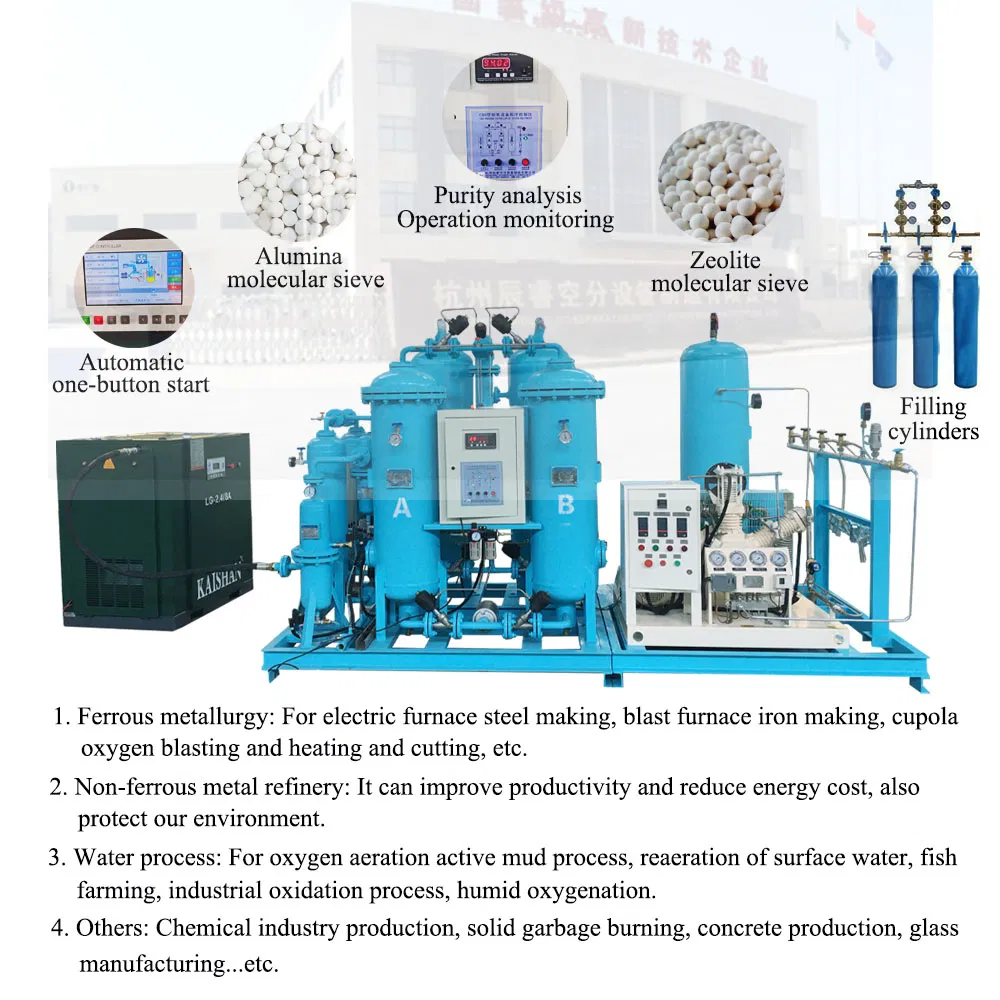

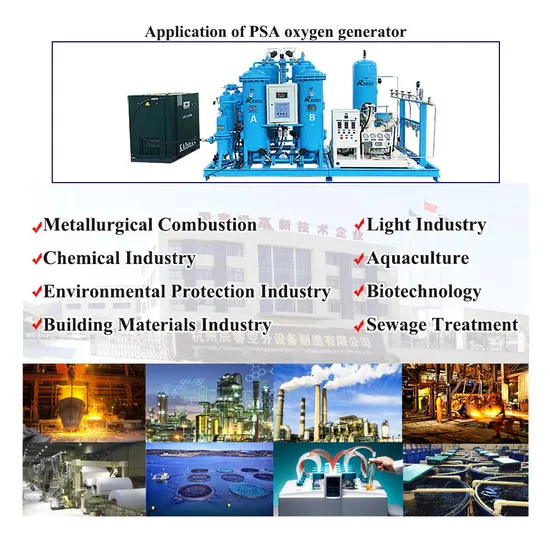

2. Applications
-Ferrous metallurgy: For electric furnace steel making ,blast furnace iron making,cupola oxygen blasting and heating and cutting, etc
- Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our environment.-Water process: For oxygen aeration active mud processes, reaeration of surface water. fishes breed aquatics,industrial oxidation process, humid oxygenation.-Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.
Our Advantages

1.Advancement
CBO series PSA oxygen generator raw material is air , oxygen is produced and used on site. No need to be transported or filled.
Advanced PLC touch screen control and display, fully automatic operation, can be unmanned management.2.Economical
CBO series PSA oxygen generator is physical principles, air as raw material, low cost, economical and environmentally friendly.3.Safety
PSA technology through physical methods to produce oxygen at normal temperature and low pressure. No transportation link reduces
potential safety hazards.
Product Features
- Full Automation
All systems are designed for un-attended operation and automatic Oxygen demand adjustment.-Lower Space Requirement
The design and Instrumentation makes the plant size very compact, assembly on skids, prefabricated and supplied from factory.-Fast Start-up
Start-up time is about 30 minutes to get desired Oxygen purity. So these units can be switched ON & OFF as per
Oxygen demand changes.-High Reliability
It's very reliable for continuous and steady operation with constant Oxygen purity. Plant availability time is better than 93% always.-Zeolite Molecular Sieves Life
Expected Zeolite Molecular Sieves life is more than 10-years i.e. whole life time of Oxygen plant. So no replacement costs.-Low investment and energy consumption
Product Parameters

1. Are you manufacturer or Trade Company?We are the manufacturer of Oxygen Generator, founded in 20052. What's the order oxygen generator process?a. Inquiry---provide us all clear requirements.b. Quotation---official quotation form with all clear specifications.c. Contract confirmation---provide correct contract details.d. Payment termse. Productionf. Shippingg. Installation and commissioning3.What terms of payment you use?T/T, L/C etc.4. How to get a prompt quotation of Oxygen Generator?When you send the inquiry to us, pls kindly send it with below technical information.1) O2 flow rate: _____Nm3/hr( or How many cylinders do you want to fill per day(24hours))2) O2 purity: _____%3) O2 discharge pressure: _____Bar4) Voltages and Frequency : ______V/PH/HZ5) Application:6) Project Location:
