Anti-static Access
Floor-HPL Panel
Product Description

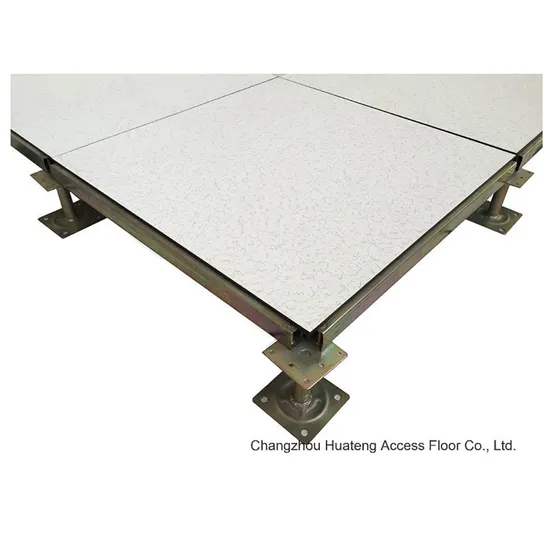

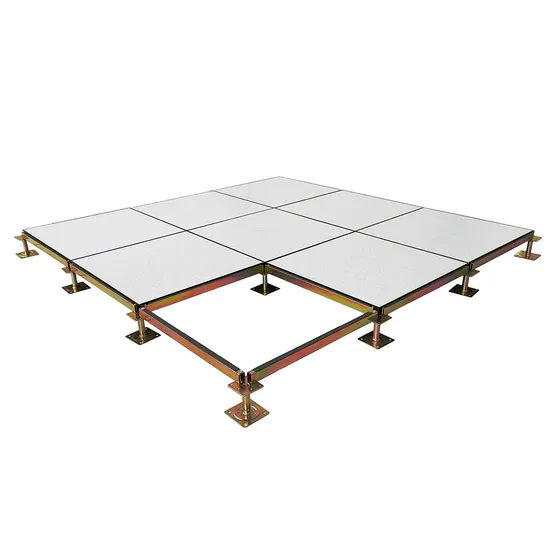

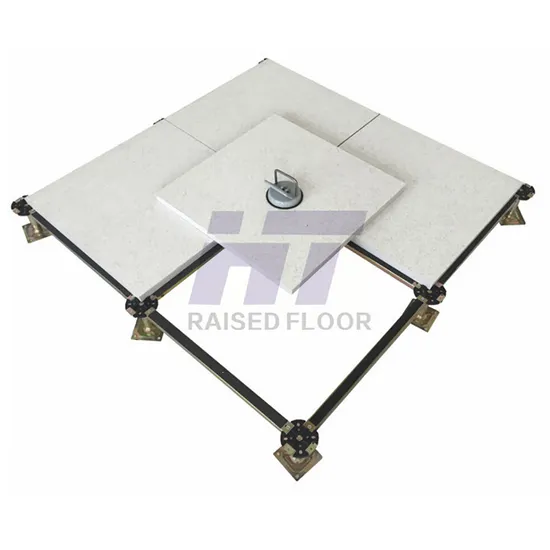

Anti-static Access Floor-HPL Panel:

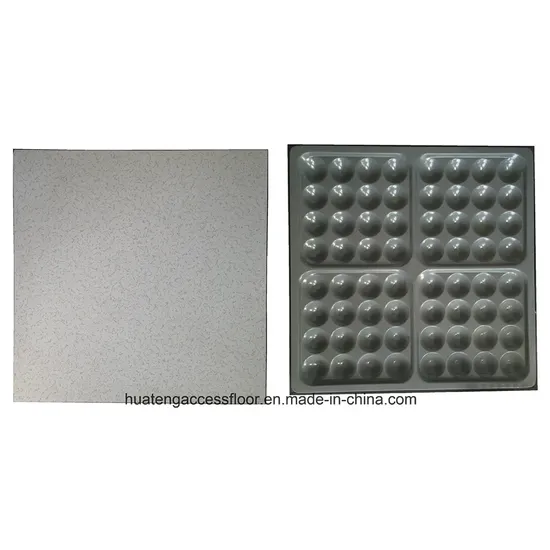

HT Well Design Data Center HPL Covering Steel Raised Floor is made of good quality cold-rolled steel sheet, which is stretched, spot-welded, and coated with epoxy powder after having been phosphoreted. There is foaming cement fully filled. The surface is stuck with High Pressure Laminate (HPL) or Conductive PVC tile. The borders are trimmed with conductive rubber edges.Anti-static Access Floor-HPL Panel
Characteristics:
--Excellent antistatic performance
--Flame retardant, antiskid, antirust, antisoil
--Mighty glue, strong wearability, non-bubble, non-degumming
--Class A flame spread and smoke development rating
Detailed Photos
Show details:
Zinc Galvanized Pedestal&Stringer
Hot-dipped Galvanized Pedestal&Stringer
Product Parameters
Technical Paramter
of
Anti-static Access Floor-HPL Panel
Type
Size
Uniform load
Concentrated load
Rolling load
Impact load
Ultimate load
0.100''/2.5mmDEFLECTION
10PASS
10KPAAASS
FS662
600*600*34mm
14.71KN/
2.94KN
300KG
2.45KN
2.00KN
100LB/45KG
8.85KN
610*610*35mm
FS800
600*600*34mm
17.78KN/
3.56KN
363KG
2.94KN
2.45KN
100LB/45KG
11.25KN
610*610*35mm
FS1000
600*600*34mm
22.22KN/
4.45KN
454kG
3.56KN
2.67KN
150LB/68KG
14.50KN
610*610*35mm
FS1250
600*600*34mm
27.78KN/
5.56KN
567KG
4.45KN
3.56KN
150LB/68KG
18.36KN
610*610*35mm
FS1500
600*600*34mm
33.34KN/
6.68KN
680KG
5.56KN
4.45KN
175LB/68KG
22.17KN
610*610*35mm
FS2000
600*600*34mm
44.45KN/
8.89KN
907KG
6.67KN
5.56KN
175LB/79KG
29.42KN
610*610*35mm
Application Scenario
Computer room, data center, control room, laboratory, office building, bank, post telegraph, power control center, workshop and places where require antistatic environment or have many wires.Our Advantages
