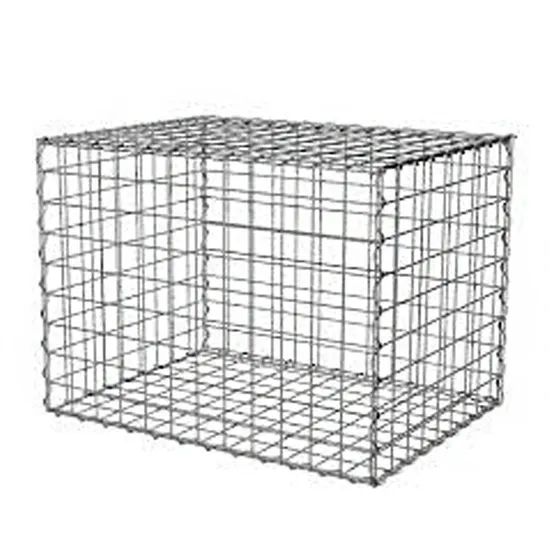

GABION BOX

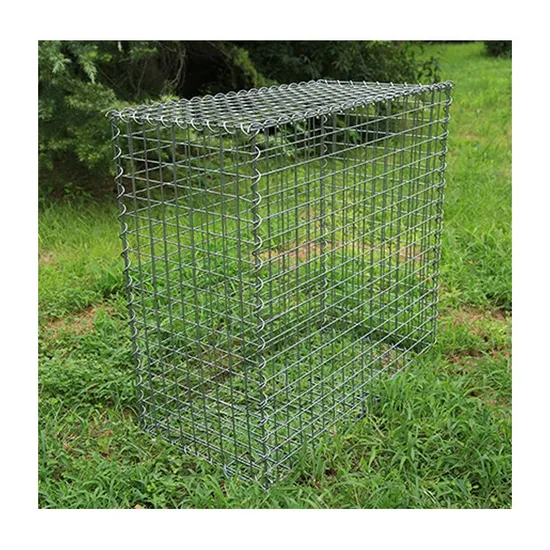

Gabion boxes are mechanically woven from low-carbon steel wires with high corrosion resistance, high strength and ductility or PVC-coated steel wires. The box-shaped structure made of this mesh is a gabion box.Gabion mesh is an iron wire or polymer wire mesh format that holds the stone filling in place. A wire cage is a structure made of a mesh or welding of wire.Run Can
: specializes in the production of gabions, with complete division of labor, rich production experience, and many years of export experience. We can customize production according to your needs.
GABION BOX MESH INTRODUCE:

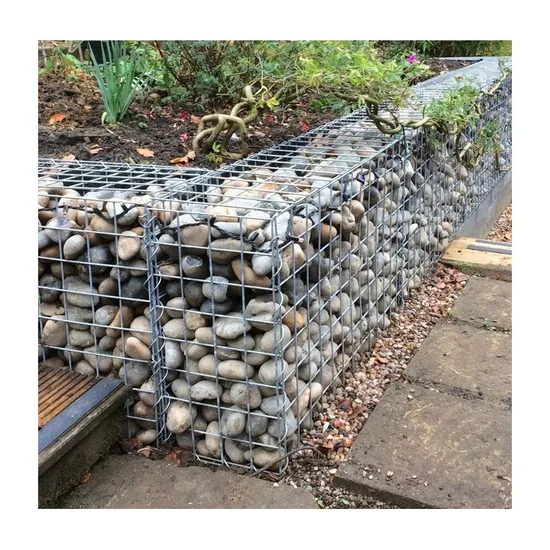

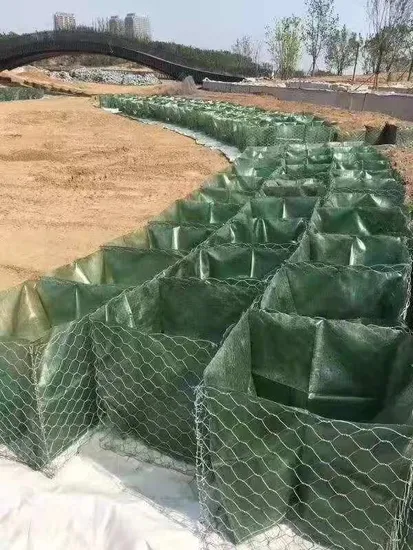

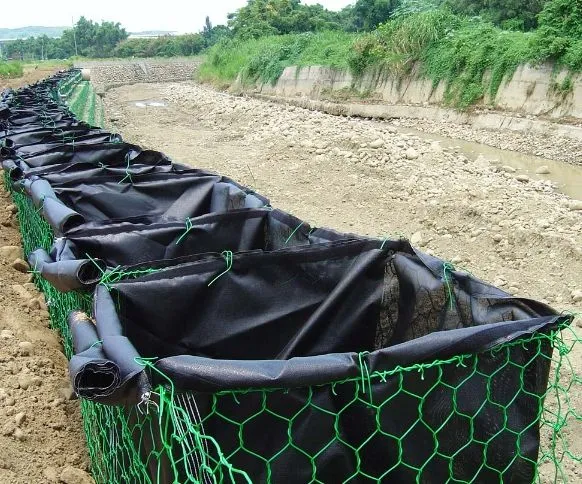

In garden landscape projects, highway slope protection, dam bank protection and greening of steep mountain slopes have always been difficult problems in the project.Ecological gabion box: It can not only meet the stable protection requirements of mountains and beaches, but also achieve the effect of greening the environment. It is also economical and convenient.Application process is high-strength galvanized steel wire is woven into rectangular cages of different specifications, and the cage is filled with stone structures. After this structure is applied to bank slope protection, the gaps between the stones are continuously filled with soil under the dual effects of man-made and natural factors. Plant seeds gradually take root and sprout in the soil between the stones, and grow vigorously, with roots firmly fixing the stones and soil. In this way, the purpose of slope protection and greening can be achieved, and the effect of improving ecology and preserving soil and water is also very significant.PARAMETER:1. Size:2m x 1m x 1m; 3m x 1m x 1m;
4m x 1m x 1m;
2m x 1m x 0.5m;
4m x 1m x 0.5m
can also be produced according to customer requirements.2. Aperture:
60*80mm, 80*100mm, 80*120mm, 100*120mm, 120*150mm, 90*110mm
The length of the twisted part of the double wire shall not be less than 50mm to ensure that the metal coating and PVC coating of the twisted part of the steel wire are not damaged.
3. Wire diameter:
Gabion mesh is divided into three wire diameters-mesh wire, edge wire, and binding wire.(1)
The wire is 2mm-4mm
(2)
The edge wire is generally larger than the mesh wire, 0.5-1.0mm thicker than the mesh wire.(3)
The binding wire is generally smaller than the mesh wire, and the most common ones are 2.2mm.4. Steel wire tension:
not less than 38kg/m2 380N/mm5. Surface treatment:
(1)
Electro-galvanizing. The amount of zinc applied is 10g/m2. Poor corrosion resistance;
(2)
Hot dip galvanizing. The amount of zinc applied can reach 300g/m2. Strong anti-corrosion;
(3)
Galvan: zinc-5% aluminum-mixed rare earth alloy steel wire; zinc-10% aluminum mixed rare earth alloy steel wire. Super anti-corrosive;
(4)
PVC plastic coating. The thickness of the plastic coating is generally 1.0mm.6. Partition:
Add a partition every meter along the length of the gabion mesh.7. Size:
Can be customized according to standards.

ADVANTAGE:
1. The construction is simple, just put the stones into the cage and seal it.2. Low cost.Gabion mesh prices are extremely competitive.3. Good landscaping and protection effects. The ecological gabion cage technology uses a combination of engineering measures and plant
measures, which can effectively prevent water and soil erosion, achieve quick landscape results,make the landscape effect more natural and rich.4. Long service life, the ecological gabion cage process has a service life of decades, and generally does not require maintenance.5. The flexible structure can adapt to changes in slope without being damaged, and has better safety and stability than rigid structures;
6.Strong resistance to water erosion;
7. It is water-permeable and inclusive, conducive to the growth of natural plants and gradually restores the original ecological environment;
8. This product can be combined into a flexible whole, which is convenient, fast, efficient and has good economic performance during construction
and throwing.
