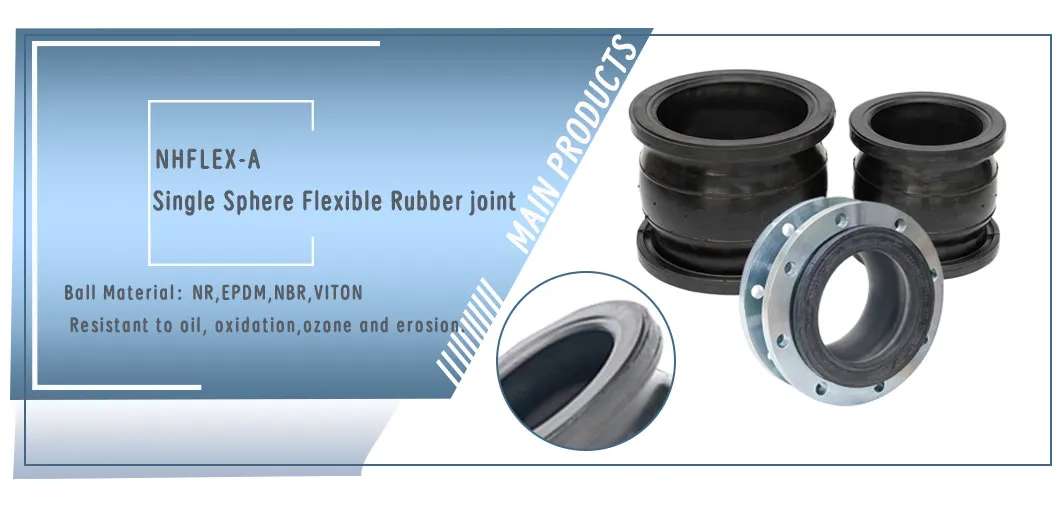

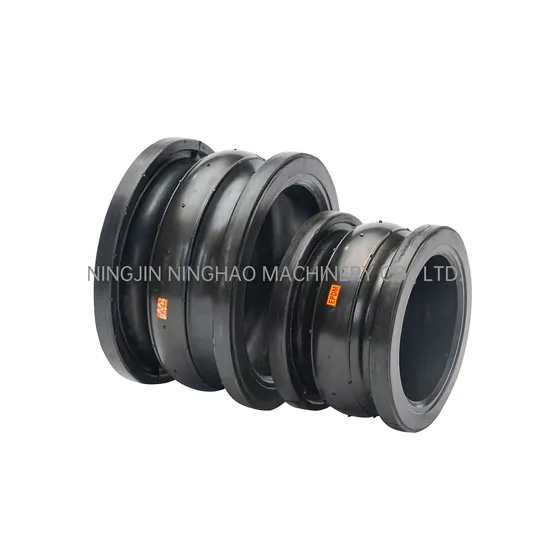

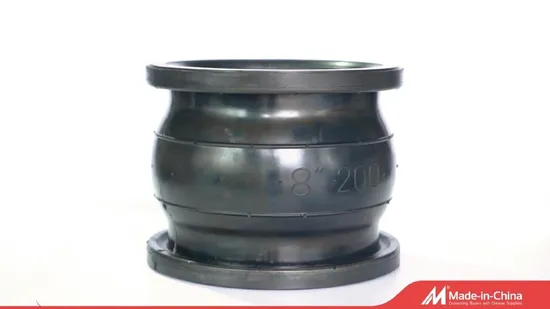

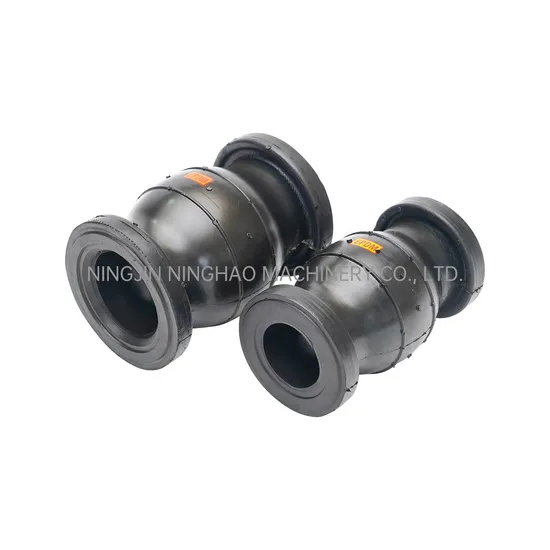

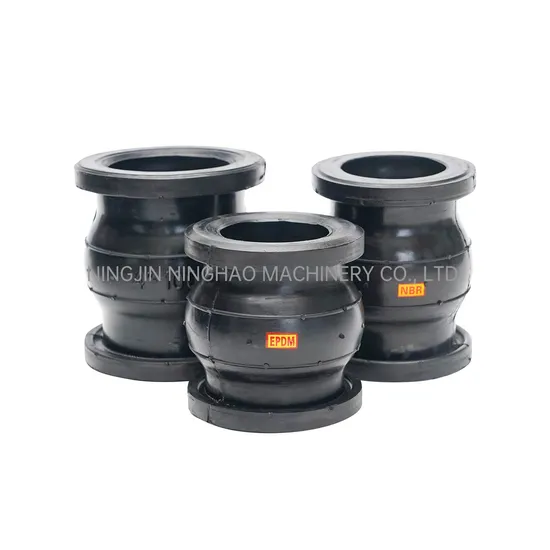

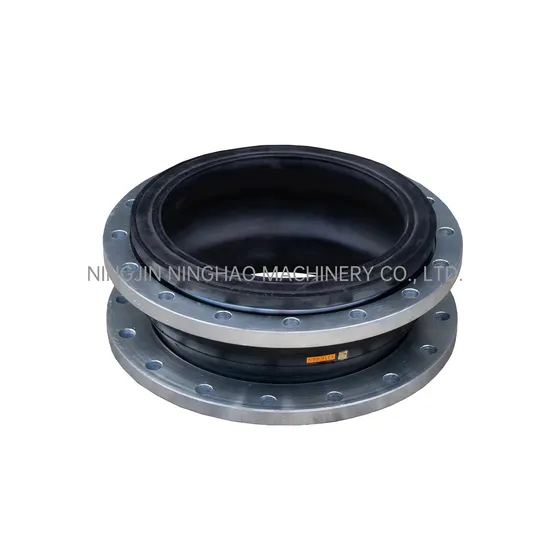

NHFLEX-A TYPE Flanged Single Ball Single Sphere Flexible Rubber Expansion Joints
Rubber joint features:Small size, light weight, good elasticity, easy installation and maintenance
Rubber joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints,
are mainly used in pipelines with large vibration and frequent changes of heat and cold, which can absorb the vibration generated by the work of the pump, thus reducing the noise and avoiding the loosening of the screws, and thus are also called shock absorbers or vibration dampers.Rubber flexible joint is a kind of pipeline connection parts, can connect two different materials, different straight through or different axis of the pipeline. Rubber flexible joint can relieve the pipeline system due to thermal expansion and contraction, frequent vibration and other reasons caused by pipeline deformation, displacement and other problems, so as to protect the safety operation of the pipeline.When working, it can reduce the noise transmitted by the structure, with strong shock-absorbing ability. Rubber joints have good comprehensive performance and are widely used in marine industry, chemical industry, construction, plumbing, fire fighting, electric power and other basic projects.
Application:
Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc. Pipeline

NHFLEX-A TYPE Flanged Single Ball Single Sphere Flexible Rubber Expansion JointsRubber joint features:Small size, light weight, good elasticity, easy installation and maintenance
Rubber joints consist of inner and outer rubber, cord layer and traveler, which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints,
are mainly used in pipelines with large vibration and frequent changes of heat and cold, which can absorb the vibration generated by the work of the pump, thus reducing the noise and avoiding the loosening of the screws, and thus are also called shock absorbers or vibration dampers.Rubber flexible joint is a kind of pipeline connection parts, can connect two different materials, different straight through or different axis of the pipeline. Rubber flexible joint can relieve the pipeline system due to thermal expansion and contraction, frequent vibration and other reasons caused by pipeline deformation, displacement and other problems, so as to protect the safety operation of the pipeline.When working, it can reduce the noise transmitted by the structure, with strong shock-absorbing ability. Rubber joints have good comprehensive performance and are widely used in marine industry, chemical industry, construction, plumbing, fire fighting, electric power and other basic projects.Application:
Water, Sea Water, Fresh Water, Warm Water, Weak Acid Fluid, Soda Fluid, etc. PipelineCharacteristics:
Product Parameters
Standard Specification:
Component Parts:
NHFLEX-A TYPE Rubber Joint Size Chart:
* Supply range can be up to DN3000, detailed data can be offered upon request.Control units must be used when piping is not properly anchored.The rated pressure can be above 2.5MPa, but products will only be sold with control units.Pressure rating is based on 30ºC operating temperature. The pressure rating is reduced at higher temperatures.Rated pressure in the above table is the maxlmum "working pressure". Test pressure is 1.5 times "working pressure", Burst pressure is 4 times "work pressure".

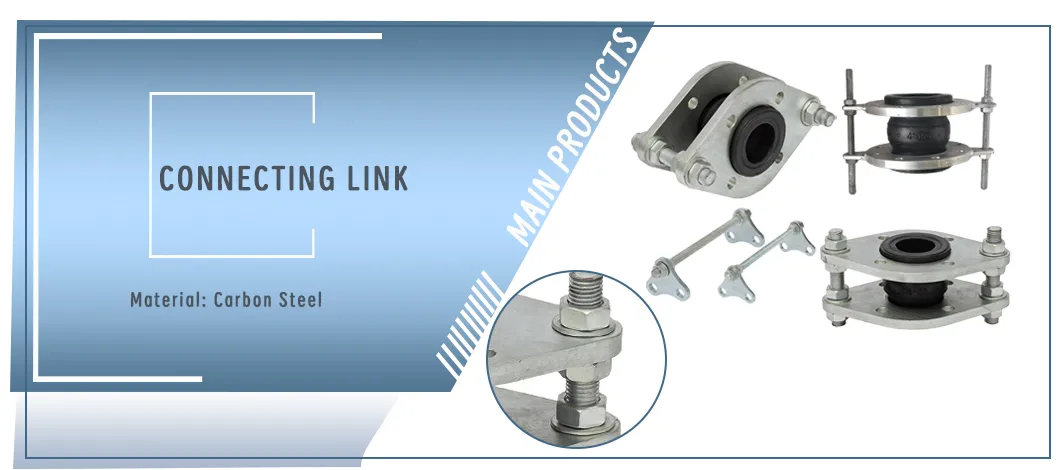

Main Products

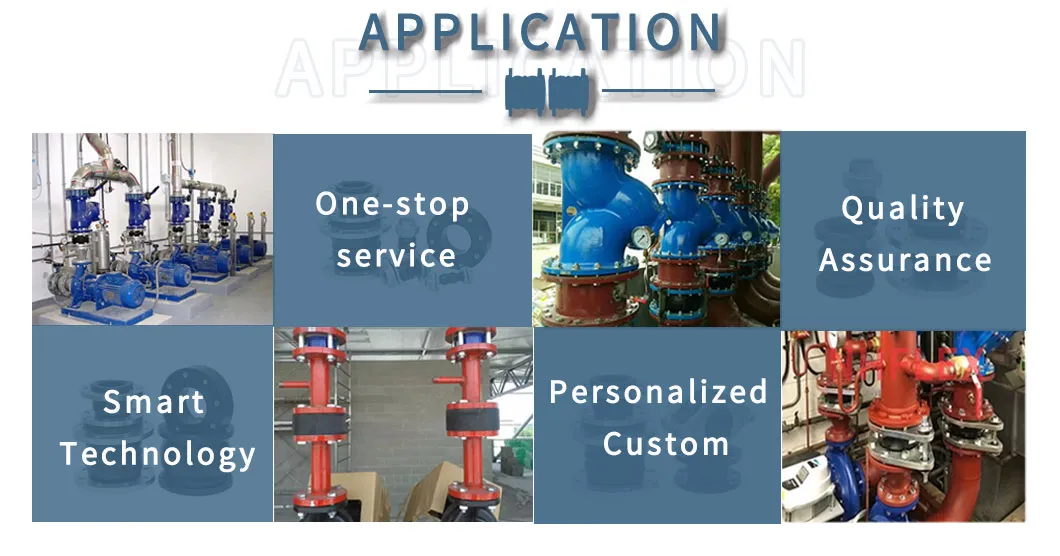

Application
Compensating for Thermal Expansion and Contraction: Rubber expansion joints compensate for thermal expansion and contraction caused by temperature variations in the pipeline. They prevent excessive stress on the pipeline system due to temperature changes, thereby protecting the pipes from damage.Absorbing Vibrations and Impacts: Rubber expansion joints absorb stresses caused by vibrations and impacts in the pipeline system, reducing the transmission of vibrations and noise. This helps protect the pipeline and related equipment from damage.Compensating for Pipe Movements: During installation and operation, pipeline systems may experience certain degrees of pipe movement. Rubber expansion joints compensate for these movements, ensuring the proper functioning of the pipeline system.Leak Prevention: Rubber expansion joints provide sealing performance in pipeline systems, reducing the risk of leaks and ensuring the safe operation of the pipelines.

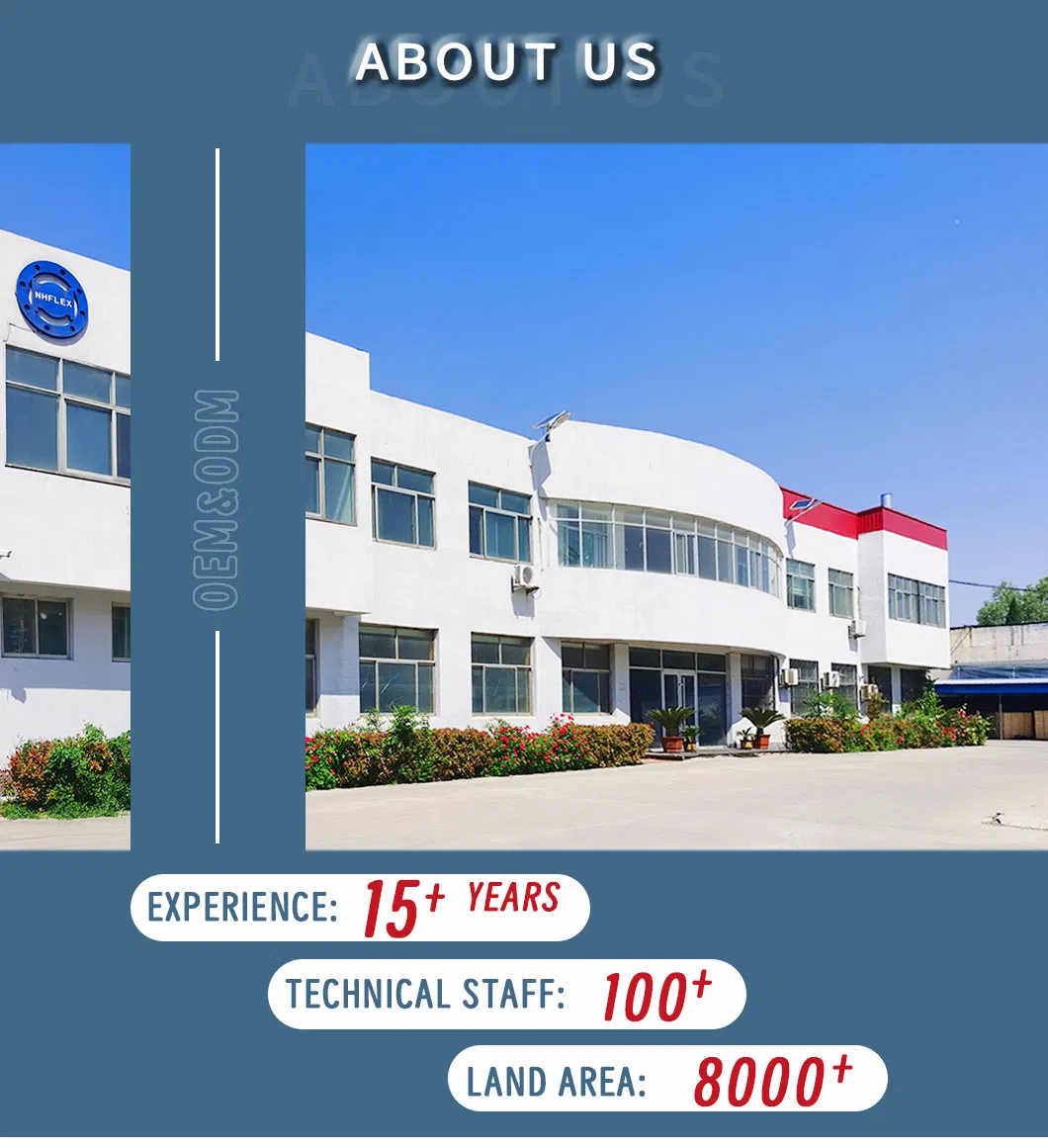

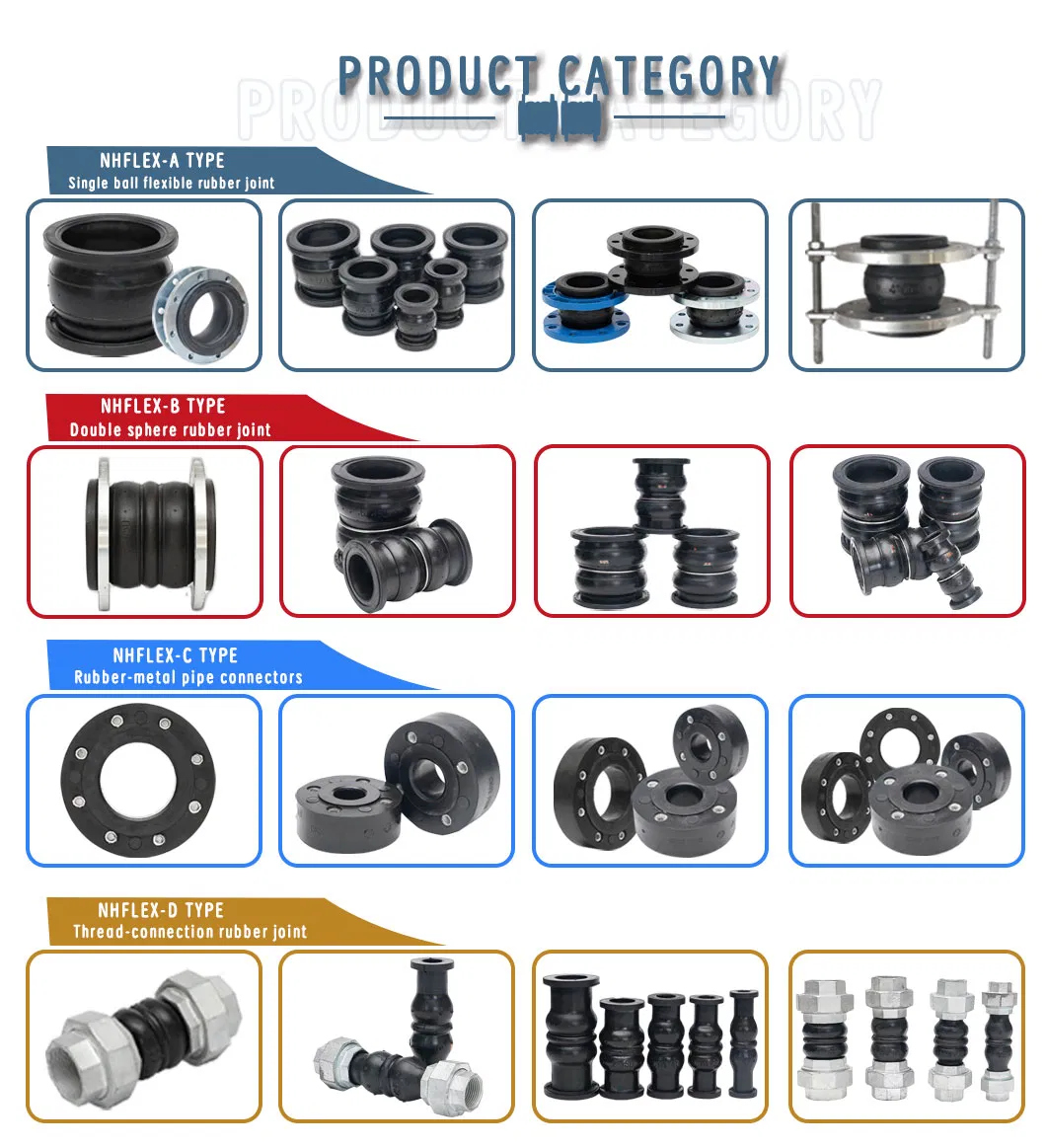

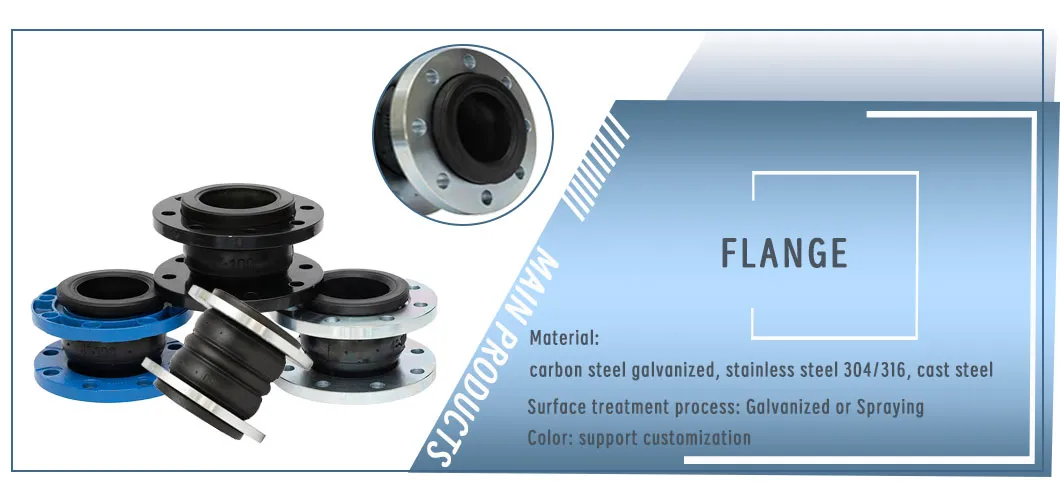

Ningjin NINGHAO Machinery Co.,Ltd. Founded on No November 19, 2010. It is located in No.2 taishan road, econnmic and technological development zone, ningjin county, dezhou city, shandong province. It covers an area of 120 acres, with more than 80 employees, among has all kinds of advanced production and inspection equipment.We can offer all kinds of rubber expansion joints. Our products include: single ball flexible rubber expansion joint, double sphere rubber expansion joint, rubber-metal pipe connectors, thread-connection rubber expansion joint and tie rods set for rubber expansion joint. Rubber expansion joint main material: EPDM ,NBR ,NR, FR. The standard of the flange: ANSI150, DIN, JIS10K. The flange material: carbon steel, stainless steel, casting steel.
We have been in exporting for many years. We have wide business relations in the world. Now the main supply countries: Spain, Italy, Netherlands, Austria, French, Vietnam, India and many other countries. Our customers and clients all think highly of us.
Last, looks forward to the cooperation with you sincerely!
