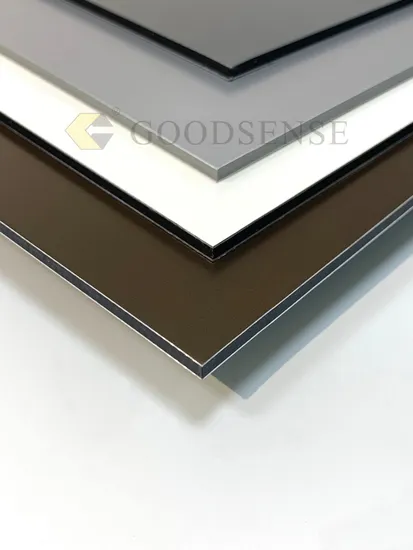

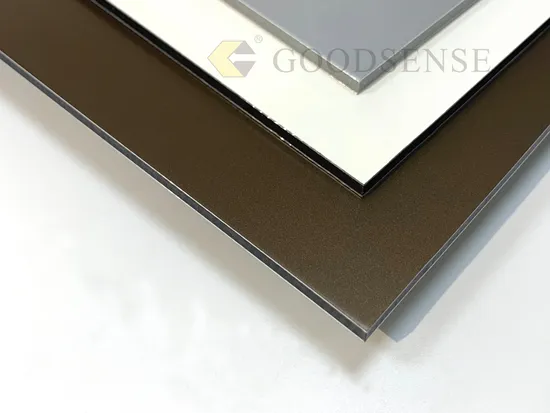

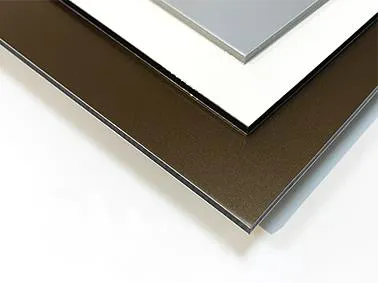

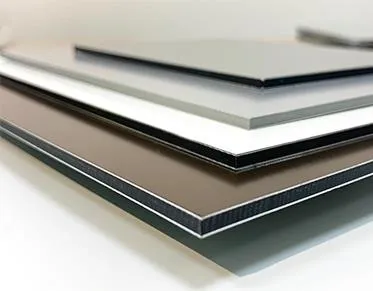

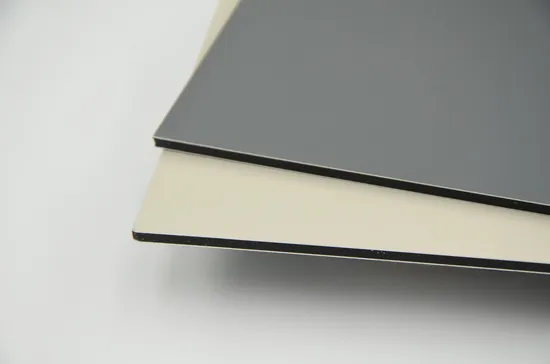

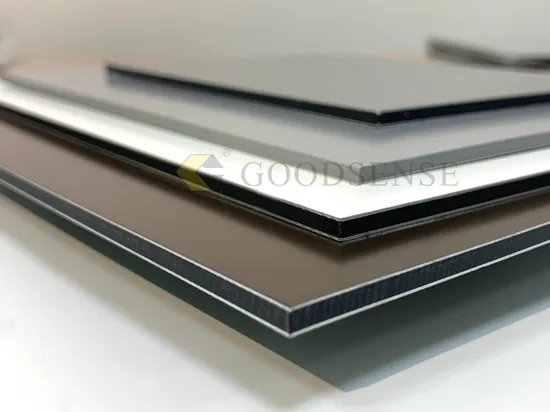

Aluminum Composite Panel
Widely used, bendable, foldable, various colors and styles
Product Specifications
Thickness: 3mm, 4mm (1mm,1.5mm, 2mm, 5mm is also available)
Width: 1,220mm - 1,600mm
Length: 2,440mm (or customized)
Thickness of Aluminum: Aluminum Thickness 0.12/0.12mm for Board Thickness 3mm
(Or
Customized from 0.05/0.05mm-0.21/0.21mm)
Aluminum Thickness
0.40/0.40 for Board
Thickness 4mm (Or Customized from 0.08/0.08mm-
0.50/0.50mm)
Coating: PE Coating for Board Thickness 3mm (Or Customized)
PVDF Coating for Board Thickness 4mm Nano coating is availabe
Length: 2440mm (can be customized)

Product Introduction

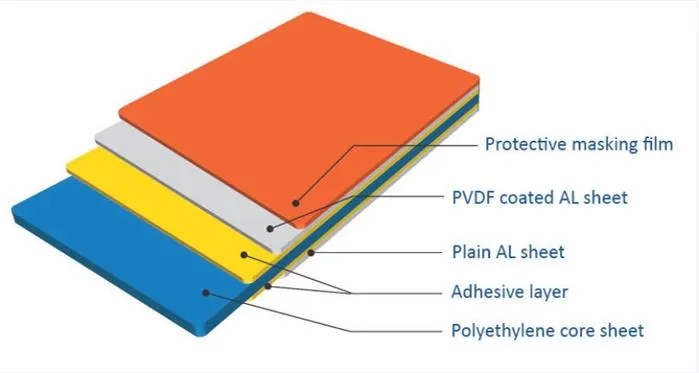

The product incorporates modified polyethylene plastic core
layer in the middle that is nontoxic, enclosed with nonflammable
aluminum layers on both faces, and coated with fluorocarbon resin
(PVDF) or PE coating on its surface, featuring high brightness,
flatness, elegant surface coating, strong intention, lightweight,
superexcellent forming performance, durable, simple, quick
processing & installation and outstanding fireproof performance.
For protection, a protective film is used to cover the surface of
finished product.
Product Mix

COLORS

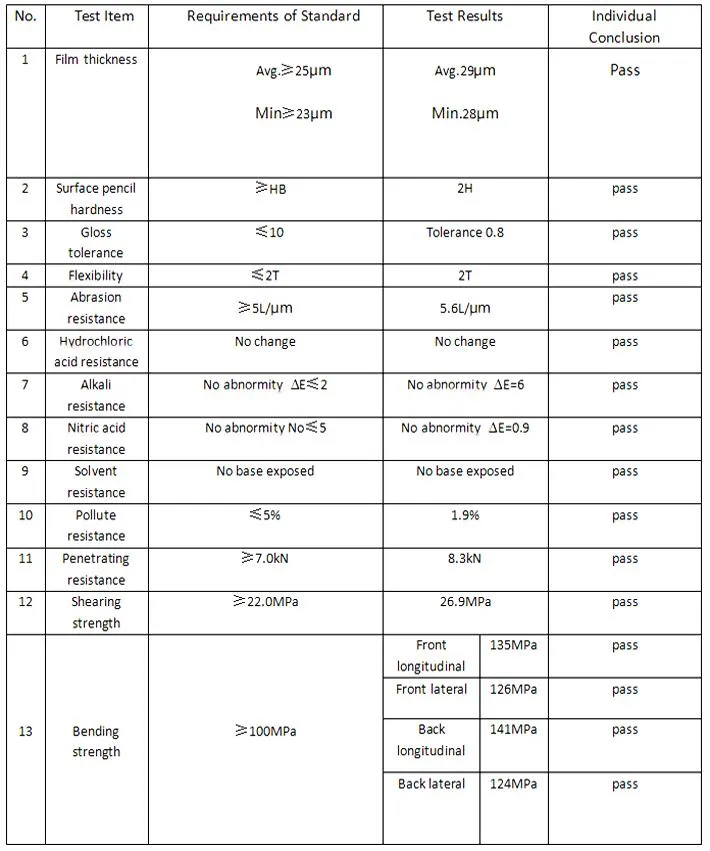

Technical Data

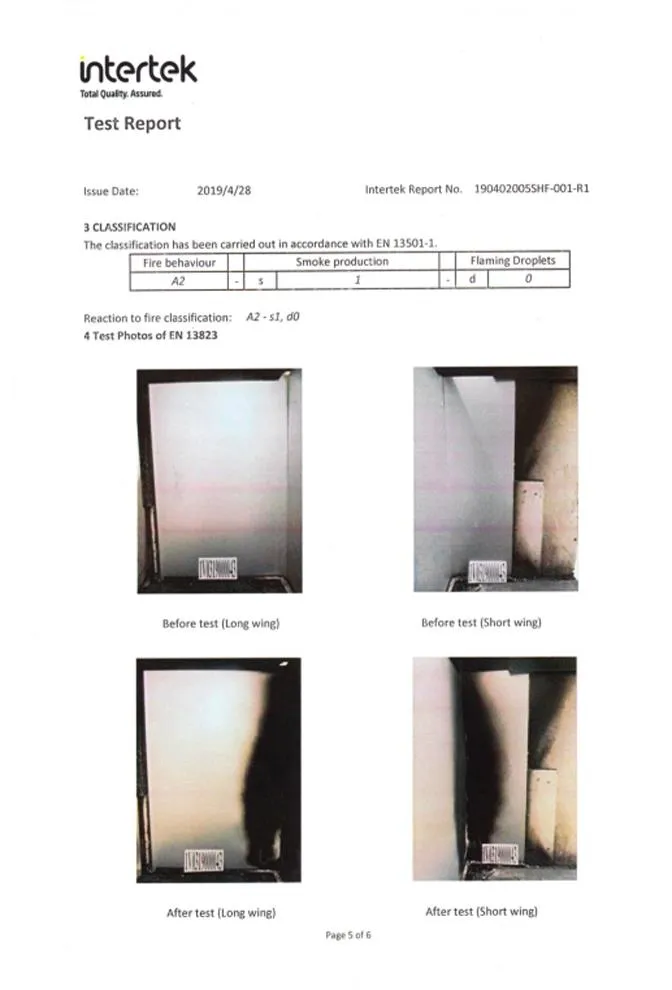

Fire Classification

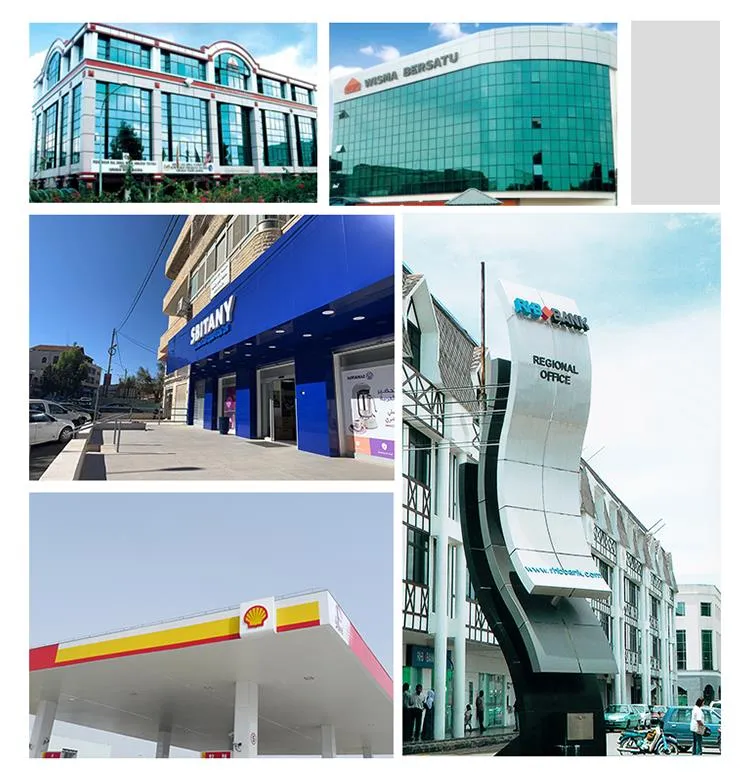

Applications

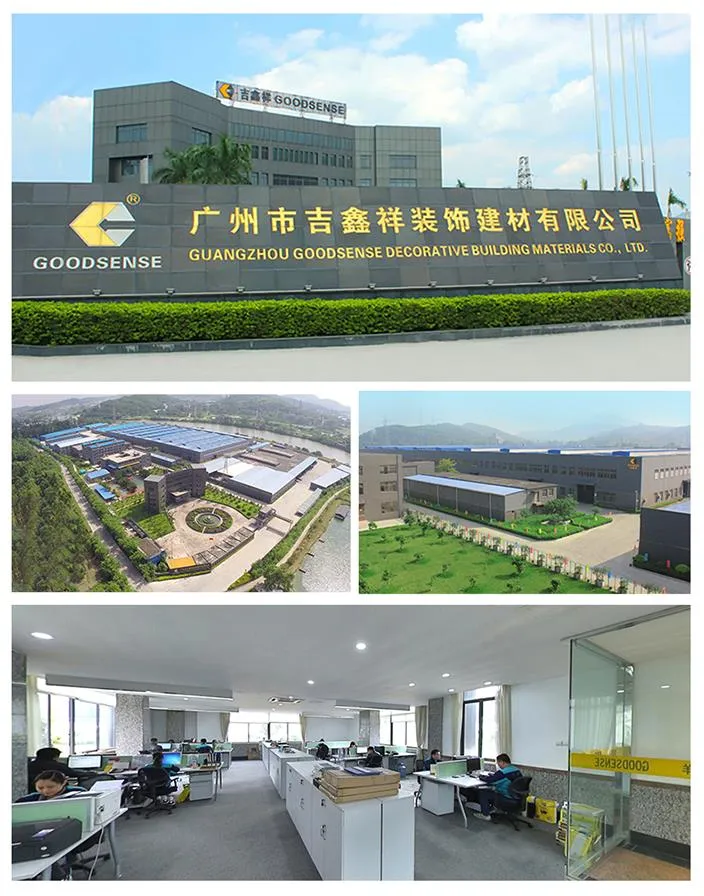

Company Information
Professional Expert Of Aluminum Composite Panel

Guangzhou Goodsense Decorative Building Materials Co., Ltd.
Is one of the biggest decorative building materials enterprises in China.
Specialized in producing decorative building materials such as Aluminum Composite Panel,
Aluminum Core Composite Panel, CEP Board, ACP Tiles, PVC Wall Panel. Our company was founded in 1996. The factory covers an area of 140000 square meters.

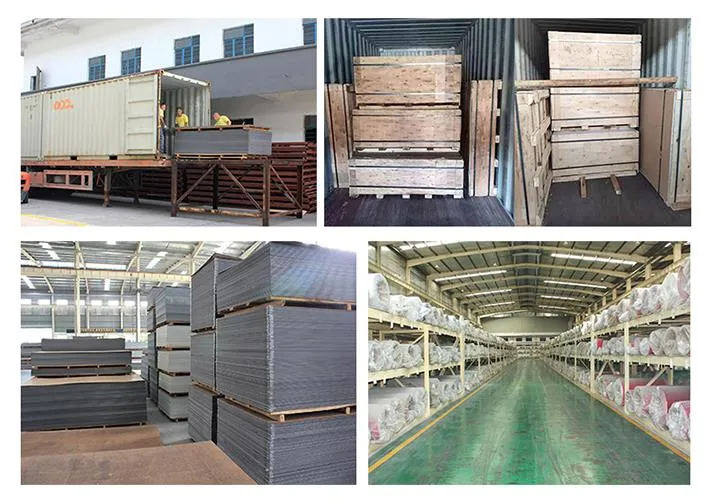

Production Packaging

Company Honor

Goodsense is one of the first enterprises through the ISO9001/14001 International Quality
and Environmental Management System,
Products tested by SGS, with every performance indicators fully meet the national standards.
Our company participates in Aluminum Composite Panel national standard,
