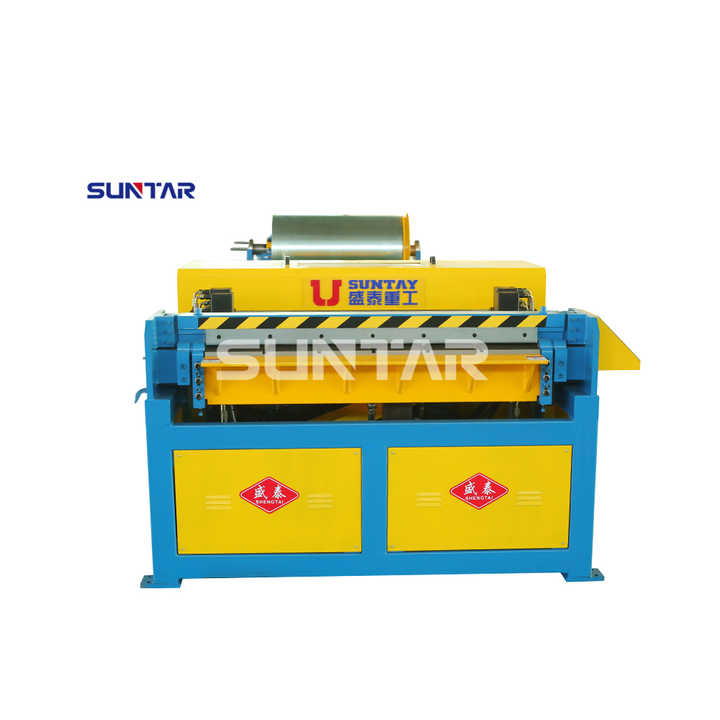

Duct Manufacture Auto-Line 3 duct making machine

Preview

Basic Info.Product Description

Basic Info.

Power	8KW
Sheet Thickness (mm)	0.5-1.2mm
Core Components	PLC, Engine, Motor
Weight	3500 kg
Place of Origin	Anhui, China
Warranty	1 Year
Key Selling Points	High Safety Level
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Brand Name	SUNTAY
Dimension(LWH)	2200X1950X1300mm
After Warranty Service	Video technical support, Online support
Coiler max weight	7000kg
Name	Auto Duct Line 3
Material Width	1250/1500mm
Voltage	220/380/440v/Customized
Raw material	Iron Steel
Certification	ISO CE
Model	ADL-3-1500
Production Capacity	15m/min
Application	Energy Supply Pipe

Product Description

Preview

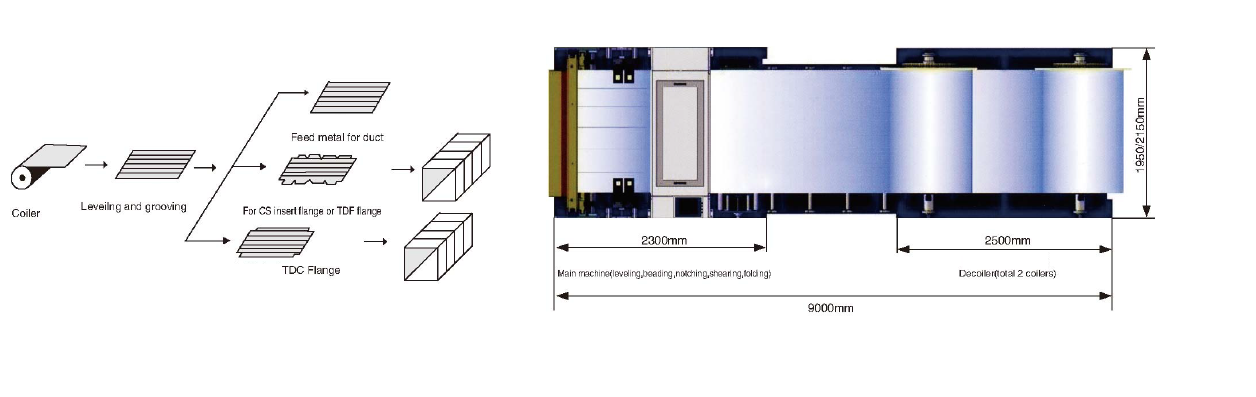

Woking Schematic Digram

Preview

FunctionDuct production line 3 can drive blanking for duct. Meantime, it’s very suitable for multi-production like TDF/anglesteel/inserted flange forming; the angle steel flange and inserted flange can be bent into square-shaped pipe automatically. Performance Features *Aluminium alloy suspension arm makes the machine easy to operate. *The build-in control cabinet reduces wiring as a whole structure and makes it easy to move. *The imported configuration is very stable and comfortable to use. Main Import Configuration *Germany Siemens/Mitsubishi CNC system +Schneider electrical system *Beijing Huade or hydraulic system from Taiwa *Japan Omron encoder Basic Configuration* One electric coil cradle (two material trays)* One set of leveling and beading equipment* Hydraulic angle-shearing machine with four sets of die* Hydraulic sheet-shearing machine, hydraulic bending machine, hydraulic press machine* A set of CNC computer control system and production software

Main Technical Parameters
