PSA Oxygen Generator

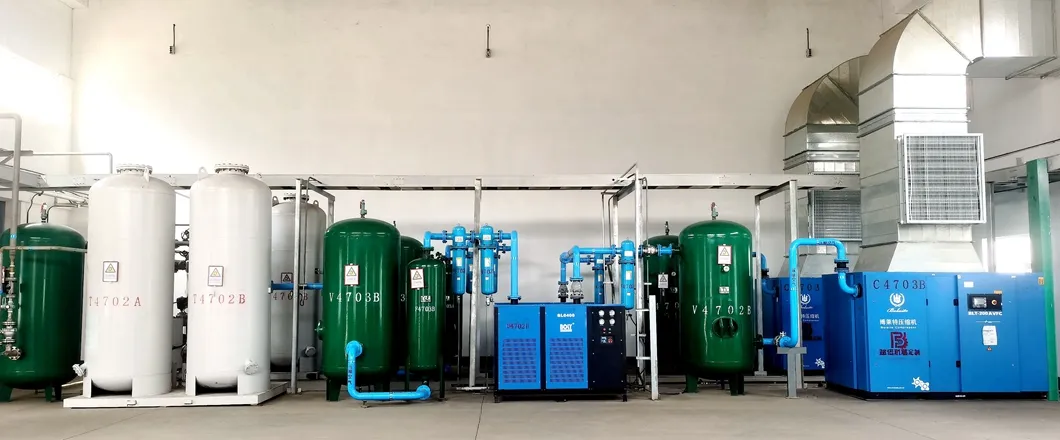

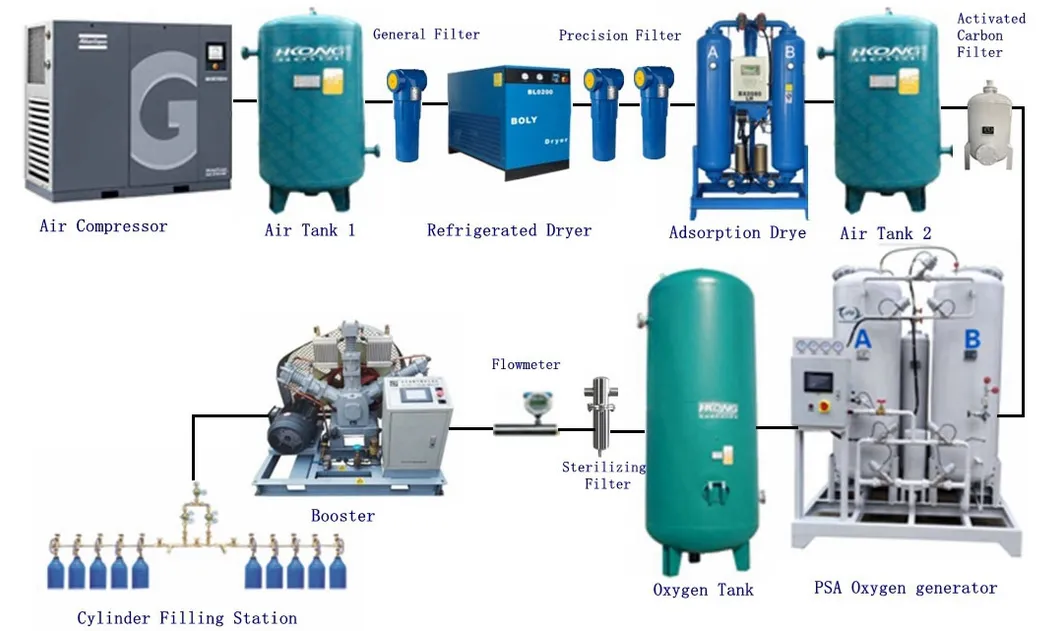

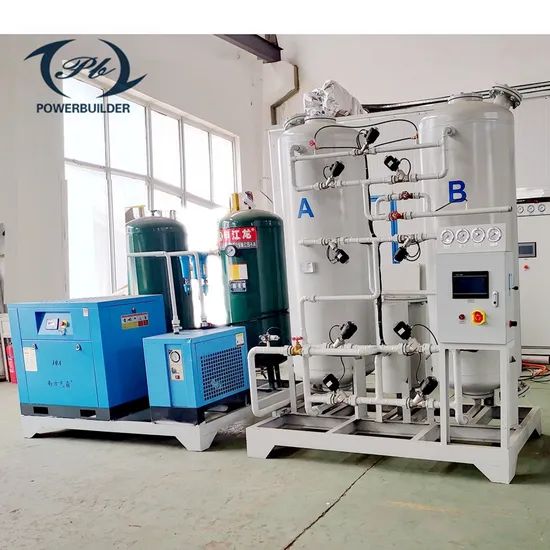

1.Description for PSA Oxygen PlantPSA Oxygen Plant
is consisted of the screw air compressor, air dryer, filters, buffer tanks, oxygen plant, electricity control system and the optional oxygen cylinder filling station. The complete system is installed and tested at factory, delivery to customer's turn-key project.PB containerized oxygen plant is removable, and makes the onsite installation and operation very easy. It can also save the cost for the decoration cost of the machine room.2. Main Features for PSA Oxygen Generator

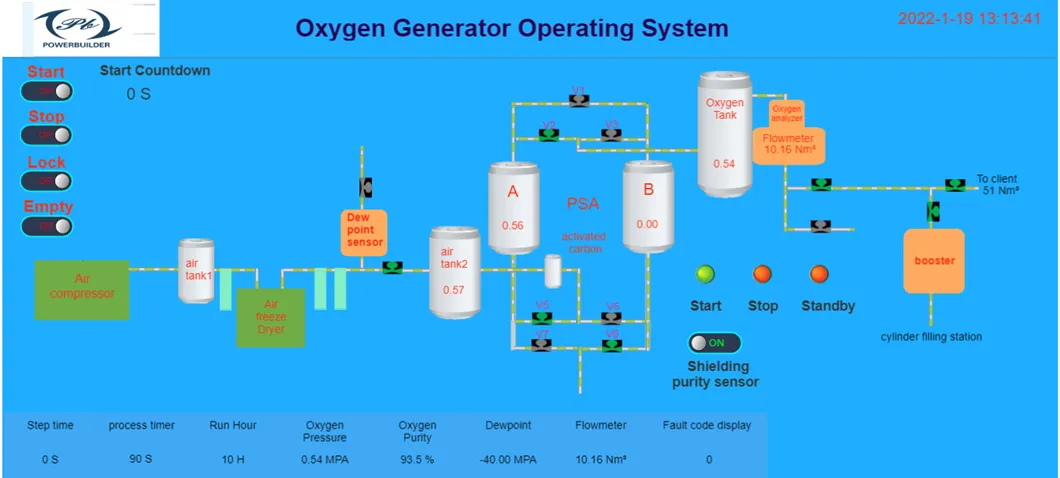

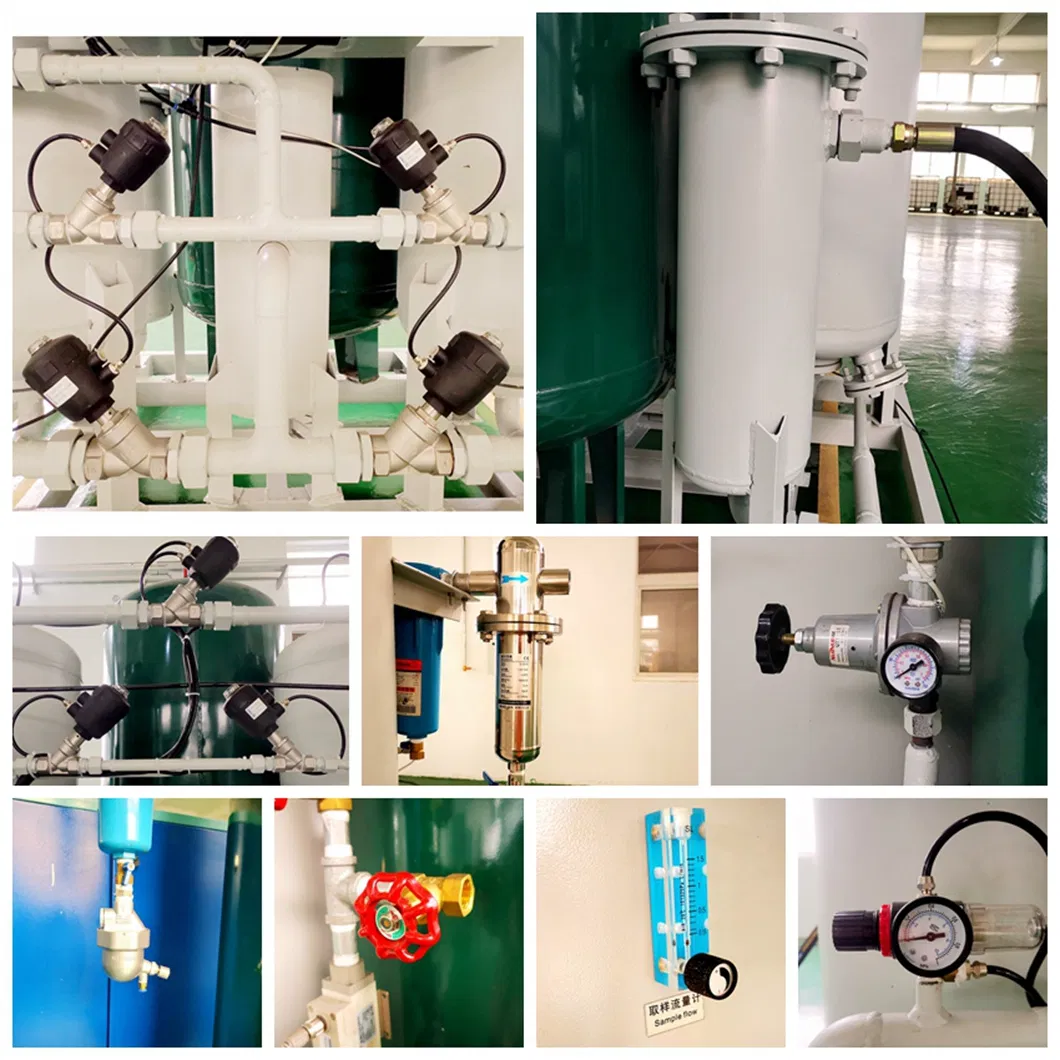

•Runs automatically without human intervention•Routine maintenance reminder and 10 years spares parts available•Complete support, from installation to debugging to training to support•End-to-end monitoring of pressure, purity, flow rate and alarm function.•Quiet, safe and energy efficient•Automatic discharge of unqualified gas•PID output function•Emergency Stop Control•All the tubing is in stainless steel bright tube ensuring a
bactericidal action
3.Working Principles for PSA Oxygen Generator
Air contains 21% Oxygen, 78% Nitrogen, 0.9% Argon and 0.1% other trace gases. Oxygen plant separates this oxygen from Compressed Air through a
unique process called Pressure Swing Adsorption. (PSA).The Pressure Swing Adsorption process for the generation of enriched oxygen gas from ambient air utilizes the ability of a
synthetic Zeolite Molecular Sieve to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the Zeolite, Oxygen Gas is produced as a

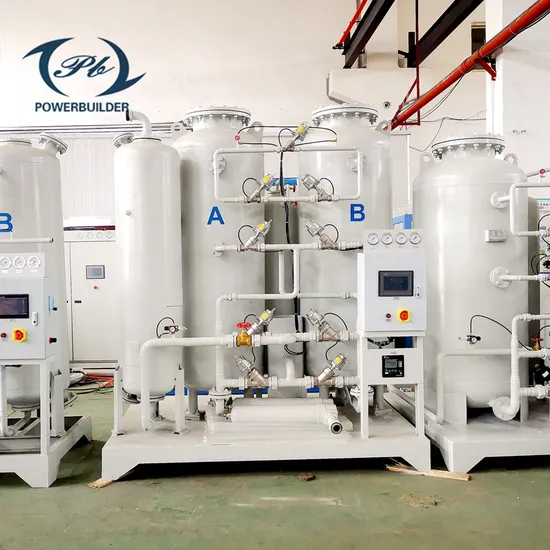

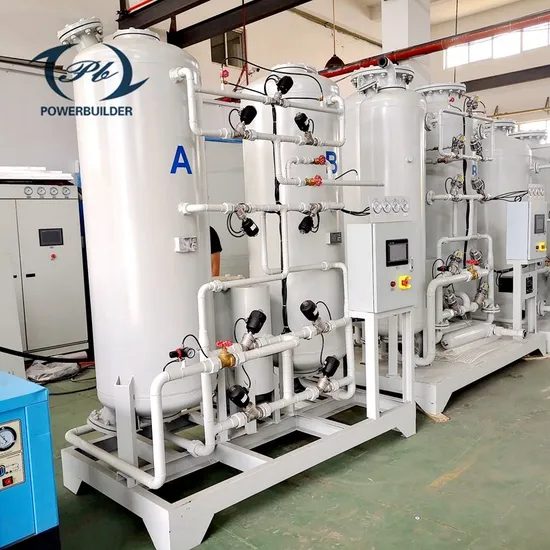

product.Oxygen generation plant's use two vessels filled with Zeolite Molecular sieve as adsorbers. As Compressed Air passes up through one of the adsorbers, the molecular sieve selectively adsorbs the Nitrogen. This then allows the remaining Oxygen to pass on up through the adsorber and exit as a
product gas. When the adsorber becomes saturated with Nitrogen the inlet airflow is switched to the second adsorber. The first adsorber is regenerated by desorbing nitrogen through depressurization and purging it with some of the product oxygen. The cycle is then repeated and the pressure is continually swinging between a
higher level at adsorption (Production) and a
lower level at desorption (Regeneration).-
Quality Control Process -PB use ERP management system, Which help plan and manage order information, from customer order to procurement, production, cost, inventory, distribution, transportation, finance. It universally helps to control and trace every process internally!- Our Service-
1. Setting trace file for every sold product, quarterly survey for every sold product.2. Providing remote instruction and training for free.3. Providing on-site services and repairs for free during warranty period
4. Spare parts and on-site service would be charged with best price after warranty period.5. 7*24 hours online service for free, solution within 48 hours.6. If customer required, assigning experienced after-sales engineer for on-site service with 7
days. (Visa apply should be considered)- After Sales Support -Warranty­­­­The Guarantee/Warranty Period shall be a
period of twelve months after on-site startup &
commissioning or eighteen months after shipment, whichever occurs first. If any trouble or defect, originating with the design, material, and workmanship or operating characteristics of any Goods, arises at any time during GUARANTEE/WARRANTY period, PB shall, at his own expense and as promptly as possible, make such alterations, repairs and replacements.On-Site Support
PB can do paid services of on-site startup, commissioning, installation supervision, training, by providing purchaser with the services of qualified English-speaking
engineer at step shall obtain all permits and l­­­­­icenses required to perform the services under this Agreement.PowerBuilder(PB), as a
global manufacturer of gas purification and industrial automation equipment system, was established in Y2015, with headquarter in Shanghai, China, and subsidiaries in USA, UK and Malaysia.The research and development field is mainly engaged gas purification system of PSA nitrogen generator, PSA oxygen generator, VPSA oxygen generator and Ultra Purity air purification system, as well as automation equipment, which including system integration, technical consulting, technical service, transfer and foreign trade. It is an in-depth cooperative enterprise of East China University of Science and Technology.PowerBuilder adheres to the tenet of &
AMP; AMP; AMP; AMP; Quot; Customer first, credibility wins, superior quality, good quality& AMP; AMP; AMP; AMP; Quot; ,

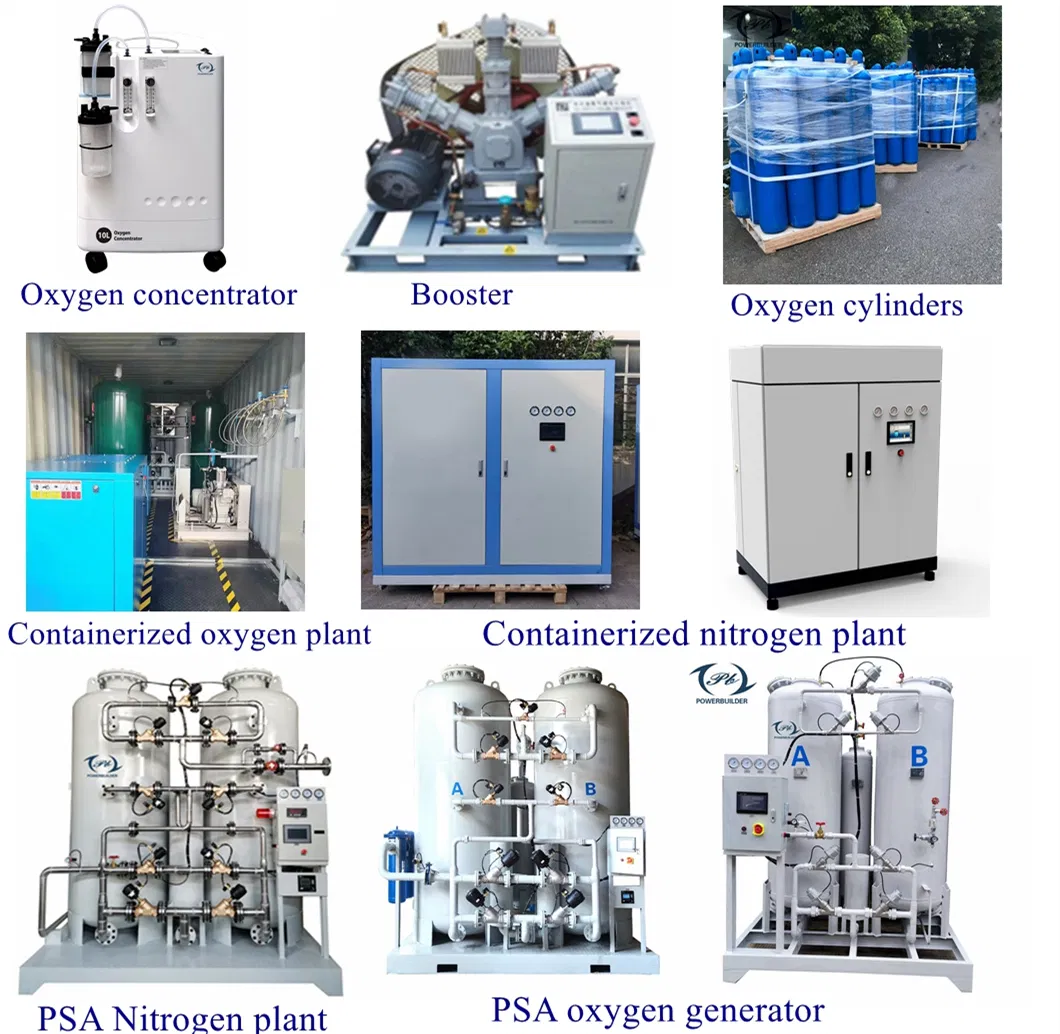

and serves customers with the best products and technologies.Power Builder has implemented quality management system EN ISO 9001: 2015, EN ISO 13485: 2016, and all our products are qualified Euro CE standards.Scope of business1. PSA Oxygen Generator2. PSA Oxygen Concentrator3. PSA Nitrogen Generator4. Customized Automation System5. Calibration/Test system6. Software/Hardware research and development7. InstrumentationCustomersHoneywell, AMTEK, Shanghai Automation Instrument,
University of Technology Sydney, Ocean University of China, etc.Power builder's customers are throughout the United States, Mexico, Brazil, Australia, Malaysia, Turkey, India, Nepal, Myanmar, Indonesia, etc.We committed to deliver effective, reliable and affordable solutions to meet our customers expectations, to continuously improve the quality of our products as well as provide high quality services related to installation, debugging and lifelong maintenance.PowerBuilder aims to be your reliable partner. We achieve this intention by our excellent technical team and supply chain team members, who all have had more than 10 years of experience in the professional field, and by our continuous improvement of management.1. Are you manufacturer or Trade Company?
We are the manufacturer of Oxygen Producing Machine and Oxygen Concentrator, founded in 2015, located in Shanghai Pudong district.2. How to get a
prompt quotation of Oxygen Producing Machine for Cylinder Filling?
When you send the inquiry to us, please kindly send it with below information.­­­­­
1) O2 flow rate: _____Nm3/h
2) O2 purity: _____%
3) O2 discharge pressure: _____Bar
4) Voltages and Frequency :
______V/pH/Hz
5) Application(Altitudes, Humidity):
3. What's the order process ?
a. Inquiry---provide us all clear requirements.b. Quotation---official quotation form with all clear specifications.c. Contract confirmation---provide correct contract details.d. Payment terms--- Negotiable.e. Production---mass production
f. Shipping--- by sea, air or courier. Detailed picture of package will be provided.g. Installation and debugging.4. What is the term of payment?
T/T, L/C etc.
